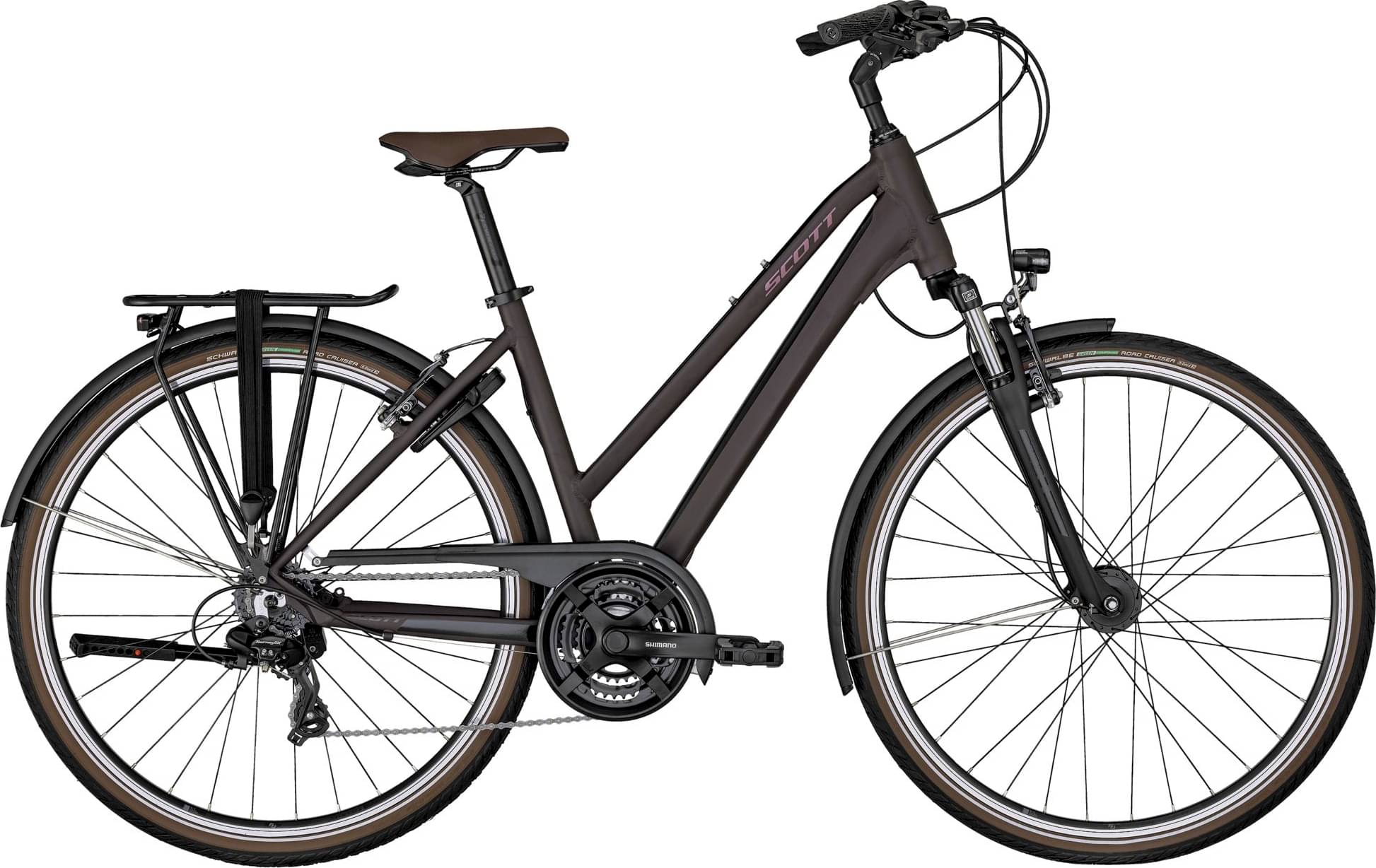

Scott Sub Comfort 20 Lady 2024
2024 Urban
Estimate price |
1,015$
Weight | 19 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour M 3010
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub Comfort 6061 Tig welding
Suspension Fork
Suntour M3010 / Coil / 63mm Travel
Drivetrain
Rear Derailleur
Shimano RD-TX800-SGS 7 Speed
Front Derailleur
Shimano Altus FD-TY601
Shift Levers
Shimano ST-EF41
Cassette
Shimano CS-HG200-7 12-28T Black
Crank
Shimano FC-TY301 C Black 48x38x28T
Bottom Bracket
VP-BC73C
Chain
KMC Z7
Pedals
Syncros SP-827
Wheels
Front Hub
Shimano DH-C3000 Dynamo 32h
Rear Hub
Shimano FH-TY500 32h
Rims
Cross X14; 32h
Spokes
Pillar Steel 14G
Tires
Rear: Schwalbe Road Cruiser 700x47c
Brakes
Brakes
Promax TX123
Brake Levers
Shimano ST-EF41
Cockpit
Stem
Syncros UC3.0 adjustable
Handlebar
HL NR-AL-16 W: 610mm Comfort
Headset
GW semi integrated
Seat
Saddle
Syncros Capilano
Seatpost
Syncros UC3.0 / 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.77 mm | 1.7 mm | 1.645 mm |
| Bottom Bracket Height | 289.5 mm | 289.5 mm | 289.5 mm |
| Front Center | 632 mm | 647 mm | 671 mm |
| Rake | 50 mm | 50 mm | 43 mm |
| Trail | 74 mm | 74 mm | 81 mm |
| Stack | 644.6 mm | 644.6 mm | 664.6 mm |
| Reach | 364.1 mm | 379.1 mm | 404.1 mm |
| Top Tube Length | 555 mm | 570 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 185 mm | 185 mm | 185 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1078 mm | 1093 mm | 1118 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 681 mm | 678 mm | 680 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
