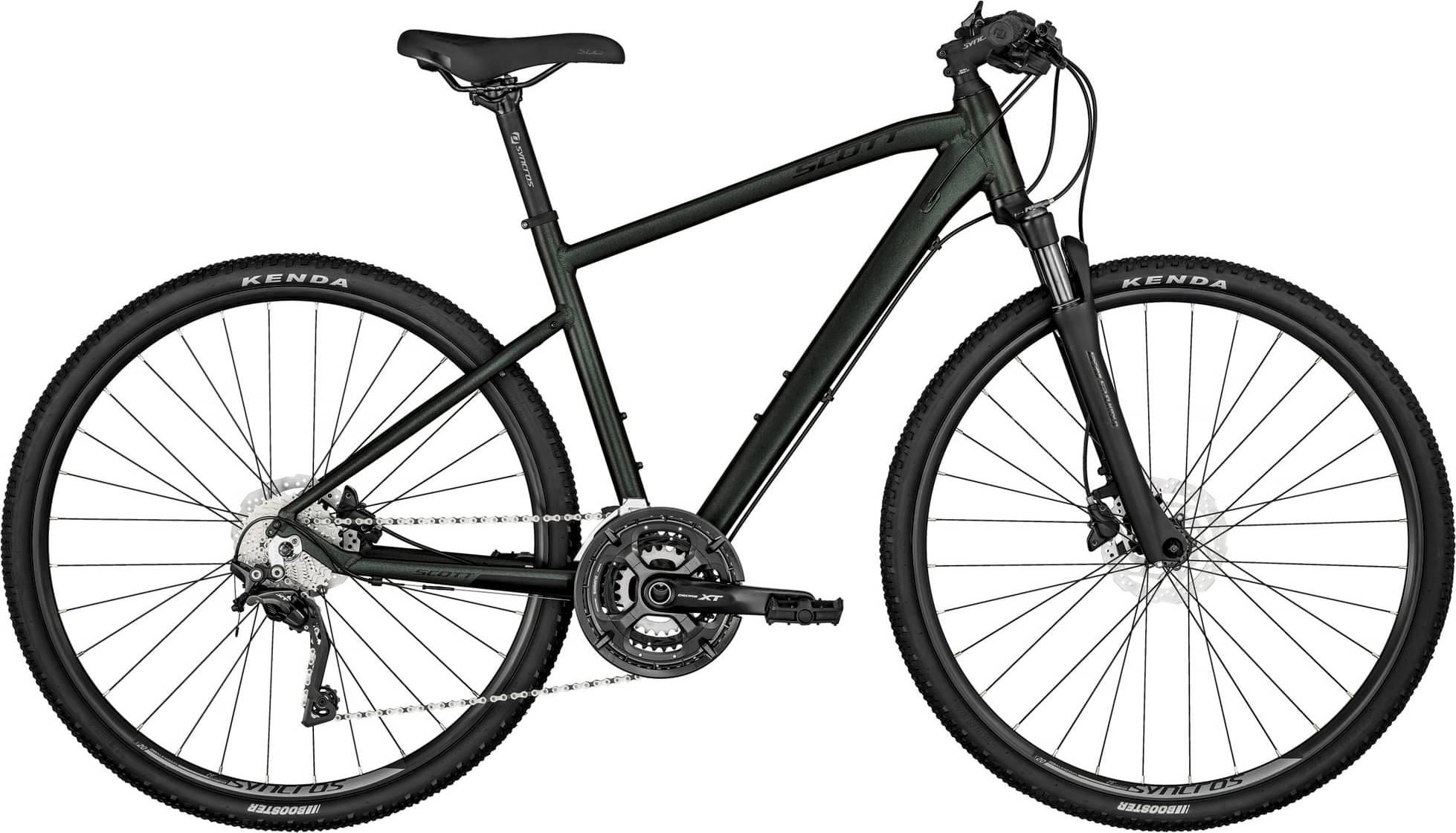

Scott Sub Cross 10 Men 2024
2024 Urban
Estimate price |
1,404$
Weight | 12.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub Cross Alloy 6061 / Custom butted tubing / Internal cable routing / Sub Cross Men/Lady geometry / SCOTT urban kit ready
Suspension Fork
SR Suntour NCX RL / Remote Lockout / 63mm travel
Drivetrain
Rear Derailleur
Shimano XT RD-T8000-SGS / Shadow Type / 30 Speed
Front Derailleur
Shimano Deore FD-T6010 / 34.9mm
Shift Levers
Shimano Deore SL-M6000-10 / R-fire plus 2 / w/gear indicator
Cassette
Shimano CS-HG500-10; 11-32 T
Crank
Shimano FC-T8000 / 48x36x26 / w/CG
Bottom Bracket
Shimano BB-MT800 / 68mm shell
Chain
KMC X10-1
Pedals
Feimin FP-873-ZU
Wheels
Front Hub
Formula CL51
Rear Hub
Shimano FH-M4050 CL
Rims
Syncros X-20 Disc / 32H / black
Spokes
15g / stainless / black
Tires
Front: Kenda Booster / 700x45C / 30 TPI, Rear: Kenda Booster / 700x45C / 30 TPI
Brakes
Brakes
Shimano MT201 / Hydr. Disc
Cockpit
Stem
Syncros 3.0 / 7° / Black
Handlebar
Syncros 3.0 / 31.8 / Men: Tbar/660mm/9° bend / Lady: 660mm/15° bend
Headset
Syncros OE Press Fit / 1 1/8"; OD 50mm / ID 44mm
Seat
Saddle
Syncros UC2.5 / UC3.0W
Seatpost
Syncros 3.0 / 31.6mm / 350mm / Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Front Center | 628 mm | 634 mm | 647 mm | 660 mm | 673 mm |
| Reach | 388.3 mm | 386.8 mm | 393.5 mm | 399.8 mm | 405.6 mm |
| Top Tube Length | 567 mm | 577 mm | 592 mm | 608 mm | 620 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.3 ° | 72 ° | 72 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 550 mm | 590 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1078 mm | 1084 mm | 1097 mm | 1110 mm | 1123 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 767 mm | 793 mm | 817 mm | 847 mm | 876 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
