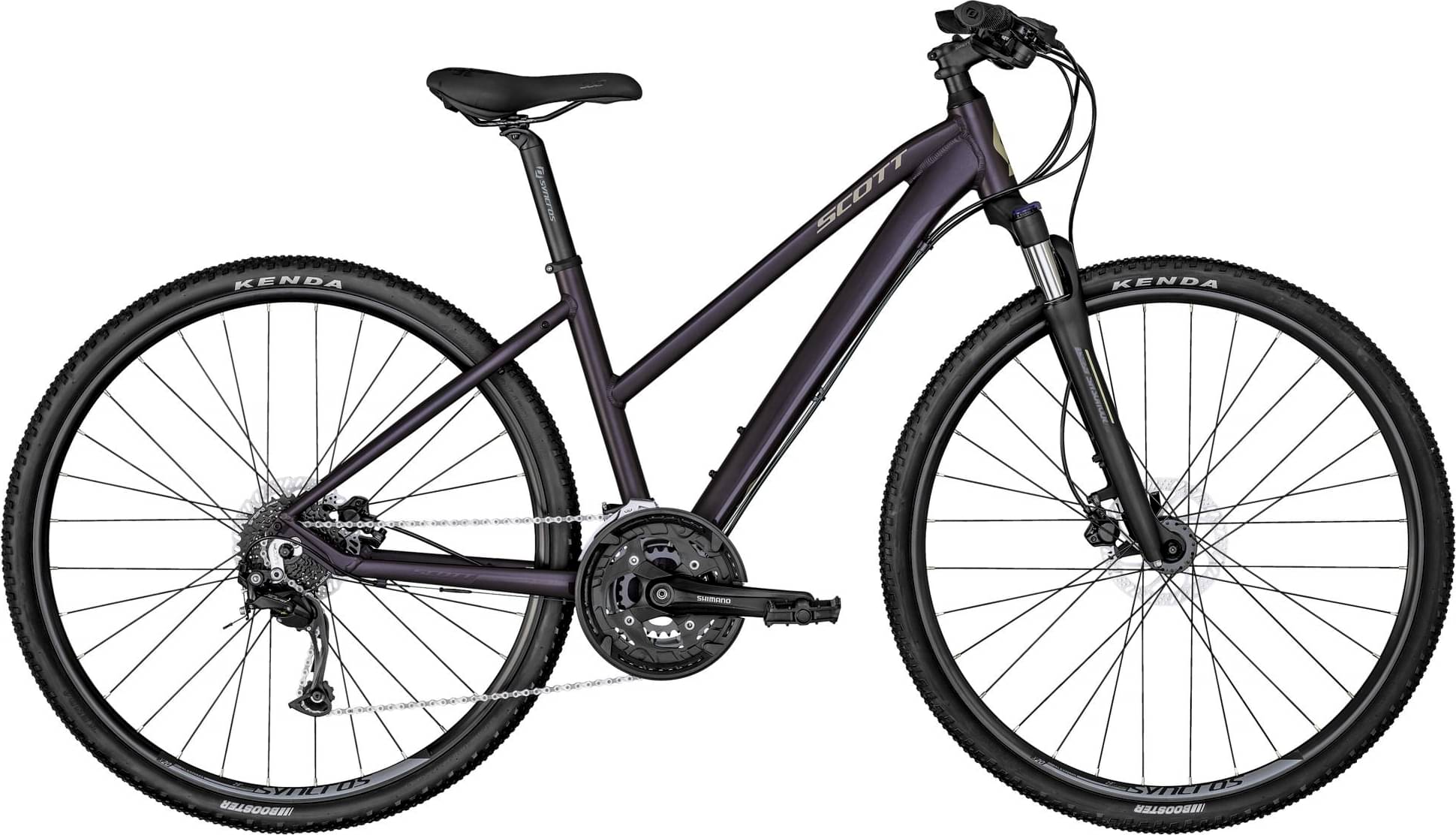

Scott Sub Cross 30 Lady Cu 2024
2024 Urban
Estimate price |
916$
Weight | 13.94 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset CUES, Shimano -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub Cross Alloy 6061 / Custom butted tubing / Sub Cross Men/Lady geometry / SCOTT urban kit ready
Suspension Fork
SR Suntour NEX HLO / Hyd. Lockout / 63mm travel
Drivetrain
Rear Derailleur
Shimano CUES RD-U4020 / Shadow Type / 18 Speed
Front Derailleur
Shimano CUES FD-U4000-L / 34.9mm
Shift Levers
Shimano CUES SL-U4000-9 / R-fire plus 2 / w/gear indicator
Cassette
Shimano CS-LG300-9; 11-36 T
Crank
Shimano CUES FC-U4010-2 / 40x26 / w/CG
Bottom Bracket
Shimano BB-MT501 / 68mm shell
Chain
KMC X11
Pedals
Feimin FP-873-ZU
Wheels
Front Hub
Formula DC-19 FQR Disc
Rear Hub
Formula DC-25 RQR Disc
Rims
Syncros X-20 Disc / 32H / black
Spokes
14g / stainless / black
Tires
Front: Kenda Booster / 700x45C / 30 TPI, Rear: Kenda Booster / 700x45C / 30 TPI
Brakes
Brakes
Tektro HDM275 Hydr. Disc
Cockpit
Stem
Syncros 3.0 / 7° / Black
Handlebar
Syncros 3.0 / 31.8 / Men: Tbar/660mm/9° bend / Lady: 660mm/15° bend
Headset
Syncros OE Press Fit / 1 1/8"; OD 50mm / ID 44mm
Seat
Saddle
Syncros Capilano Trekking Basic
Seatpost
Syncros 3.0 / 31.6mm / 350mm / Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 406 mm | 406 mm | 406 mm | 406 mm |
| Front Center | 617 mm | 628 mm | 633 mm | 649 mm |
| Reach | 374 mm | 379 mm | 375.9 mm | 383.5 mm |
| Top Tube Length | 550 mm | 565 mm | 575 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.3 ° | 72 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 115 mm | 130 mm | 155 mm | 180 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1067 mm | 1078 mm | 1083 mm | 1099 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 679 mm | 684 mm | 695 mm | 702 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
