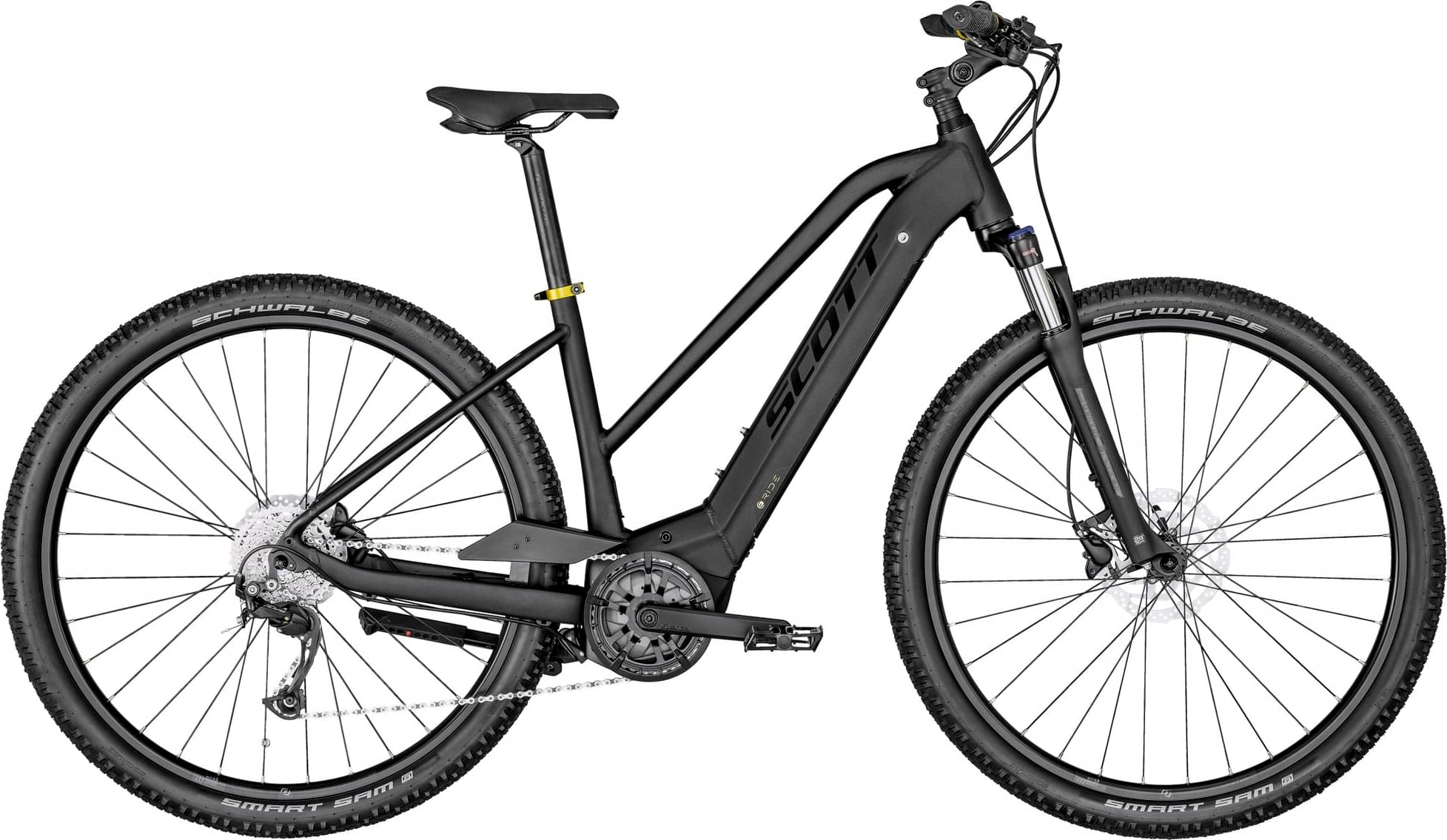

Scott Sub Cross eRIDE 30 Lady 2025
2025 E-bike
Estimate price |
2,699$
Weight | 23.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NVX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 40Nm mid-drive -
Battery 400Wh PowerTube Battery -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub eRIDE 6061 Alloy
Suspension Fork
SUNTOUR NVX 30 NLO DS QR 700C TAPERED / 63mm Travel
Drivetrain
Rear Derailleur
Shimano Alivio RD M3100SGS 9 Speed
Shift Levers
Shimano Alivio SL-M3100 9 Speed
Cassette
Shimano CS HG400 11-36
Crank
Miranda 172,5mm
Chain
KMC E9s NPBK
Pedals
VPE-506
Wheels
Front Hub
Shimano HBMT200B 32H QR CL
Rear Hub
Shimano FHMT200B 32H QR CL
Rims
Cross X17 Disc 32h
Spokes
BLACK spokes * F: 14G / R: 13G
Tires
Rear: Schwalbe Smart Sam 29x2.25
Brakes
Brakes
Shimano BR-M200 Disc
Cockpit
Stem
Syncros UC 3.0 adjustable
Handlebar
Syncros UC3.0 680mm / Rise 12mm / backsweep 15°
Headset
GW semi integrated
Seat
Saddle
Syncros Capilano
Seatpost
Syncros 3.0 / 31.6mm / 350mm
Motor & Battery
Motor
Bosch Active BES2; EU: 25kmh / US: 20mph
Battery
400Wh PowerTube Battery
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.557 mm | 1.52 mm | 1.522 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm |
| Front Center | 663 mm | 678 mm | 694 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 89.5 mm | 86 mm | 82.5 mm |
| Stack | 629 mm | 640 mm | 662 mm |
| Reach | 404 mm | 421 mm | 435 mm |
| Top Tube Length | 579 mm | 598 mm | 618 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° |
| Head Tube Length | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1143 mm | 1158 mm | 1174 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm |
| Standover Height | 686 mm | 684 mm | 687 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
