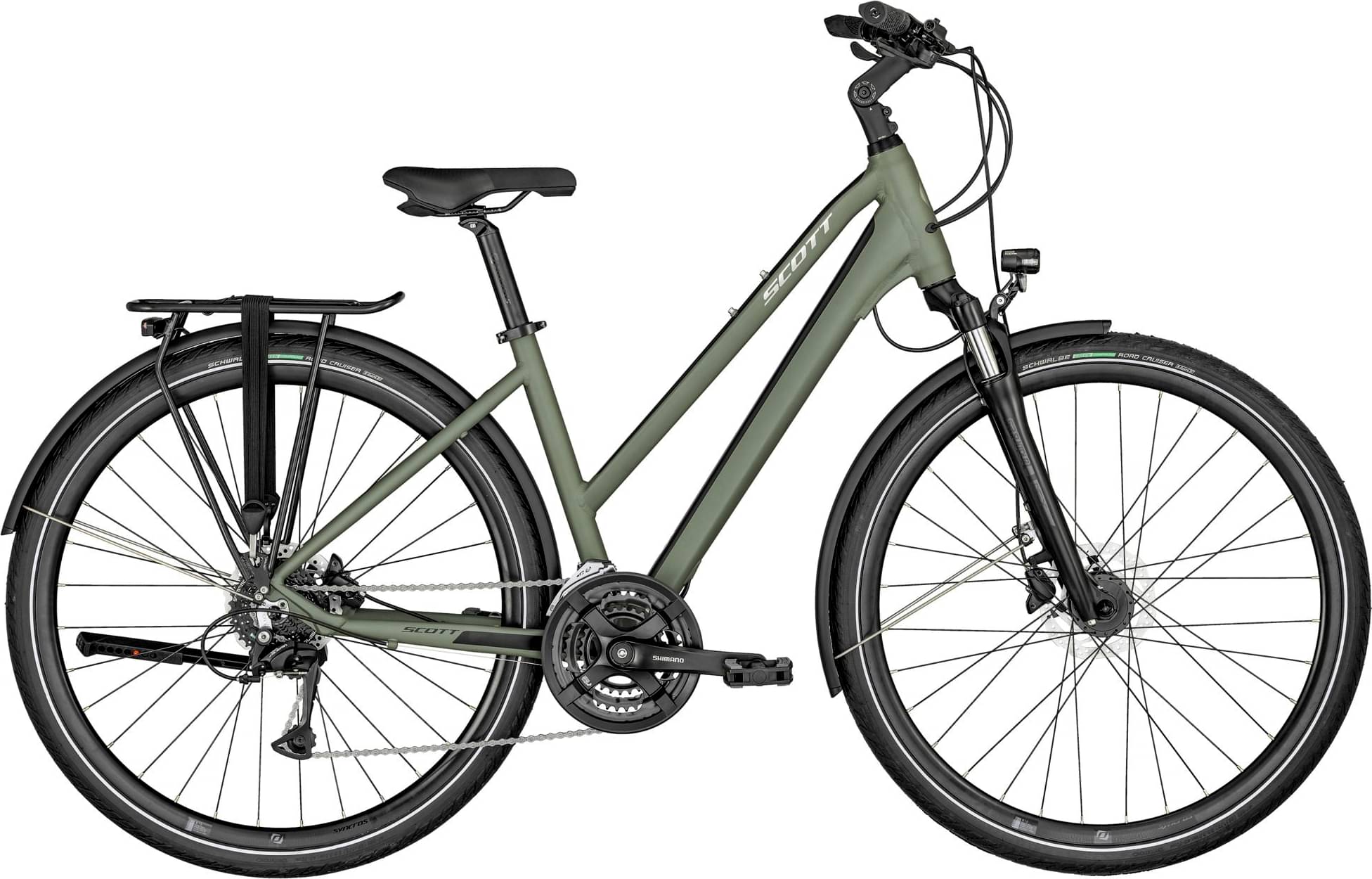

Scott Sub Sport 30 Lady 2024
2024 Urban
Estimate price |
1,203$
Weight | 18.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub Sport 6061 Tig welding
Suspension Fork
Suntour NEX-DS / 63mm Travel
Drivetrain
Rear Derailleur
Shimano Acera RD-T3020SGSL 8 Speed
Front Derailleur
Shimano Altus FD-TY601
Shift Levers
Shimano Altus SL-M315
Cassette
Shimano CS-HG31-8 11-32T Black
Crank
Shimano Altus FC-TY501 Black 48x38x26T
Bottom Bracket
BB-UN101
Chain
KMC Z8.3
Pedals
Syncros SP-827
Wheels
Front Hub
Shimano Deore DH-3D37 dynamo CL 32h
Rear Hub
Shimano FH-QC300 32H CL QR * BLACK
Rims
X15 Disc; 32h
Spokes
Pillar Steel 14G
Tires
Rear: Schwalbe Road Cruiser 700x47c
Brakes
Brakes
Shimano BR-M200
Brake Levers
Shimano BL-M200
Cockpit
Stem
Syncros UC3.0 adjustable
Handlebar
Syncros 3.0 680mm Rise: 12 mm; Backsweep: 15°; 31.8
Headset
GW semi integrated
Seat
Saddle
Syncros Capilano
Seatpost
Syncros UC3.0 / 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.77 mm | 1.7 mm | 1.645 mm |
| Bottom Bracket Height | 289.5 mm | 289.5 mm | 289.5 mm |
| Front Center | 632 mm | 647 mm | 671 mm |
| Rake | 50 mm | 50 mm | 43 mm |
| Trail | 74 mm | 74 mm | 81 mm |
| Stack | 644.6 mm | 644.6 mm | 664.6 mm |
| Reach | 364.1 mm | 379.1 mm | 404.1 mm |
| Top Tube Length | 555 mm | 570 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 185 mm | 185 mm | 185 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1078 mm | 1093 mm | 1118 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 681 mm | 678 mm | 680 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
