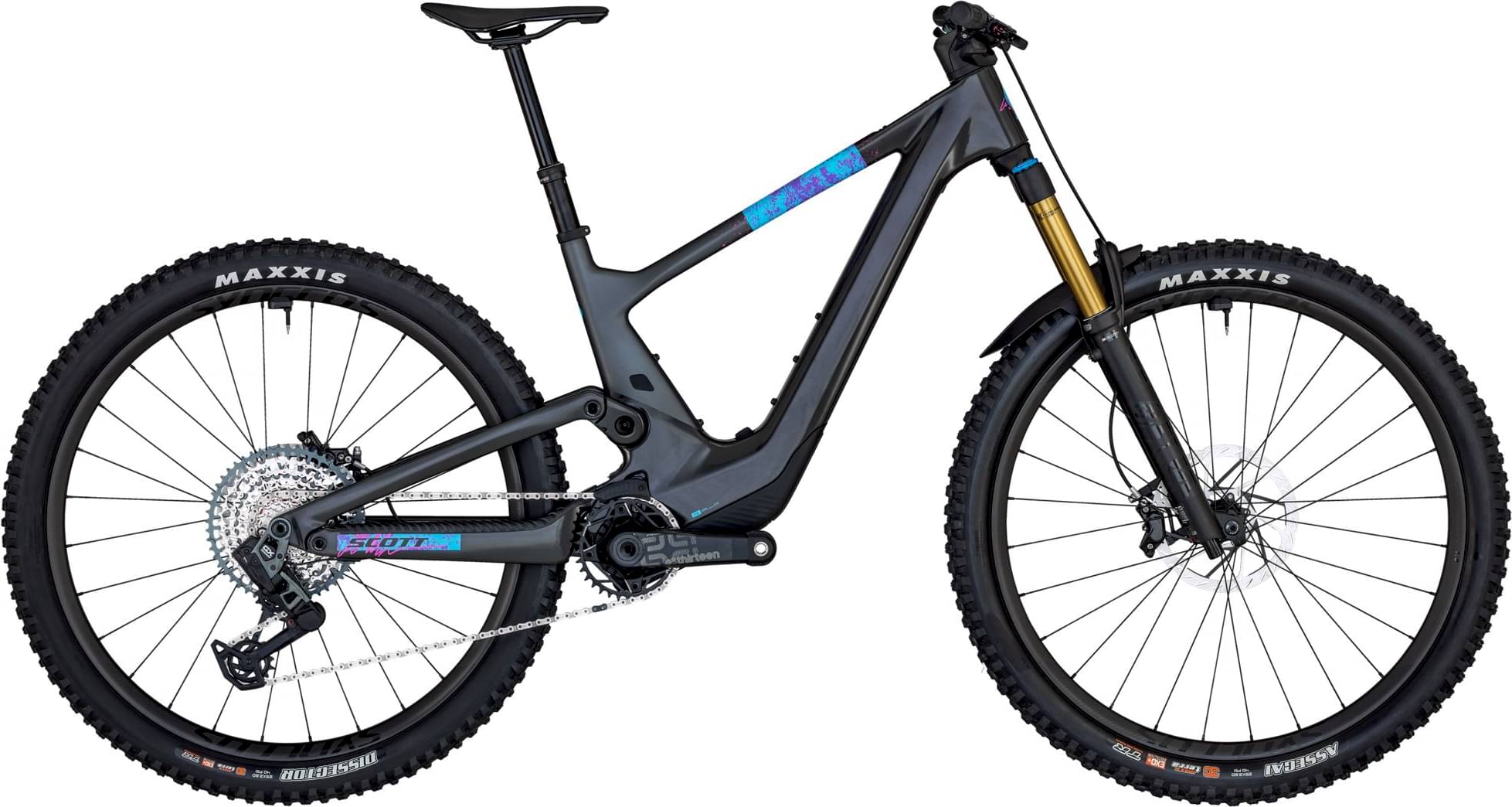

Scott Voltage eRIDE 900 Tuned 2025
2025 E-bike
Estimate price |
12,796$
Weight | 18.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 155mm -
Fork Fox Factory Float 36
-
Groupset Eagle AXS, GX Eagle Transmission -
Suspension Full -
Motor TQ 50Nm mid-drive -
Battery TQ Internal 360Wh -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Code Silver Stealth Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon HMF; Integrated Suspension Technology; Virtual 4 Link kinematic / Adjustable head angle; Syncros Cable Integration System; TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline; Range Extender Ready
Suspension Fork
FOX 36 Float Factory Grip 2 Air / Kashima; HSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle; 44mm offset / tapered steerer; 160mm travel
Rear Shock
FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion; Kashima / SCOTT custom w. travel / geo adj.; 3 modes: Climb-Ramp Control-Descend; Custom large Air volume / Comp & Reb. Adj.; Travel 155-100-Climb / T185X55mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System
Shift Levers
SRAM GX Eagle AXS Rocker Controller
Cassette
SRAM GX Eagle XS 1275 Transmission 10-52
Crank
e*thirteen / e*spec Race Carbon / 34T
Chain
SRAM CN GX Eagle Transmission
Chain Guide
e*thirteen / e*spec Slider
Wheels
Rims
Syncros Revelstoke 1.0-30 CL; F: 15x110mm; R: 12x148mm; 30mm Tubeless ready Carbon rim 28H; DT Swiss Ratchet Hubs / XD Driver; SRAM TyreWiz / Syncros Axle w/Removable Lever; with 6mm Allen; T30 and T25 Tools
Tires
Front: Maxxis Assegai / 2.6" / 60TPI Foldable; Tubeless Ready / EXO+ 3C maxx Terra, Rear: Maxxis Dissector / 2.6" / 60TPI Foldable; Tubeless Ready / EXO+ 3C maxx Terra
Brakes
Brakes
SRAM Code Silver Stealth 4-Piston Disc
Cockpit
Handlebar
Syncros Hixon iC Carbon; Size S & M 15mm rise / Size L & XL 25mm rise; back sweep 8° / 780mm; Syncros Endurance lock-on grips
Headset
Syncros - Acros Angle adjust & Cable Routing HS System; Stainless / +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB
Seat
Saddle
Syncros Tofino 1.5 Regular; Titanium rails
Seatpost
Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm; S size 140mm / M size 180mm / L & XL size 210mm
Motor & Battery
Motor
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Battery
TQ Internal 360Wh
Charger
TQ 100-240V-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.423 mm | 1.361 mm | 1.302 mm | 1.249 mm |
| Bottom Bracket Height | 349.6 mm | 349.5 mm | 349.6 mm | 349.7 mm |
| Front Center | 779 mm | 799 mm | 831 mm | 863 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 135.7 mm | 135.7 mm | 135.7 mm | 135.7 mm |
| Stack | 622.3 mm | 622.4 mm | 631.3 mm | 640.2 mm |
| Reach | 437.4 mm | 457.2 mm | 485 mm | 512.7 mm |
| Top Tube Length | 580.2 mm | 600 mm | 629.9 mm | 659.8 mm |
| Seat Tube Angle | 77.1 ° | 77.1 ° | 77.1 ° | 77.1 ° |
| Seat Tube Length | 404.6 mm | 424.5 mm | 449.6 mm | 479.7 mm |
| Head Tube Angle | 63.9 ° | 63.9 ° | 63.9 ° | 63.9 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1232 mm | 1252 mm | 1284 mm | 1316 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 765 mm | 765 mm | 772 mm | 788 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
