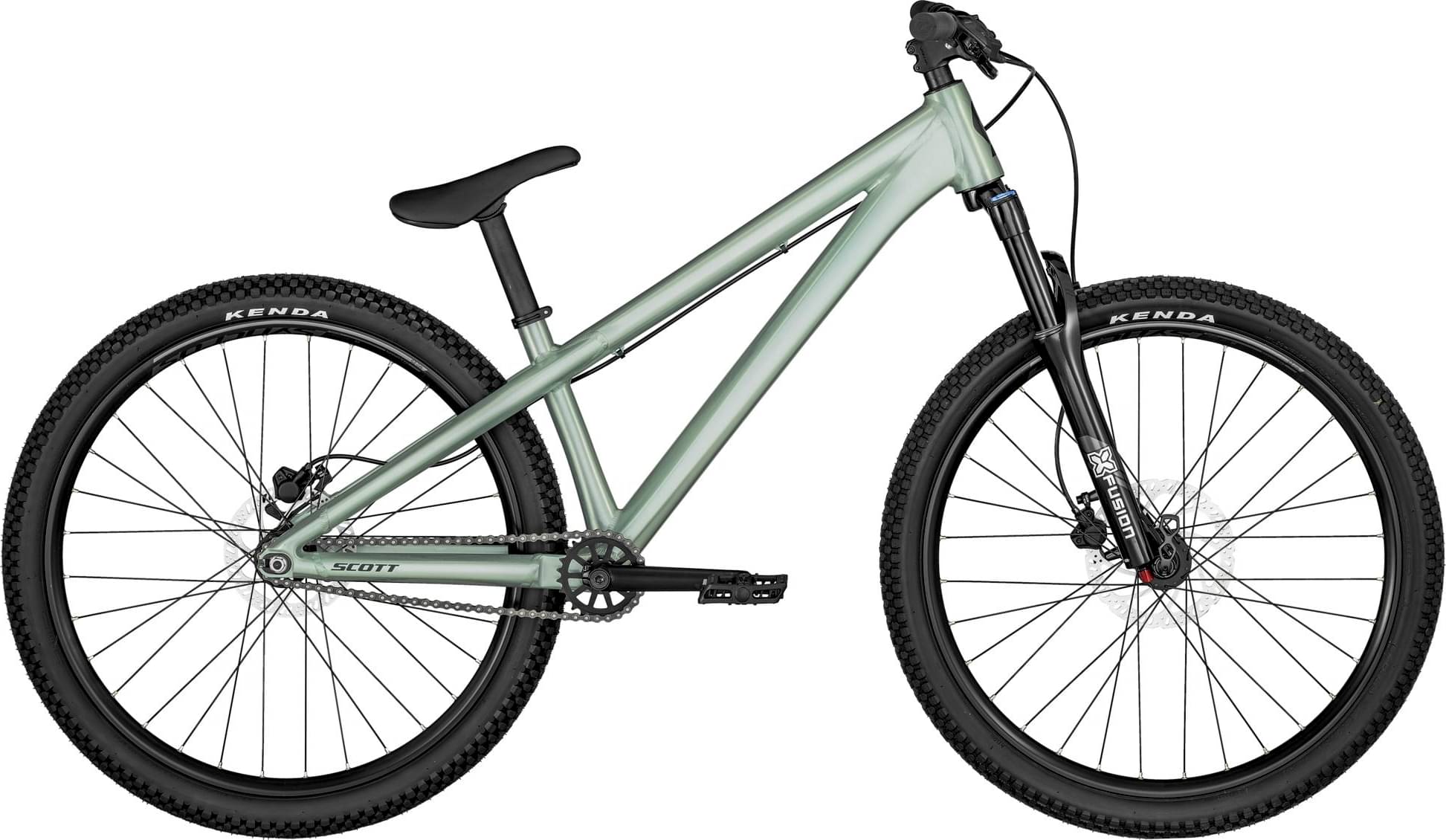

Scott Voltage YZ 0.1 2023
2023 Mountain
Estimate price |
1,599$
Weight | 12.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork X-Fusion SLANT
-
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Voltage YZ DJ 6061 Alloy Hydroformed tubing Disc Dropout / horizontal for 135x10mm single speed
Suspension Fork
X-Fusion Slant DJ 100mm travel / Air / Lo Comp / Rebound
Drivetrain
Cassette
Sprocket / 12 T
Crank
SCOTT Cr-Mo 3-piece cranks 170mm / 25T Alloy BMX sprocket
Bottom Bracket
Jien-Yuan BB92 / 19mm Axle
Chain
KMC Z510
Pedals
Wellgo B107.N flat
Wheels
Front Hub
Formula DC-51 / 100x15mm / thru axle
Rear Hub
Formula DC42-N w/tracknut / single Speed
Rims
Syncros MD25 Disc / 32H
Spokes
Stainless 14G / black / 2.0mm
Tires
Front: Kenda K905 K-RAD 30TPI / wire / 26x2.3", Rear: Kenda K905 K-RAD 30TPI / wire / 26x2.3"
Brakes
Brakes
Tektro HDM275 Hydr. Disc
Cockpit
Stem
Syncros XM1.5 31.8mm / 40mm / 0°
Handlebar
Syncros Hixon 2.0 Rise 31.8mm / 800mm / 20mm Rise Syncros Pro DH lock-on grips
Headset
Syncros OE Press Fit E2 Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
Seat
Saddle
Syncros DJ1.5 / Pivotal
Seatpost
Syncros DJ1.5 / Pivotal / 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG Low |
|---|---|
| Stack Reach Ratio | 1.415 mm |
| Bottom Bracket Height | 324 mm |
| Front Center | 667 mm |
| Rake | 42 mm |
| Trail | 90 mm |
| Stack | 570.9 mm |
| Reach | 403.4 mm |
| Top Tube Length | 600 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 315 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 120 mm |
| Chainstay Length | 380 mm |
| Wheelbase | 1047 mm |
| Bottom Bracket Drop | 15 mm |
| Standover Height | 702 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
Model Overview
Voltage YZ 0.1 belongs to the Scott Voltage model. Scott released 20 bikes variations of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Dirt Jump bikes average price
If you want to purchase a solid Dirt Jump bike, it is important to know that the average cost is 863$. However, you could also get a good Dirt Jump bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 1599$. In conclusion, this bike price is 85.28% higher than the price of the average Dirt Jump bike.
Dirt Jump bikes average weight
Dirt Jump bikes weigh an average of 12.7 kg (28 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, Voltage YZ 0.1 has a weight of 12.8 kg (28.22 lbs). To sum up, it’s 0.79% heavier than the average weight of Dirt Jump bikes.
Voltage YZ 0.1 components
Fork
The Voltage YZ 0.1 comes factory-installed with the X-Fusion SLANT fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the Voltage YZ 0.1 model has 26″ aluminum wheels. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
