Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Elite Float 36
-
Groupset Race Face -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sense Carbon Mitsubishi M40 | Tapered | Cabeamento Interno | Cinemática Horst Link | Eixo Boost 12x148 Mm
Suspension Fork

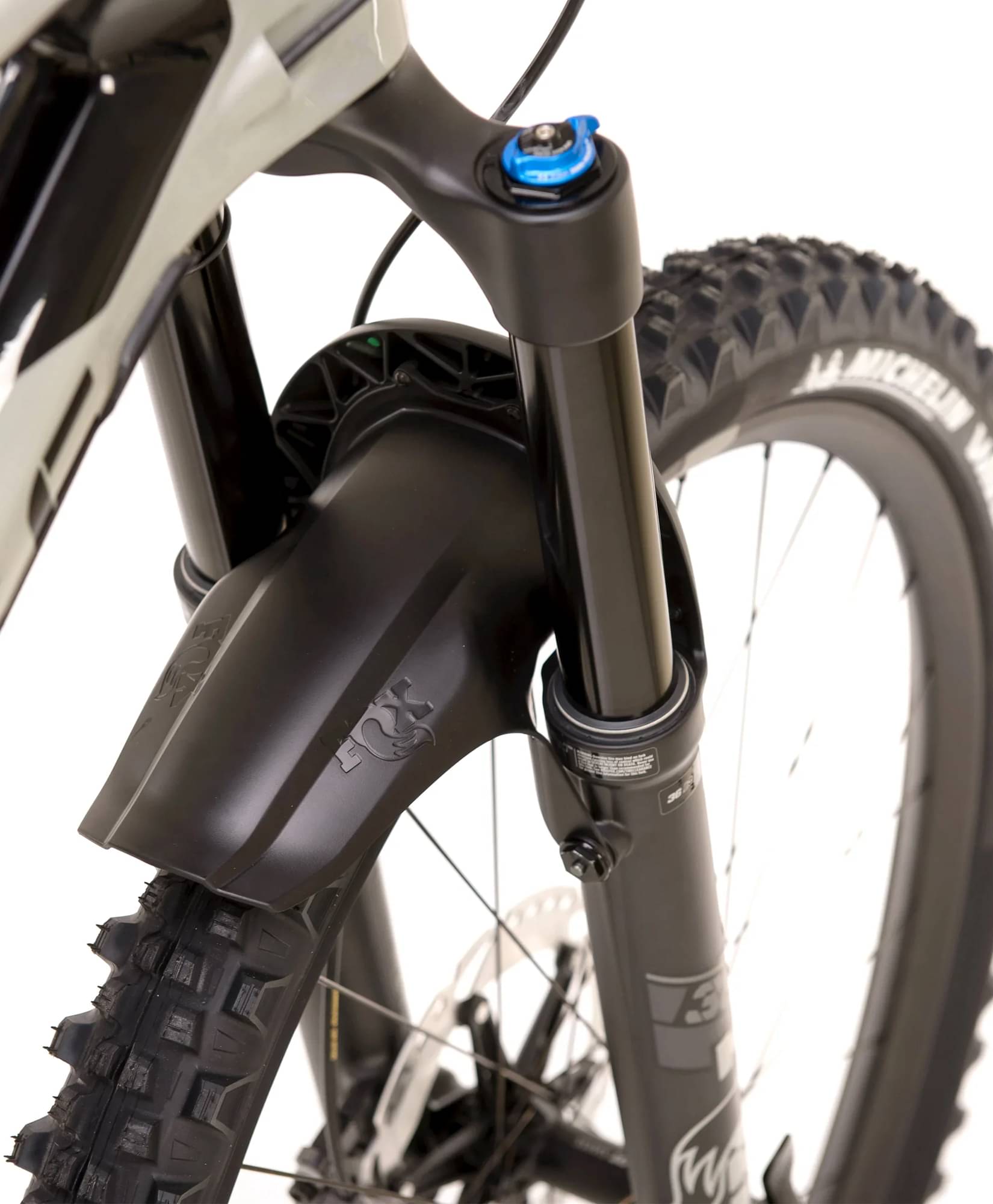

Fox Float 36 Performance Elite 150mm.
Rear Shock
Fox Float 36 Dpx2 140mm
Drivetrain
Cassette
Shimano Slx Cs M7100 10x51
Crank
Race Face Turbine 32d 170 Mm (Tamanhos S/ M) 175mm (Tamanho L)
Bottom Bracket
Race Face Pf30
Chain
Shimano Cn-M7100
Wheels
Rims
Dt Swiss M1700 Spline
Tires
Michelin Wild Enduro 29x2.40 Tlr
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Race Face Turbine R35 40mm
Handlebar
Race Face Turbine 35x780mm
Grips
Race Face Half Nelson Com Trava
Headset
Fsa Integrado
Seat
Saddle
Fizik Alpaca Terra X5
Seatpost
Race Face Dp Aeffect R31.6 425 (Tamanho S - 125mm) (Tamanho M - 150mm) Tamanho L - 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
