Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

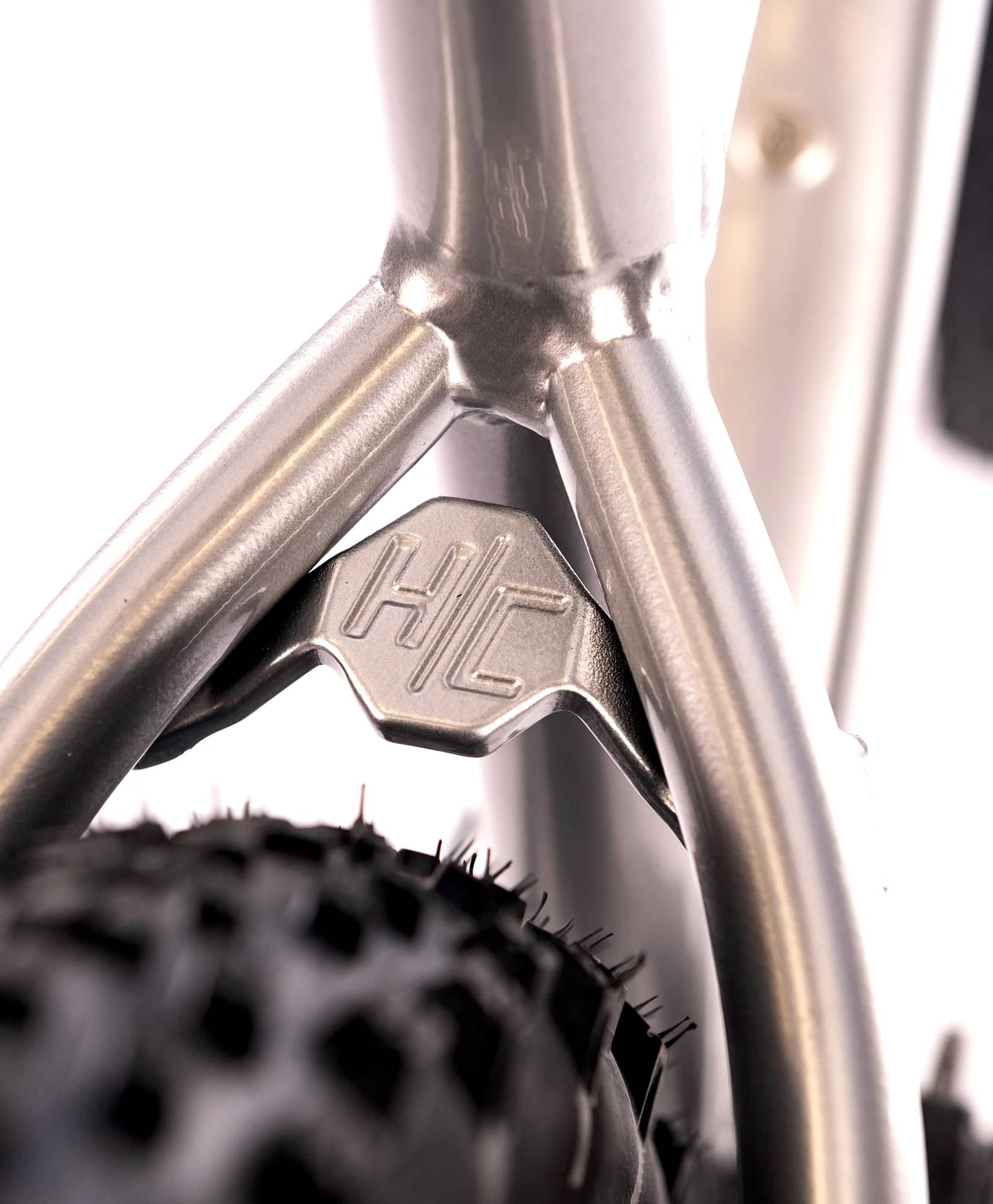

Frame
Frame
Quadro Hardtail Em Alumínio Com Geometria All Mountain
Suspension Fork
ROCK SHOX 35 SILVER R de 140mm
Drivetrain
Cassette
Shimano Deore Cs-M5100-11

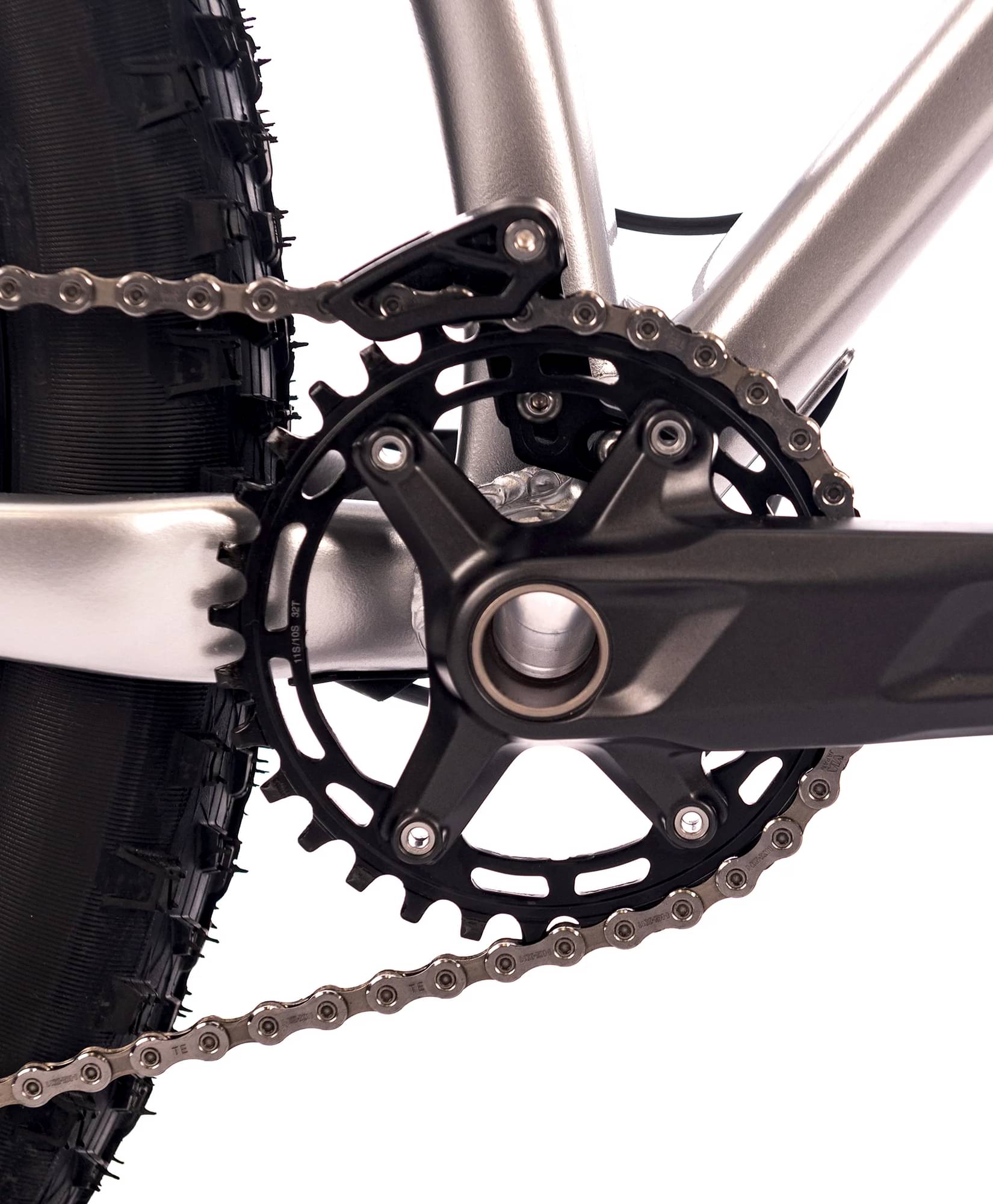

Crank
Shimano Deore Fc-Mt500-1, 11v, A70mm, 32t
Bottom Bracket
Bsa Shimano
Chain
Shimano Deore Cn-Hg601-11
Wheels
Rims
Sentec 29" Tubeless Ready 30mm 32 Furos, Cubo Shimano Hb-Mt400-B 110x15mm
Tires
29x2.35 Michelin Force Am

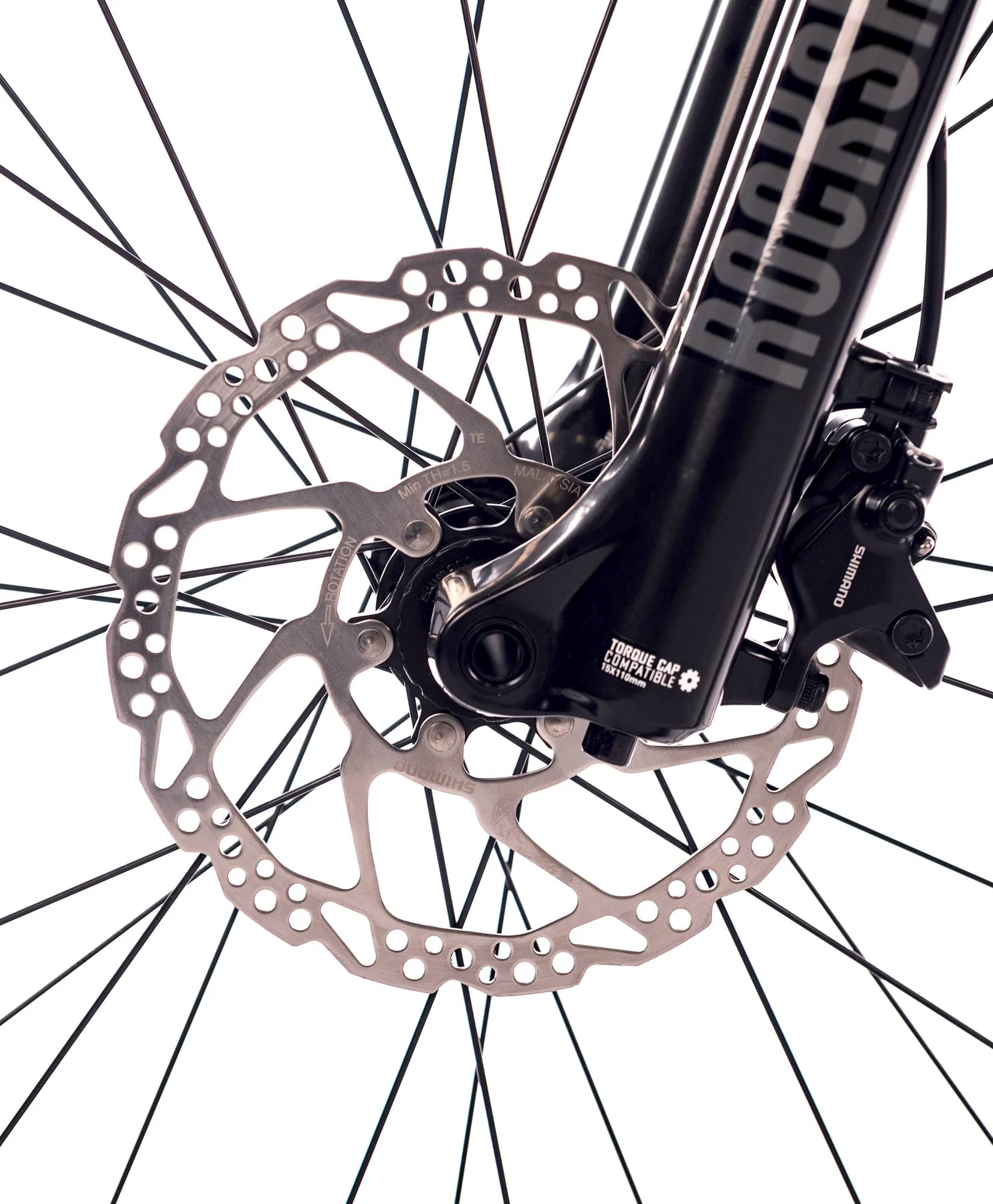

Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Sentec 40mm
Handlebar
Sentec 780x35mm, Back Sweep 6° Rise 20mm
Grips
Sense Trail C/ Lock
Headset
Neco Integrated 1.1/8 1.5"
Seat

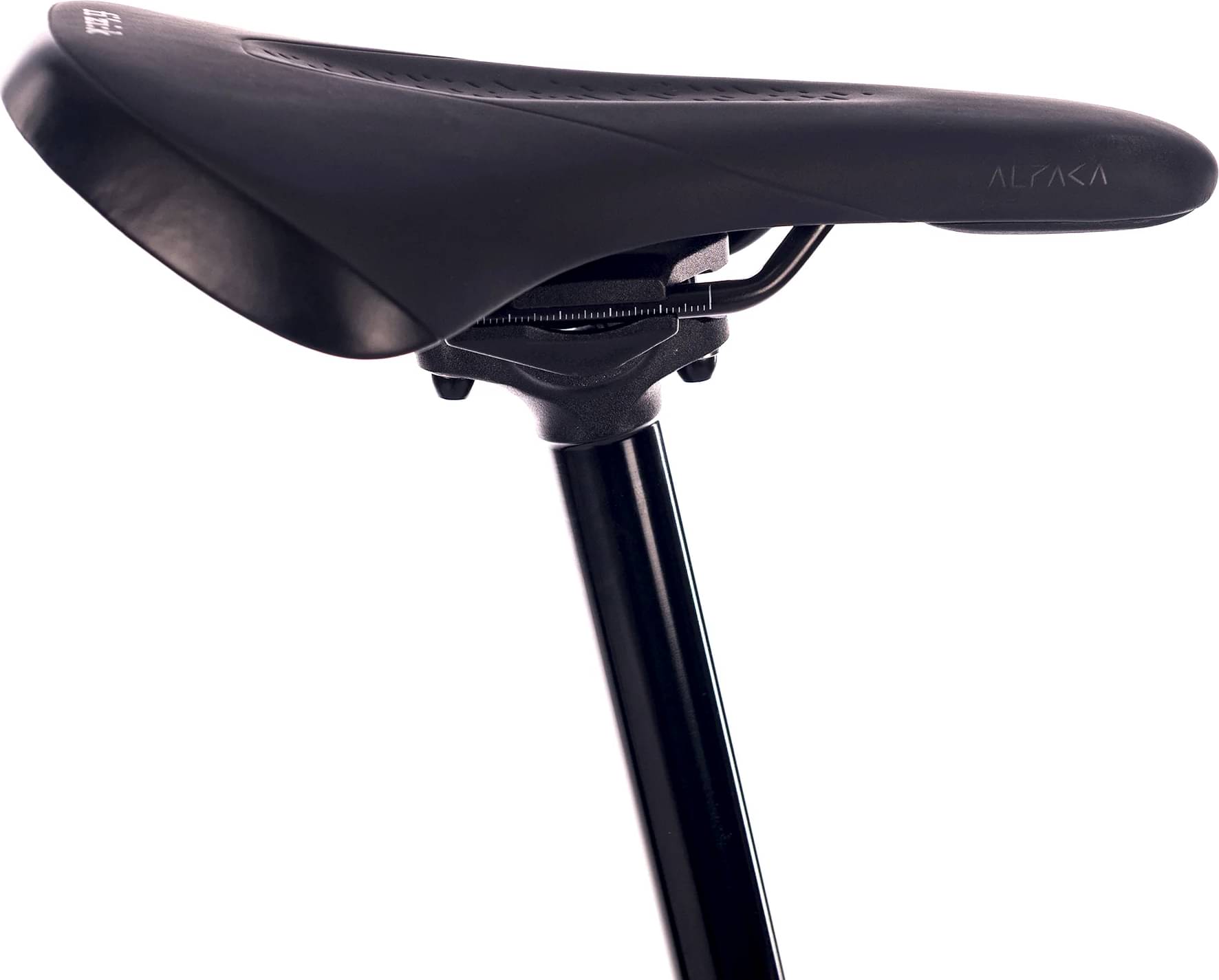

Saddle
Fizik Alpaca Terra X5 145mm
Seatpost
Sentec Retrátil 31.6x440mm/125mm
Fit data

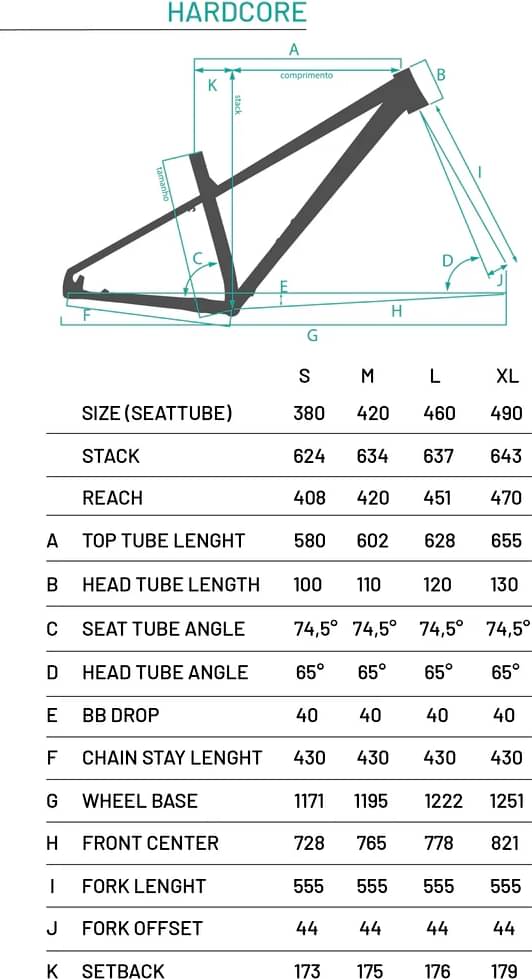

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
