Bike details
Overview
Key information split into simple groups.

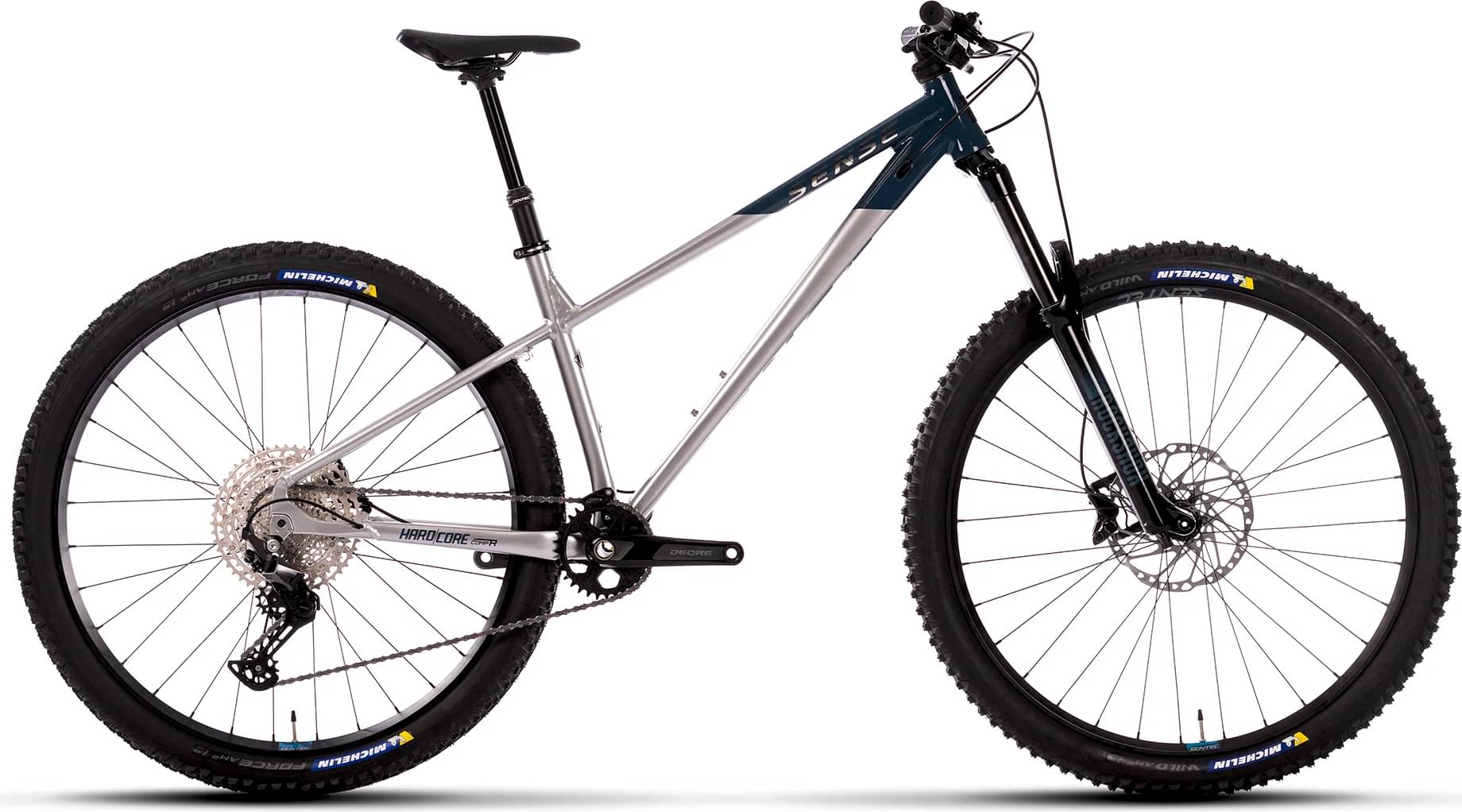

Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

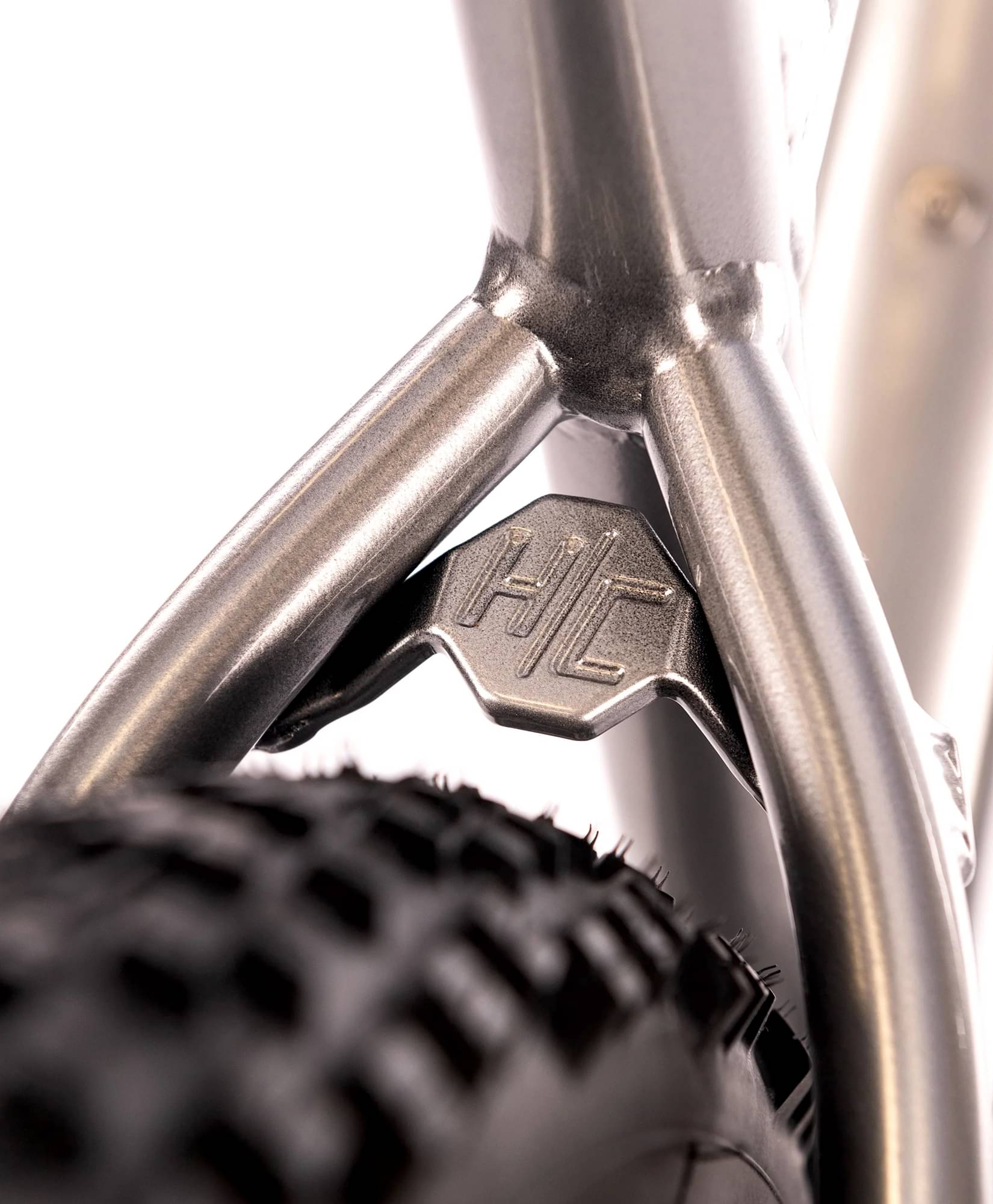

Frame
Frame
Quadro Hardtail Em Alumínio Com Geometria All Mountain
Suspension Fork
ROCK SHOX 35 SILVER TK de 150mm
Drivetrain

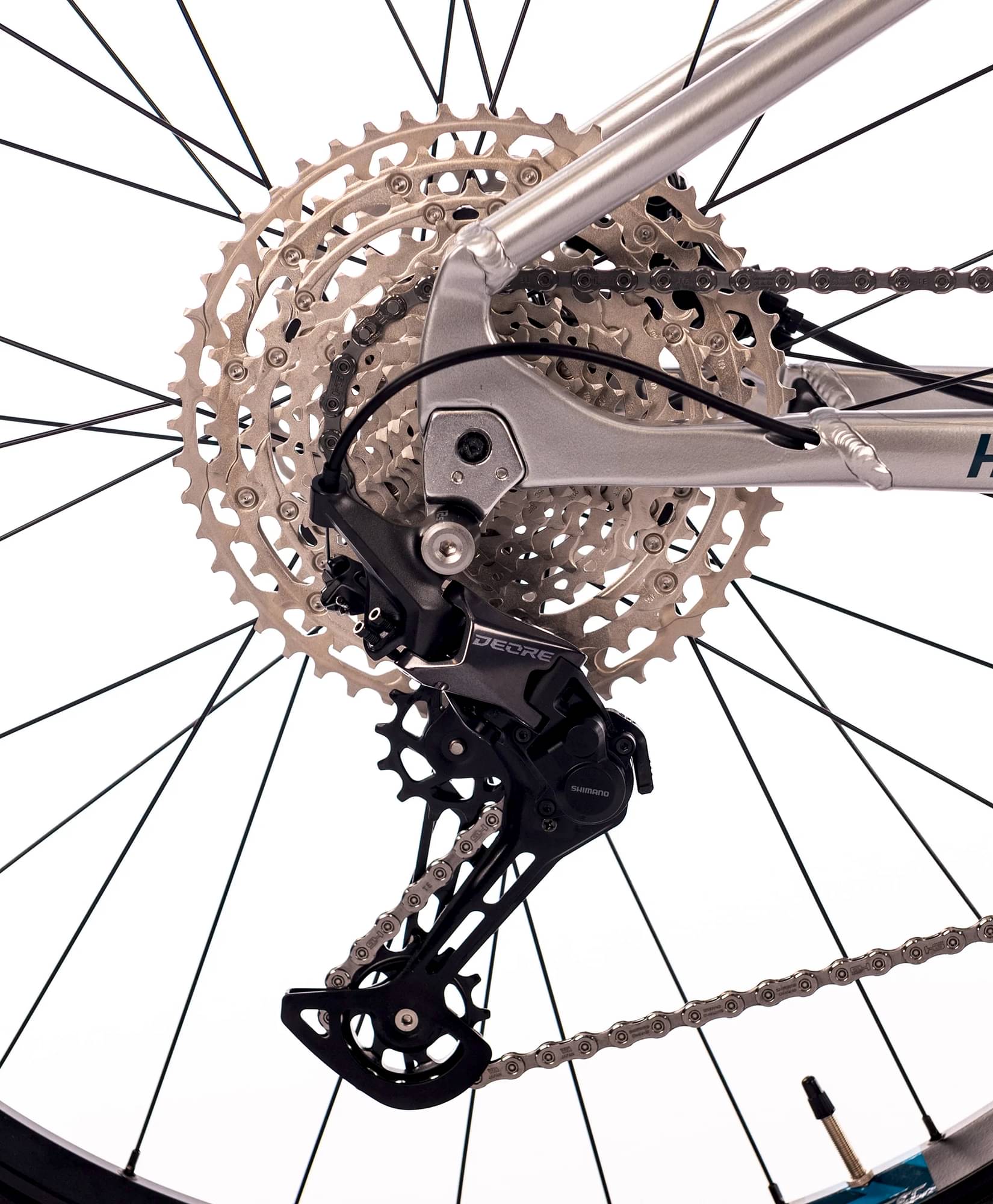

Cassette
Shimano Deore Cs-M6100-12

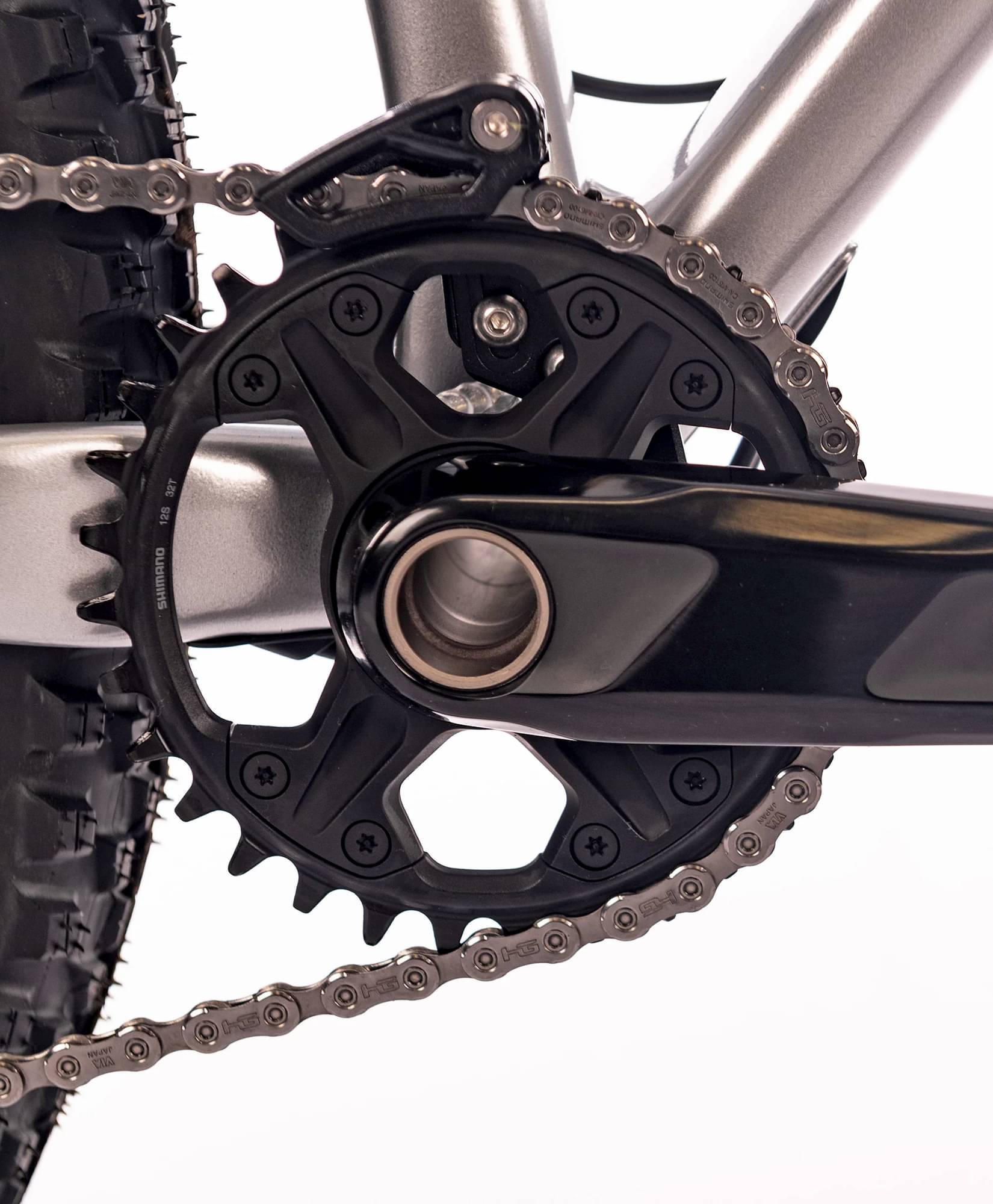

Crank
Shimano Deore Fc-M6100-1, 12v, 170mm, 32t
Bottom Bracket
Bsa Shimano
Chain
Shimano Deore Cn-M6100
Wheels
Rims
Sentec 29" Disc Tubeless Ready Assimétrico 30mm 32 Furos Cubo Shimano Hb-Mt410-B 110x15mm
Tires
Traseiro Michelin 29x2.40 Force Am2 Competition Line Tlr | Dianteiro Michelin 29x2.40 Wild Am2 Competition Line Tlr

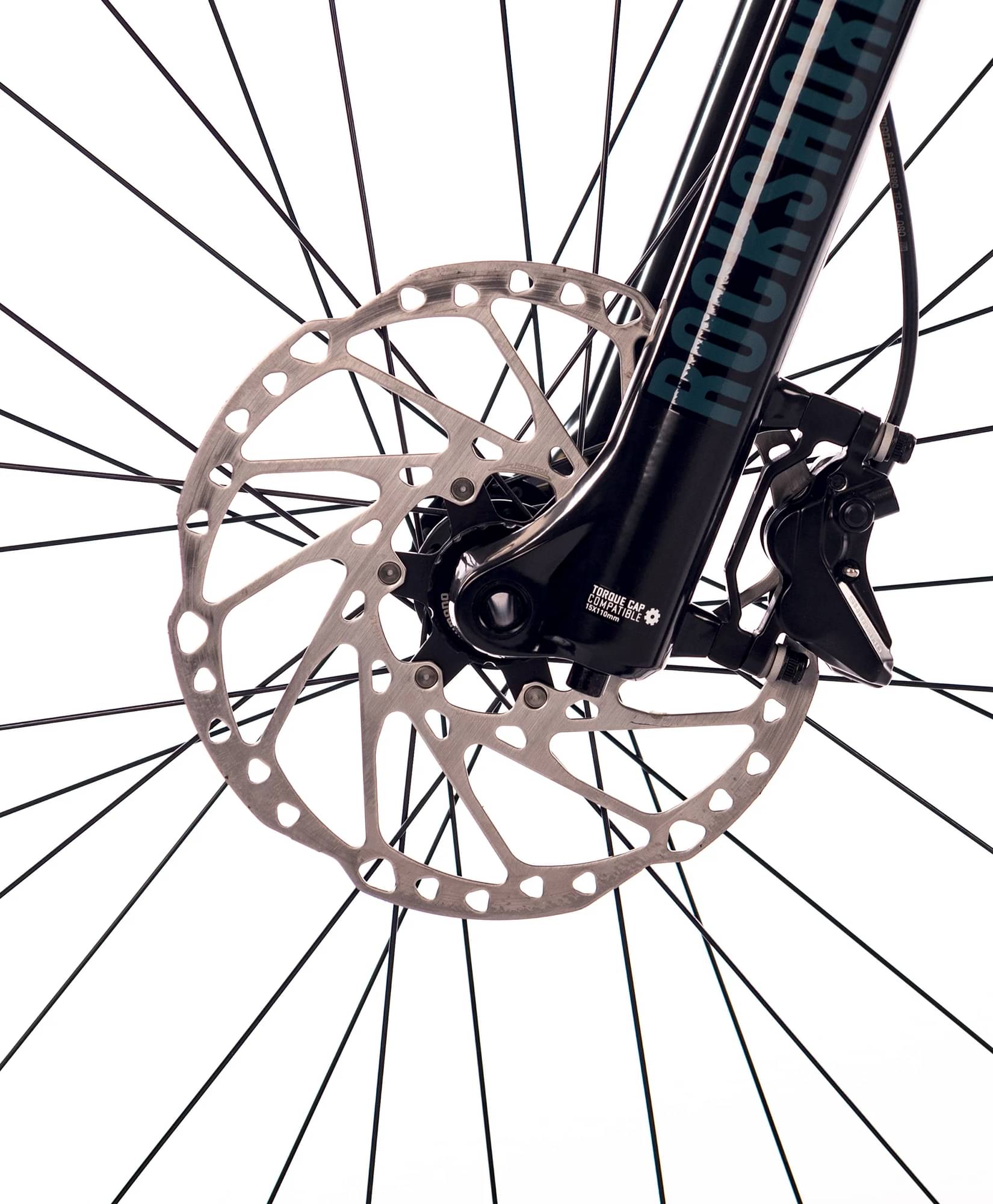

Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Sentec 40mm
Handlebar
Sentec 780x35mm, Back Sweep 6° Rise 20mm
Grips
Sense Trail C/ Lock
Headset
Neco Integrated 1.1/8 1.5"
Seat

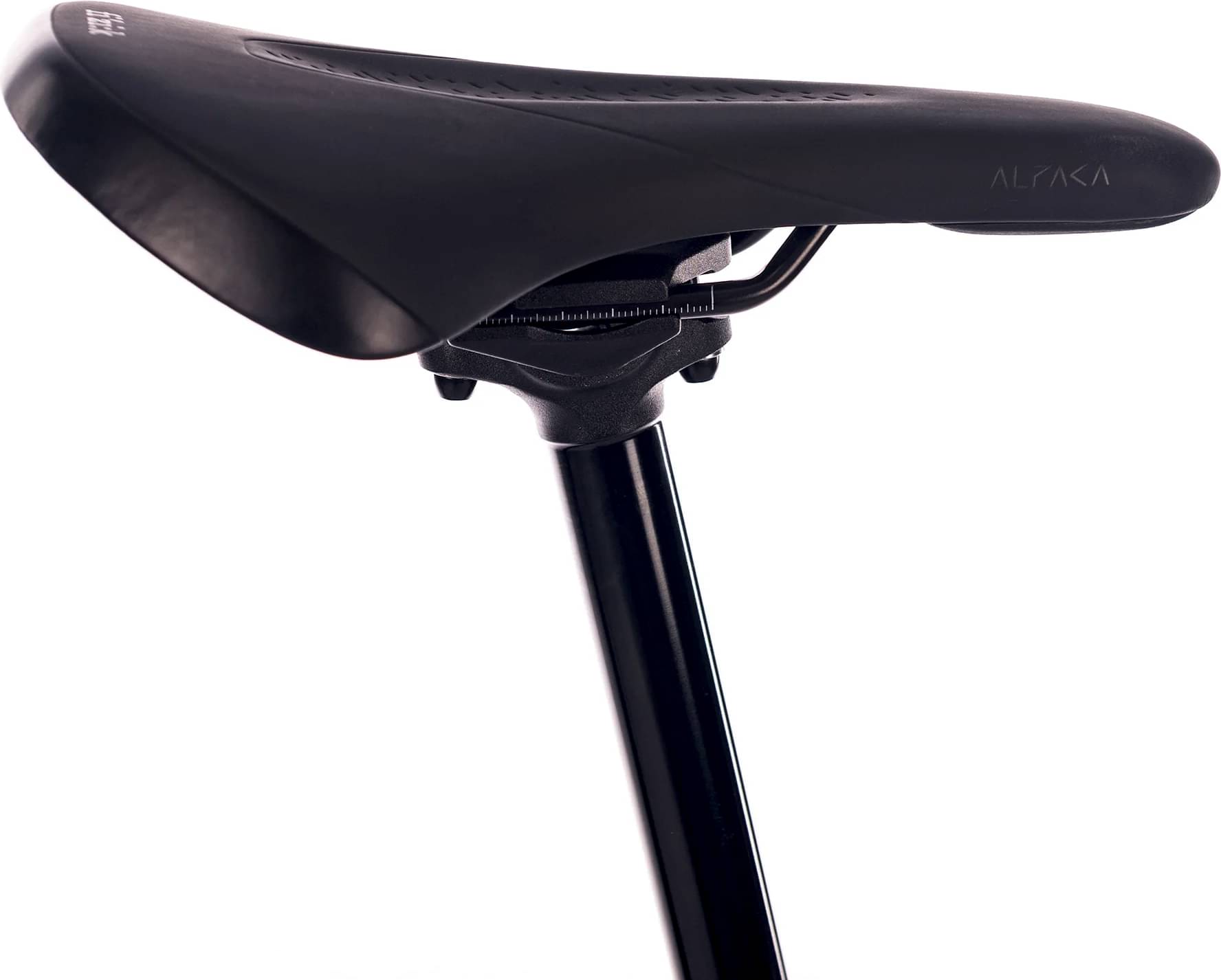

Saddle
Fizik Alpaca Terra X5 145mm
Seatpost
Sentec Retrátil 31.6mmx440/125mm
Fit data

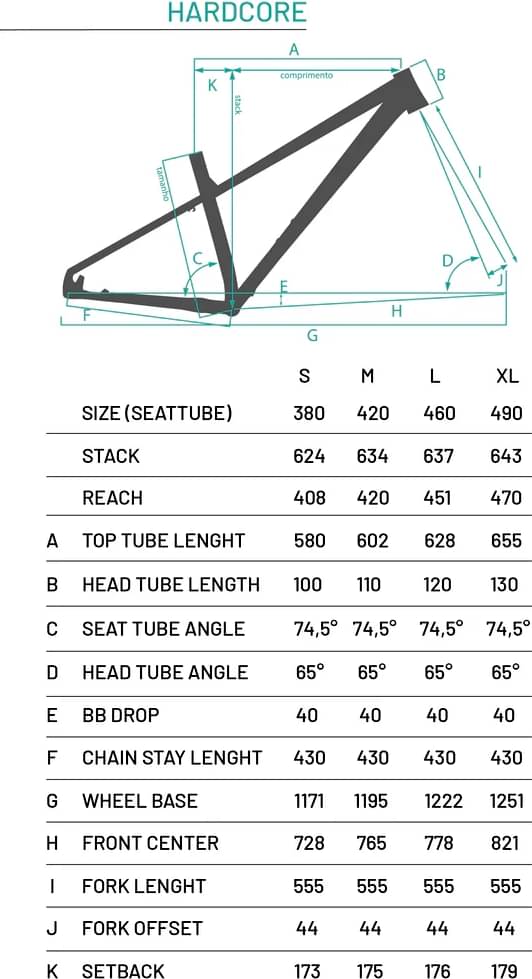

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
