Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

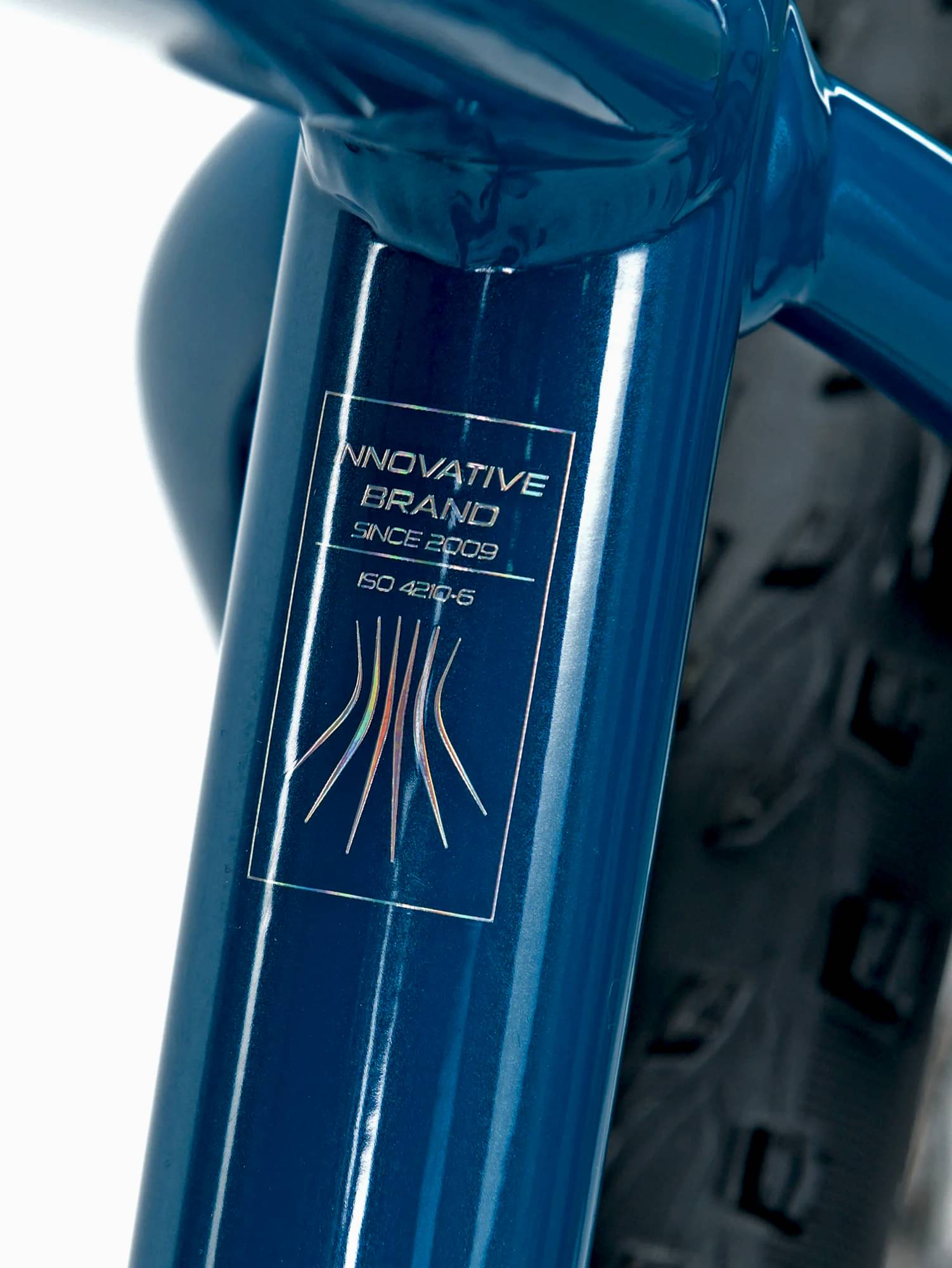

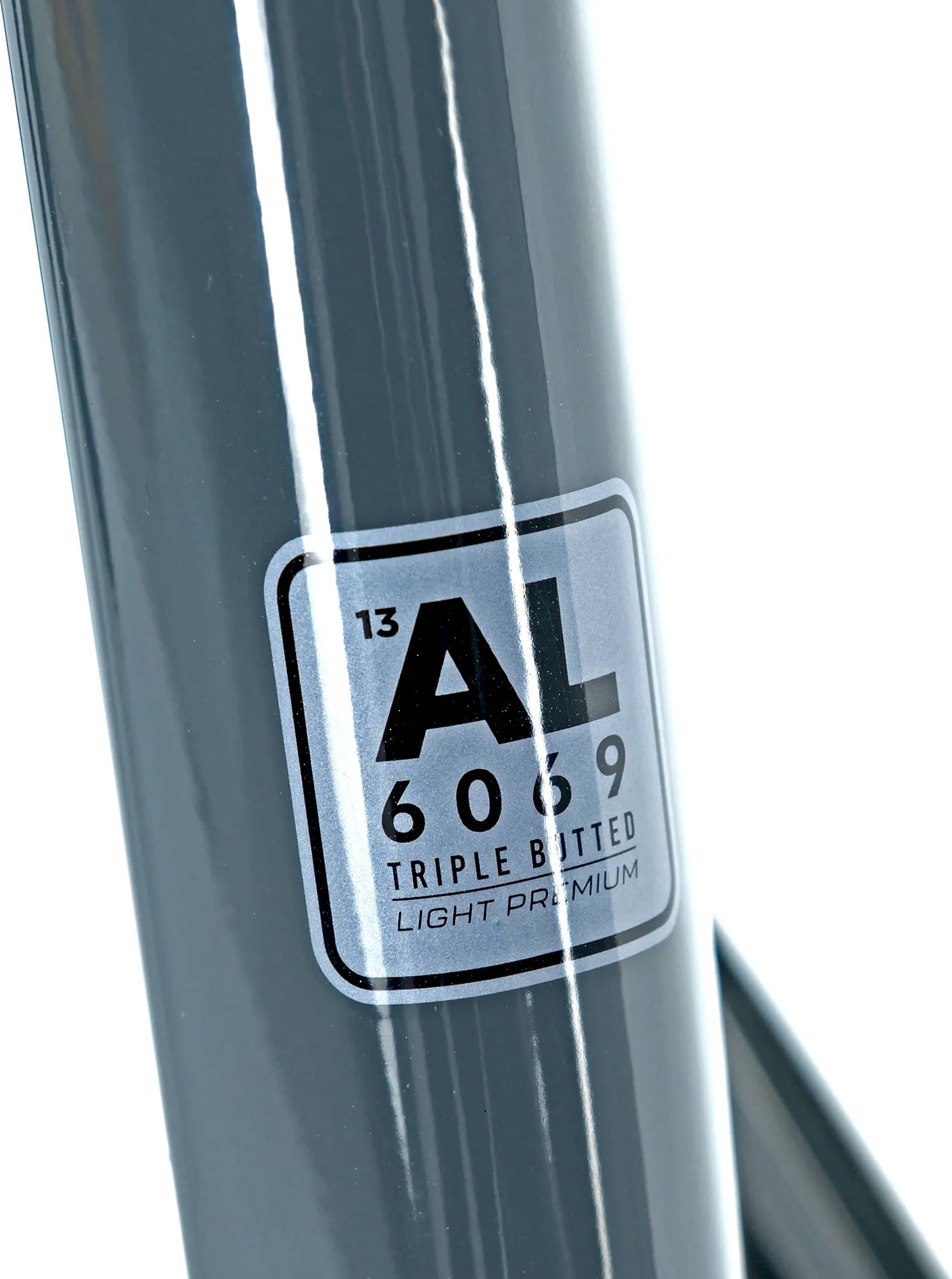

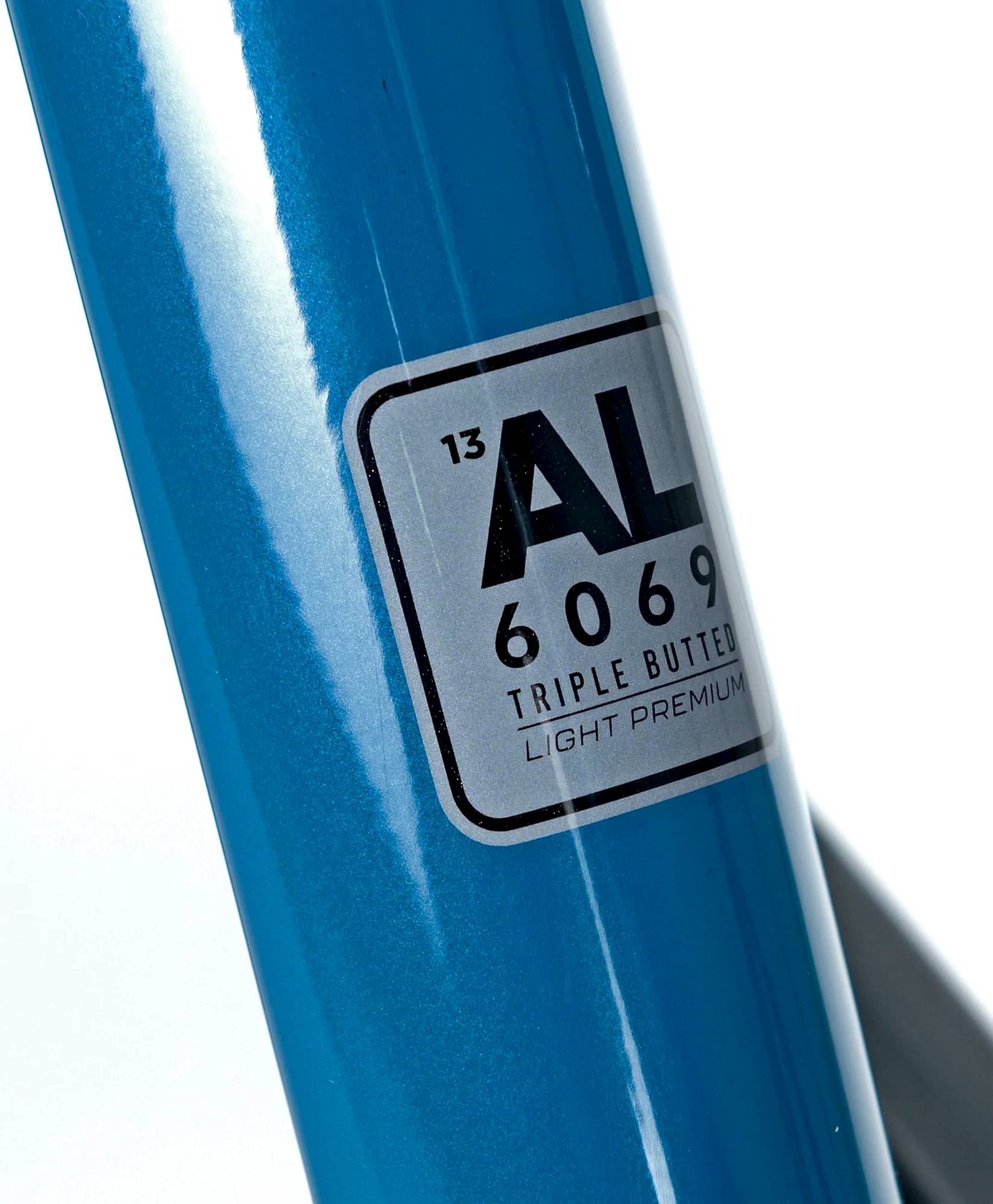

Sense Alumínio Hidroformado 6069 T4 T6| Tripla Espessura| Cabeamento Interno | Geometria Racing
Suspension Fork
Rock Shox Recon Silver RL Remote 29" Boost 100mm Com Trava No Guidão
Drivetrain
Cassette
Shimano Deore CS-M6100-12 10x51T 12-SPEED

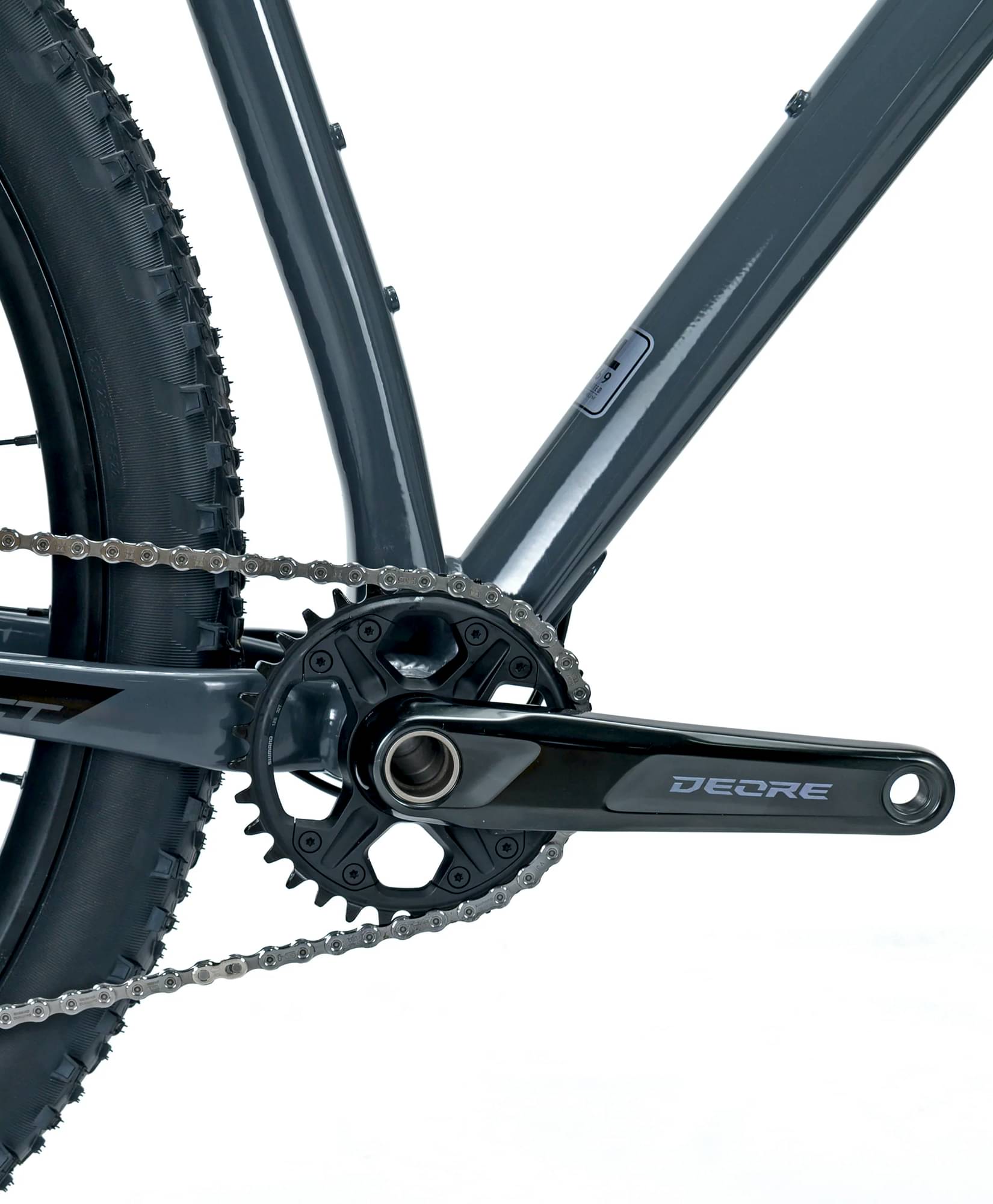

Crank

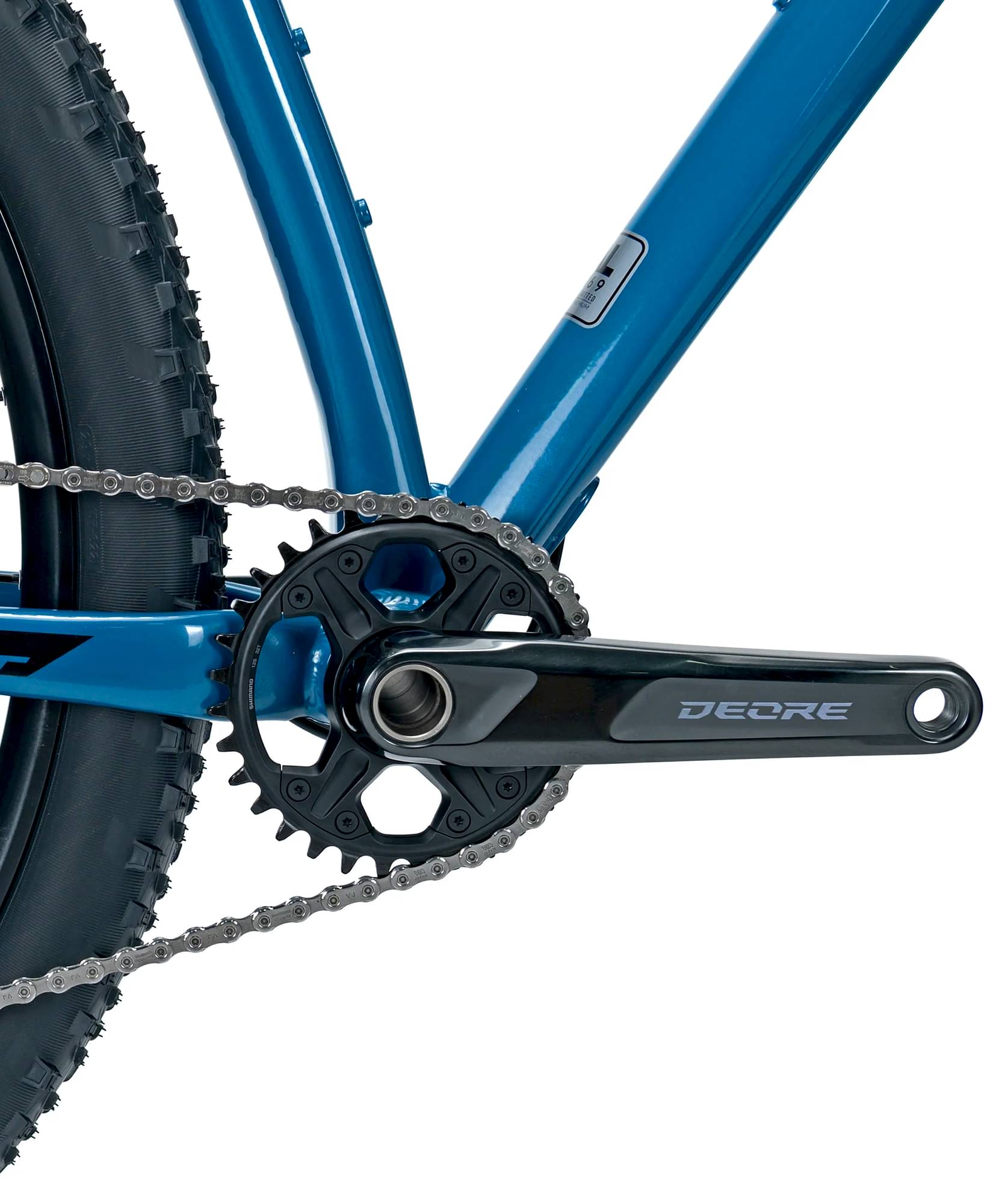

Shimano Deore FC-M6100 12v, 170mm (tamanho S) 175mm (tamanho M-L-XL), 32T
Bottom Bracket
PF30 Token Ninja Shimano 24mm / PF30 - 46x68/73mm
Chain
Deore CN-M6100 De 12velocidades
Wheels
Rims
Sentec 29" Tubeless (622x19mm) Alloy 6061, 28F Cubos Shimano HB-TC500-15-B 110x15mm
Tires
Michelin Tire 29x2.25 Force XC Performance Line TS TLR

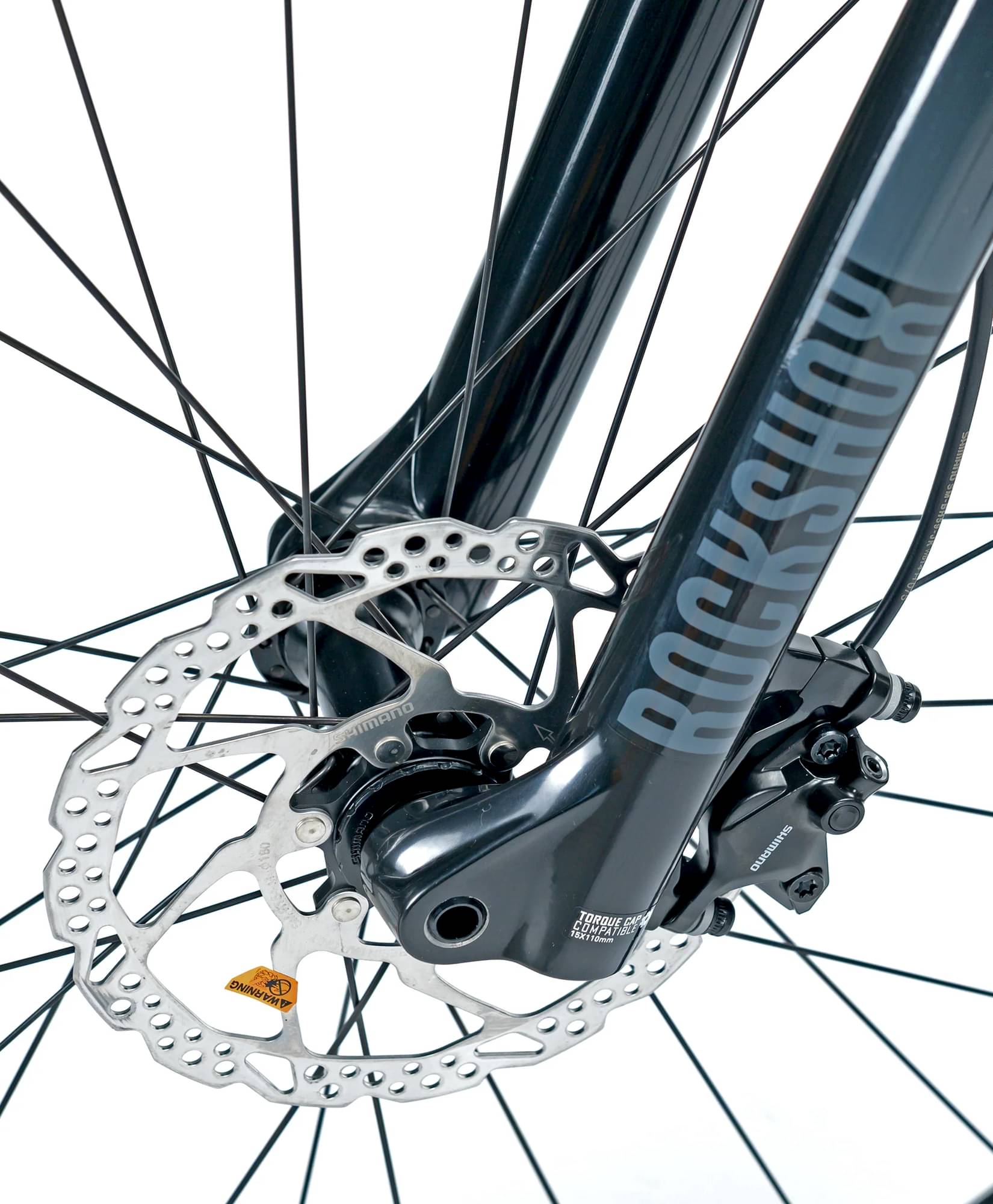

Brakes
Brakes
Hydraulic Disc
Cockpit

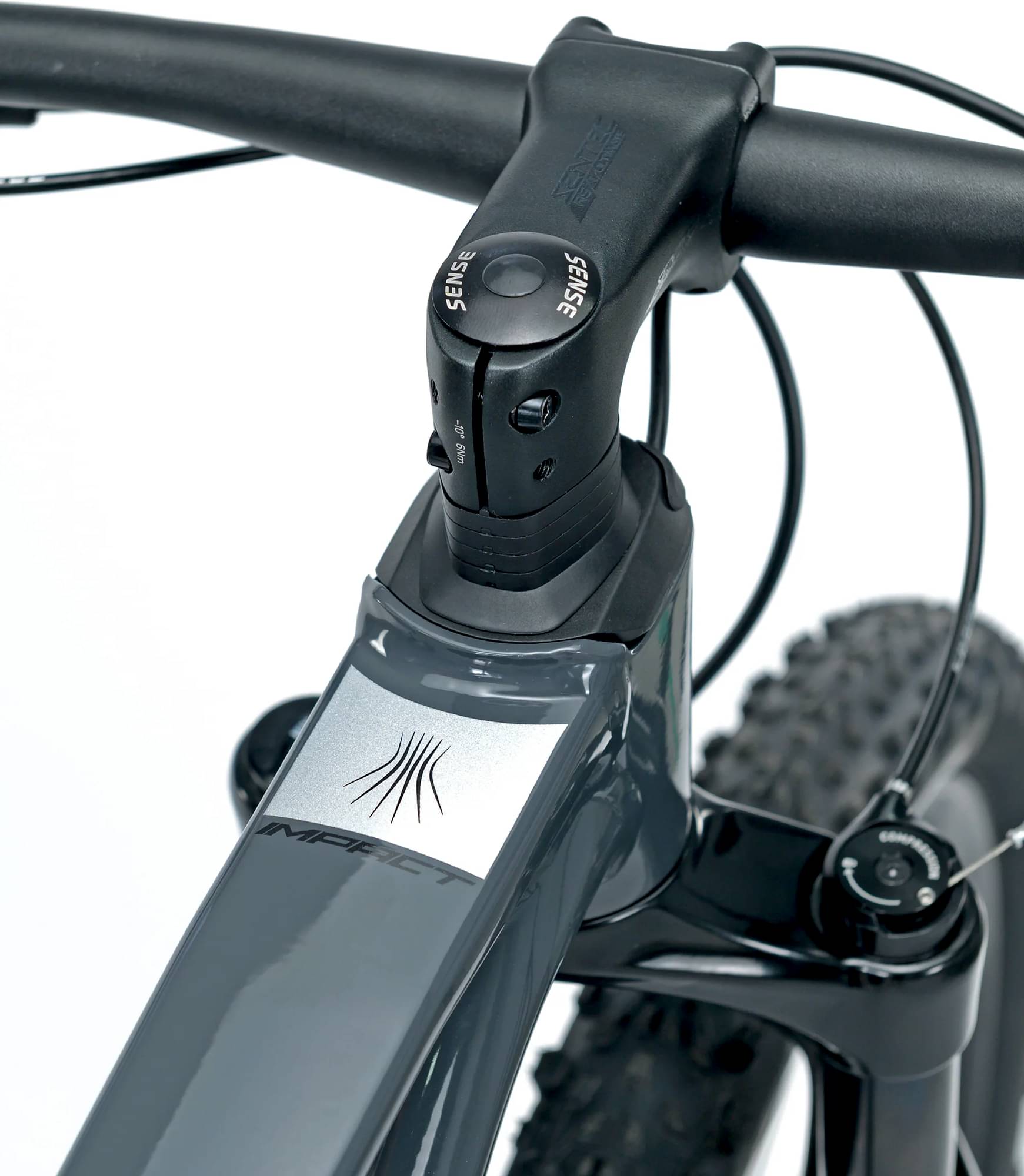

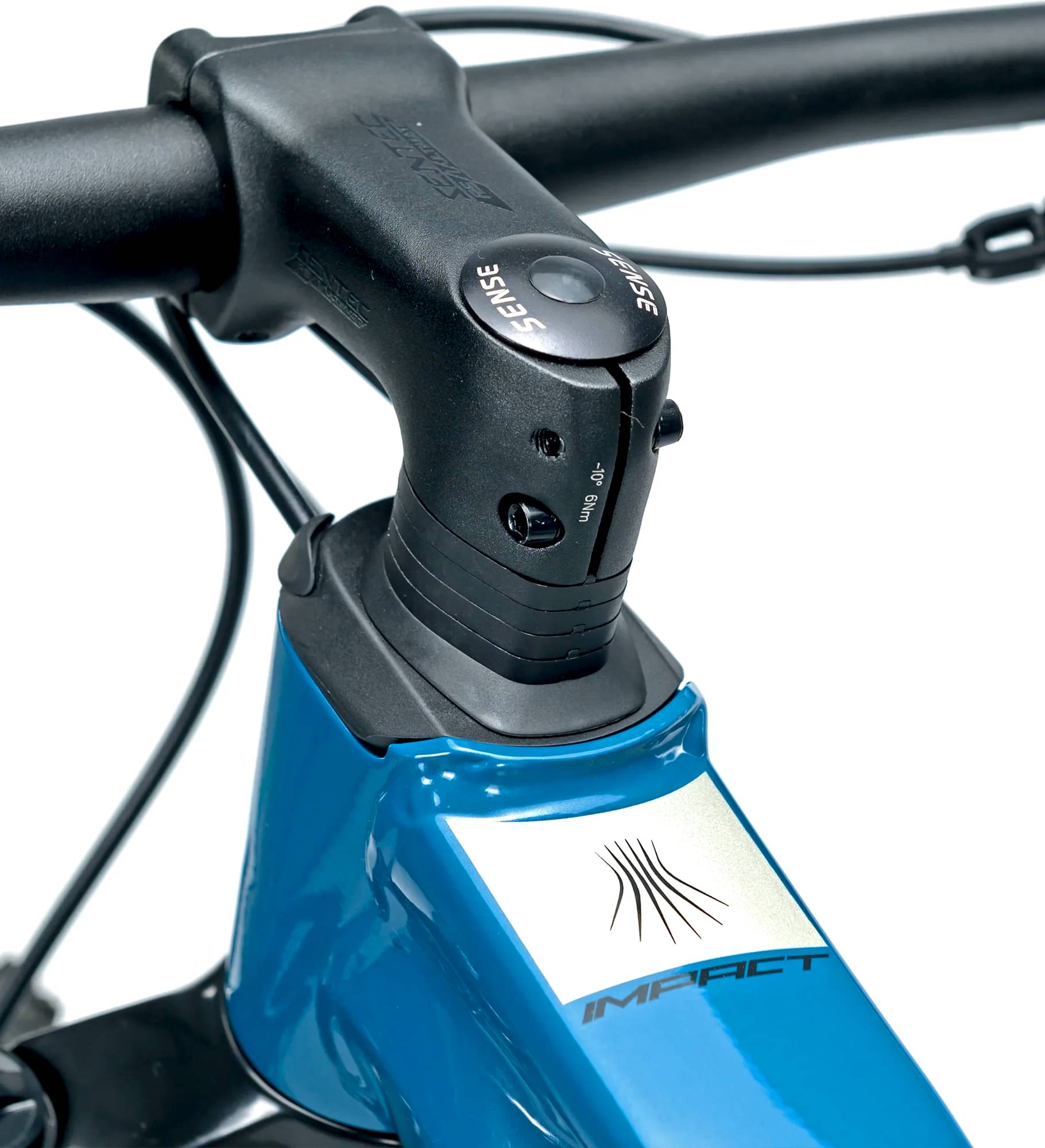

Stem
Sentec Alloy Stem 80mm (S/M) -10° e 90mm (L/XL) - 10º com centro de 31.8mm
Handlebar
Sentec Alloy 750mm Com Rota Interna, Back Sweep 9° Centro 31.8mm
Grips
Sentec C/Lock

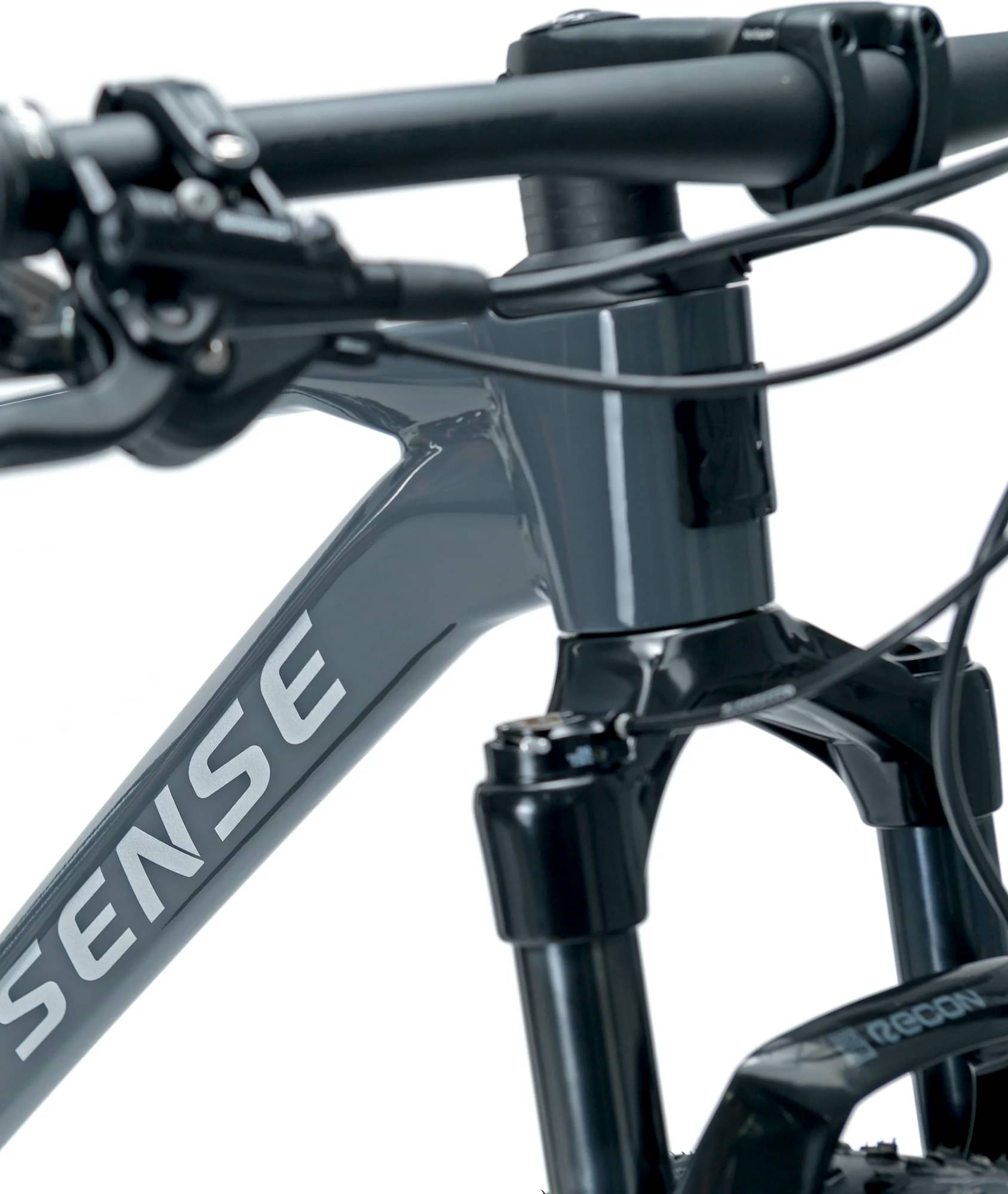

Headset
Sentec com nova tampa e passagem de cabeamento interno específico
Seat
Saddle
Fizik Alpaca Terra X5
Seatpost
Sentec Alumínio, Off Set 0mm, 31.6x400mm
Fit data

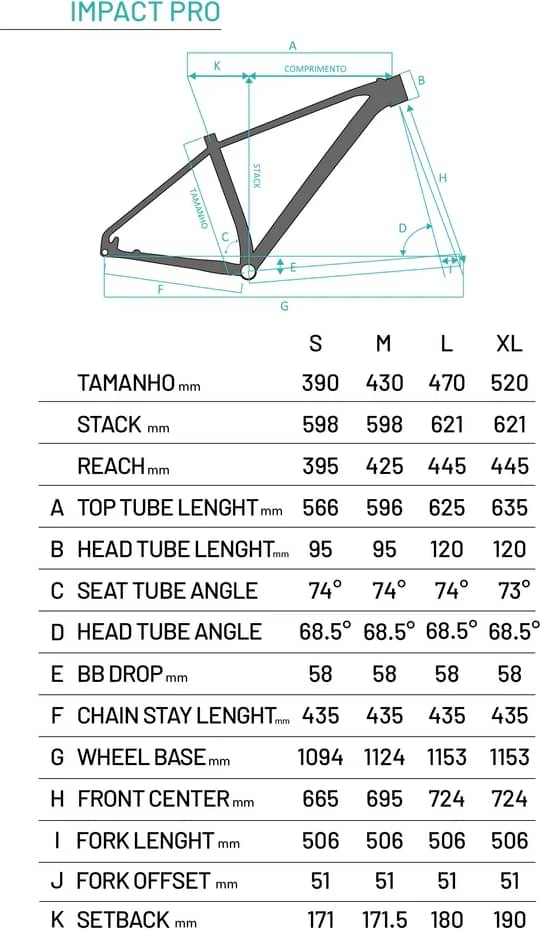

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
