Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components

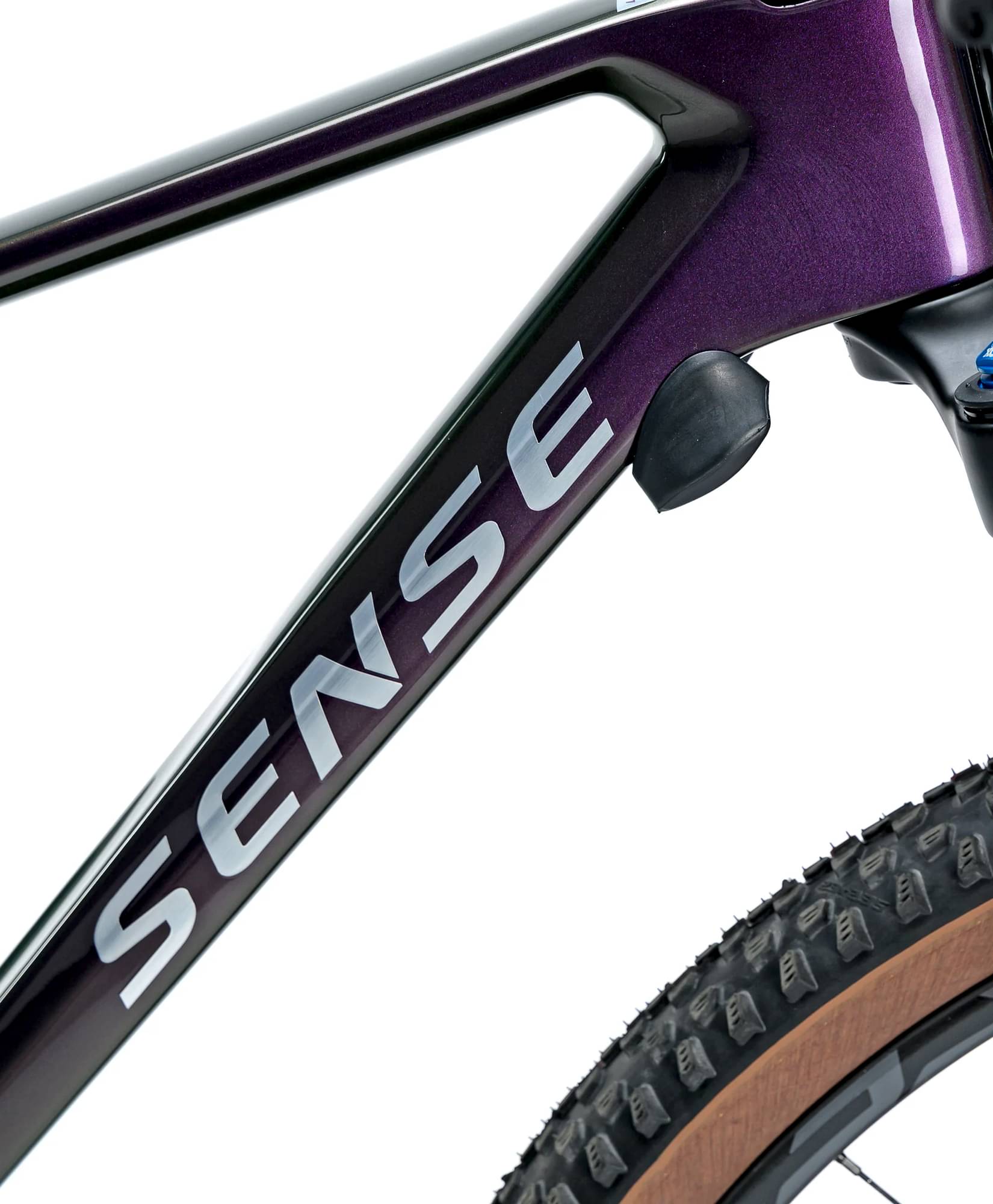

Frame
Frame

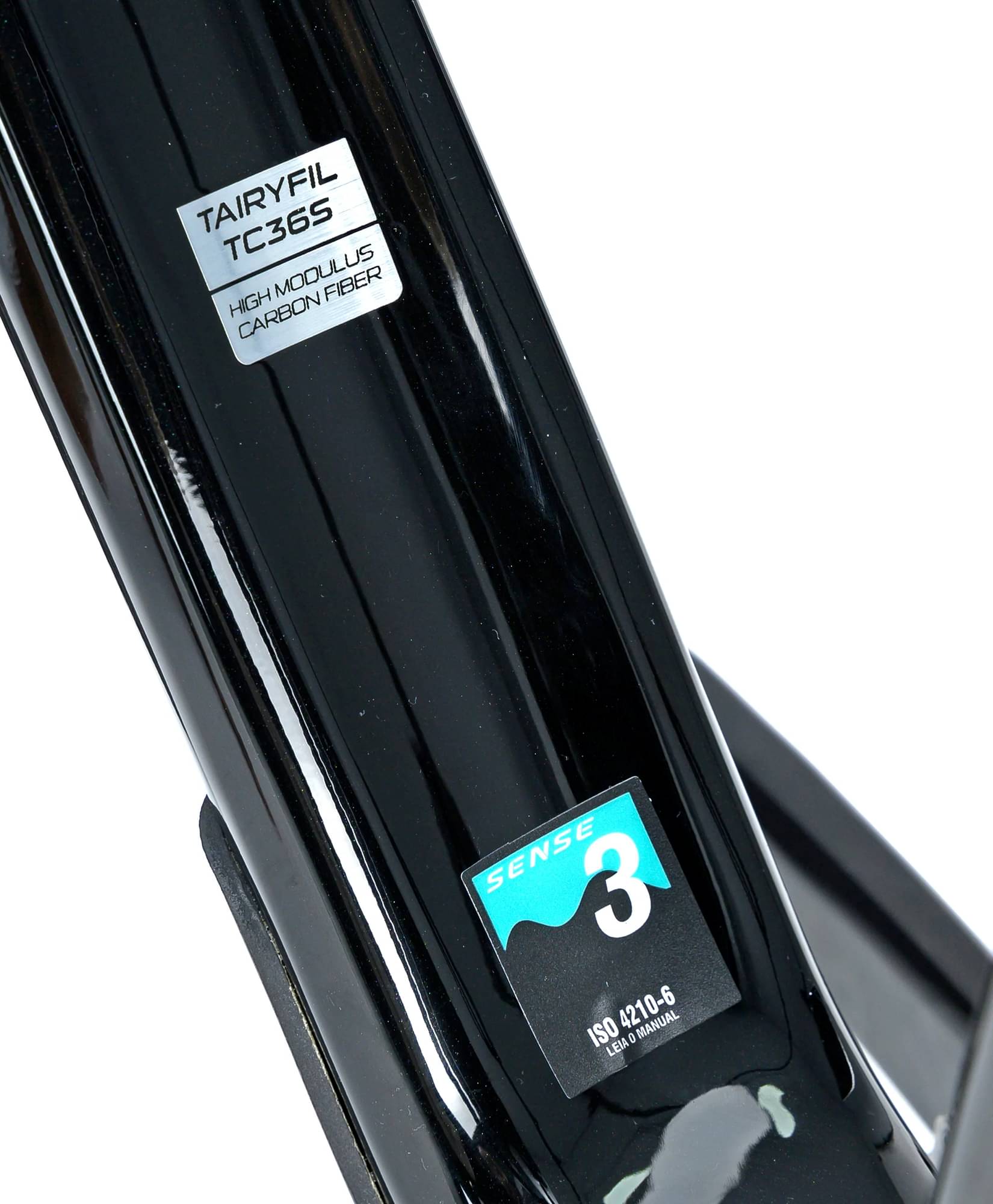

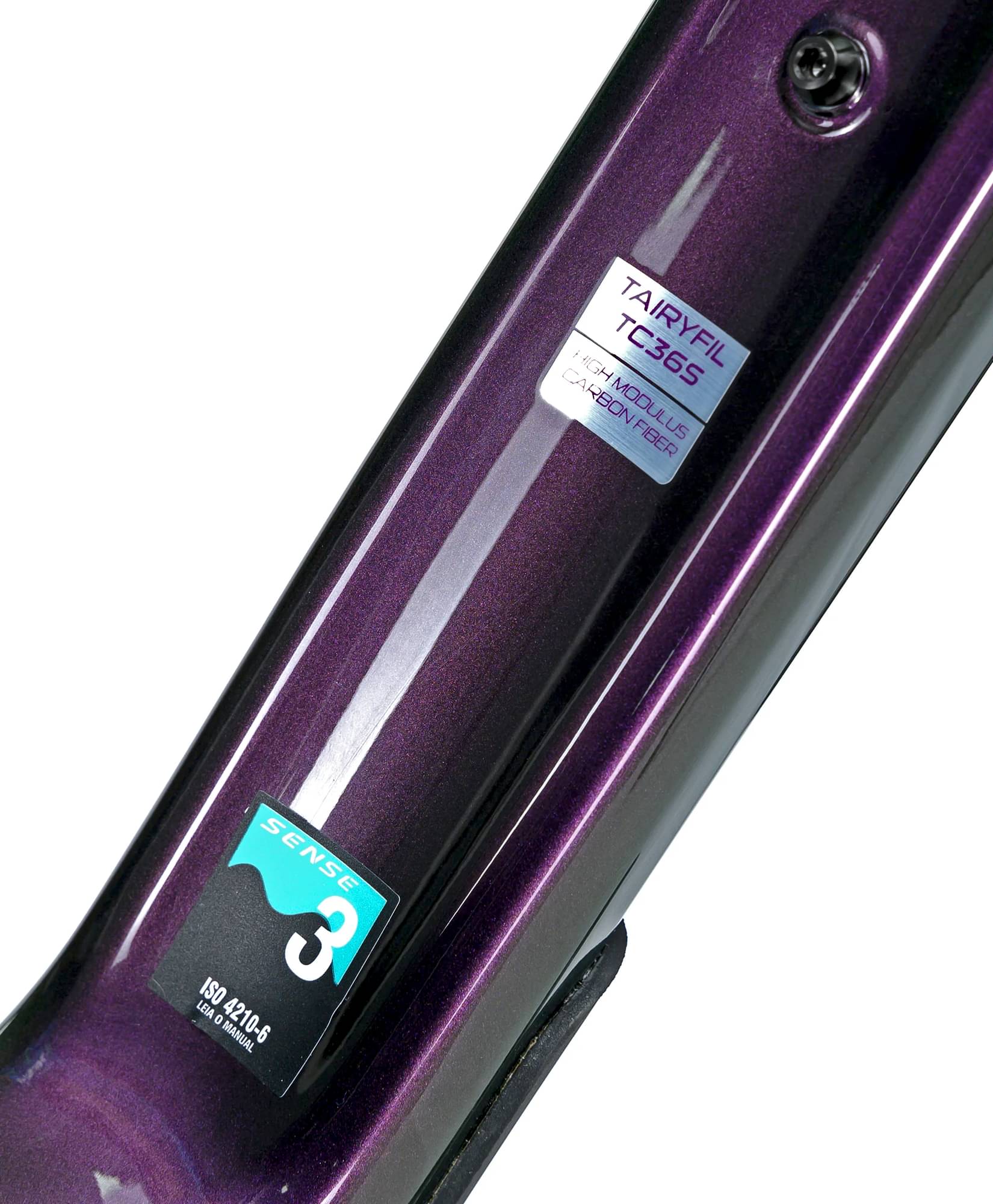

Carbono Tairyfil TC36S | Tapered | Nova Tampa Da Caixa De Direção Com Cabeamento Interno Entrada Lateral Dos Conduites E Mangueira De Freio| Eixo Boost 12x148 Mm | Sistema Flat Mount | Tecnologia Flex Stays | Abraçaderia De Selim Integrada Ao Quadro
Suspension Fork
Fox Float 32 Performance 29" Air 100mm | Tapered | Eixo 15x110mm | Trava No Guidão
Drivetrain
Cassette
Shimano Deore XT CS-M8100-12, 12-SPEED (HYPERGLIDE+), 10-12-14-16-18-21-24-28-33-39-45-51T

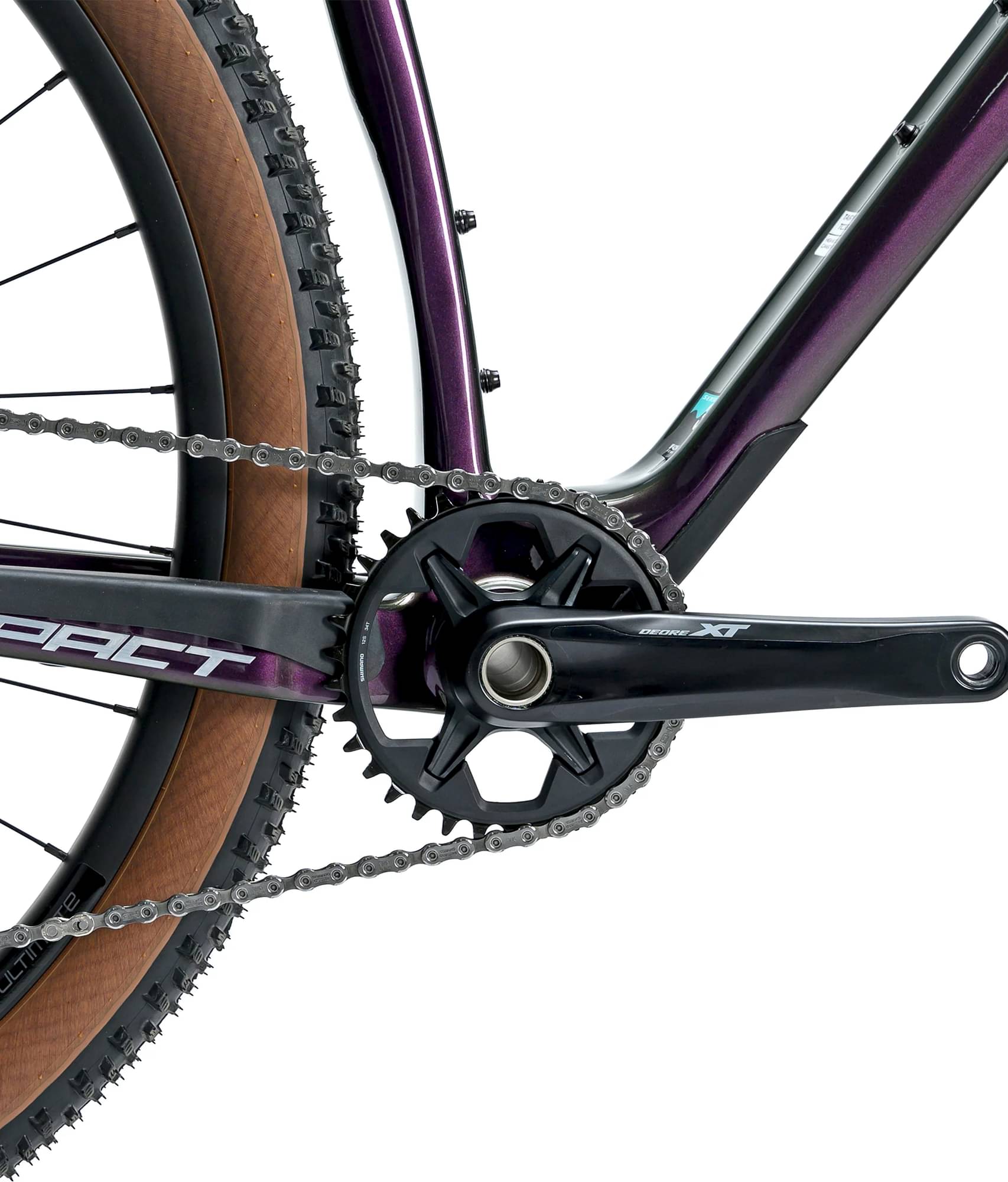

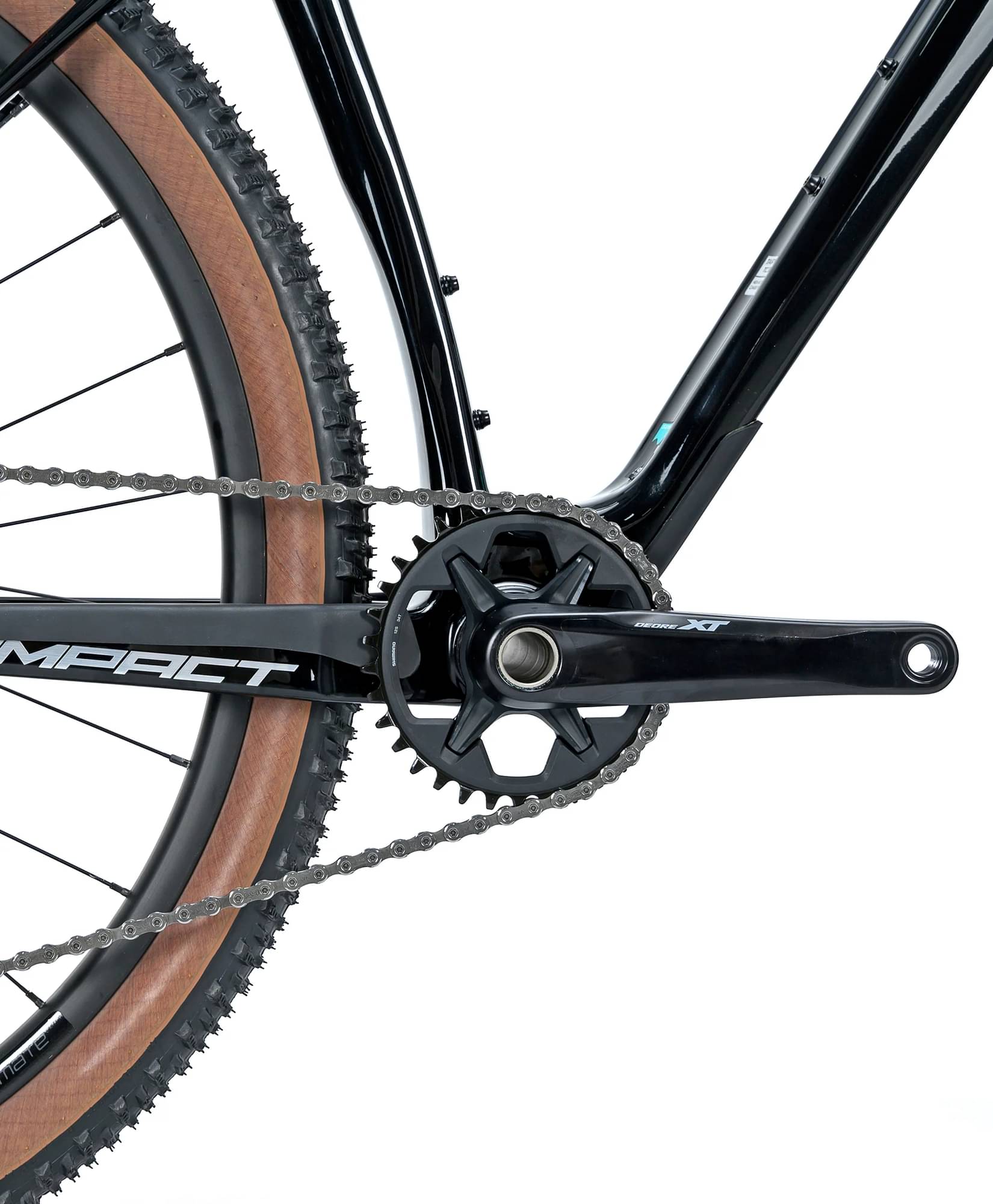

Crank
Shimano Deore XT FC-M8100-1, 170mm (S), 175mm (M/L), 34T
Bottom Bracket
PF30 FSA 46*73mm com redução para eixo Shimano 24mm
Chain
Deore XT CN-M8100 de 12 velocidades
Wheels
Rims
Sentec 29" 28 Furos Boost 110x15mm Tubeless
Tires
29x2.35 Schwalbe Racing Ray Evo Super Race borda creme (dianteiro) 29x2.35 | Schwalbe Racing Ralph Evo Super Race (traseiro)
Brakes
Brakes
Hydraulic Disc

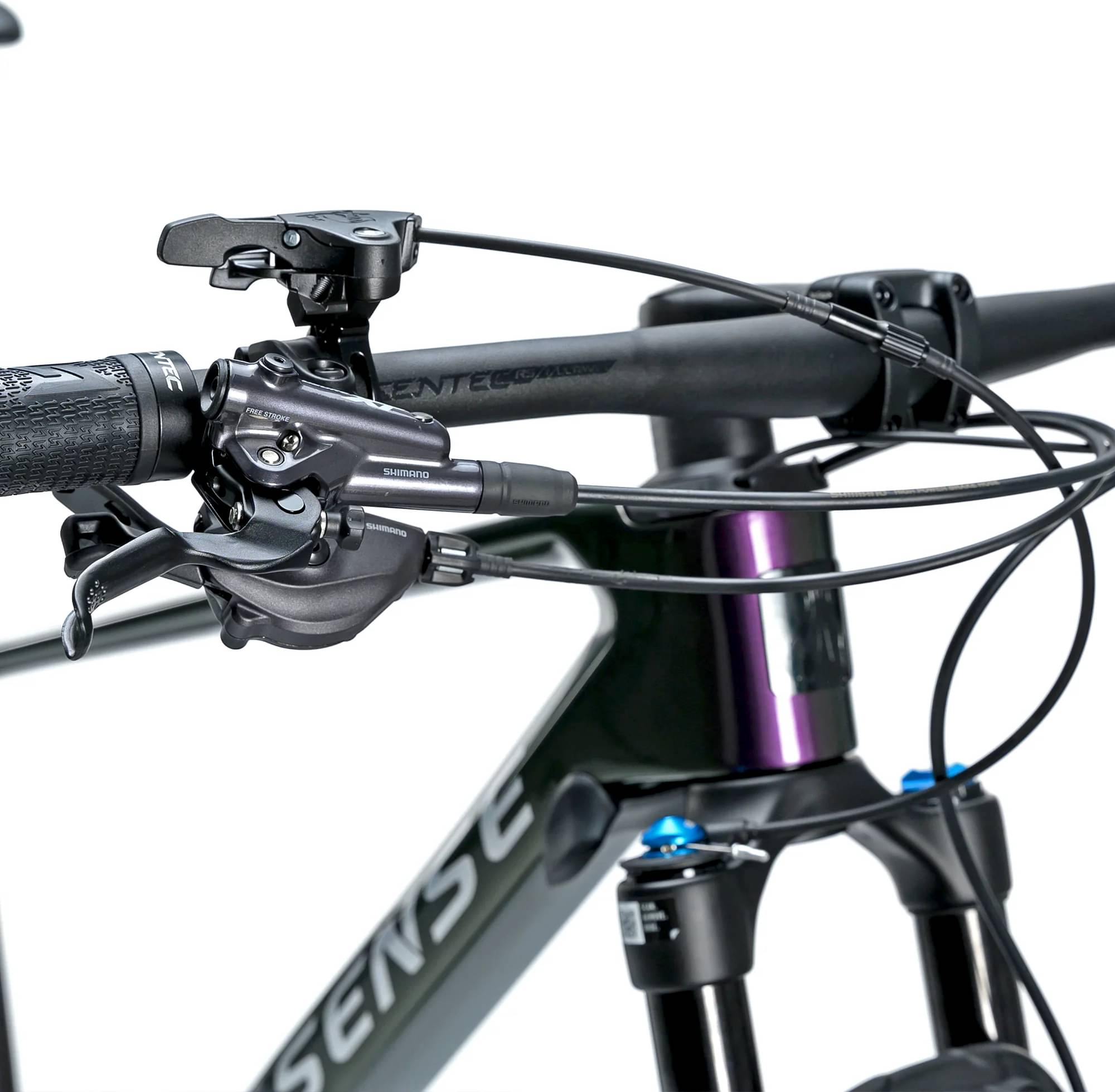

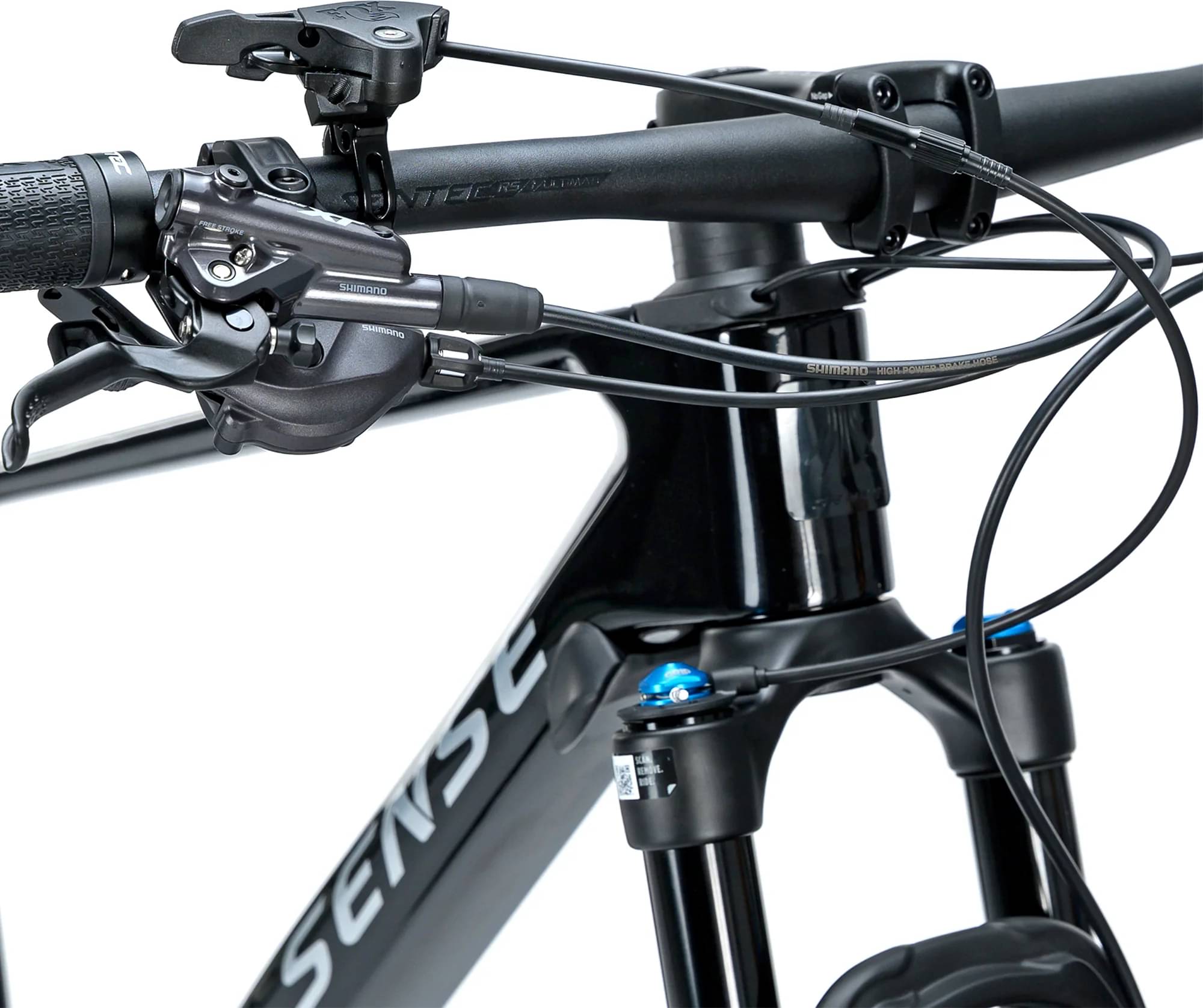

Cockpit

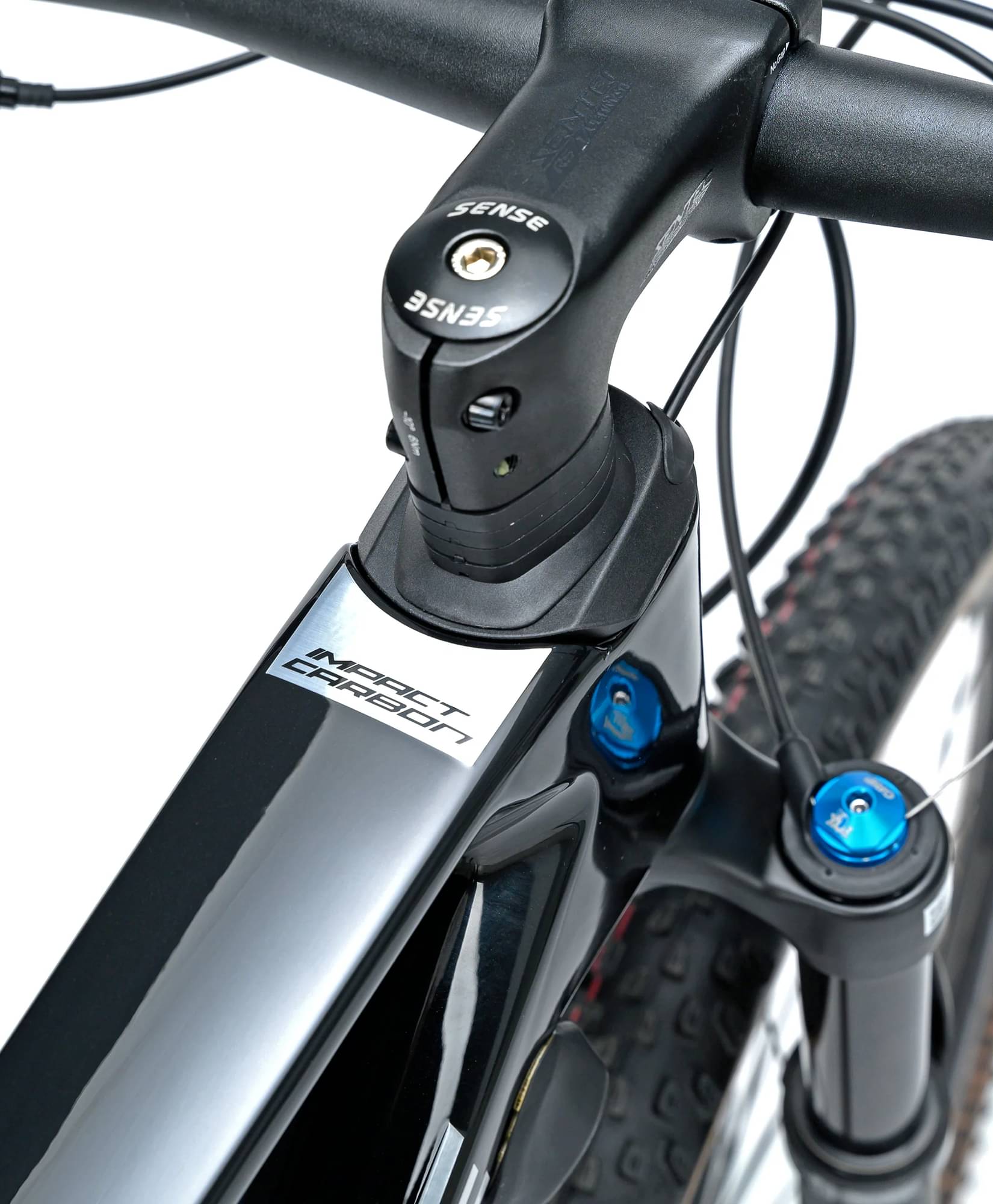

Stem
Sentec RS1 Ultimate Alloy Stem 80mm (S/M) -10° 90mm (L) -10° com centro de 31.8mm
Handlebar
Sentec RS1 Ultimate Alloy 750mm Back Sweep 9° Centro 31.8mm
Grips
Sentec c/Look 132mm
Headset
Sentec com nova tampa e passagem de cabeamento interno específico
Seat
Saddle
Fizik Alpaca Terra X5 145mm
Seatpost
Dropper Sentec Alumínio, 27.2x400mm

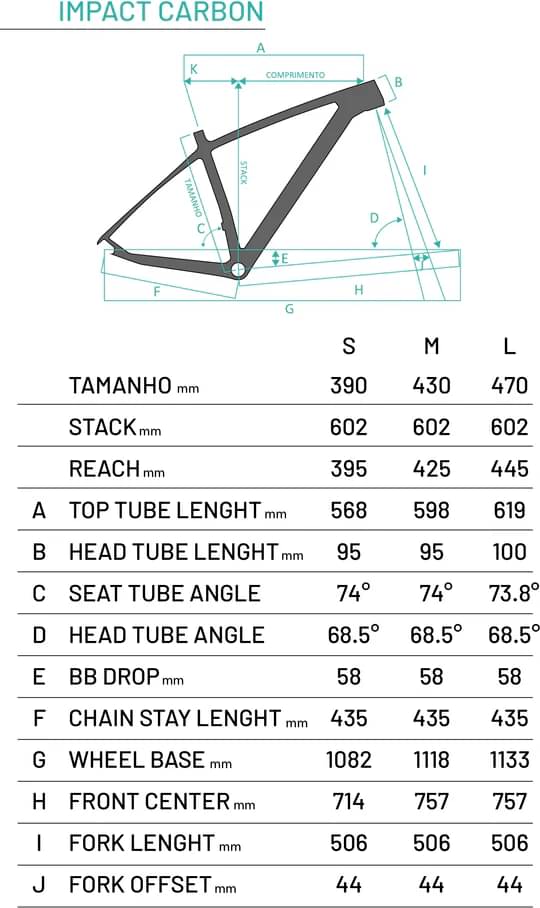

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
