Bike details
Overview
Key information split into simple groups.

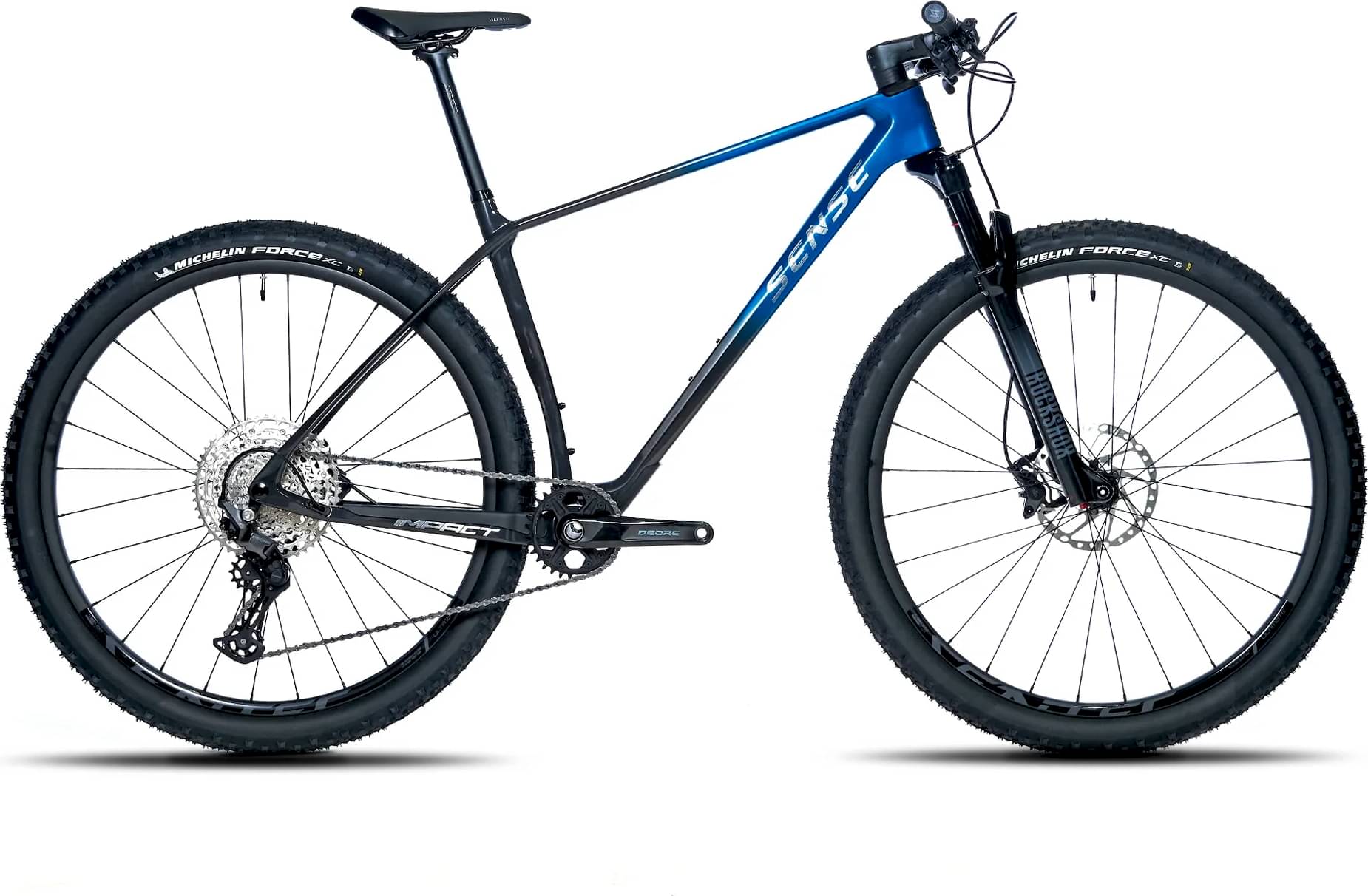

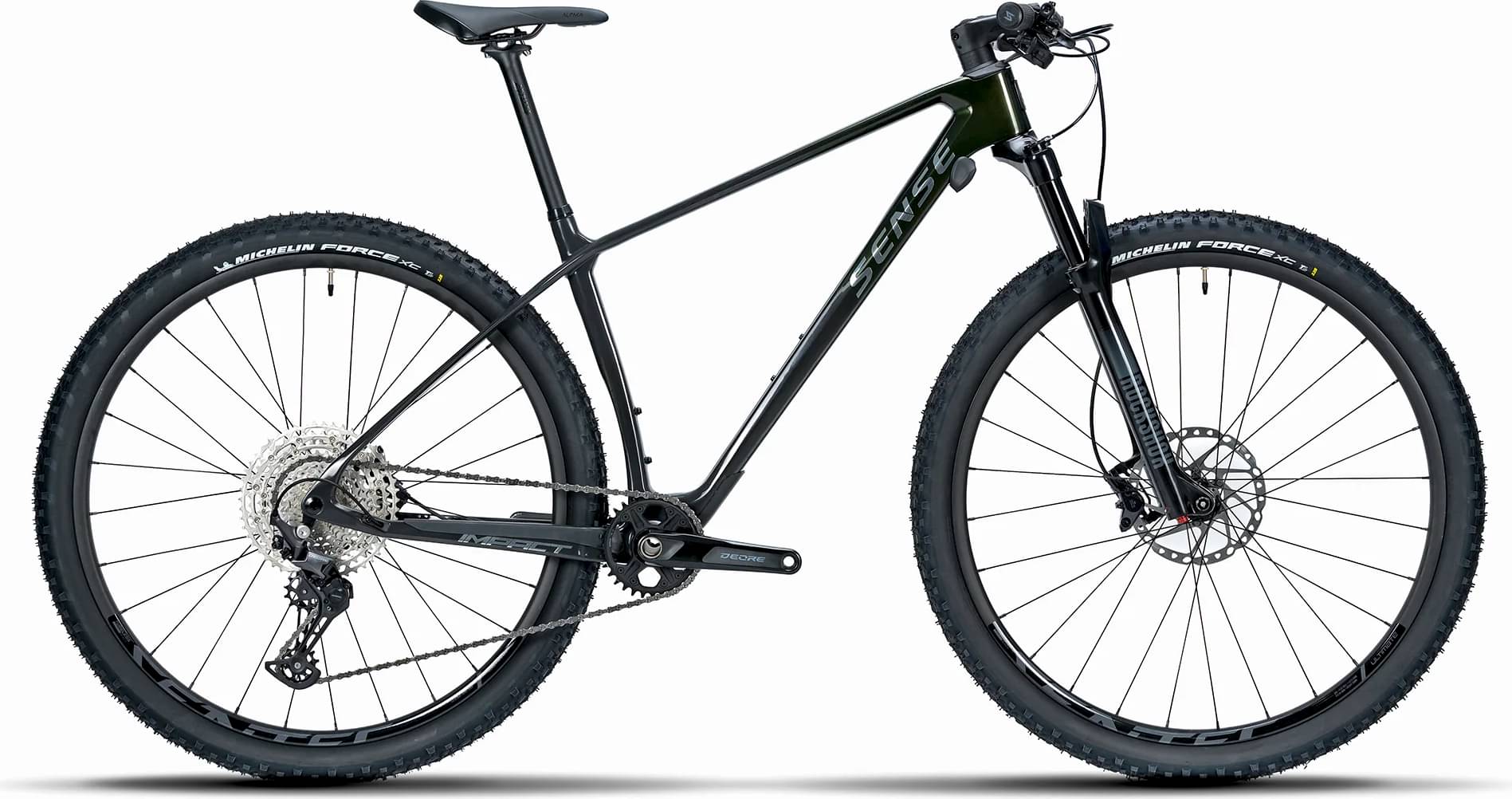

Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components

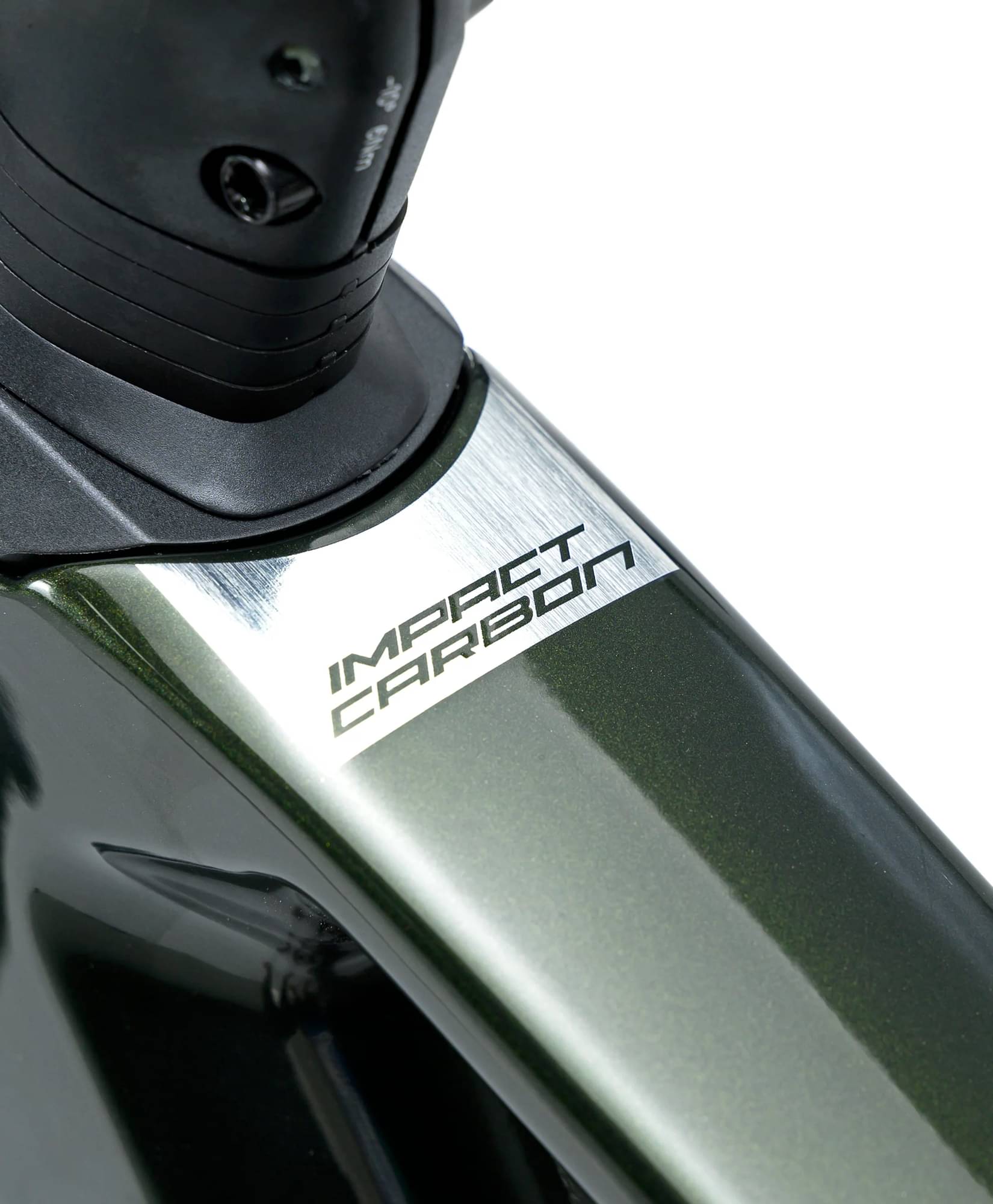

Frame
Frame
Sense Carbon Mitsubishi M40 | Tapered | Cabeamento Interno | Eixo Boost 12x148 mm | Sistema Flat Mount | Tecnologia Flex Stays

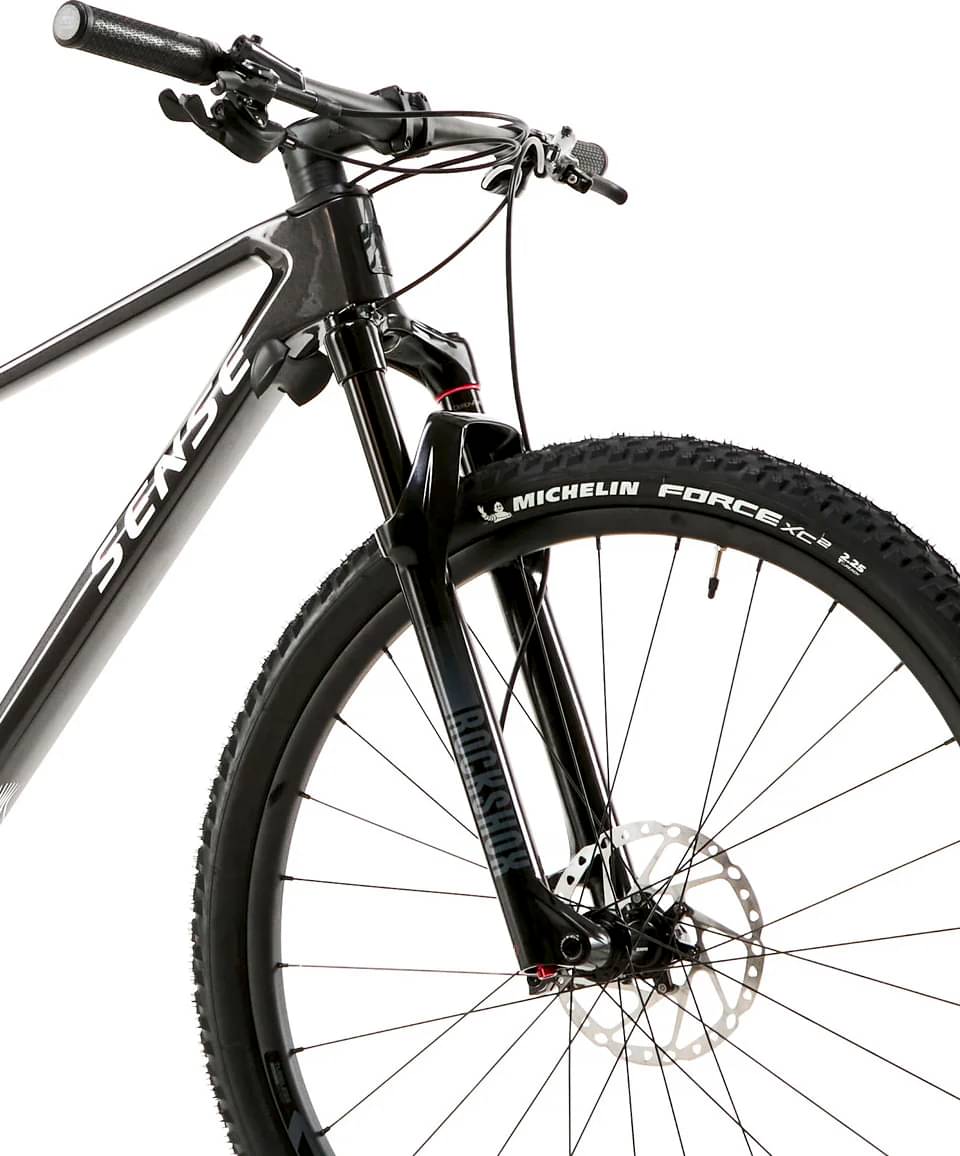

Suspension Fork
Rock Shox Recon Gold RL Remote 29" Air 100mm | Tapered |100 mm | Eixo 15x110mm | Trava no Guidão

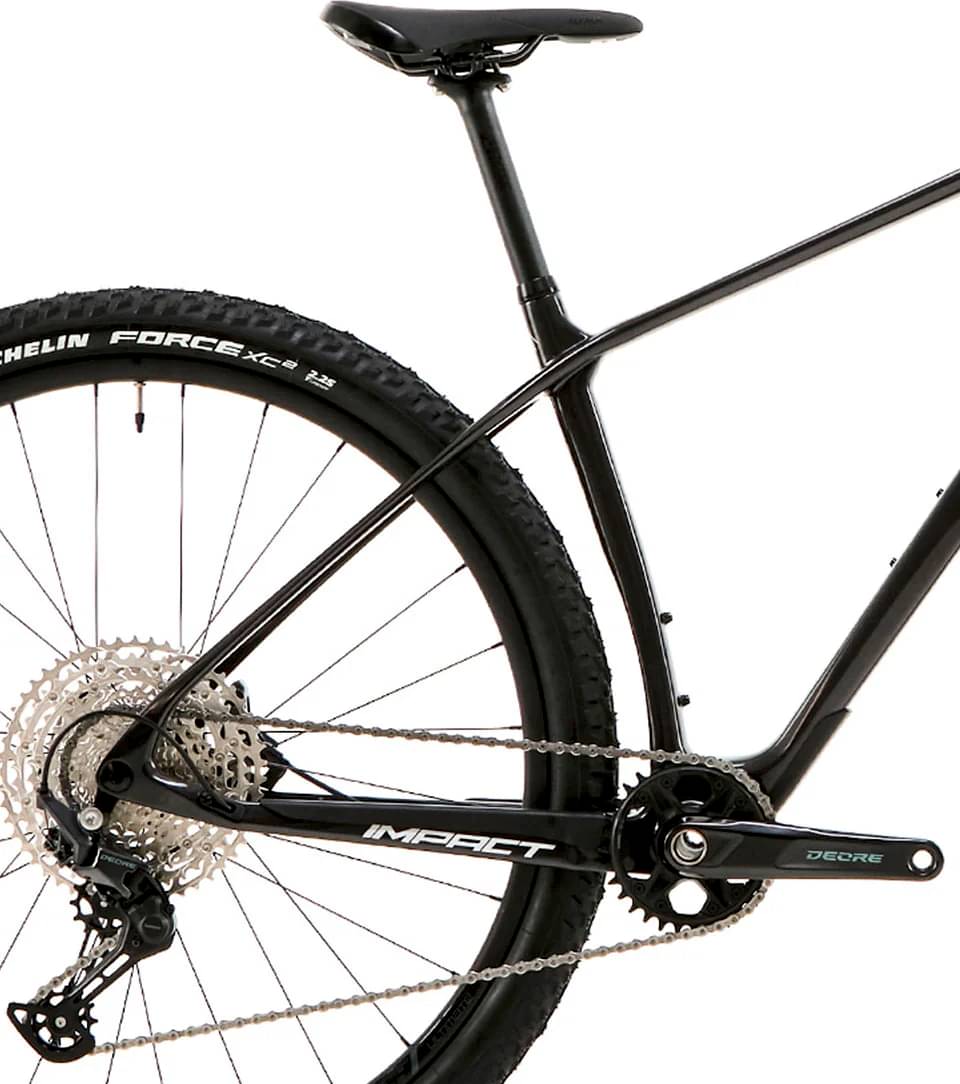

Drivetrain
Cassette
Shimano Deore CS-M6100-12 10-51T (10-12-14-16-18-21-24-28-33-39-45-51t) 12 velocidades

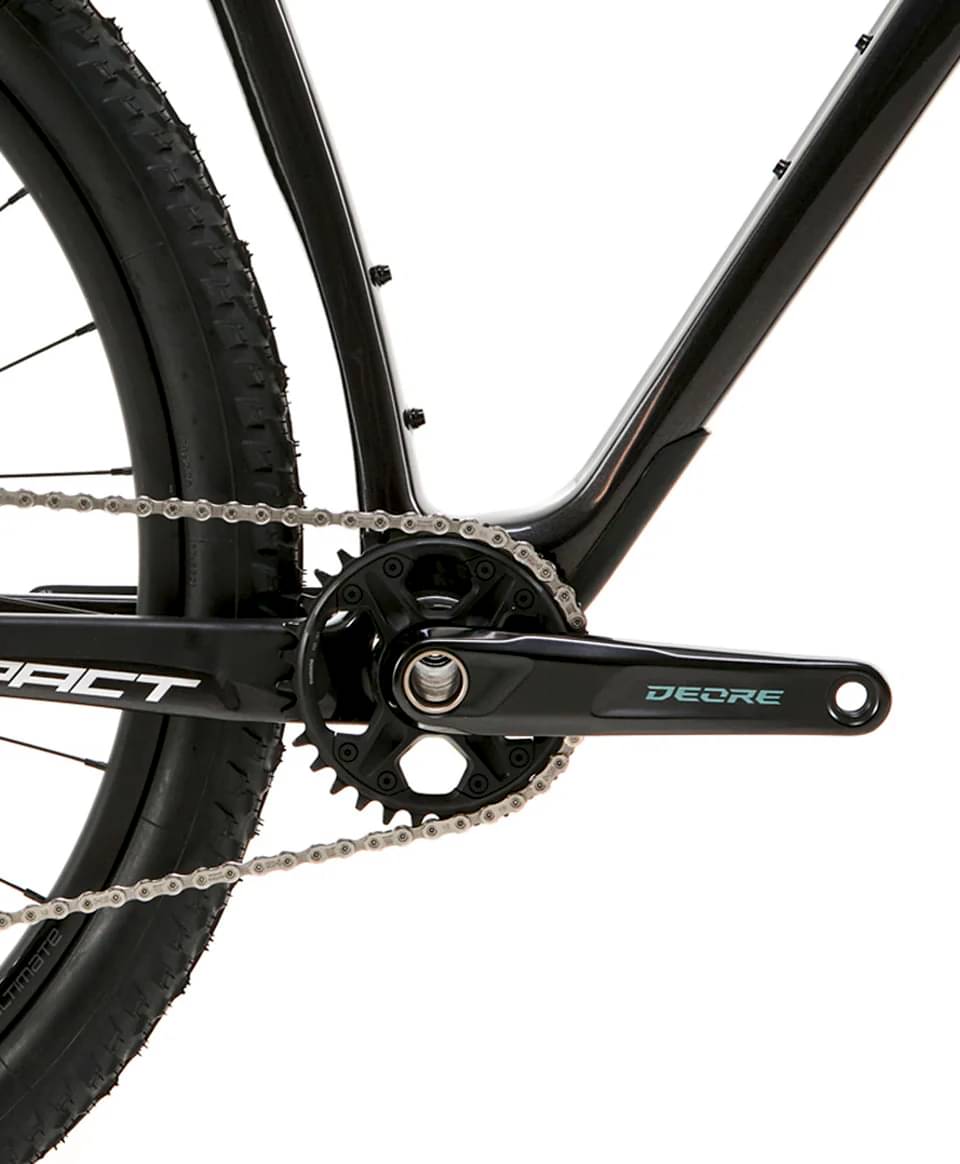

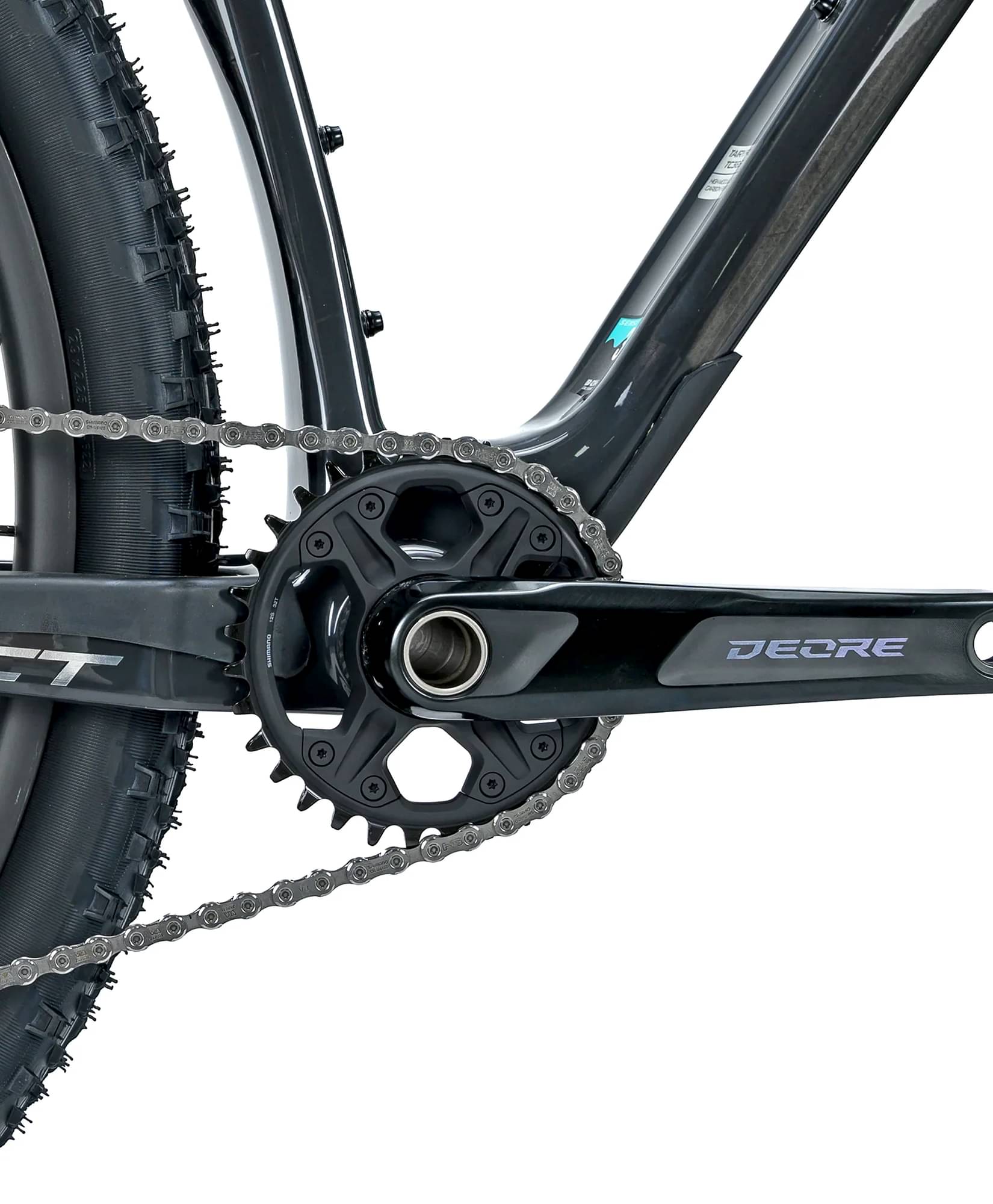

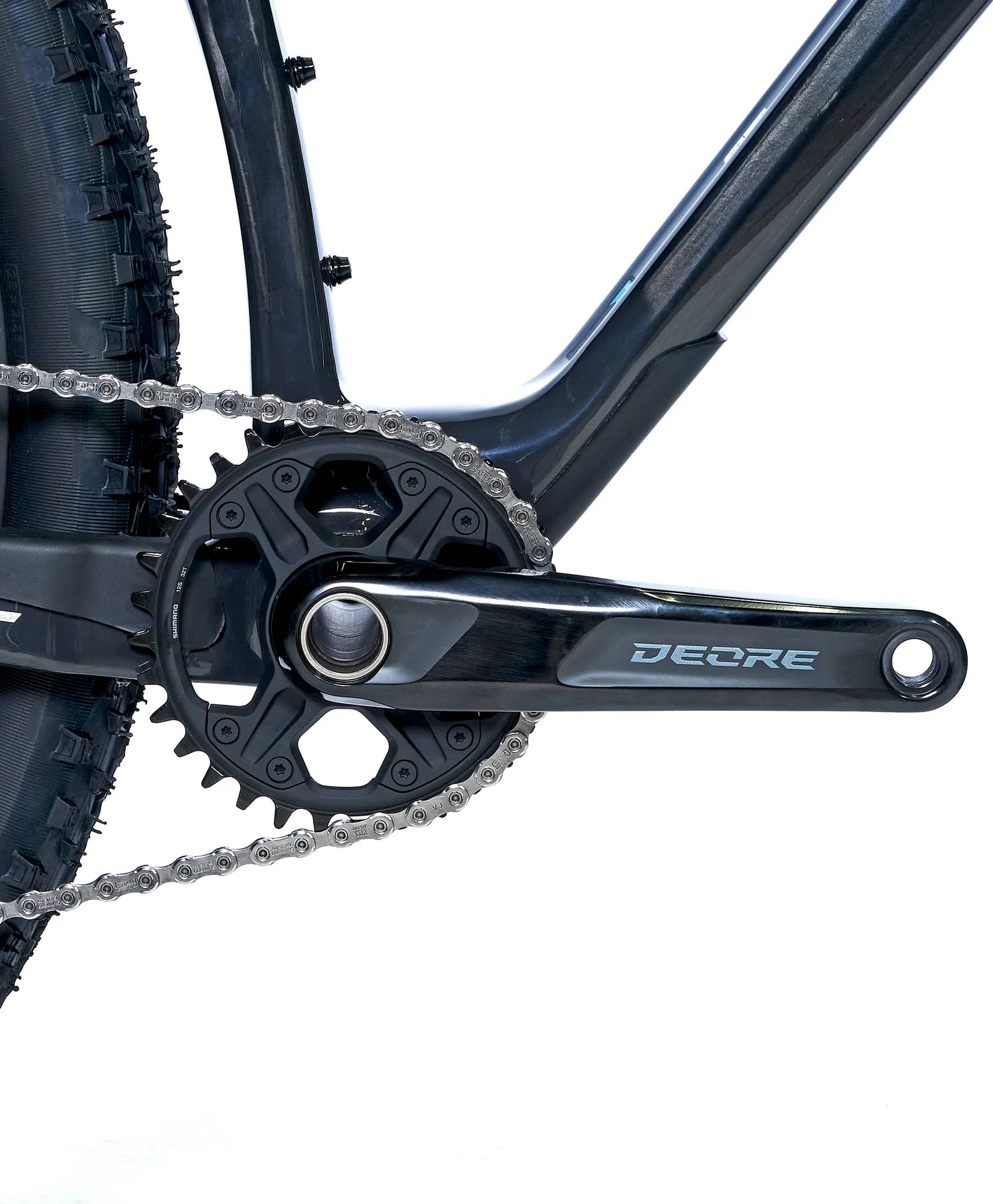

Crank
Shimano Deore FC-M6100, 12v, 170mm (S) 175mm (M-L), 32t
Bottom Bracket
PF30 FSA 46*73mm com Redução Para Eixo Shimano 24mm
Chain
Deore CN-M6100 de 12 velocidades
Wheels
Rims
Sentec 29" (622x19mm) Alloy 6061, 28furos Cubos Shimano HB-TC500-B 110x15mm Tubeless
Tires
Michelin 29x2.1/ 2.50Force XC Performance
Brakes
Brakes
Manete Shimano Deore BL-M6100, 2 Pistões

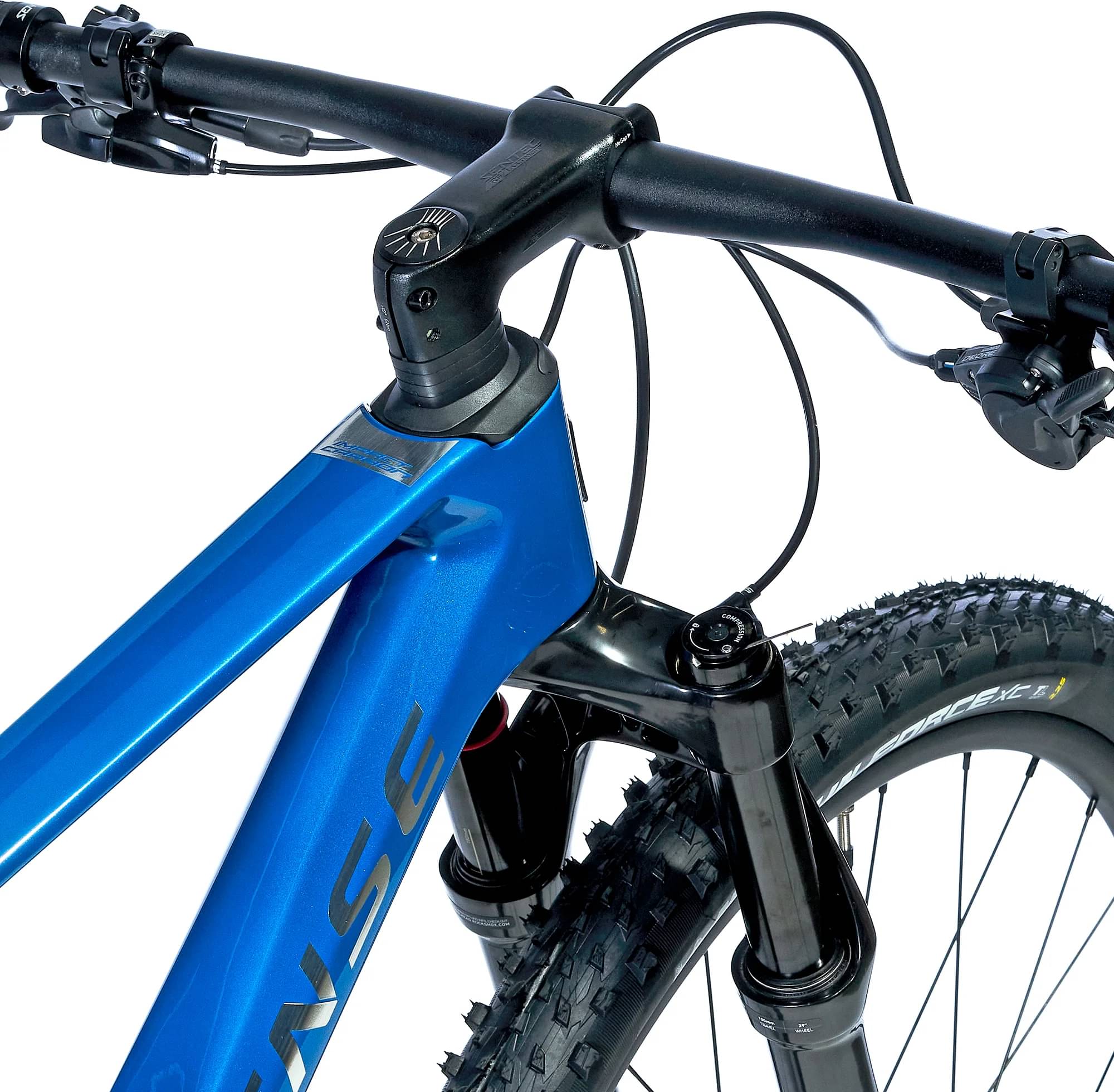

Cockpit
Stem
Sentec RS1 Ultimate Alloy Stem 80mm (S/M) - 10° 90mm (L) - 10° com centro de 31.8mm

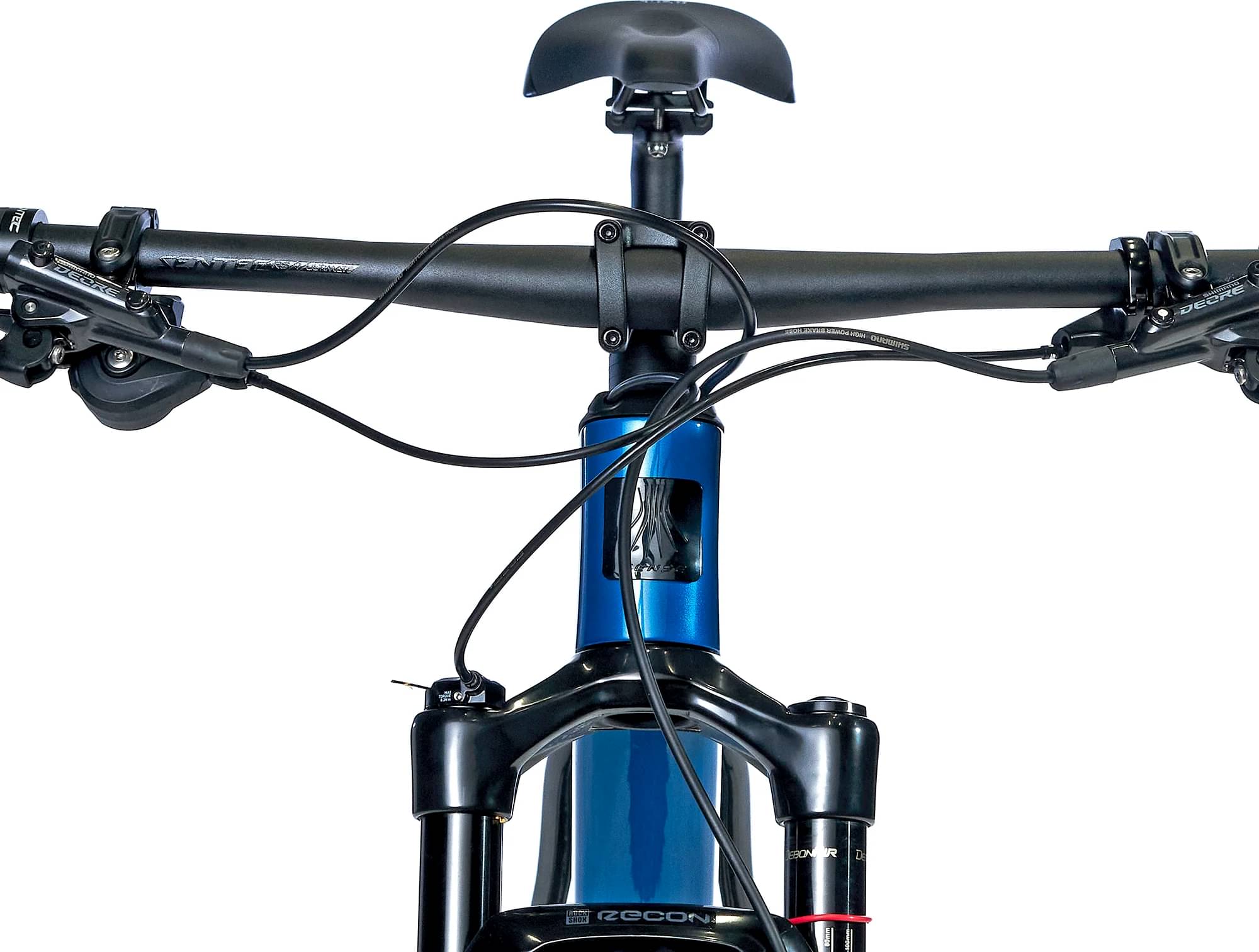

Handlebar
Sentec RS1 Ultimate Alloy 750mm Back Sweep 9° Centro 31.8mm
Grips
Sentec C/Lock 132mm

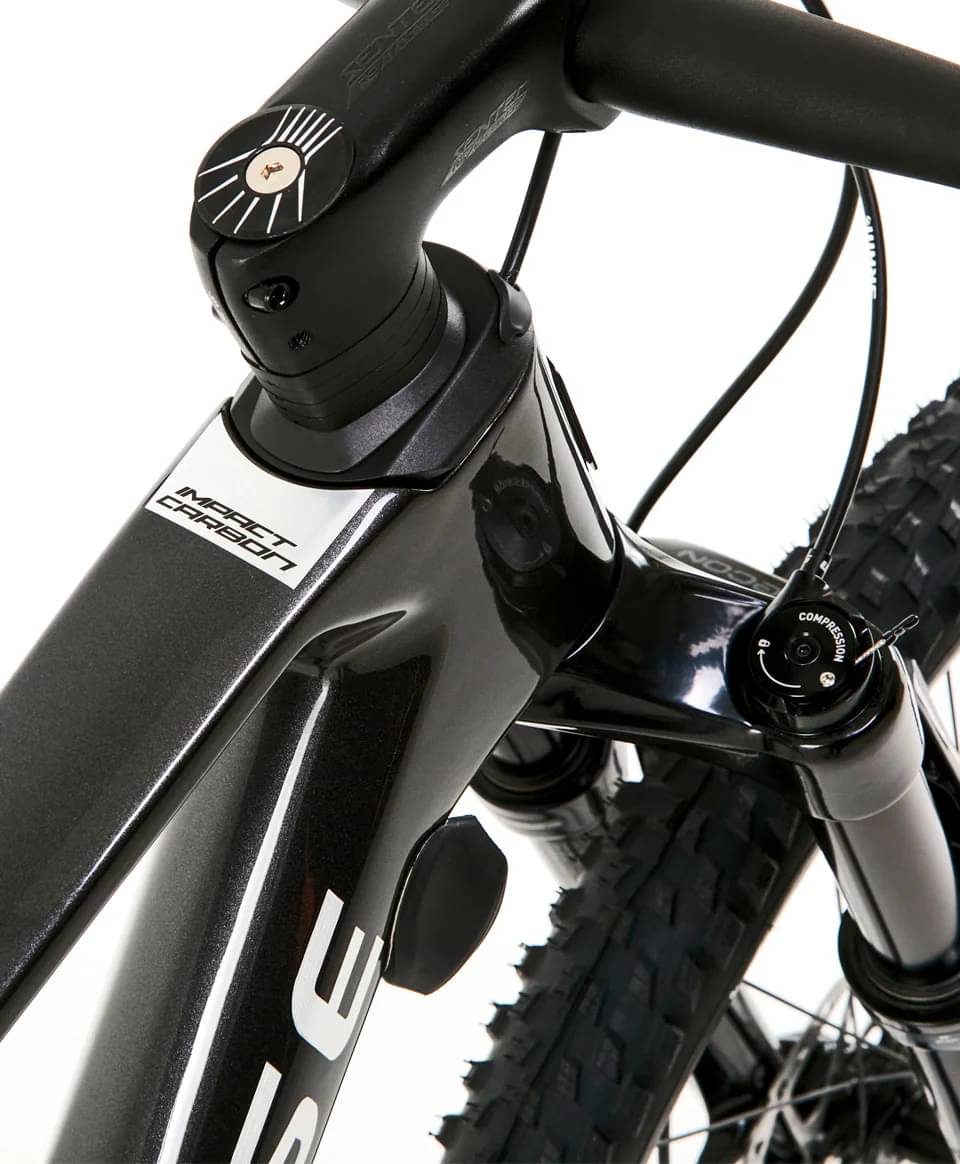

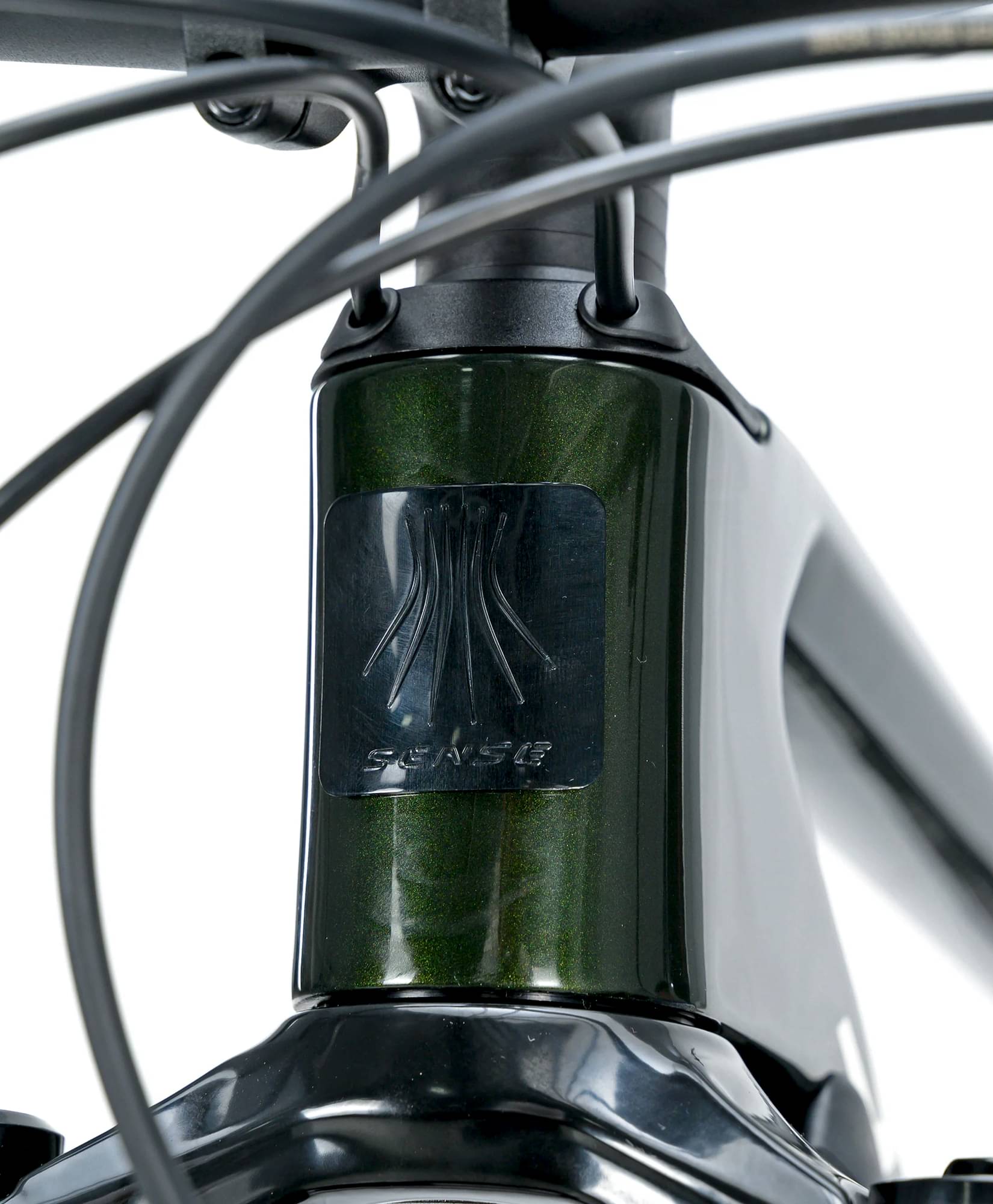

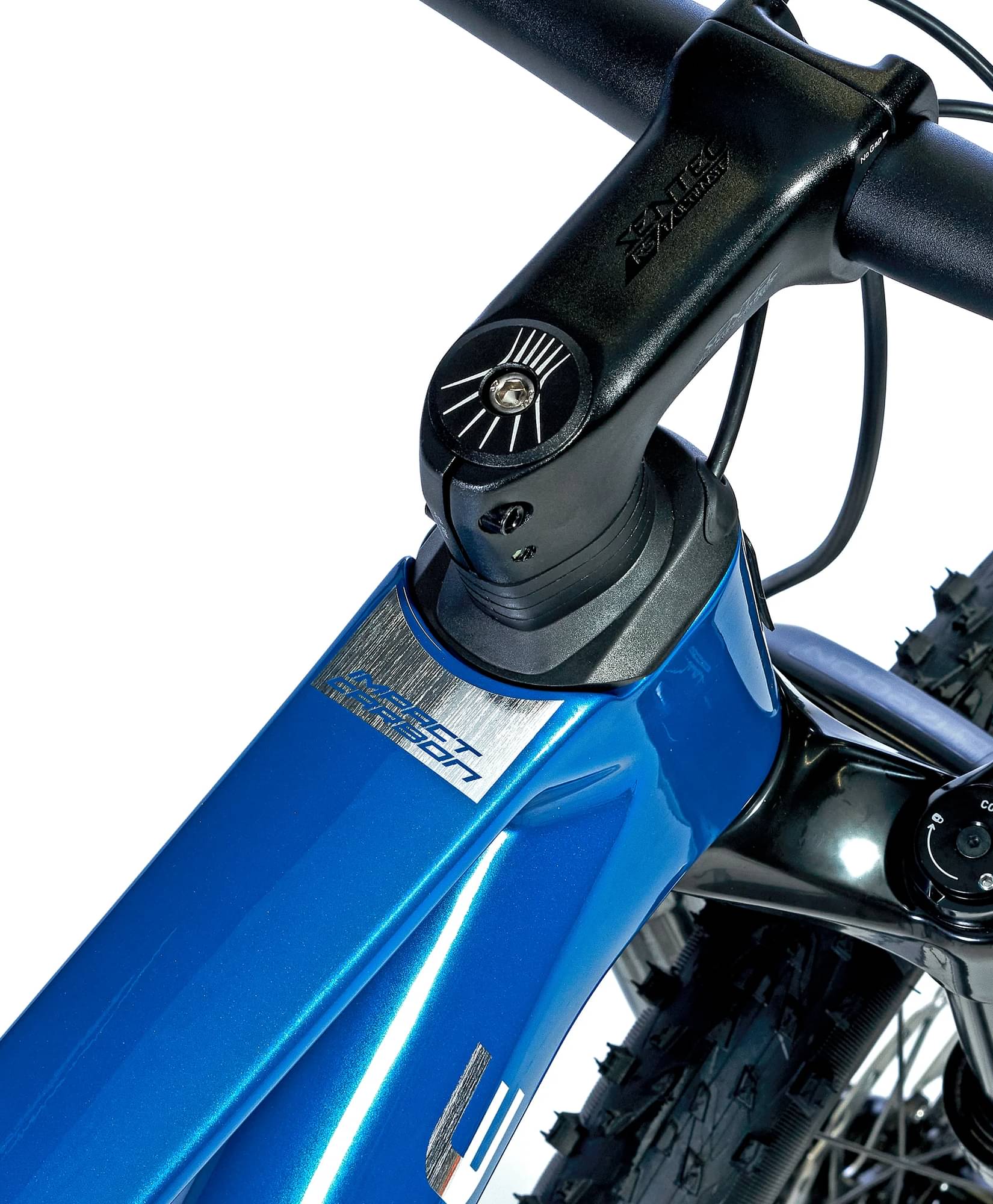

Headset
Sentec com nova tampa e passagem de cabeamento interno específico

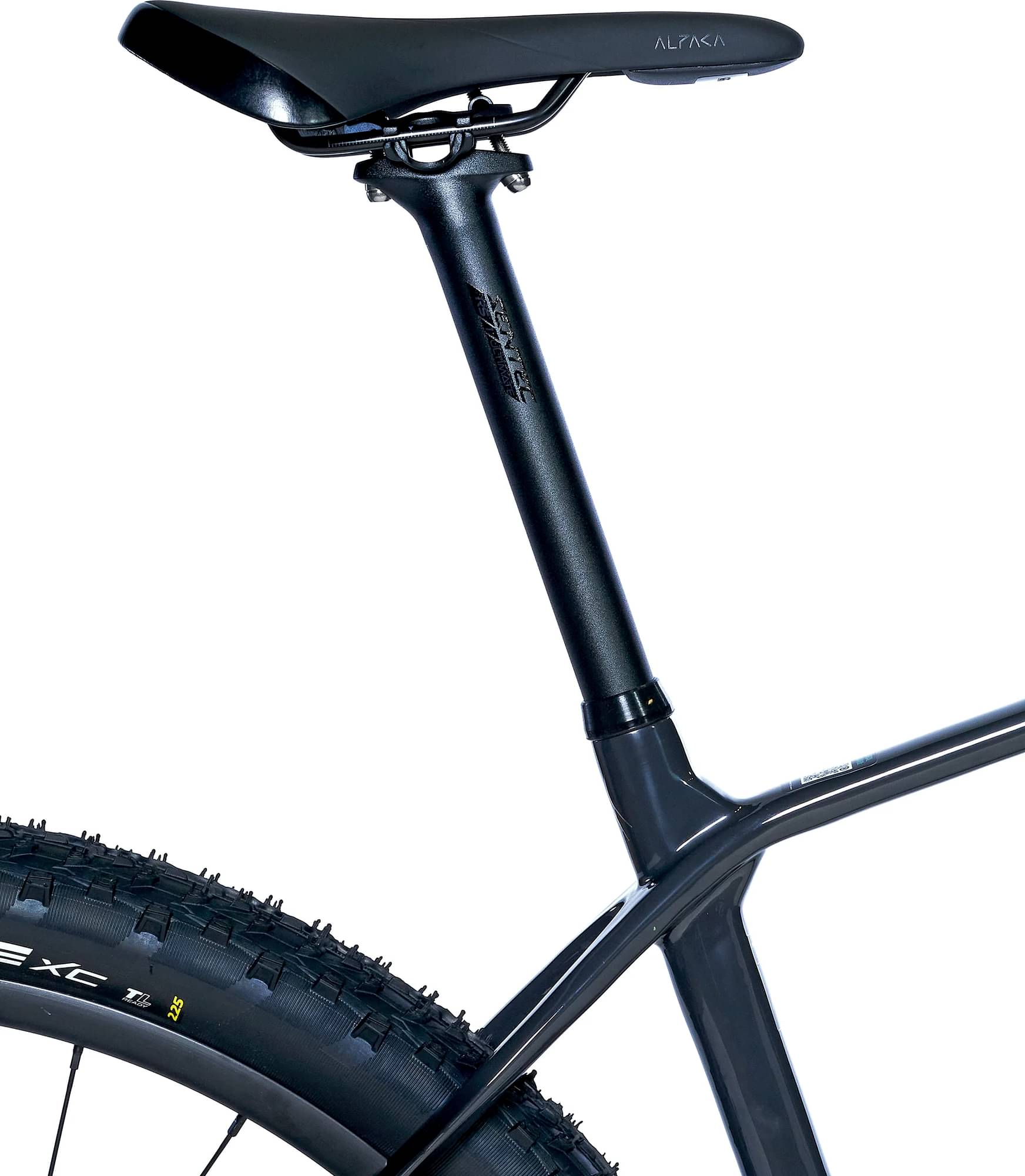

Seat
Saddle
Fizik Alpaca Terra X5 145mm
Seatpost
Sentec Alumínio, Off Set 10mm, 27.2x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
