Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset Shimano -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Tektro HD Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

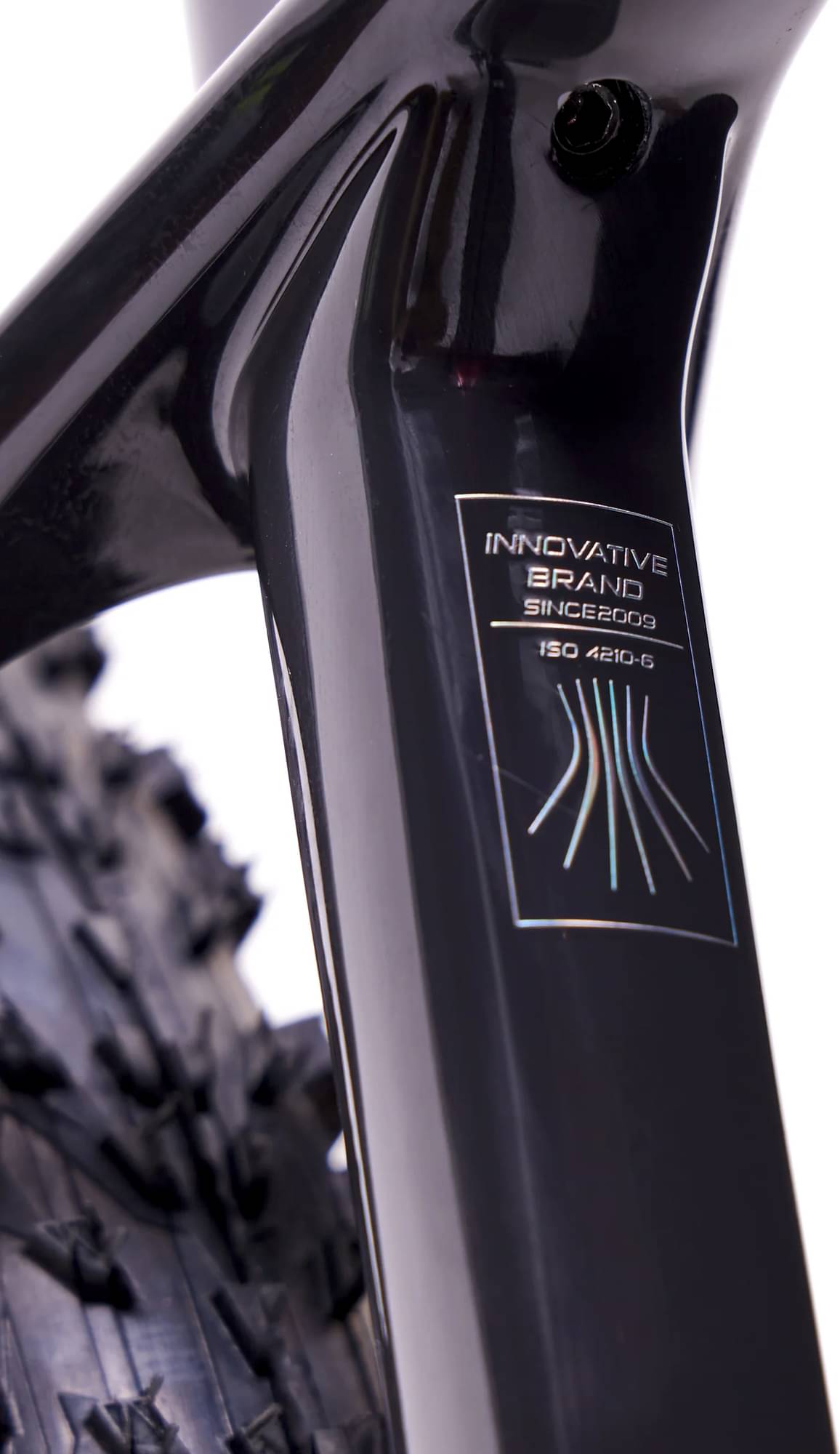

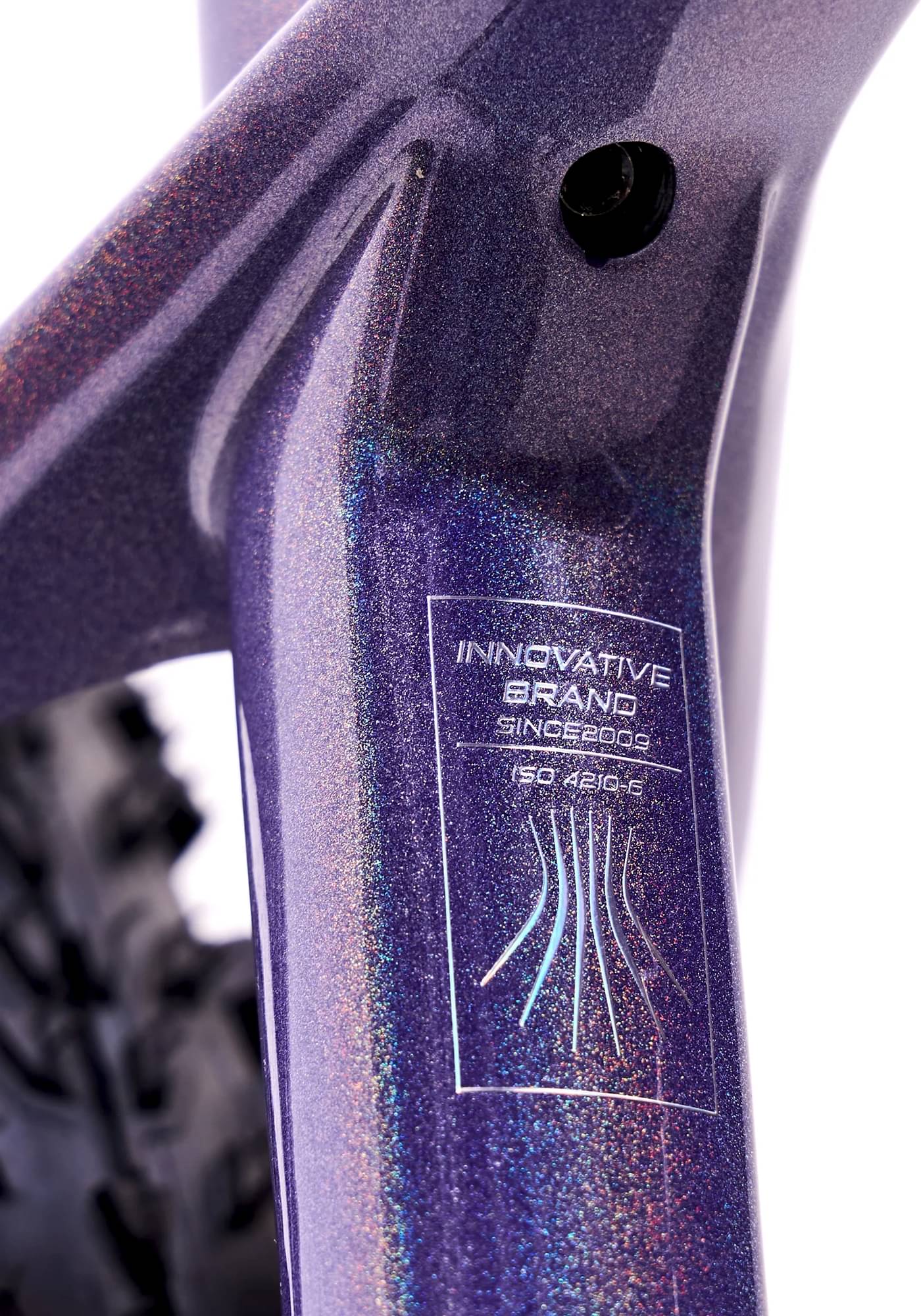

Sense Carbon Mitsubishi M40 | Tapered | Cabeamento Interno | Eixo Bost 12x148 mm | Sistema Flat Mount | Tecnologia Flex Stays
Suspension Fork
Rock Shox Judy Silver TK Remote 29" Tapered| 100mm| Trava no Guidão | Eixo 15x110mm
Drivetrain

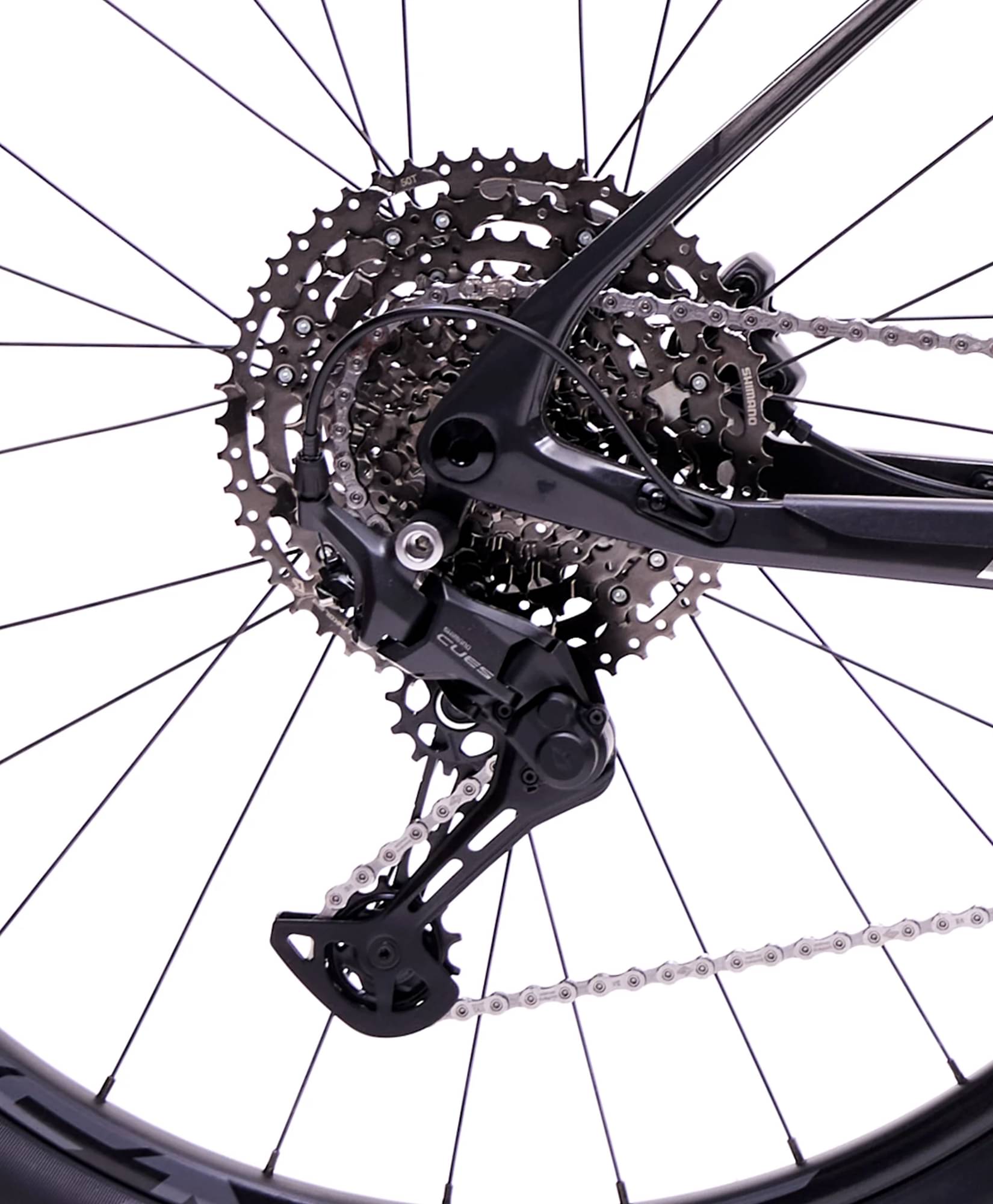

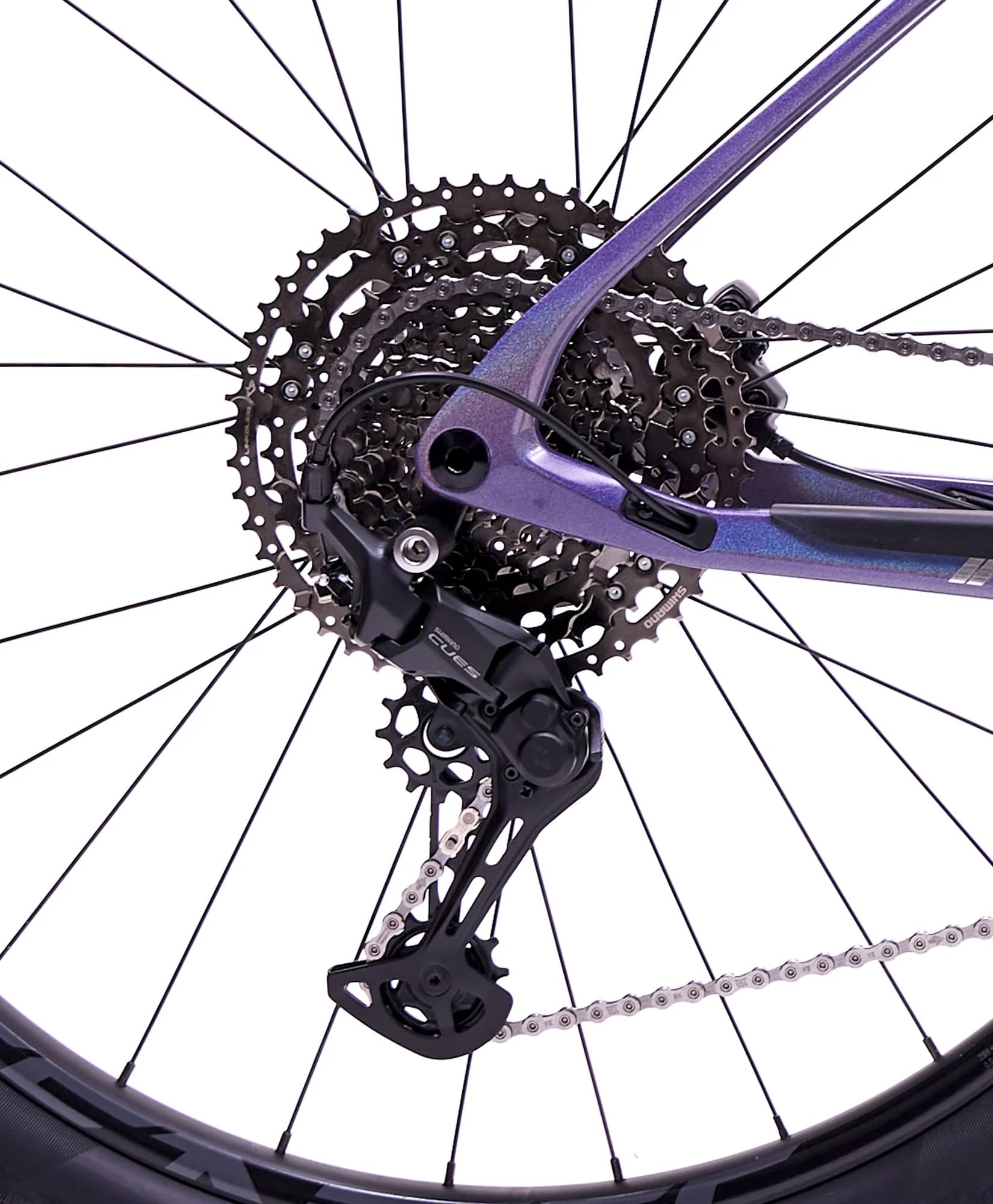

Cassette

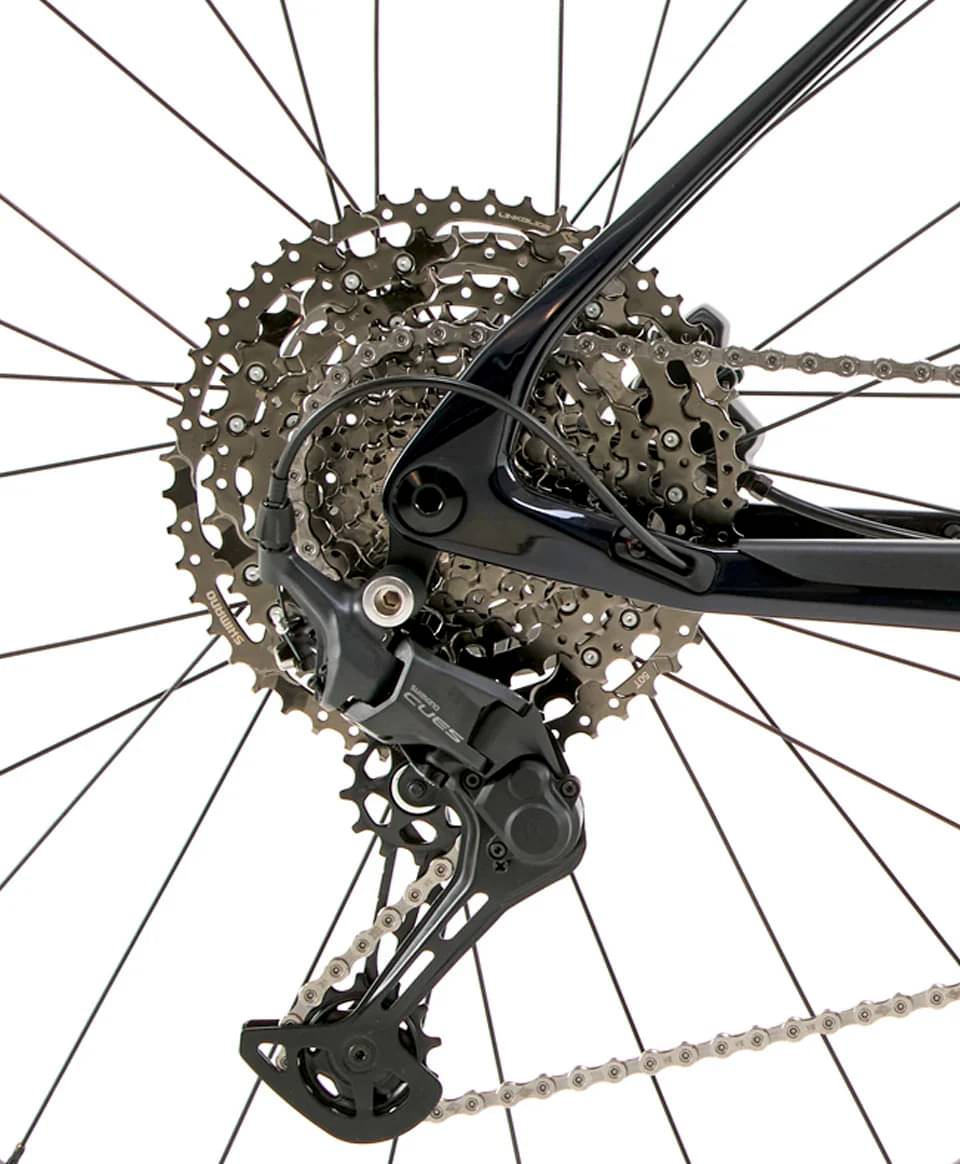

Shimano Cues CS-LG400-11, Cues, 11-Speed, 11-12-15-17-20-23-26-30-36-43-50T

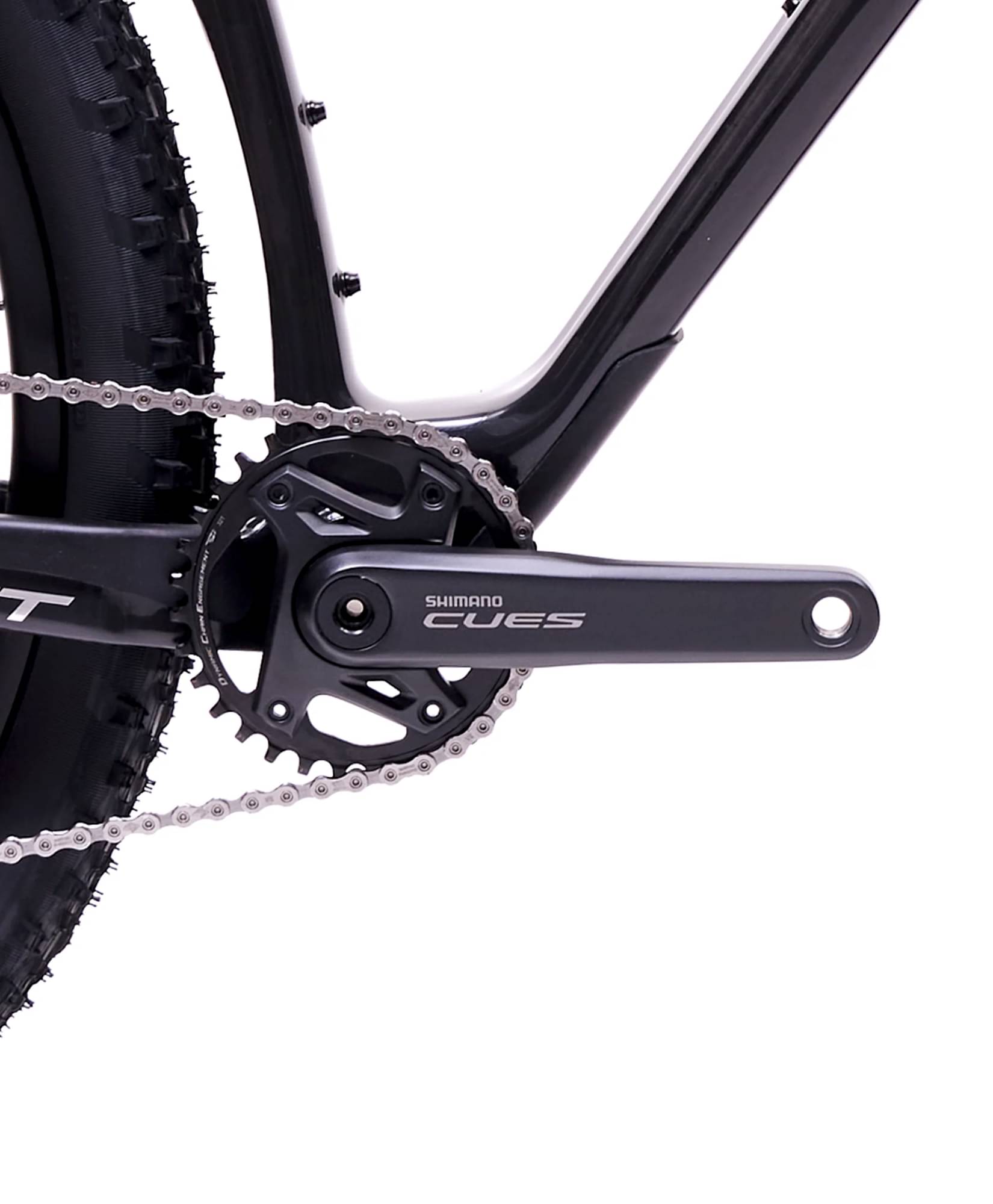

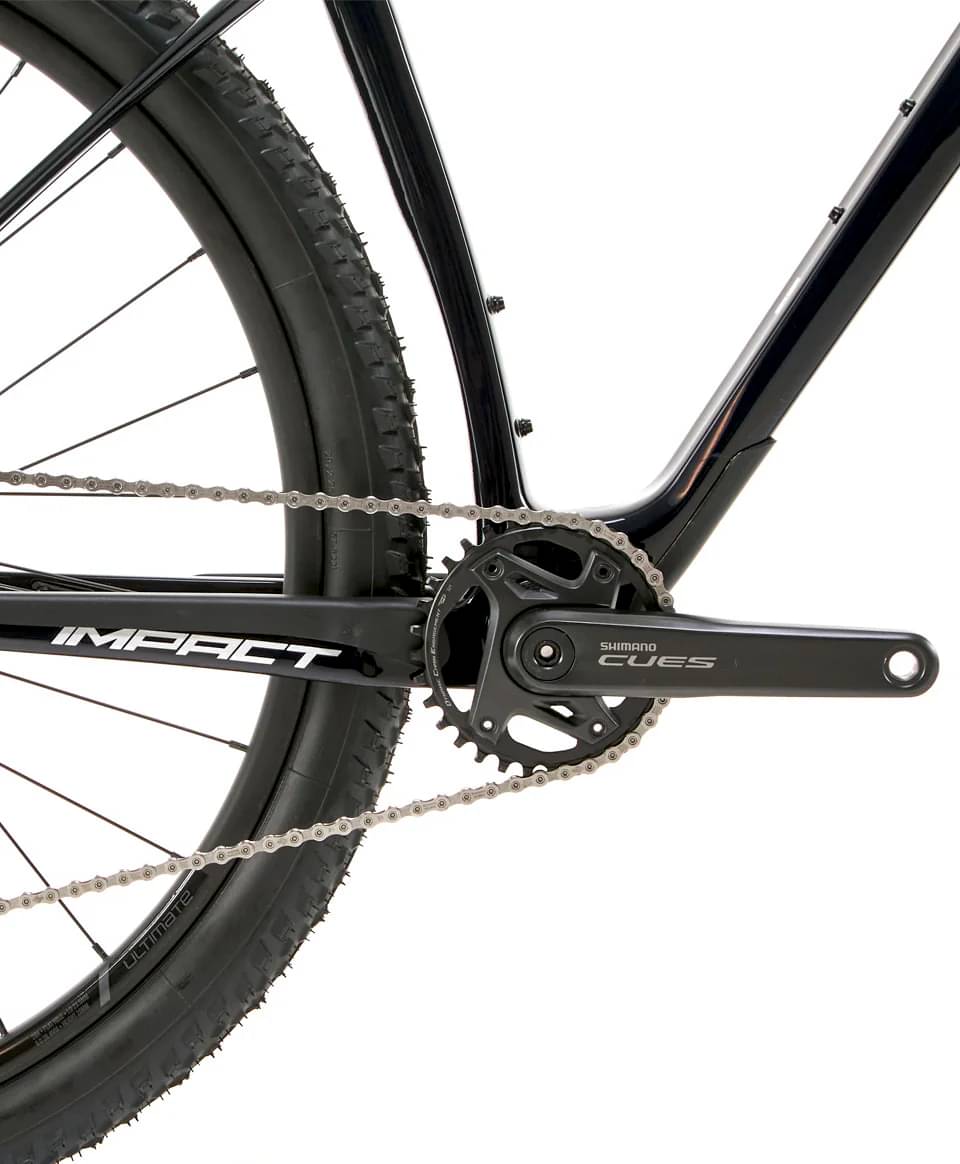

Crank

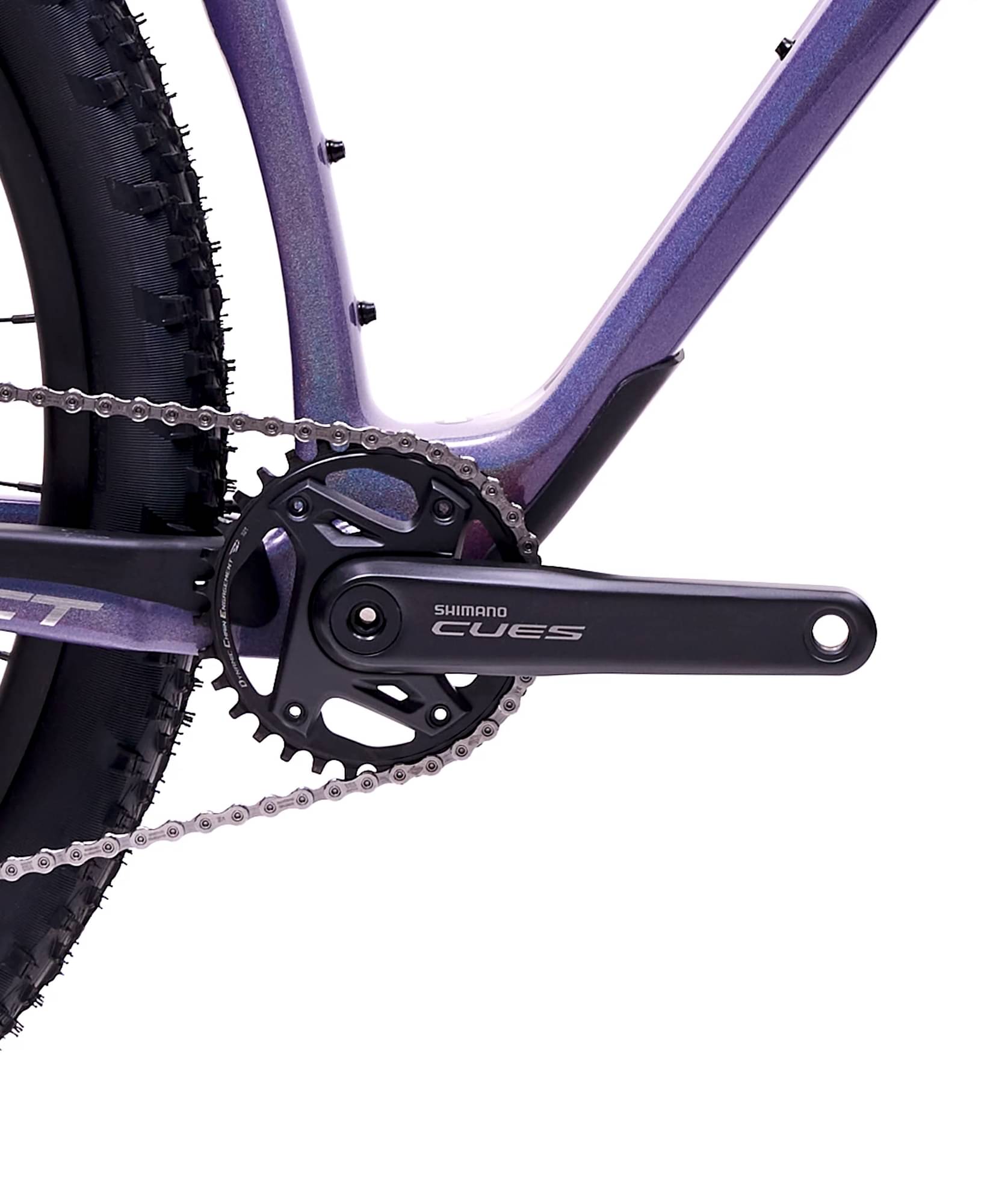

Shimano Cues FC U600-1, 11 velocidades, 170mm (S) 175mm (M/L), 32T
Bottom Bracket
FSA Pressfit Modelo PF30 FSA 46*73mm com redução rara eixo Shimano 24mm
Chain
Shimano CN-LG500 de 11 velocidades
Wheels
Rims
Sentec 29" (622x19mm) Alloy 6061, 28furos cubos Shimano HB-TC500-15-B 110x15mm tubeless
Tires
Michelin Force XC Performance Line 29x2.25 TS TLR
Brakes
Brakes
Freio à disco hidráulico Tektro HD-275 com Caliper 2 pistões fixação Flat Mount
Cockpit

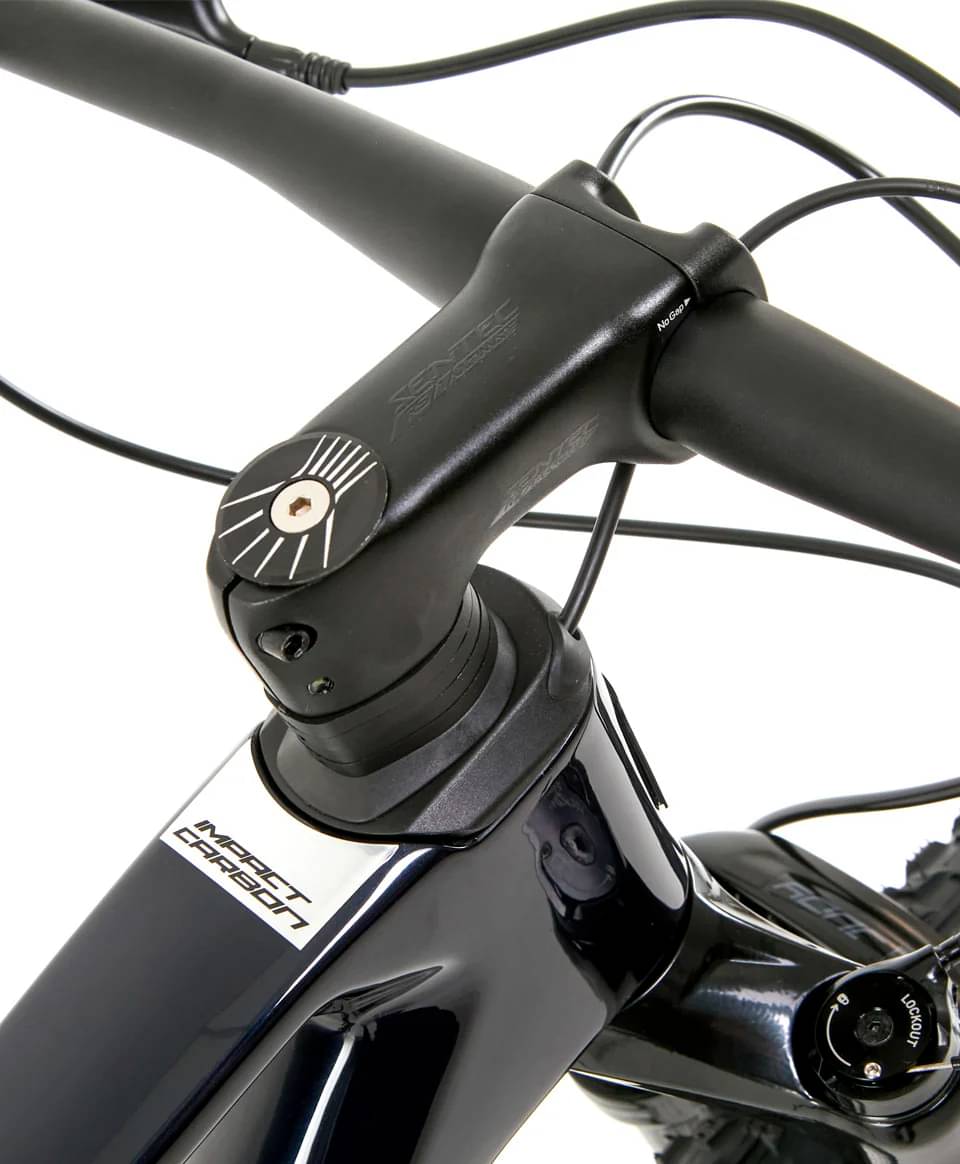

Stem
Sentec Alloy Stem 80mm (S/M) -10° 90mm (L) -10° com centro de 31.8mm
Handlebar
Sentec Alloy 740mm | Rise 5mm | Centro 31.8mm
Grips
Sentec com Look
Headset
Sentec - com nova tampa e passagem de cabeamento interno específico
Seat
Saddle
Selle Royal Vivo Gents

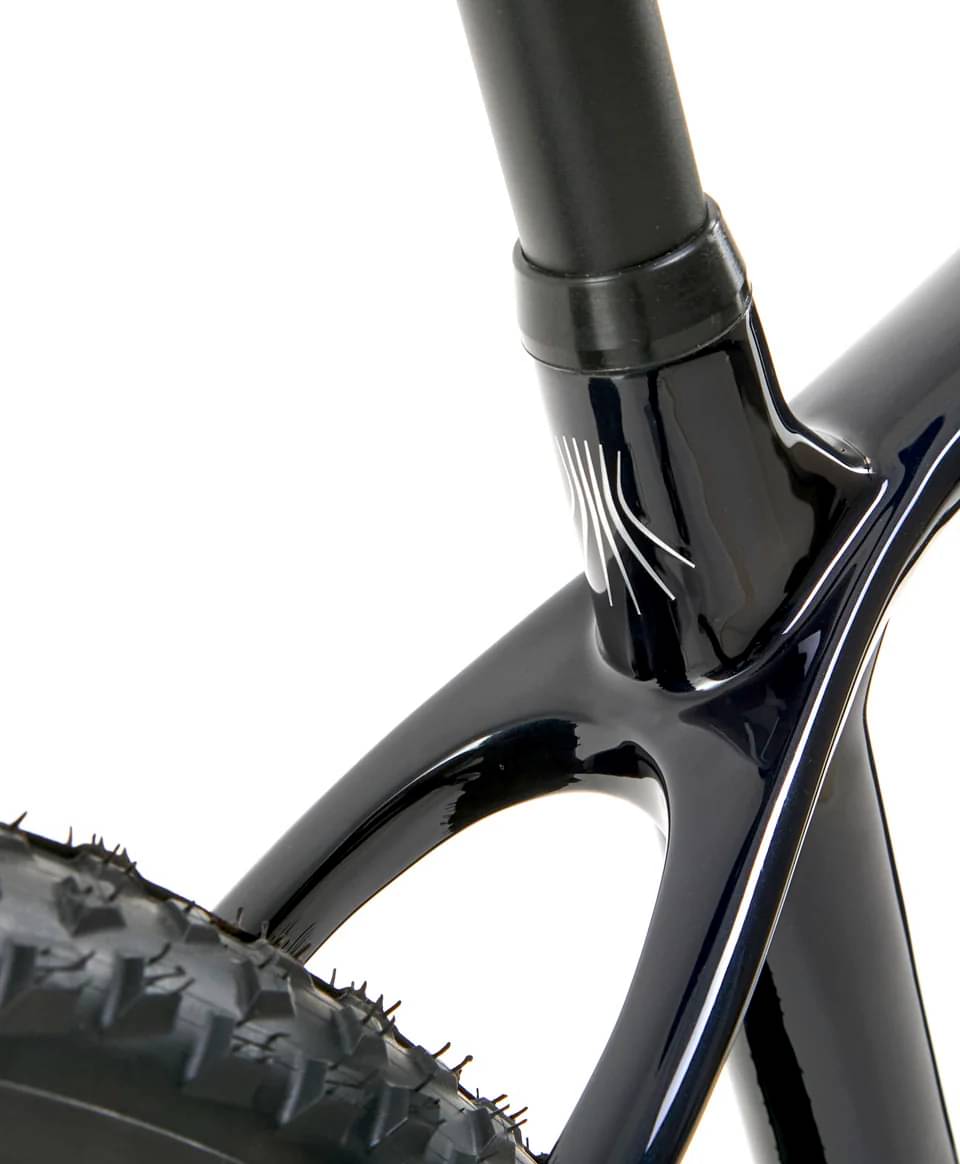

Seatpost
Sentec Alumínio| 27,2x400mm OFF SET 0mm
Fit data

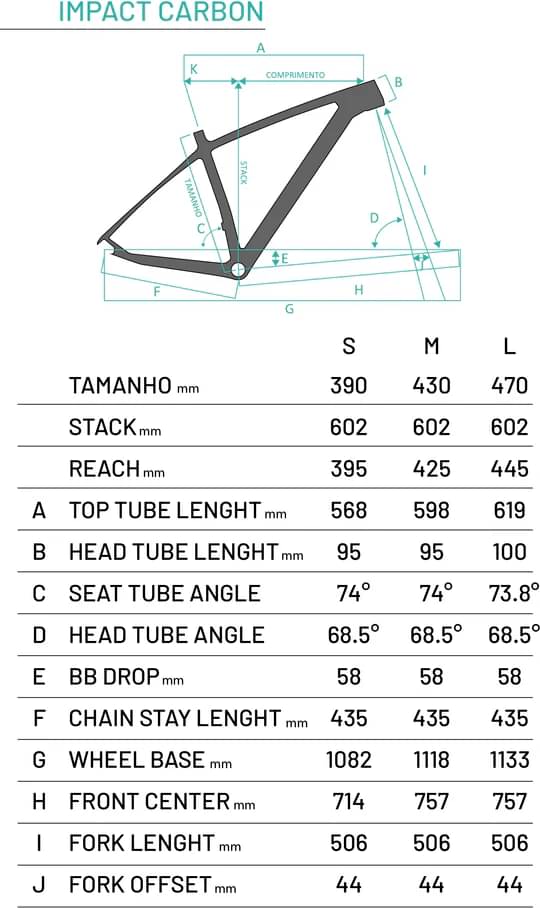

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
