Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

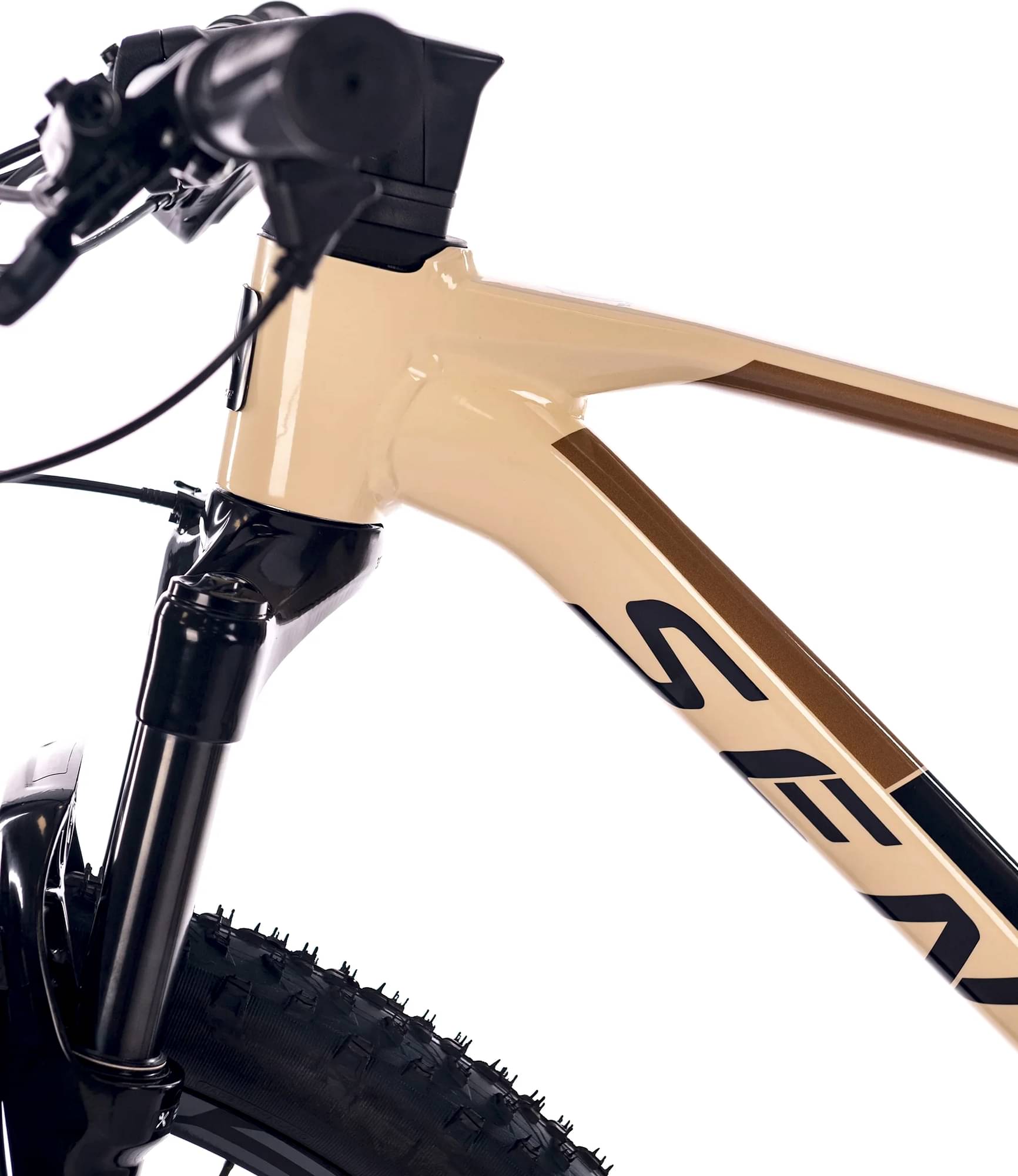

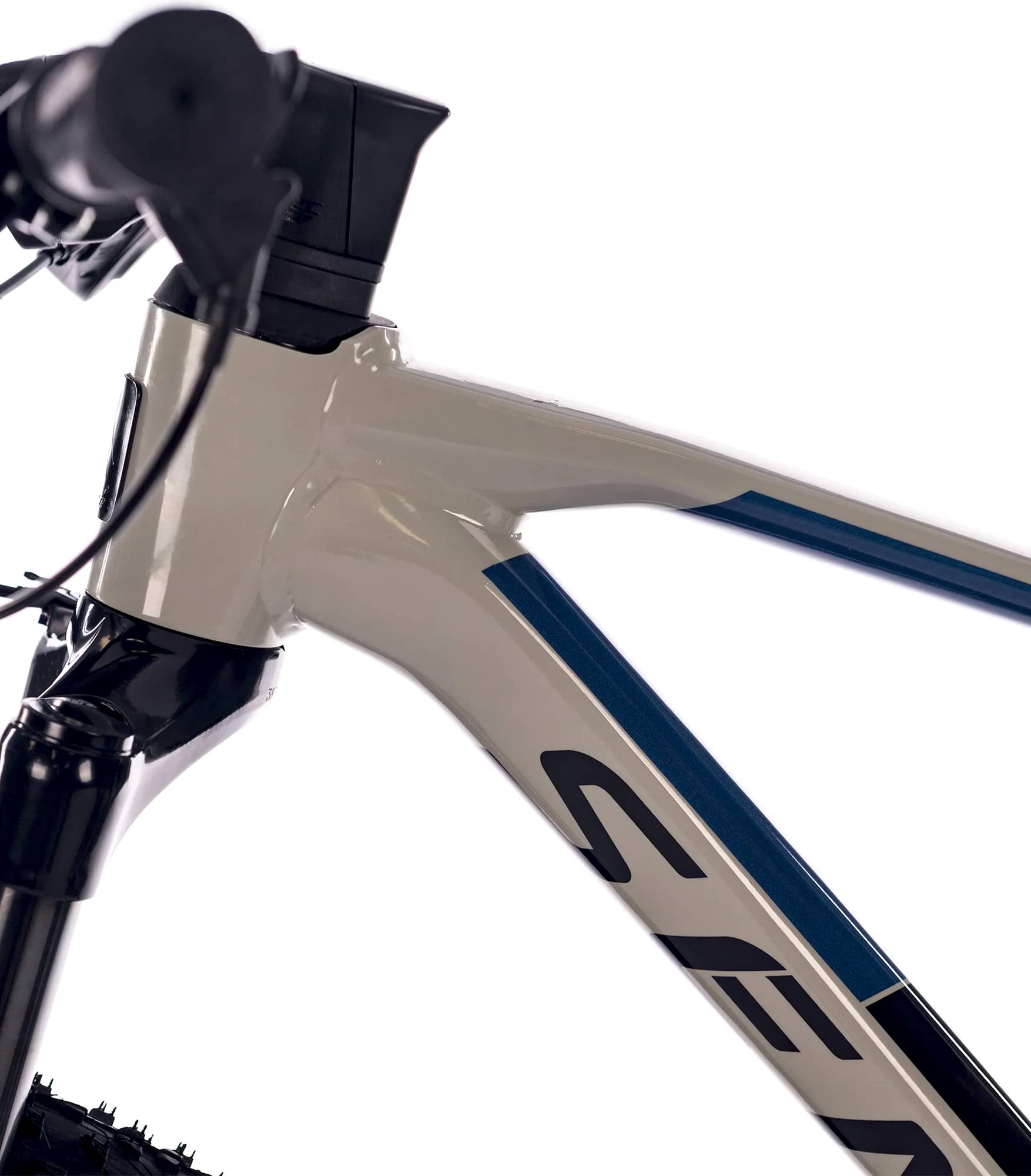

Frame
Frame
Sense Alumínio Hidroformado 6069 T4 T6| Tripla Espessura| Cabeamento Interno | Geometria Racing
Suspension Fork
Rock Shox Judy Silver Tk Air 100mm Com Trava No Guidão

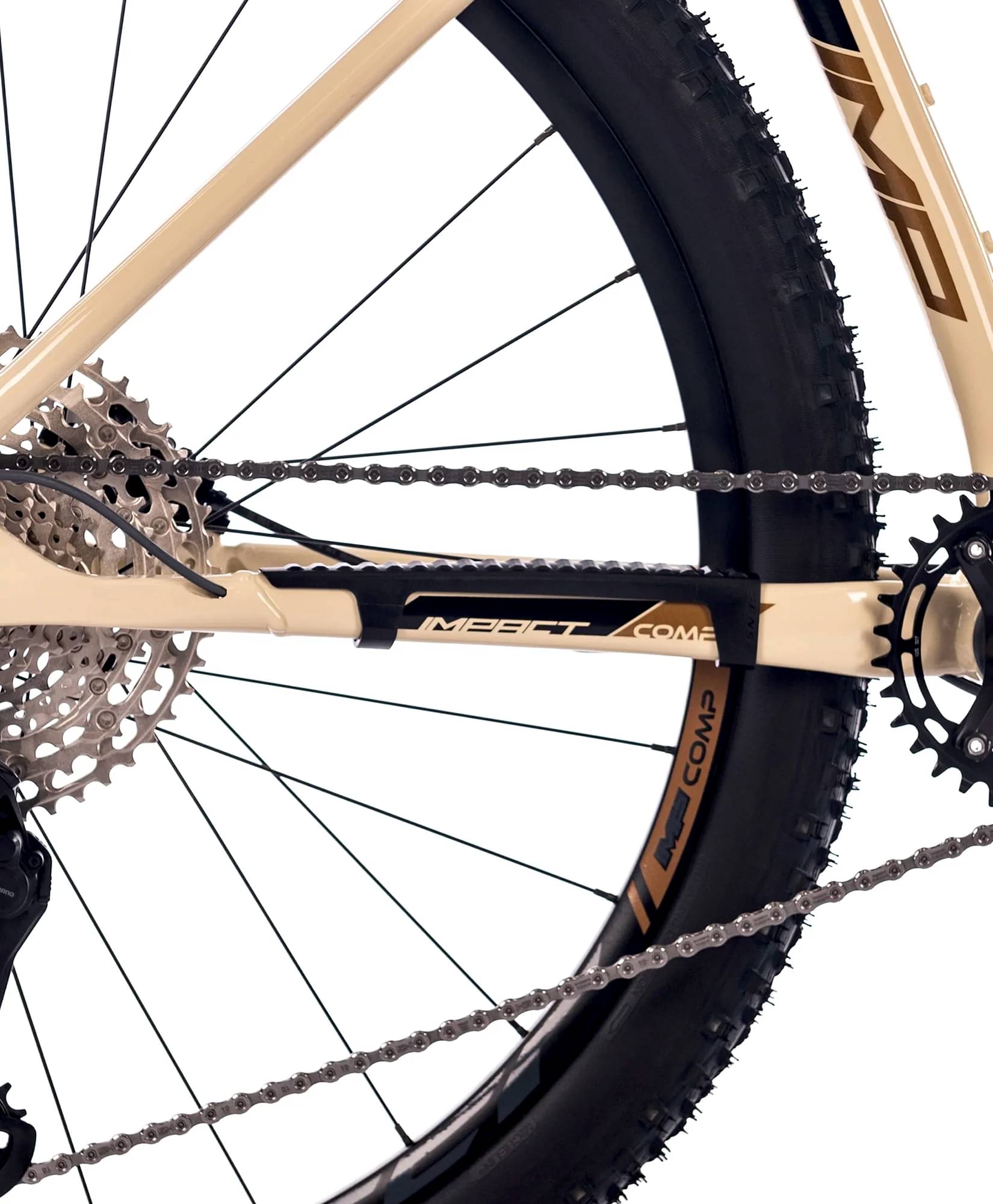

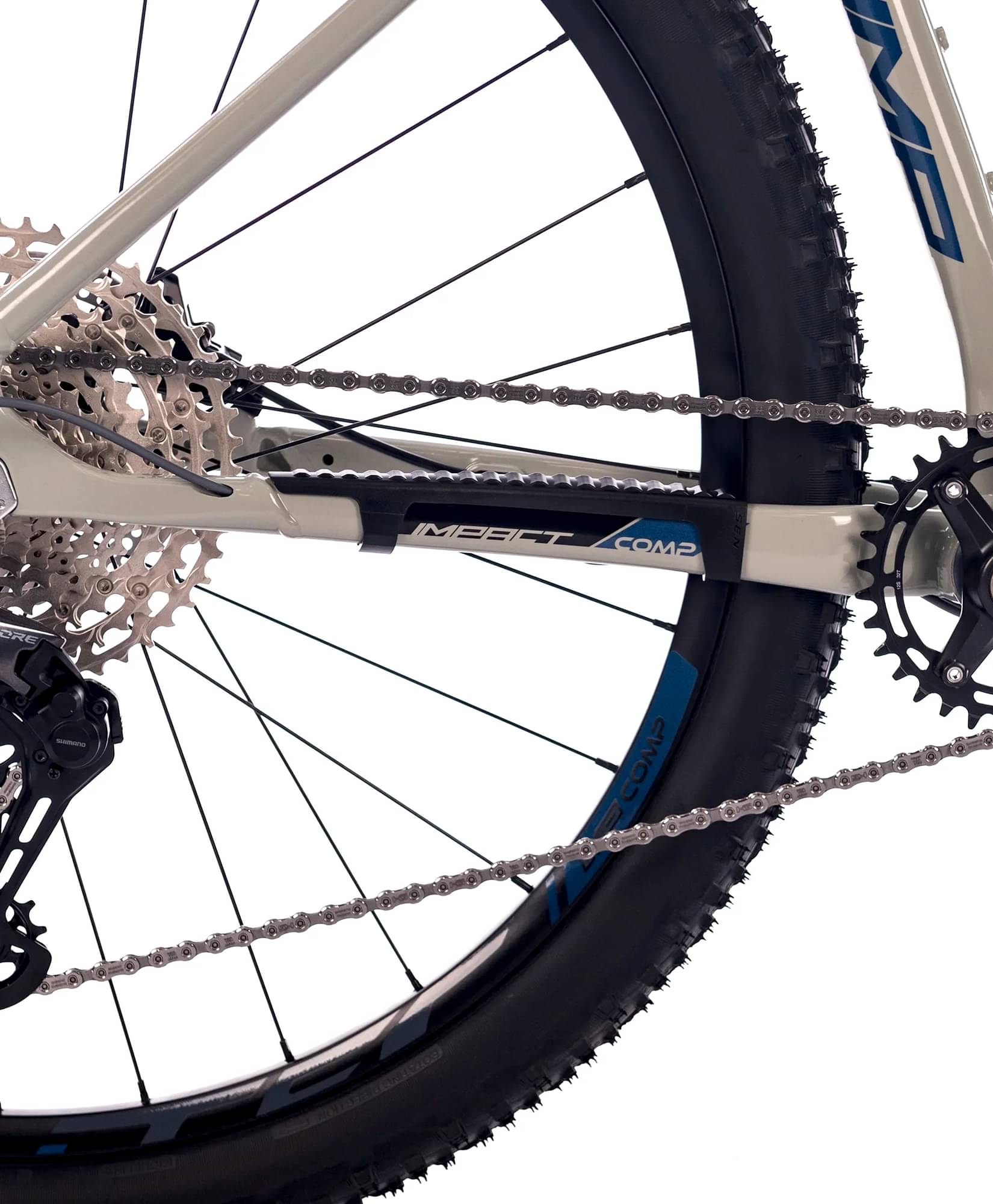

Drivetrain
Cassette
Shimano Deore Cs-M6100-12 10x51
Crank
Shimano Deore Fc-Mt511-1, 12v, 170mm( Tamanho S) 175mm (Tamanho M-L-Xl), 32t
Bottom Bracket
Pf30 Fsa 46mm Redutor De 24mm Shimano
Chain
Deore Cn-M6100 De 12velocidades
Wheels
Rims
Sentec 29" (622x19mm) Alloy 6061, 28furos Cubos Shimano Hb-Mt400-B 110x15mm
Tires
29x2.25 Force Xc Kevlar Performance

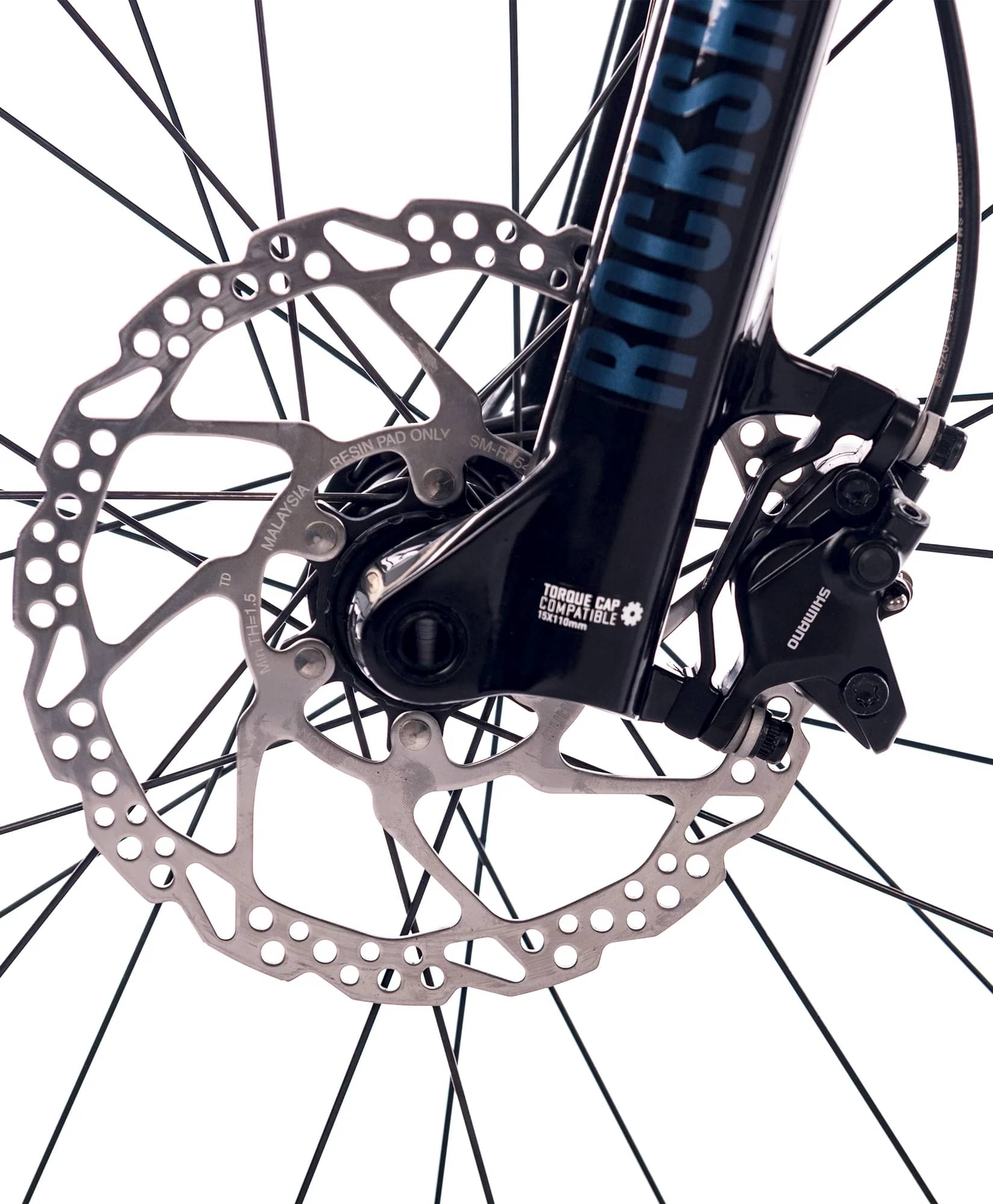

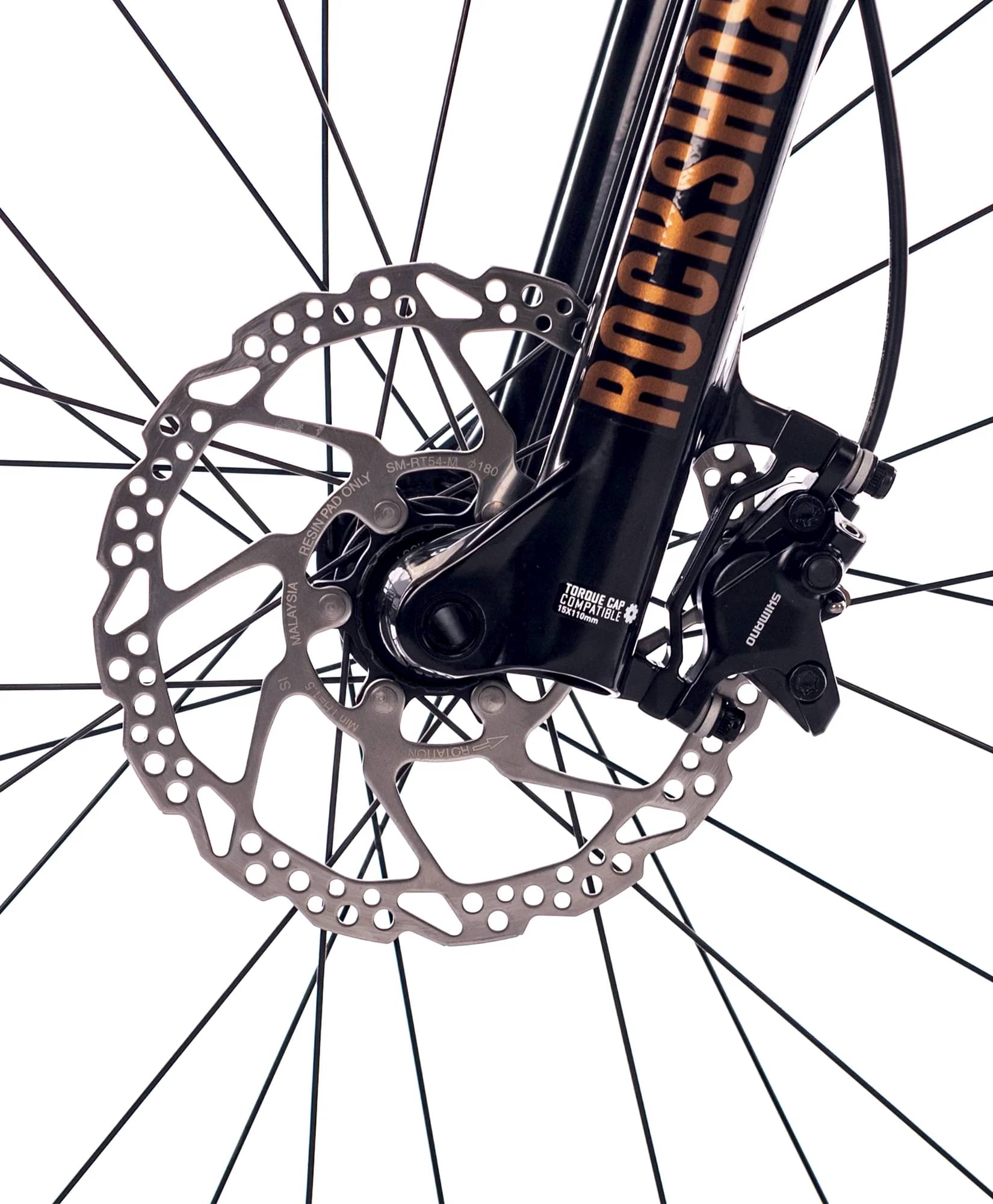

Brakes
Brakes
Mechanical Disc

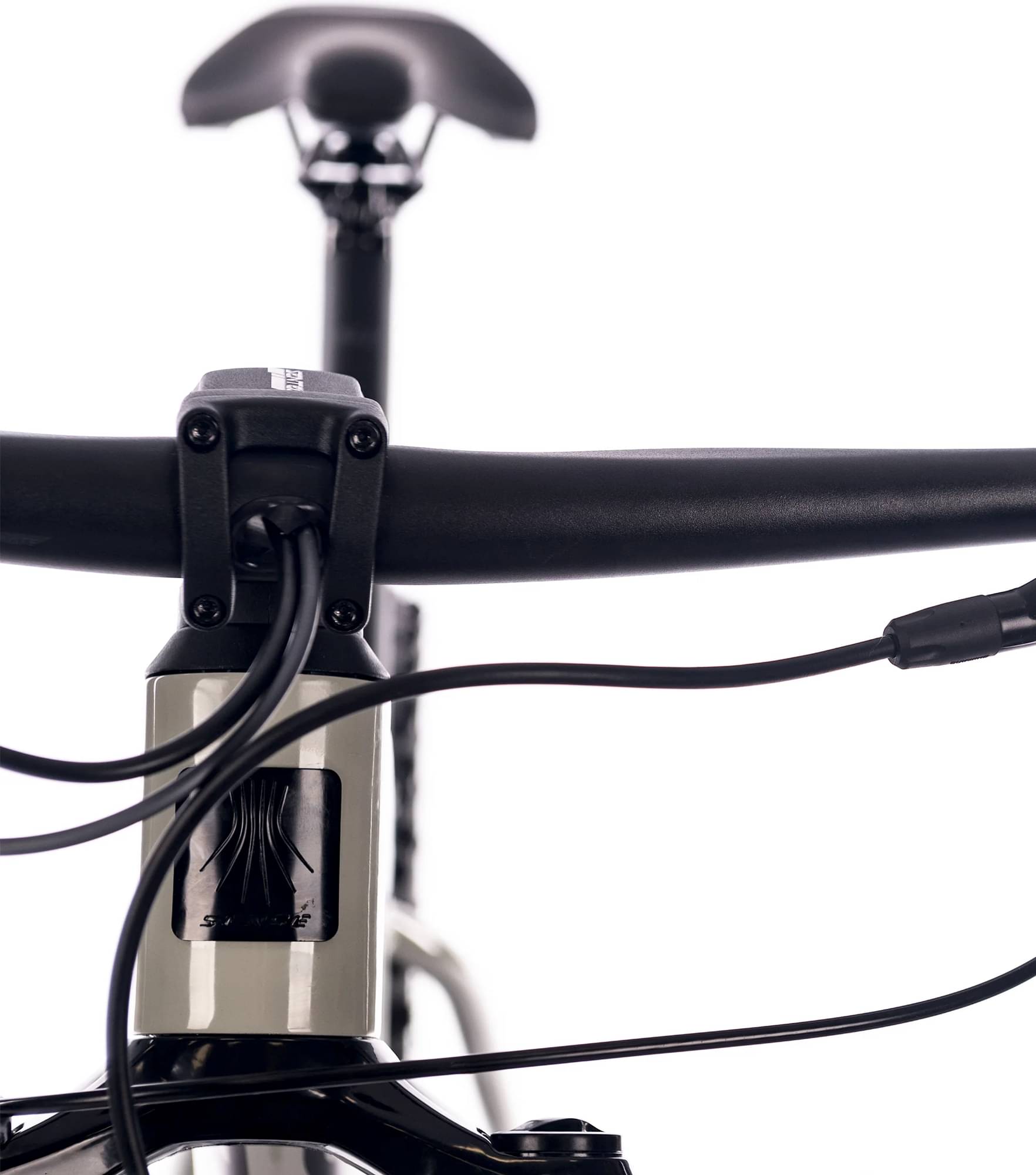

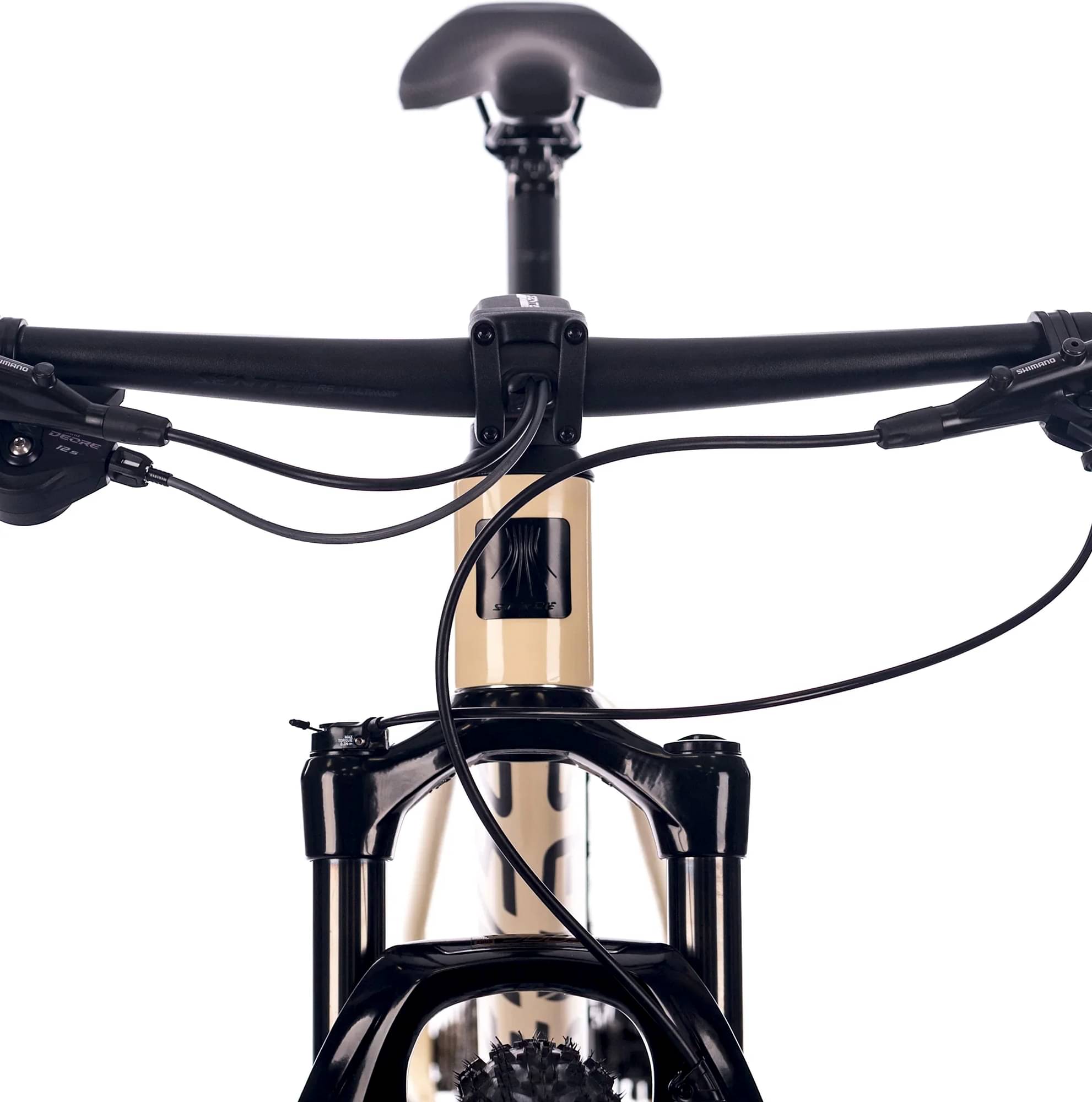

Cockpit
Stem
Sentec Alloy Stem 70mm -10°
Handlebar
Sentec Alloy 750mm Com Rota Interna, Back Sweep 9°
Grips
Sentec C/Lock
Headset
Fsa No.55r 1.5" Rota Interna
Seat
Saddle
Selle Royal Vivo 1216
Seatpost
Sentec Alumínio, Off Set 0mm, 31.6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
