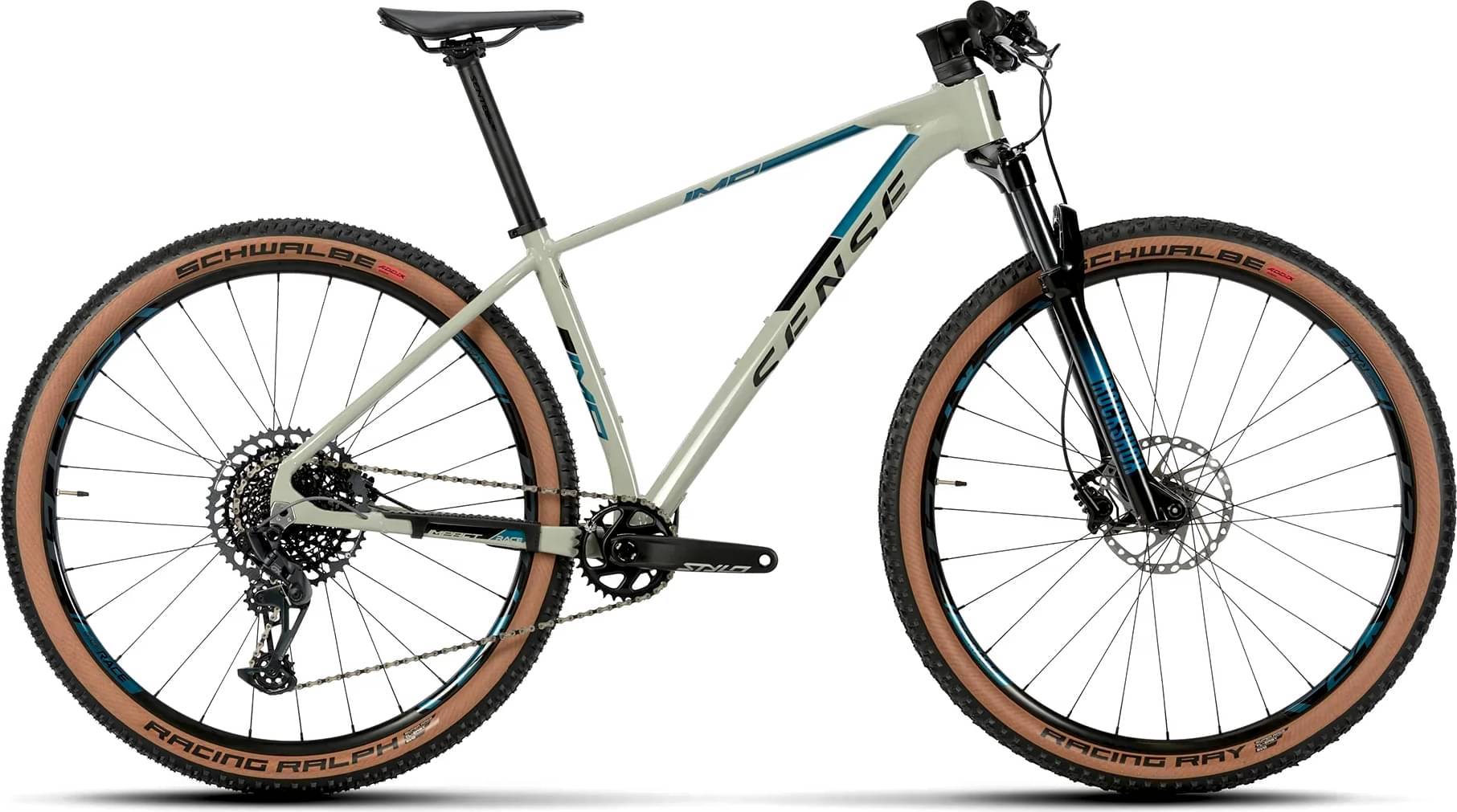

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Fork RockShox Recon Silver RL -
Groupset Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

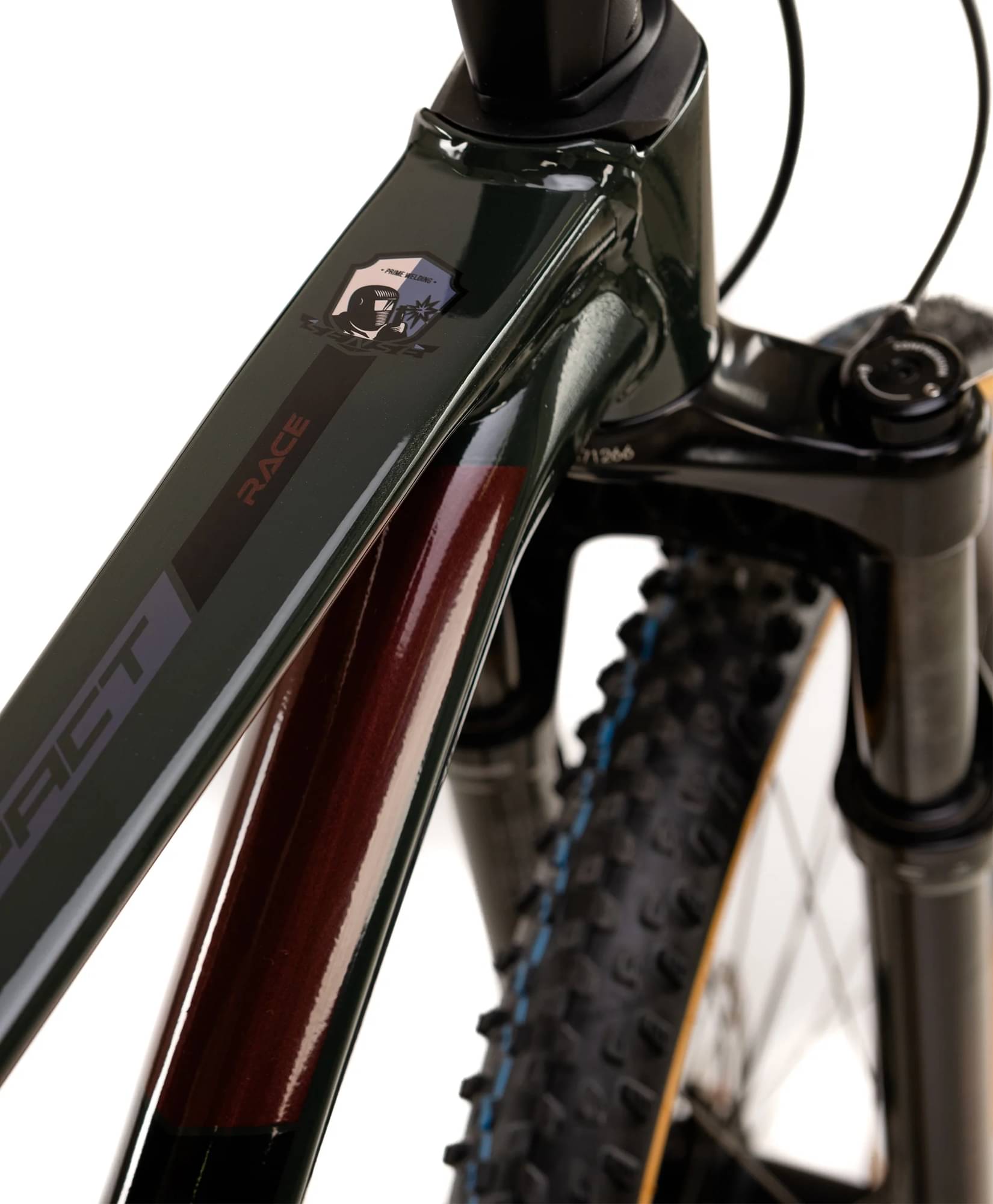

Frame
Frame
Sense Alumínio Hidroformado 6069 T4 T6| Tripla Espessura| Cabeamento Interno | Geometria Racing

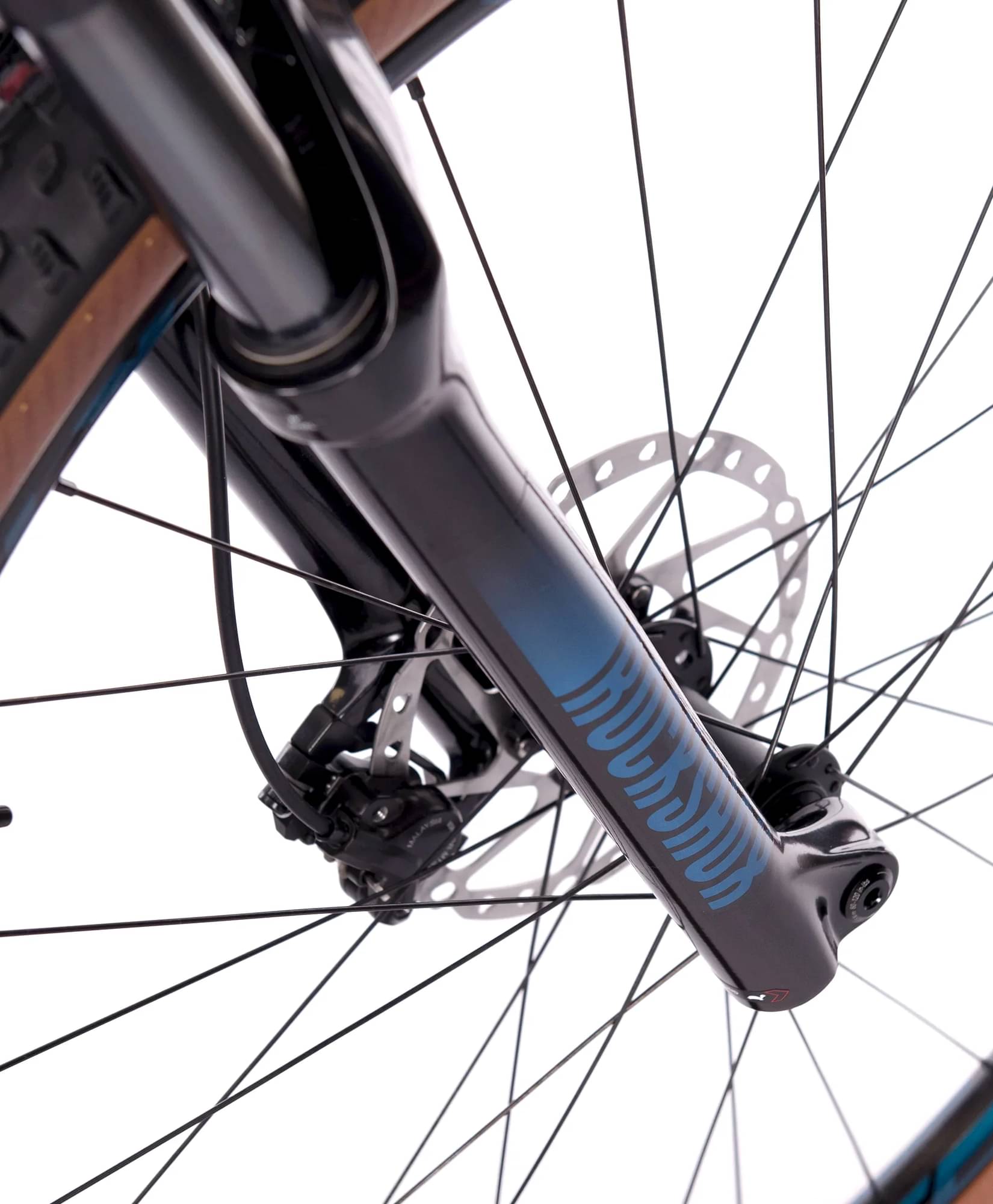

Suspension Fork
Rock Shox Recon Silver Rl Com Trava

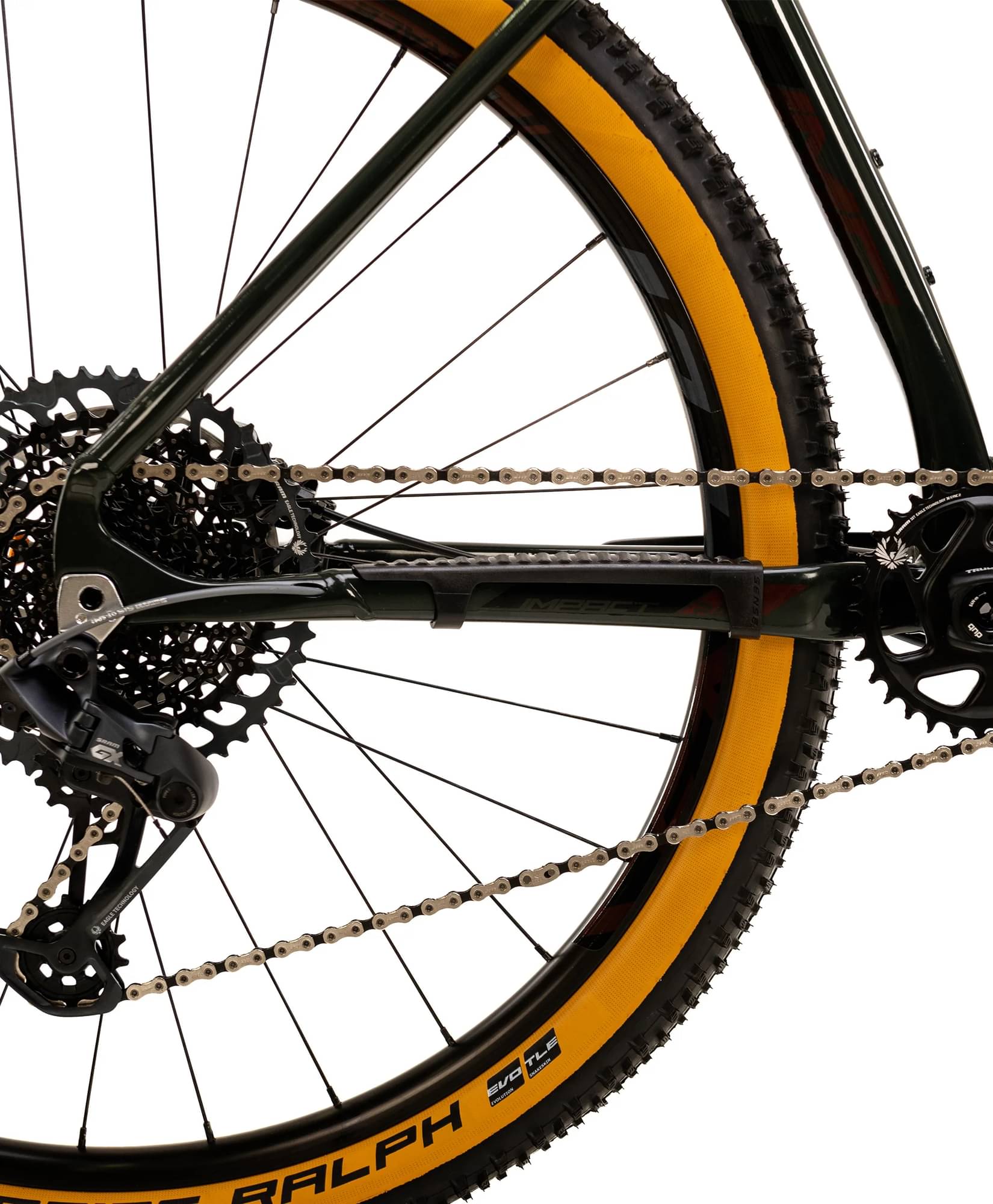

Drivetrain
Cassette
SRAM Xg 1275 Eagle 10x52

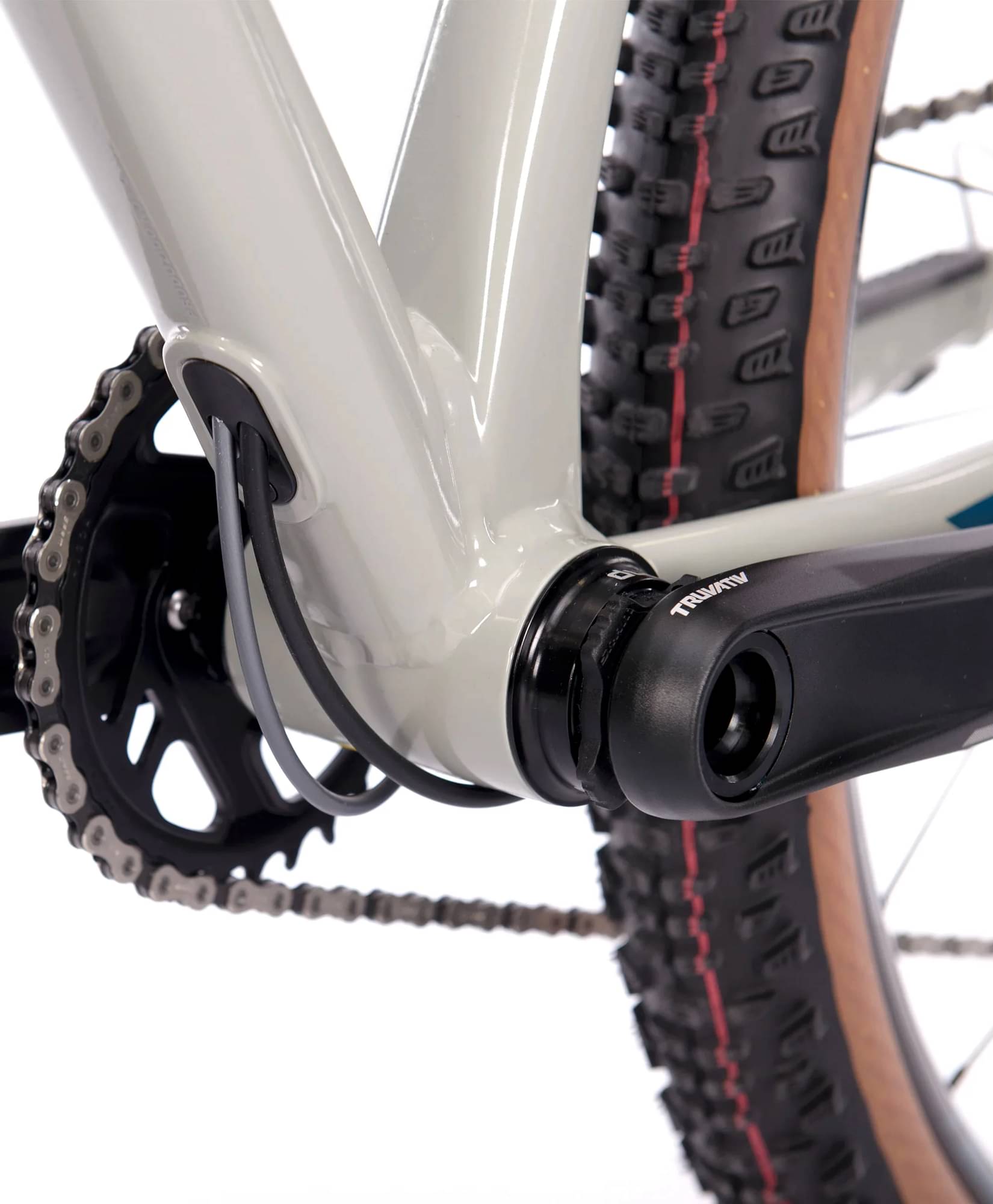

Crank
SRAM Stylo Gx Eagle 32d 170 Mm (Tamanho S) 175 Mm (Tamanhos M / L / Xl)
Bottom Bracket
SRAM Dub Fp30 Mtb73
Chain
SRAM Eagle Gx
Wheels
Rims
Cubo Sentec Boost / Aro Sentec Aluminio Tlr / Raios Dt Swiss Competition / Niple Sapim Polyax
Tires
Diant: Schwalbe Racing Ray Twin Skin 29x2.35 Tlr Addix Speed | Tras: Schwalbe Racing Ralph Twin Skin 29x2.35 Tlr Addix Speed

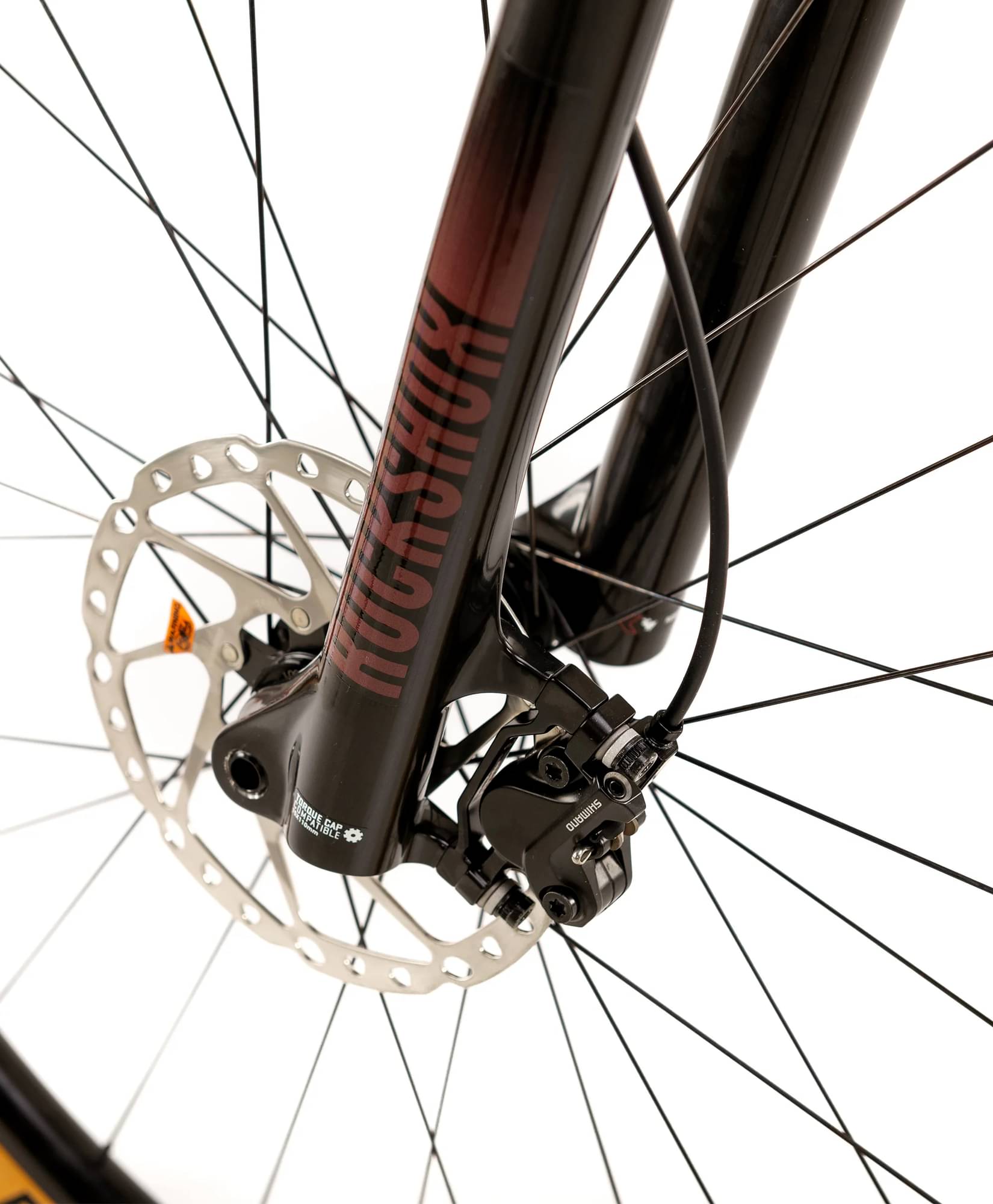

Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Sentec Rs1 Ultimate 31.8x70mm -10° Internal Cable Routing
Handlebar
Sentec Rs1 Ultimate 31.X750mm Back Sweep 9° Internal Cable Routing
Grips
Sentec Borracha 132mm C/ Trava De Aluminio
Headset
Fsa No.55r 1.5" Acb
Seat
Saddle
Fizik Taiga
Seatpost
Sentec Aluminio 0mm Offset 31.6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
