Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components

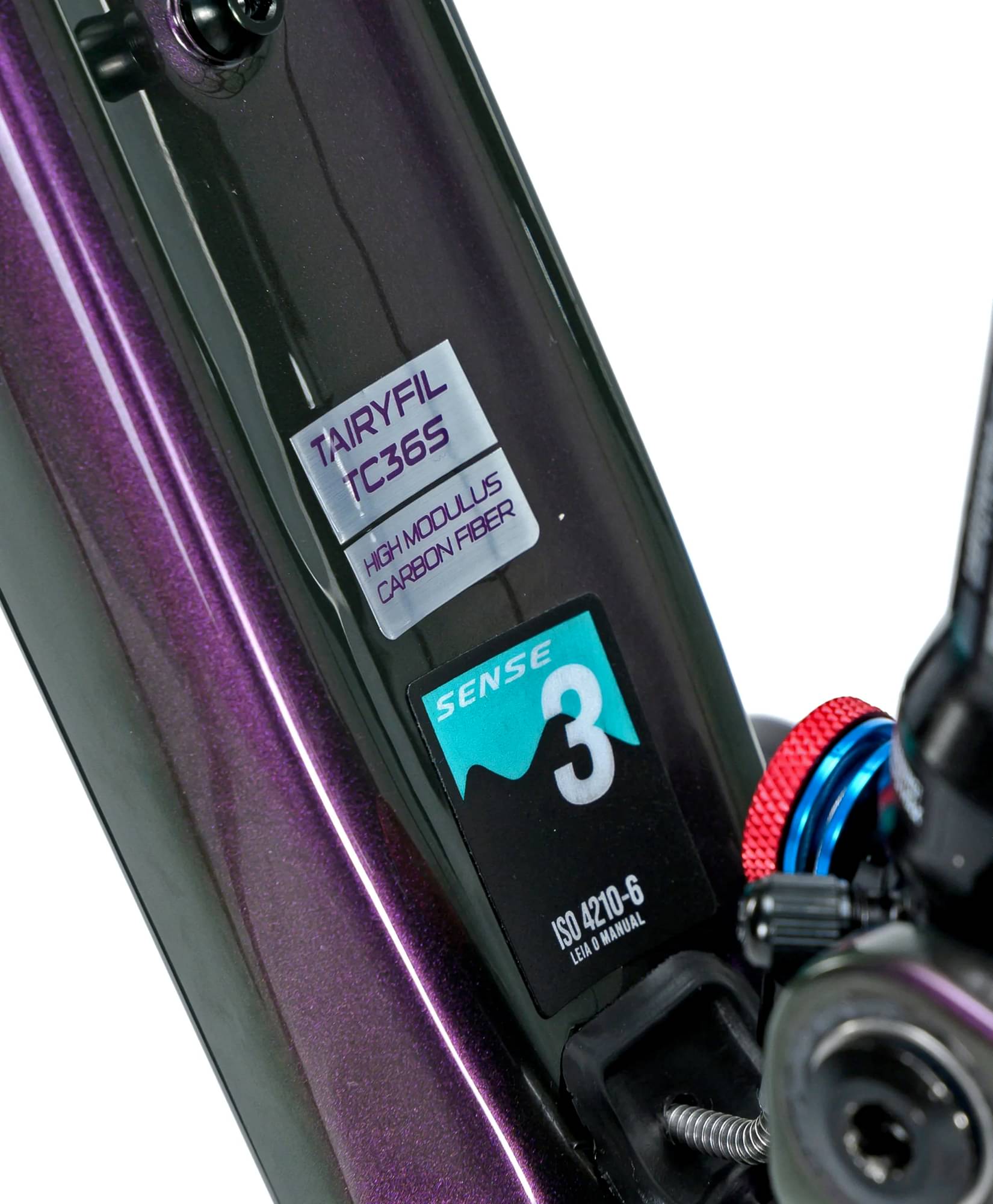

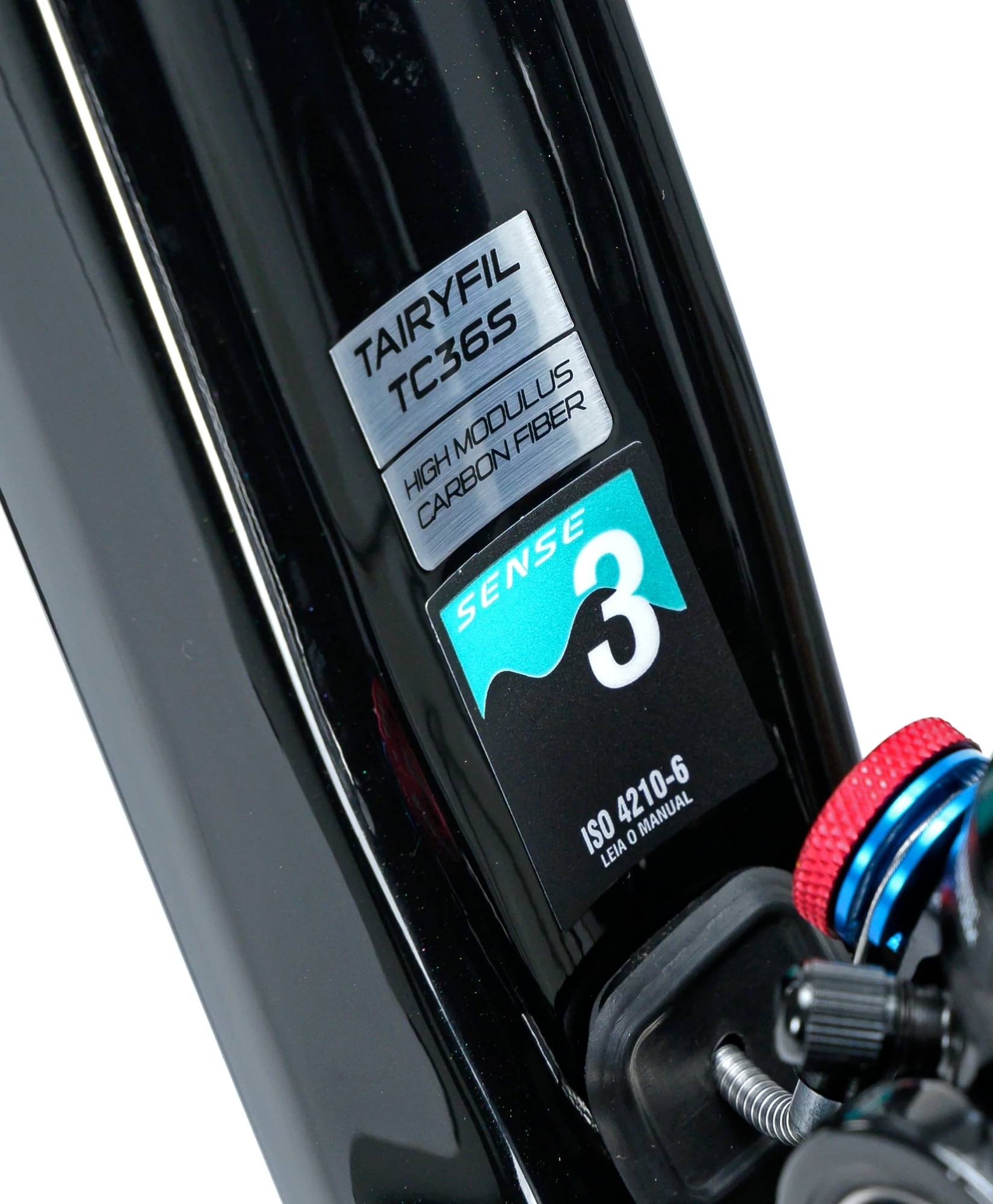

Frame
Frame
Carbono Mitsubishi M40 | Tapered | Nova Tampa Da Caixa De Direção Com Cabeamento Interno | Eixo Boost 12x148 Mm | Sistema Flat Mount | Tecnologia Flex Stays
Suspension Fork
Fox Float 34 Performance 29" Air 120mm | Tapered | Eixo 15x110mm | Trava No Guidão
Rear Shock
Shox Fox Float Dps Performance Air Spring Trunnion 165x40mm
Drivetrain
Cassette
Shimano Deore XT CS-M8100-12, Deore XT, 12-SPEED (HYPERGLIDE+), 10-12-14-16-18-21-24-28-33-39-45-51T

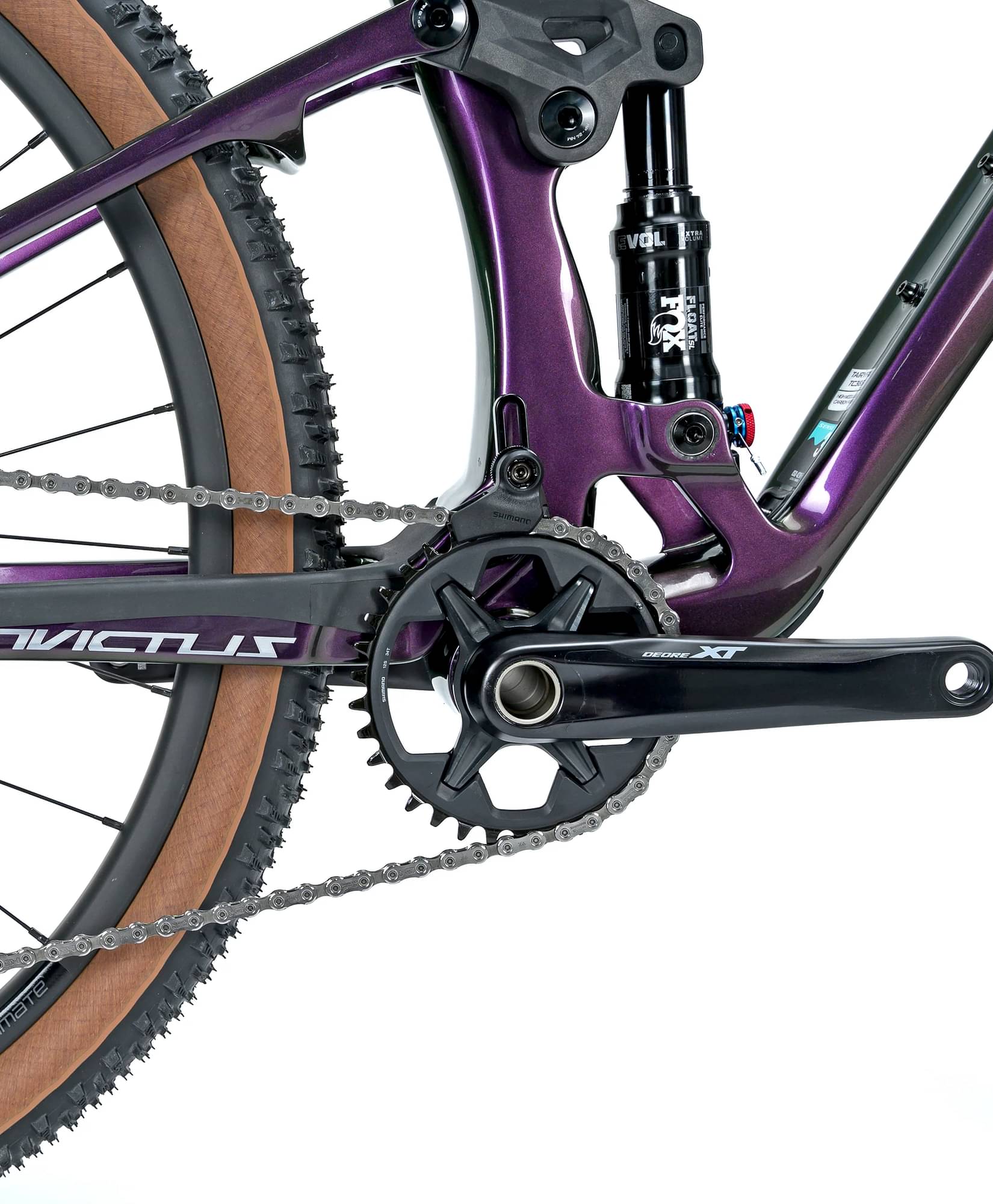

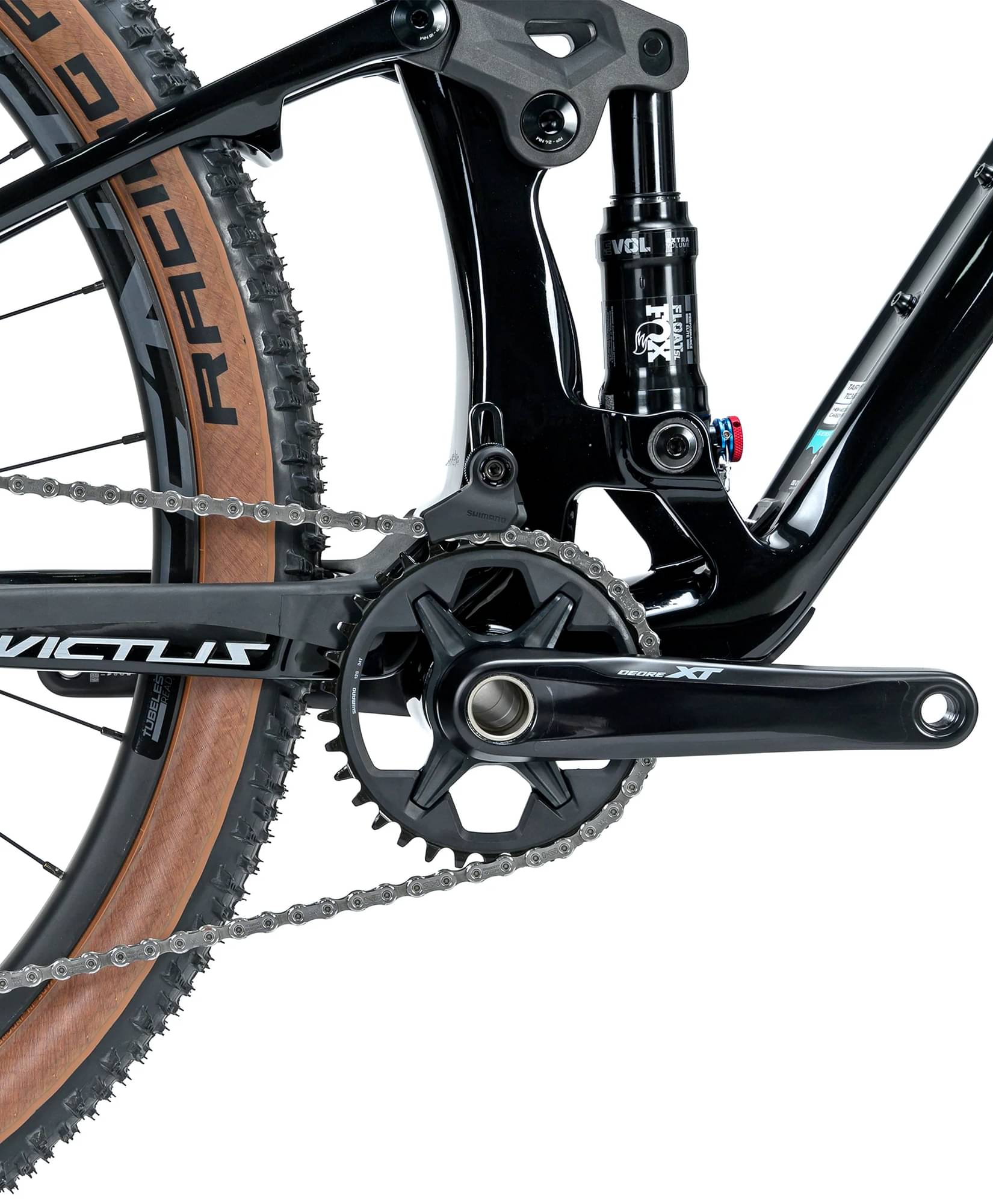

Crank
Shimano Deore XT FC-M8100-1, Deore XT 12 velocidades, 170mm (tamanho S), 175mm (tamanhos M/L), 34T
Bottom Bracket
PF30 FSA 46*73mm com redução para eixo Shimano 24mm
Chain
Deore XT CN-M8100 de 12 velocidades
Wheels
Rims
Sentec 29" 28 Furos Boost 110x15mm Tubeless
Tires
29x2.35 Schwalbe Racing Ray Evo Super Race borda creme (dianteiro) 29x2.35 | Schwalbe Racing Ralph Evo Super Race (traseiro)

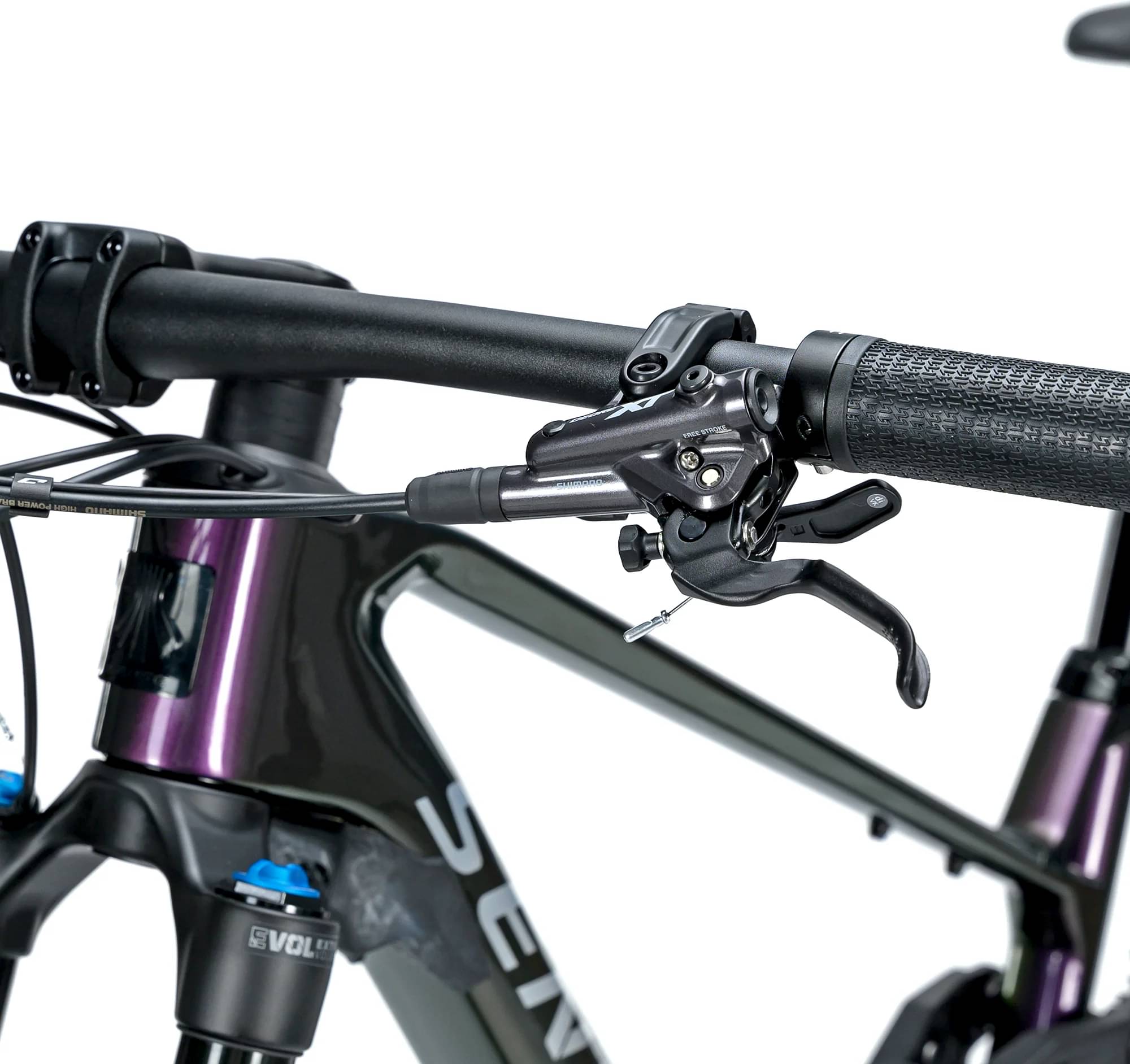

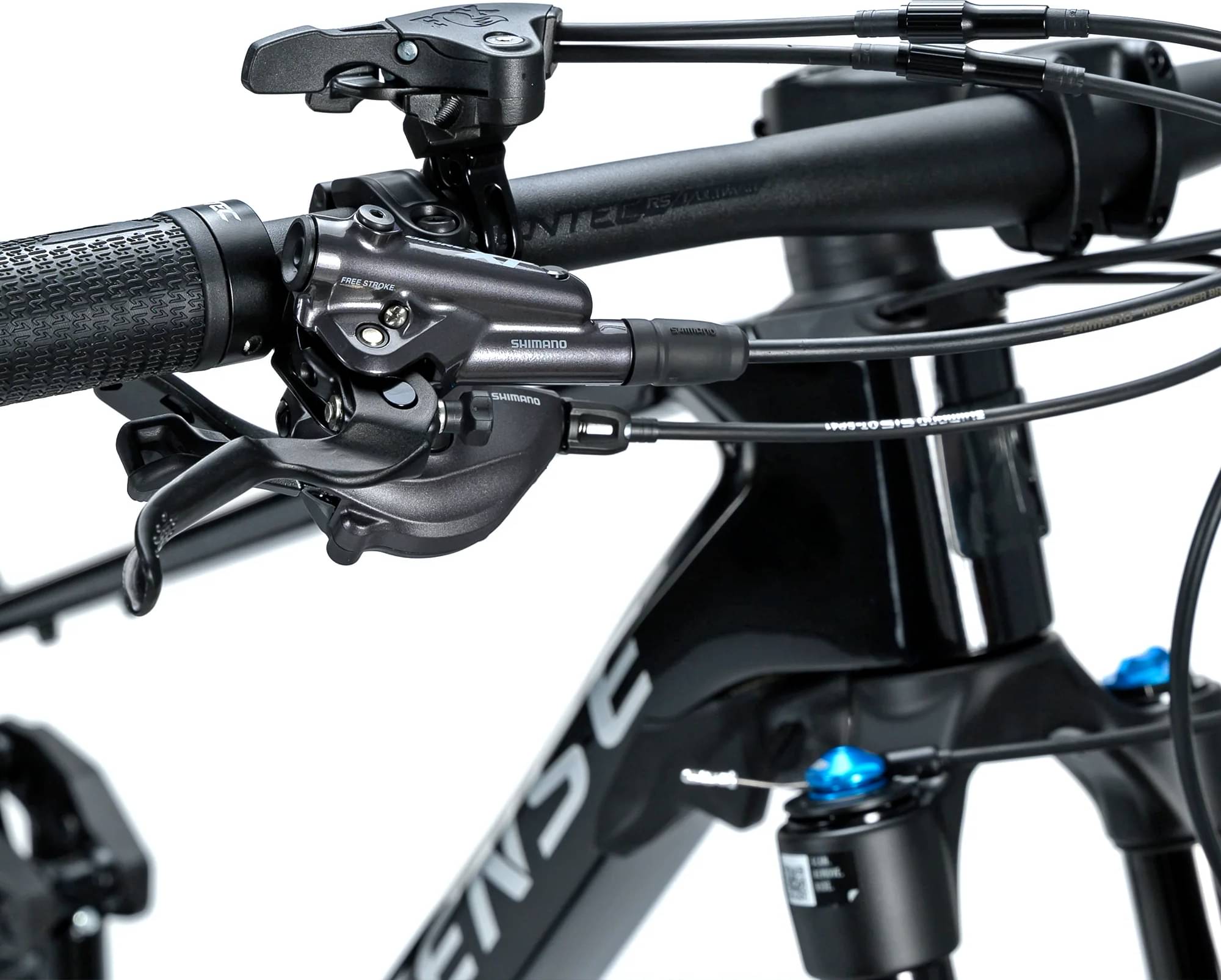

Brakes
Brakes
Hydraulic Disc
Cockpit

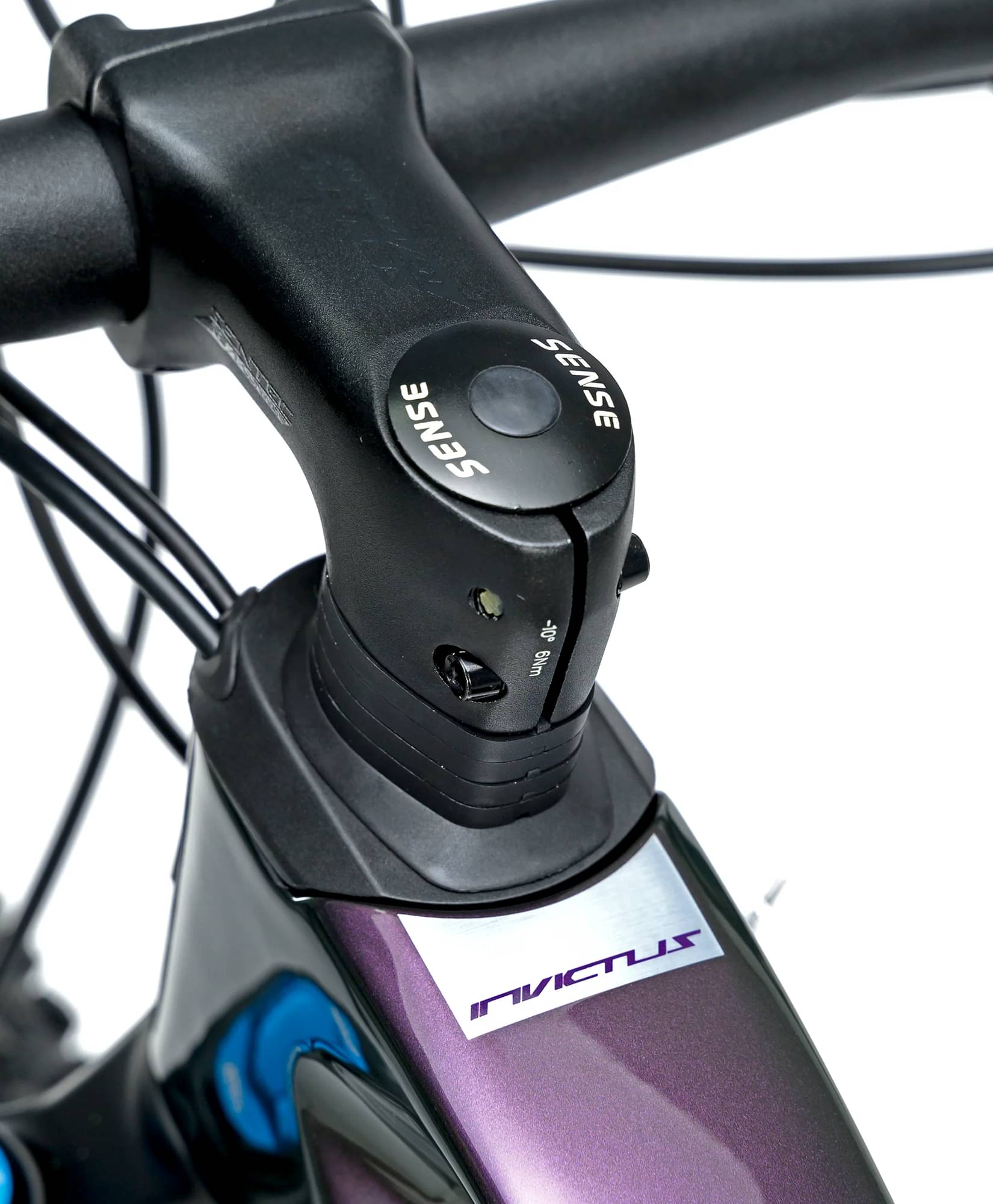

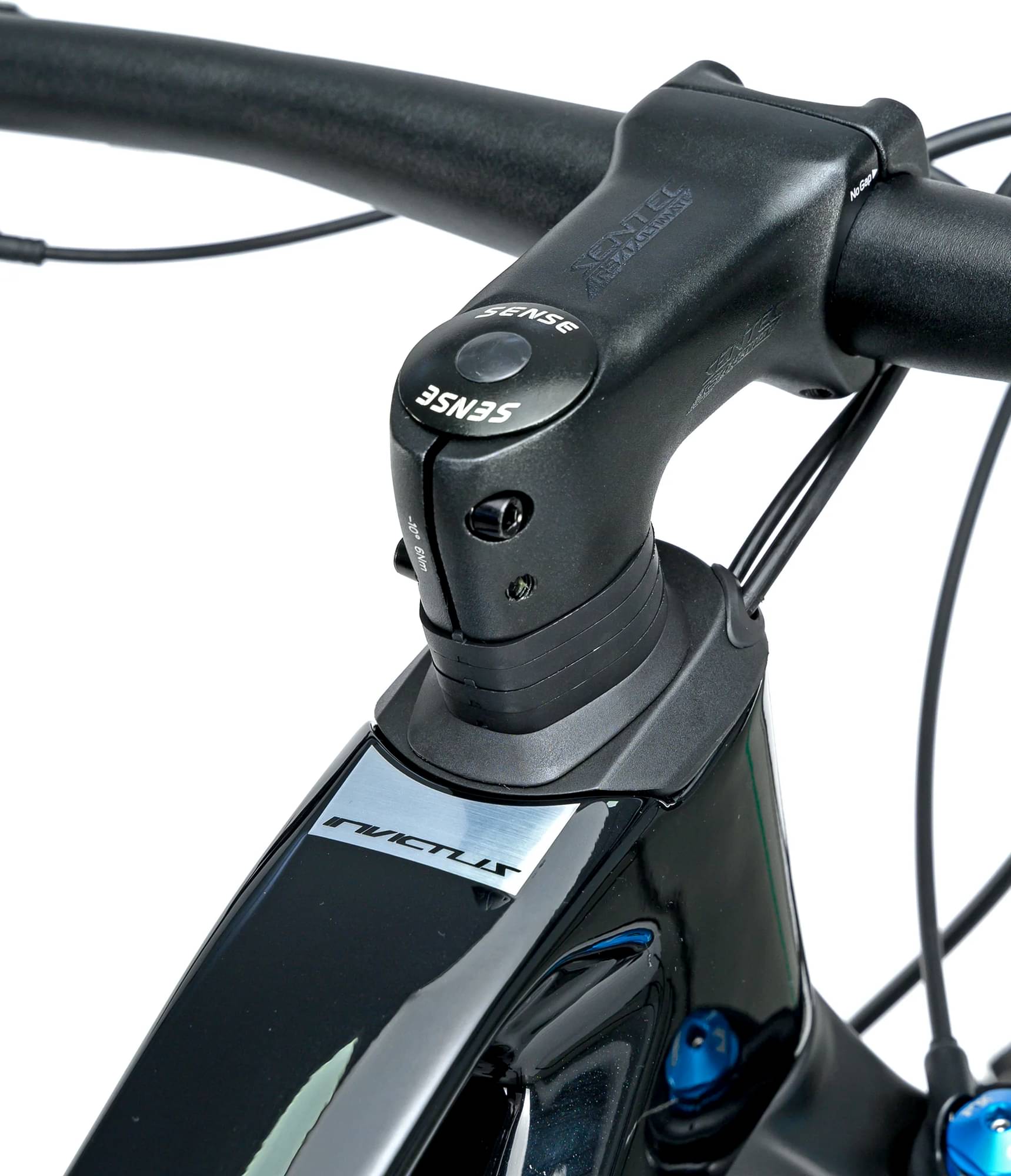

Stem
Sentec Alloy Stem 80mm (S/M) -10° 90mm (L) -10° com centro de 31.8mm
Handlebar
Sentec Sentec Alloy 740mm Rise 5mm / Centro 31.8mm
Grips
Sentec c/Look 132mm
Headset
Sentec com nova tampa e passagem de cabeamento interno específico
Seat
Saddle
Fizik Alpaca Terra X5 145mm
Seatpost
Sentec dropper comprimento 412mm/curso de 125mm, 31.6mm
Fit data

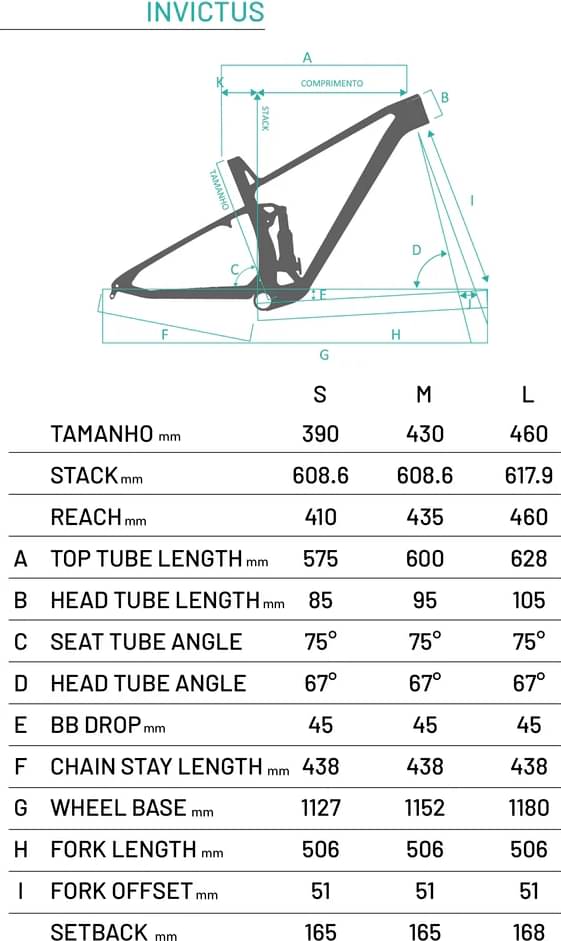

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
