Bike details
Overview
Key information split into simple groups.

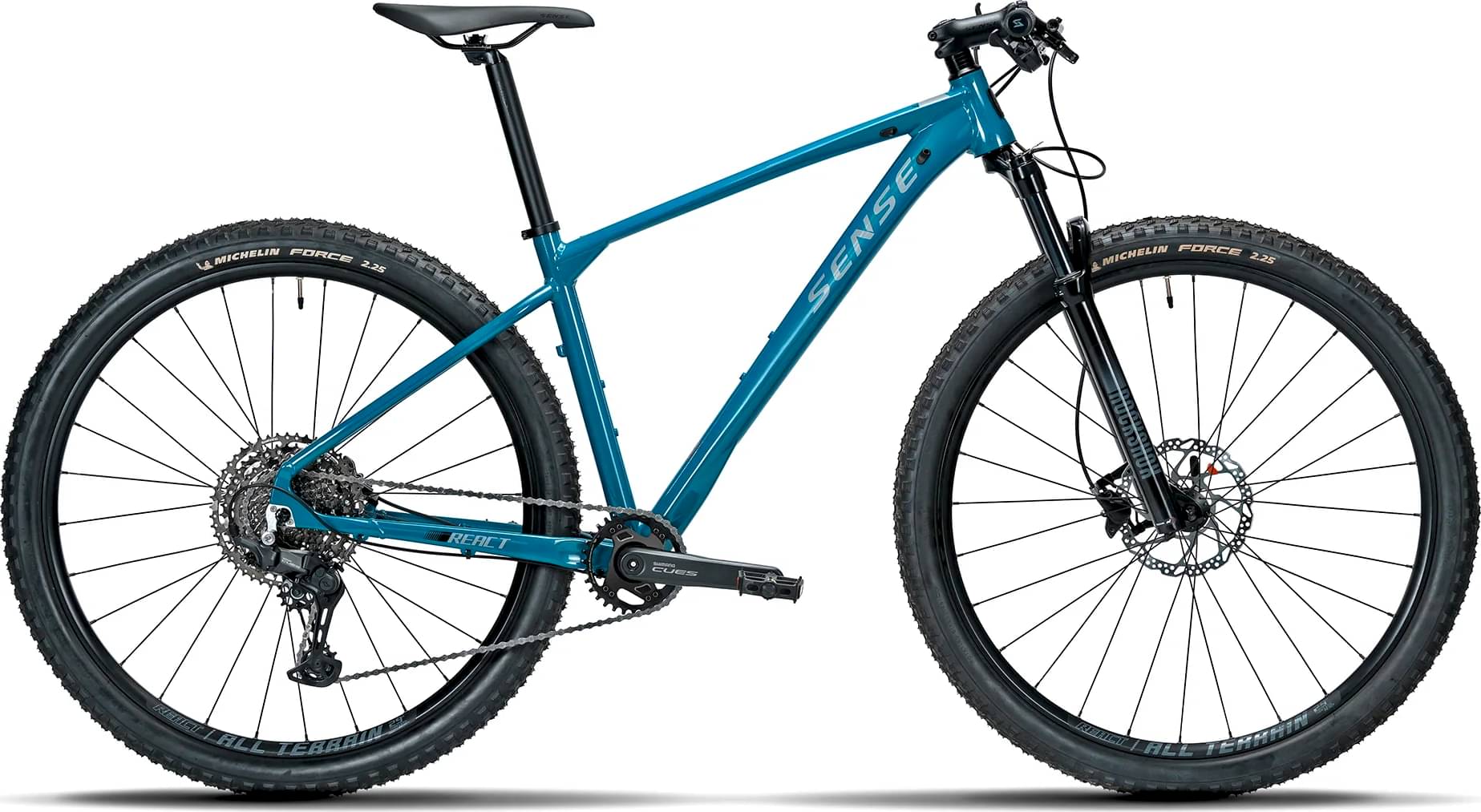

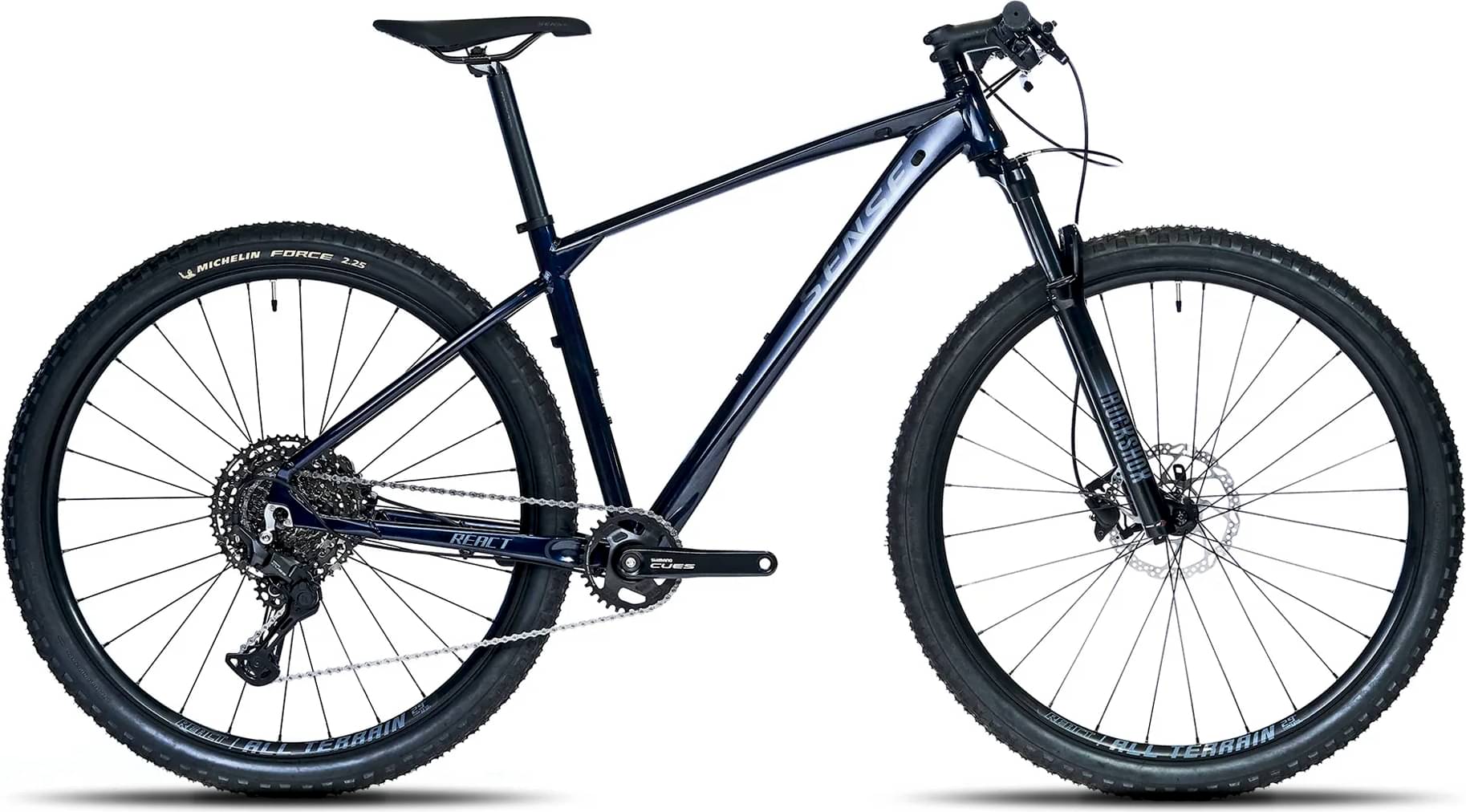

Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset Shimano -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

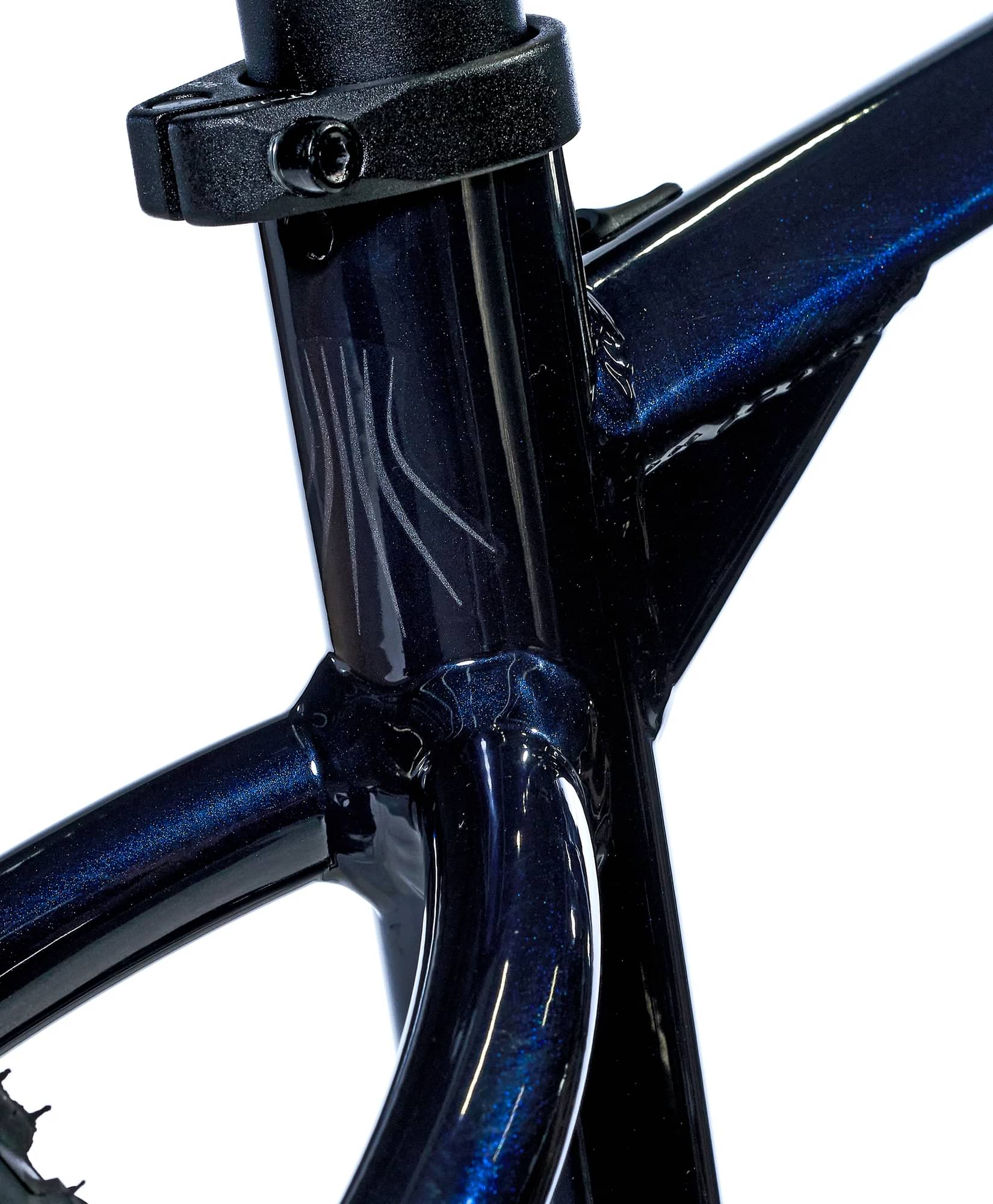

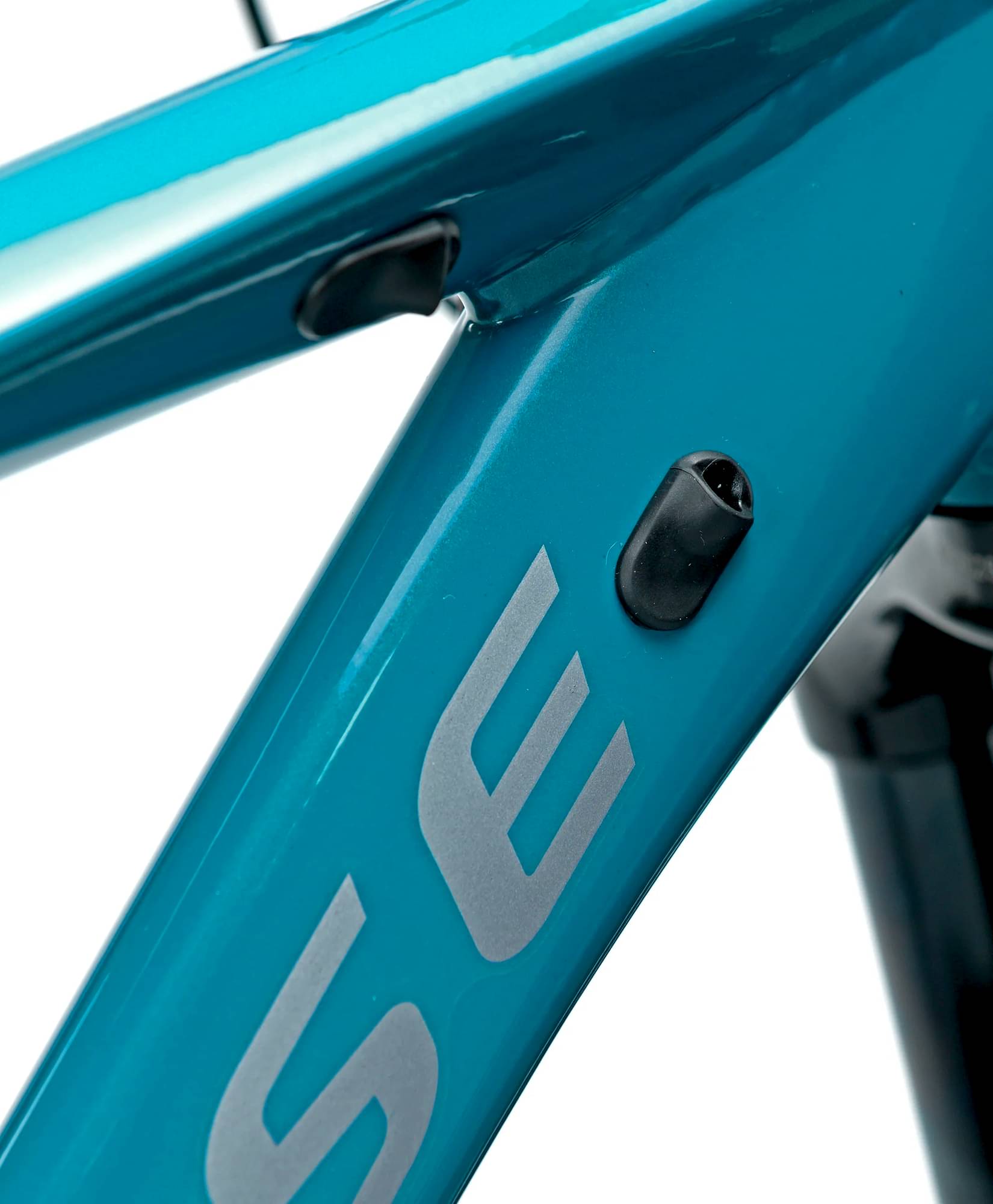

Frame
Frame

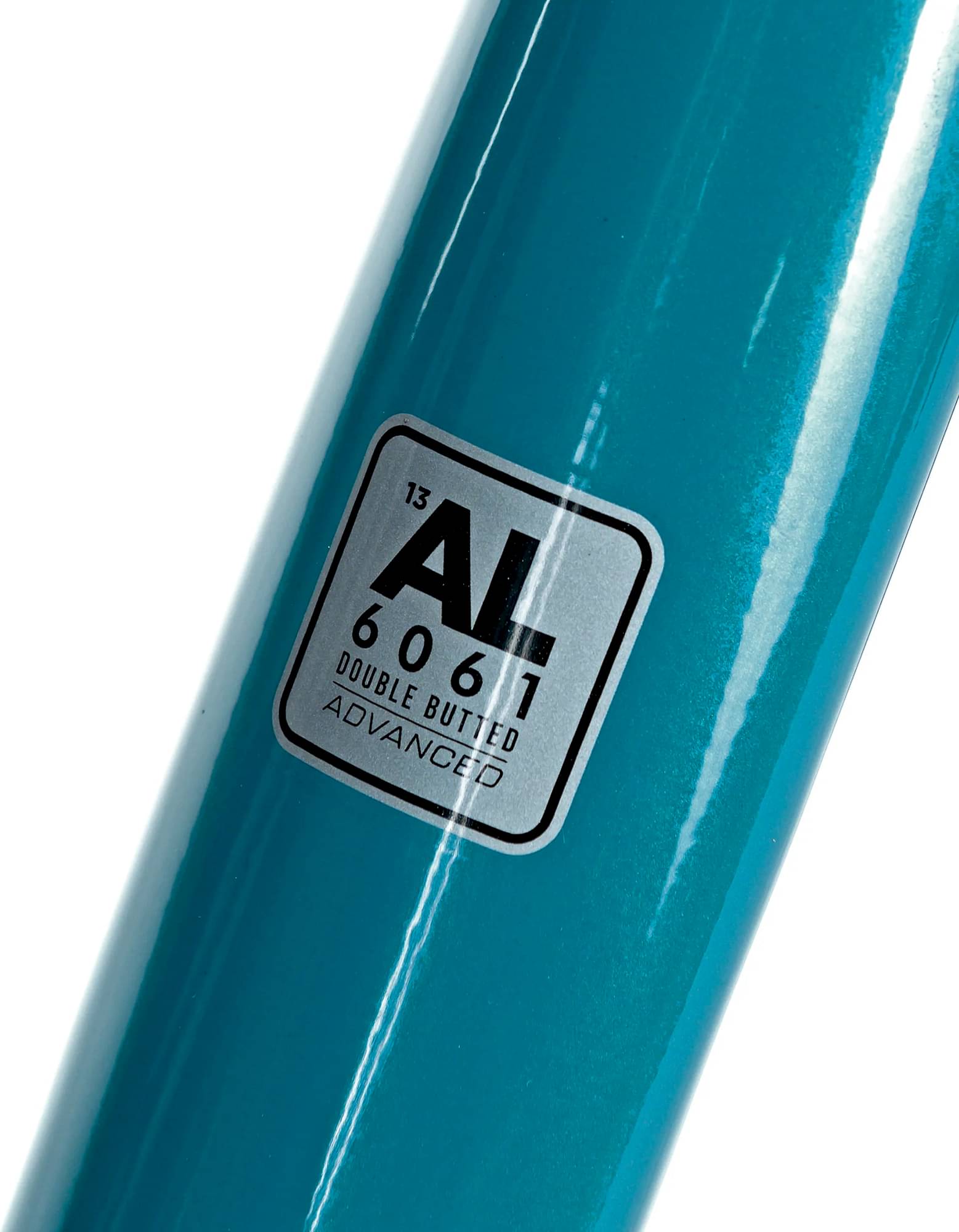

Quadro alumínio 6061 T4/T6 hidro formado e dupla espessura. Caixa de direção tapered, eixo std 141mm quick release. Geometria Sport.
Suspension Fork

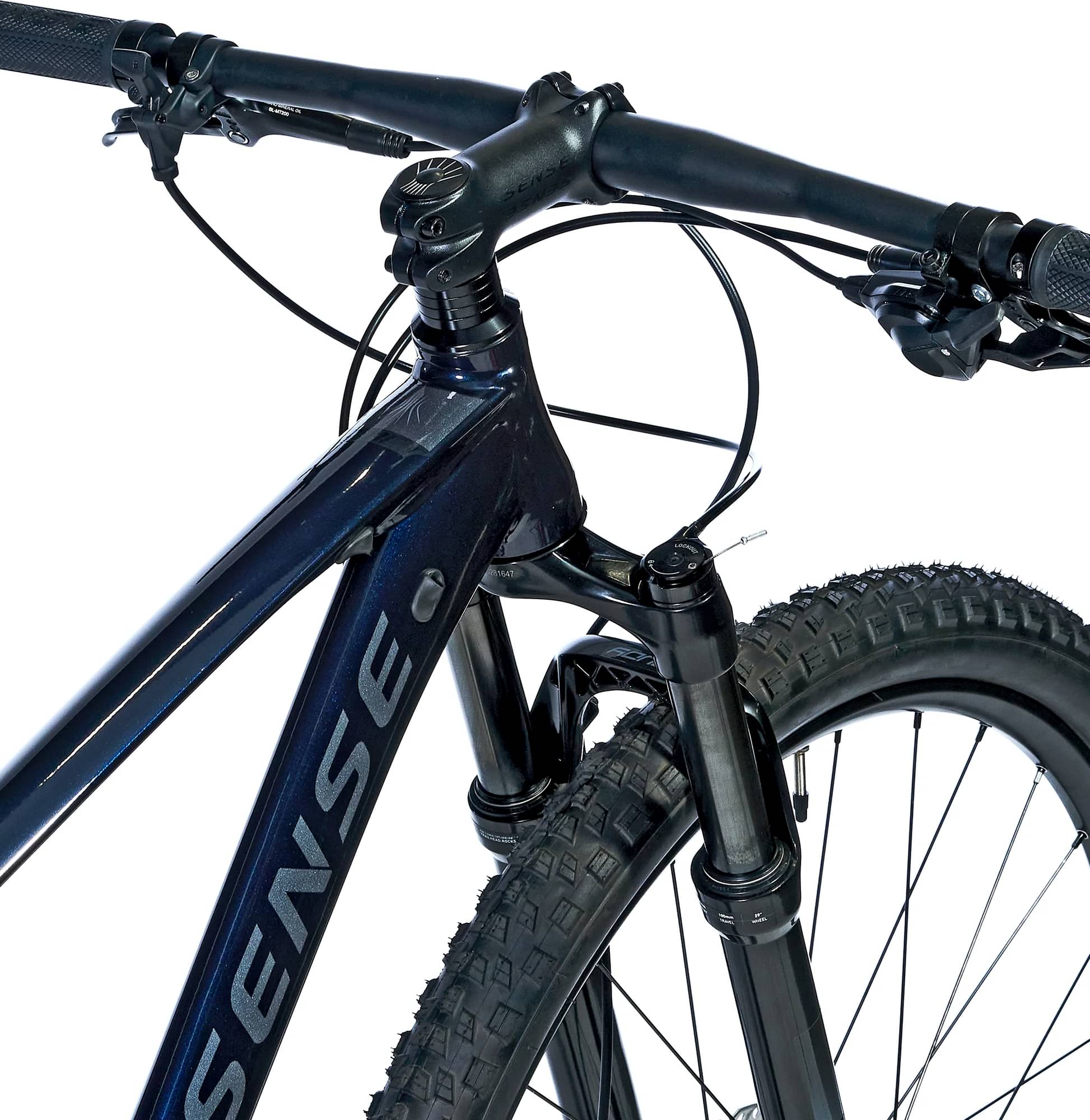

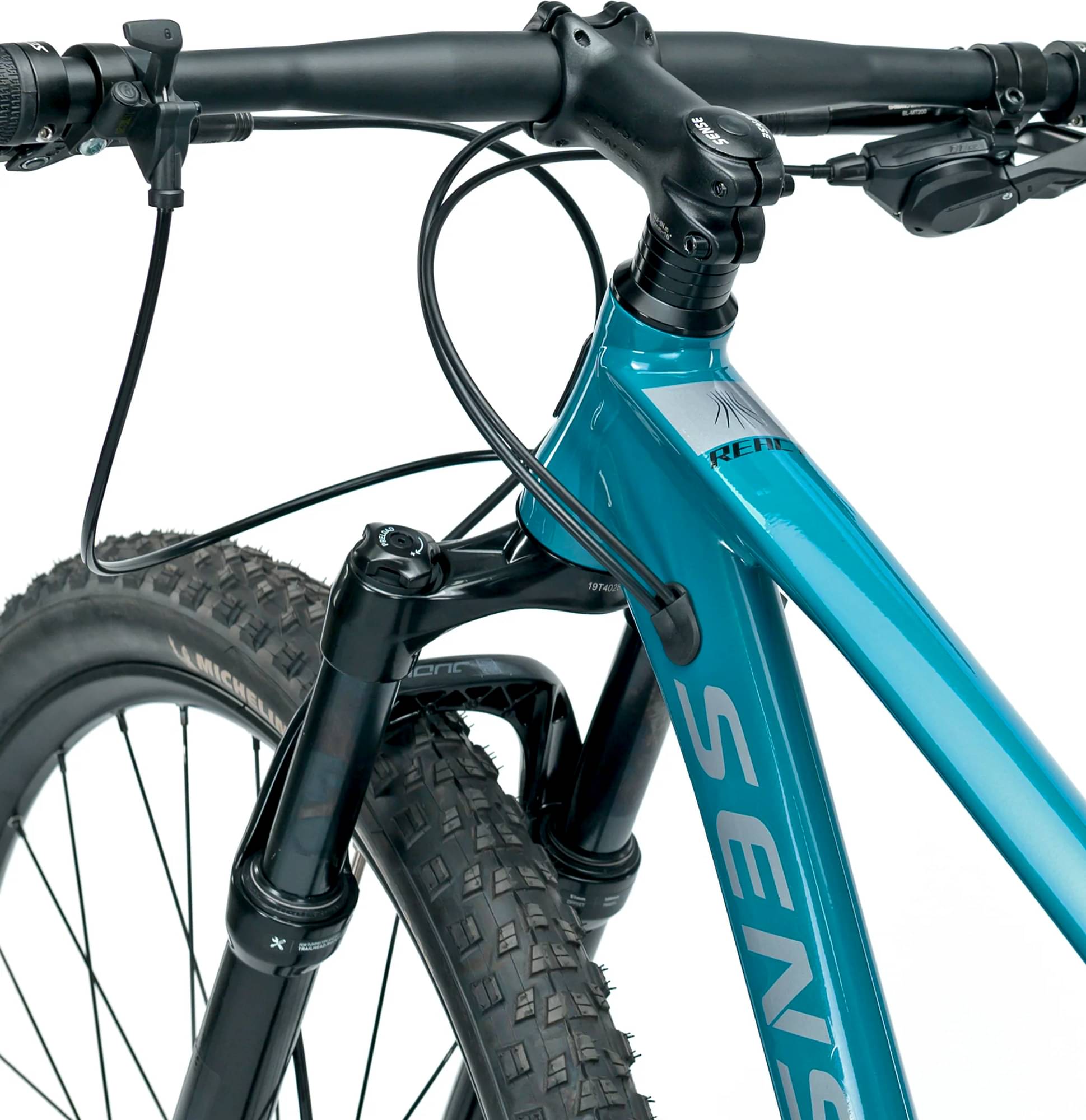

Rock Shox Judy Silver Tk Remote 29" Freio À Disco | Espiga 1.1/8"| 100 Mm | Eixo 9x100mm Trava No Guidão Poploc
Drivetrain
Cassette
Cassete Shimano Cues CS-LG400-11, Cues, 11-Speed, 11-13-15-17-20-23-26-30-36-43-50T
Crank
Shimano Cues FC-U4000-1, Cues 9/10/11 Velocidades , 170mm (Tamanho S) 175mm (Tamanho M-L-XL), 30t
Bottom Bracket
Shimano Ponta Quadrada BB-UN101 BSA 73mm, Eixo: 122.5mm (LL123)
Chain
KMC Xglide Para Cues Compatível com Tecnologia Linkglide 9/10/11 Velocidades
Wheels
Rims
Sense com aro 29" (622x19mm) Largura 30mm e Tubeless 32 furos Cubos Shimano HB-QC300 Blocagem O.L.D 100MM E Raios Sapim Preto
Tires
Michelin 29x2.25 modelo Force XC Acces Line

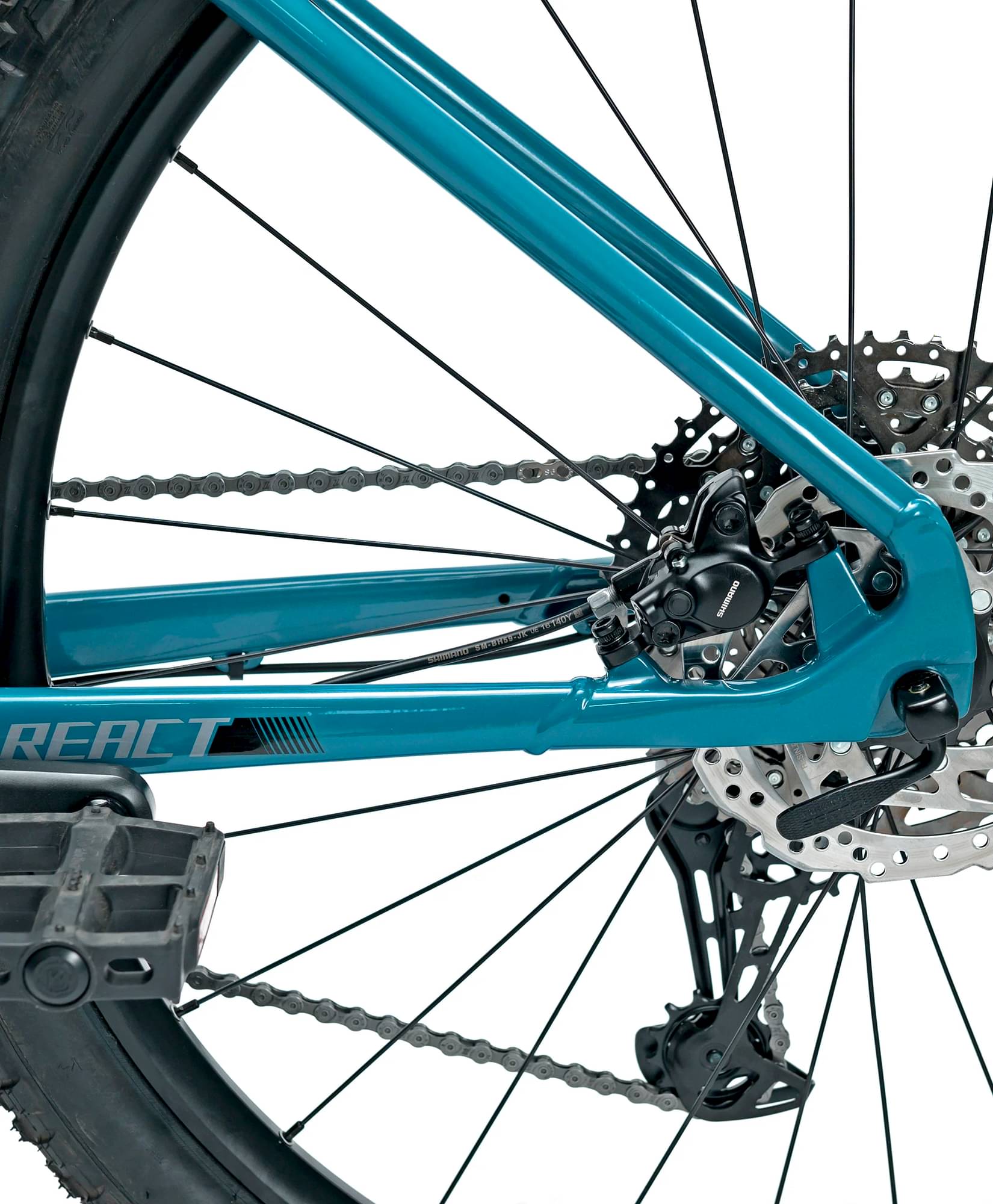

Brakes
Brakes
À disco hidráulico Shimano MT200- manete BL-MT201, Caliper BR-MT200
Cockpit
Stem

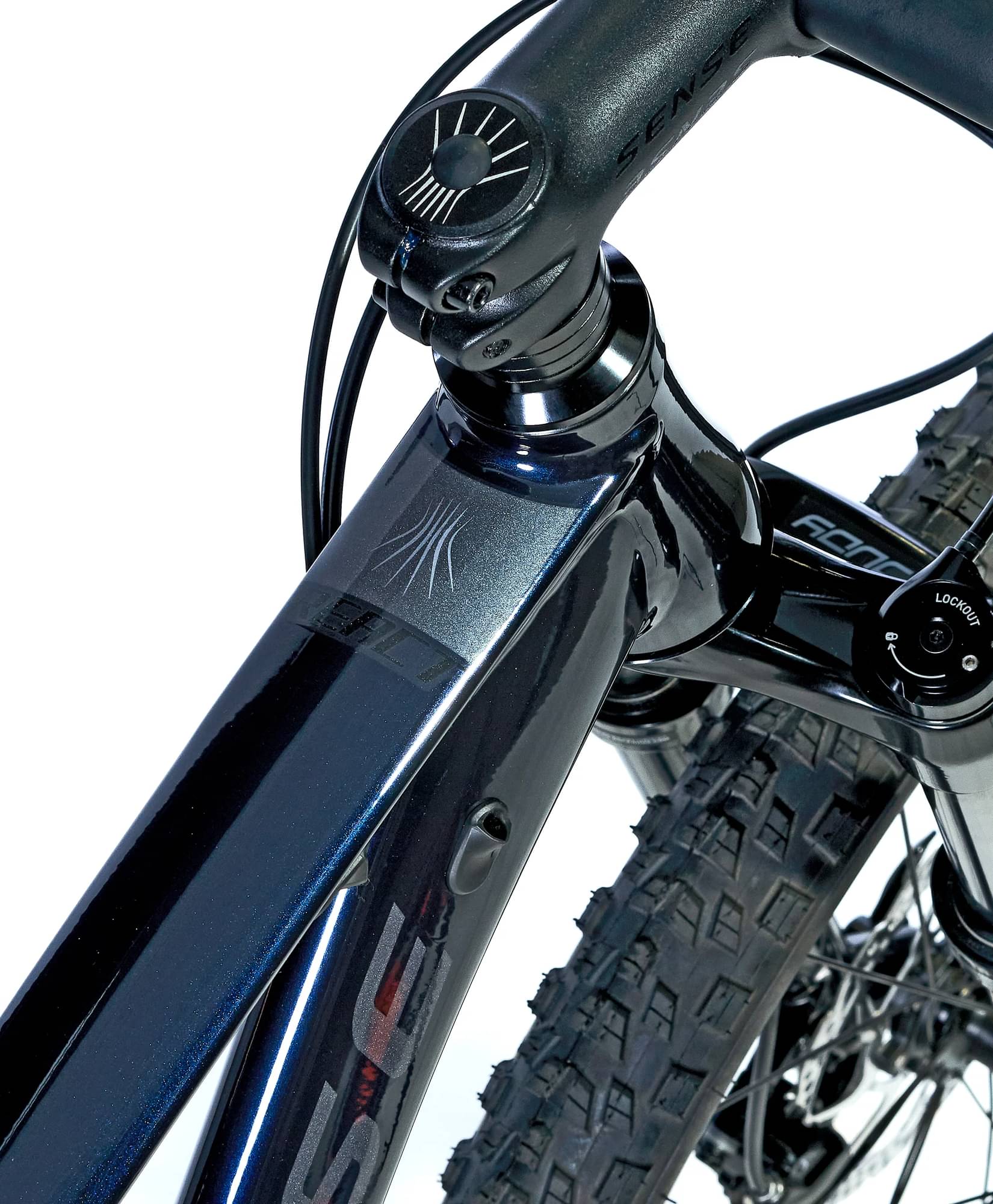

Sense 60mm (S/M) - 6° e 75mm (L/XL) -/+6° com centro de 31.8mm
Handlebar

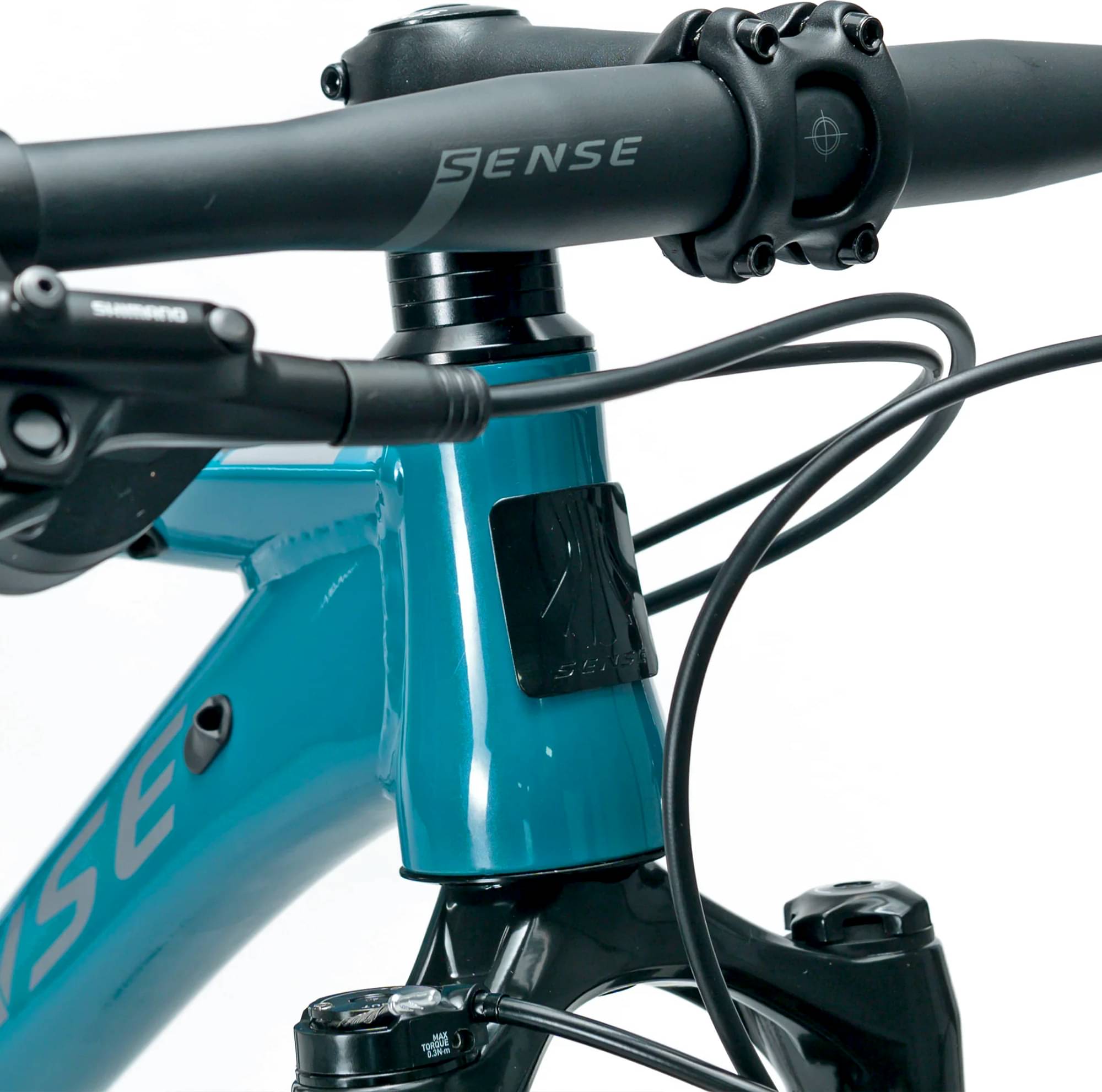

Sense em alumínio 710mm
Grips
Sense com trava
Headset
Neco Integrada Modelo H373-B52, 1.1/8 - 1.1/5 Com Cone Conversor De Espiga 1-1.8" Para Quadro 1.5"
Seat
Saddle

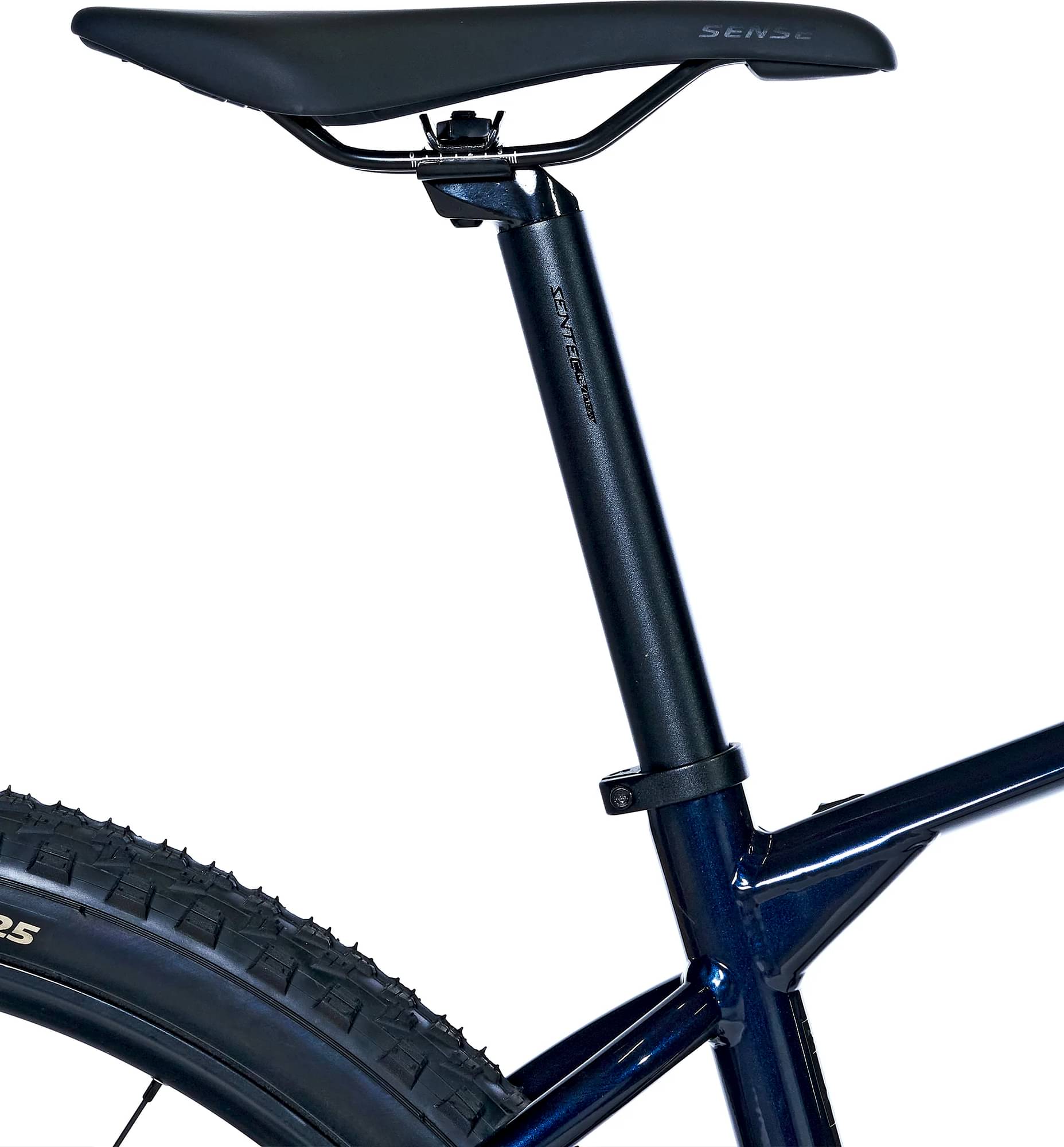

Alpaca Terra X5
Seatpost
Sense Alumínio 31.6x400mm Off Set 16mm
Fit data

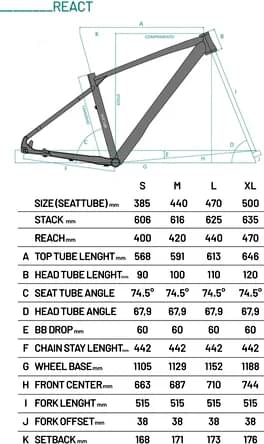

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
