Bike details
Overview
Key information split into simple groups.

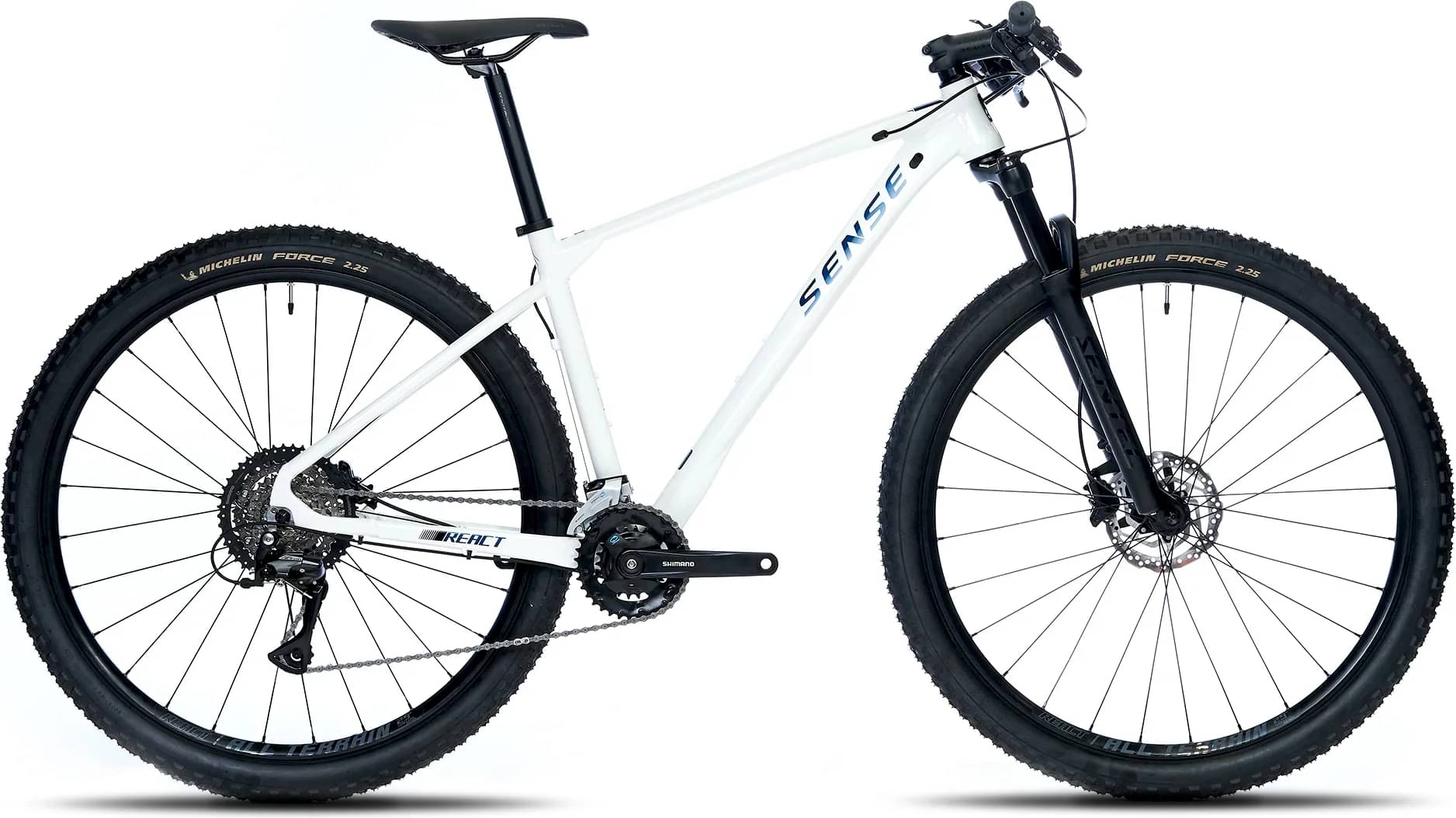

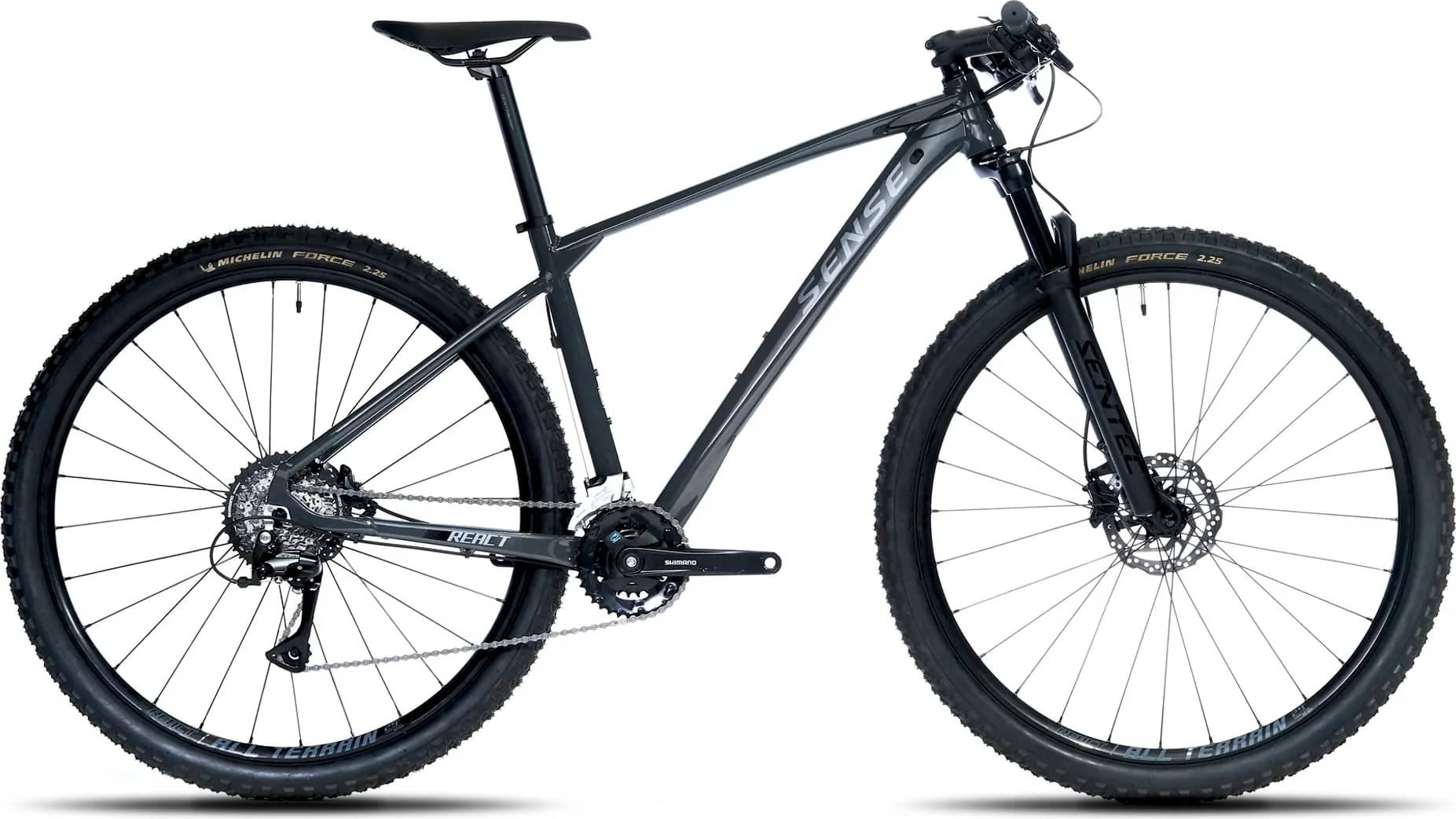

Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Groupset Shimano -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

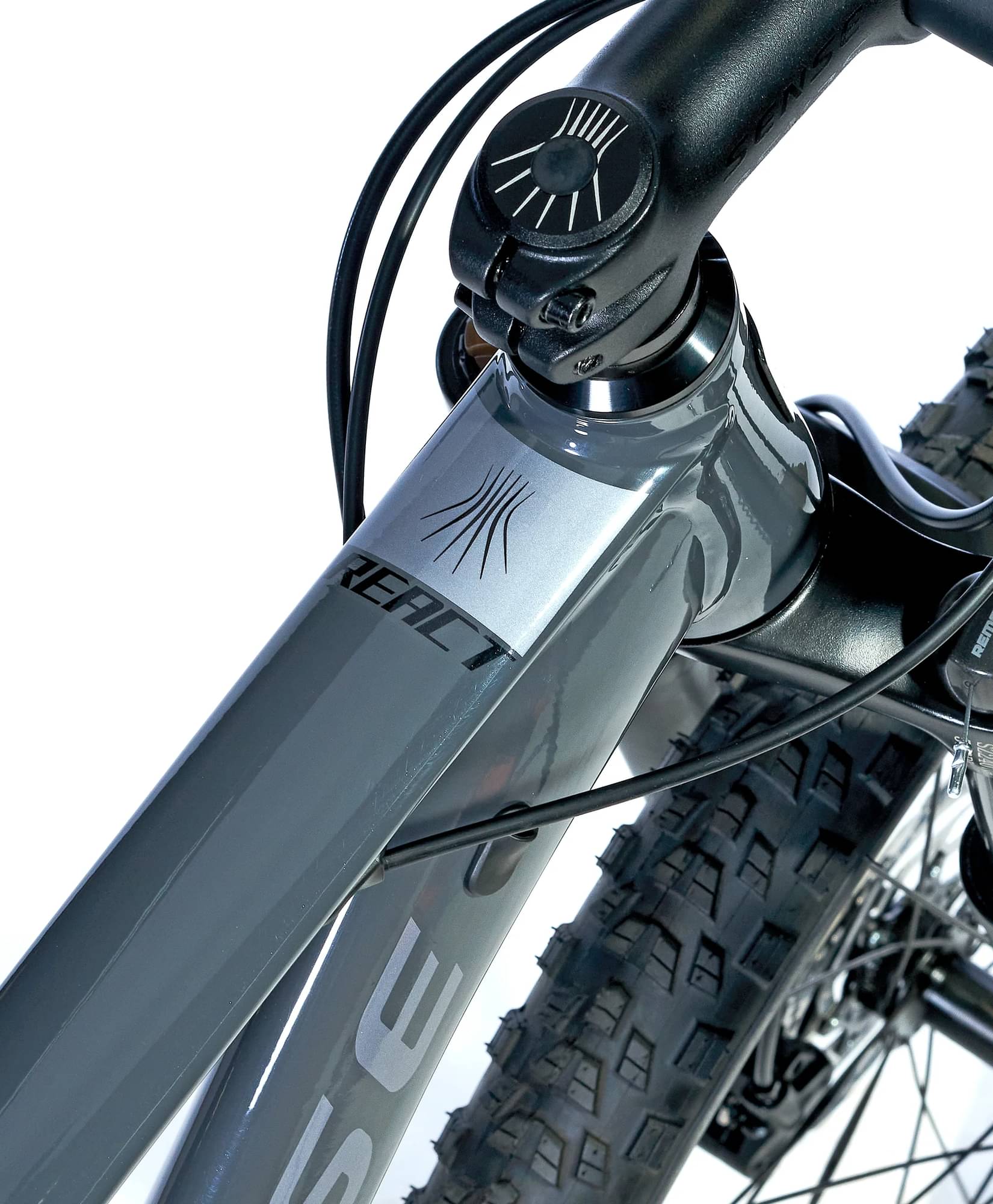

Frame
Frame
Alumínio 6061 T4/T6 hidro formado e dupla espessura. Caixa de direção tapered, eixo std 141mm quick release. Geometria Sport
Suspension Fork
Sentec Remote Lock 29" Freio À Disco | Espiga 1.1/8" |100 mm | Eixo 9x100mm | Trava no Guidão e Haste de 30mm
Drivetrain
Cassette
Shimano CS-HG400-8, 8-Speed, 11-13-15-18-22-27-33-40T

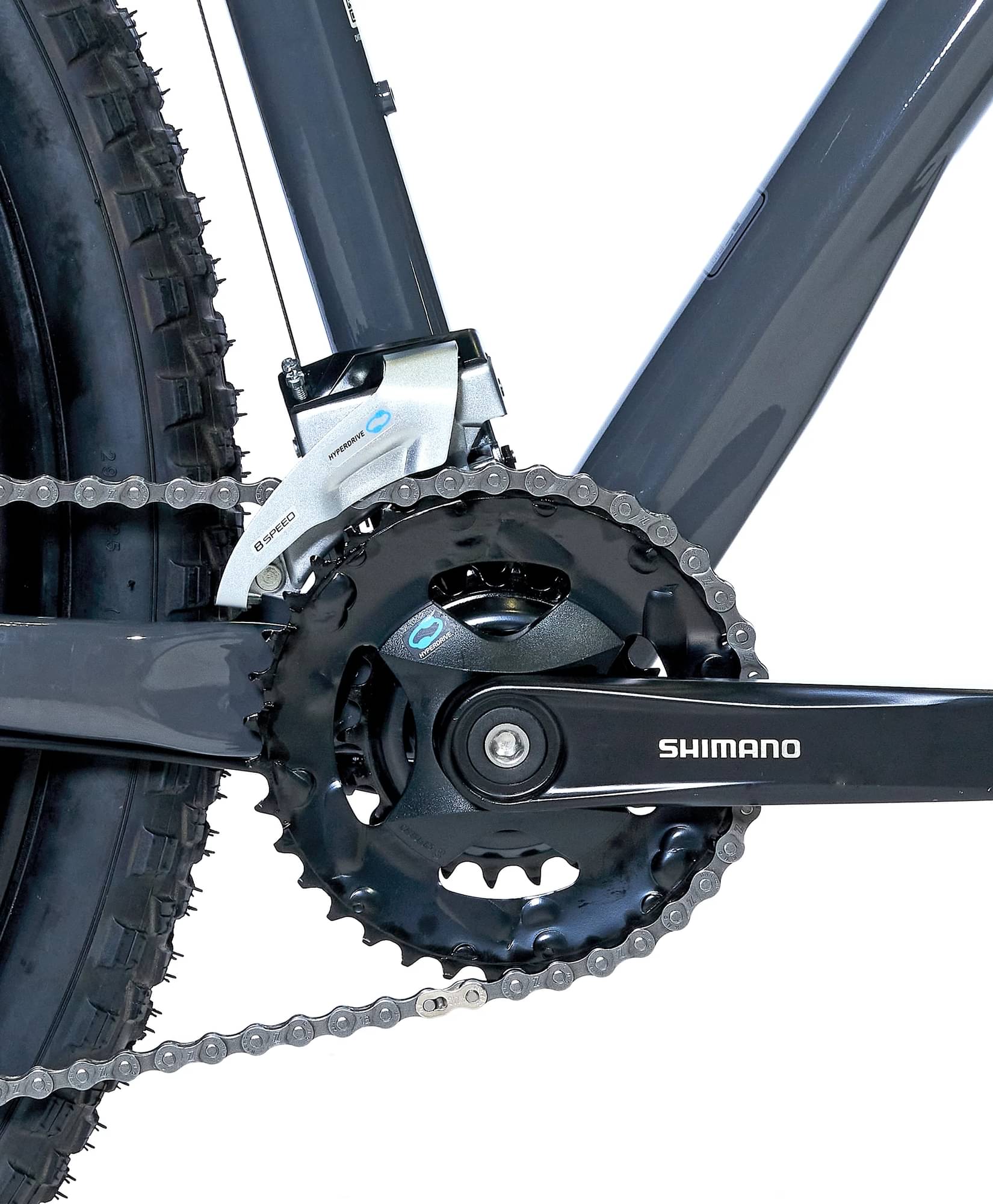

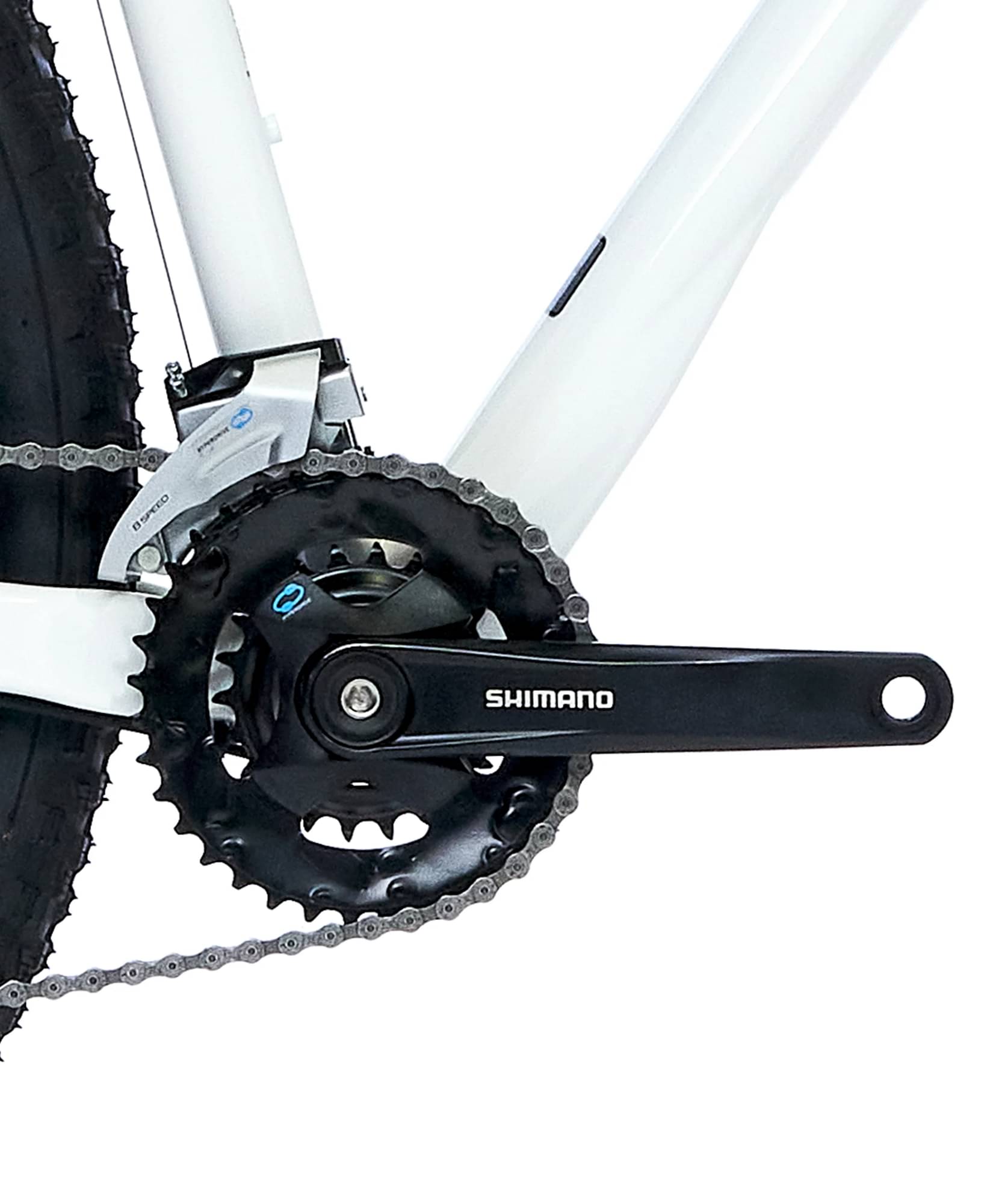

Crank
Shimano FC-M315-2, 36-22t para 7/8 velocidades 170mm (tamanho S) 175mm (tamanho M-L-XL)
Bottom Bracket
Ponta Quadrada Neco Eixo de 122.5mm
Chain
KMC Z8.1 - 8 velocidades
Wheels
Rims
Sense com aro 29" (622x19mm) Largura 30mm e Tubeless 32 furos Cubos Shimano HB-QC300 Blocagem O.L.D 100MM E Raios Sapim Preto
Tires
Michelin 29x2.25 modelo Force XC Acces Line
Brakes
Brakes
Mechanical Disc

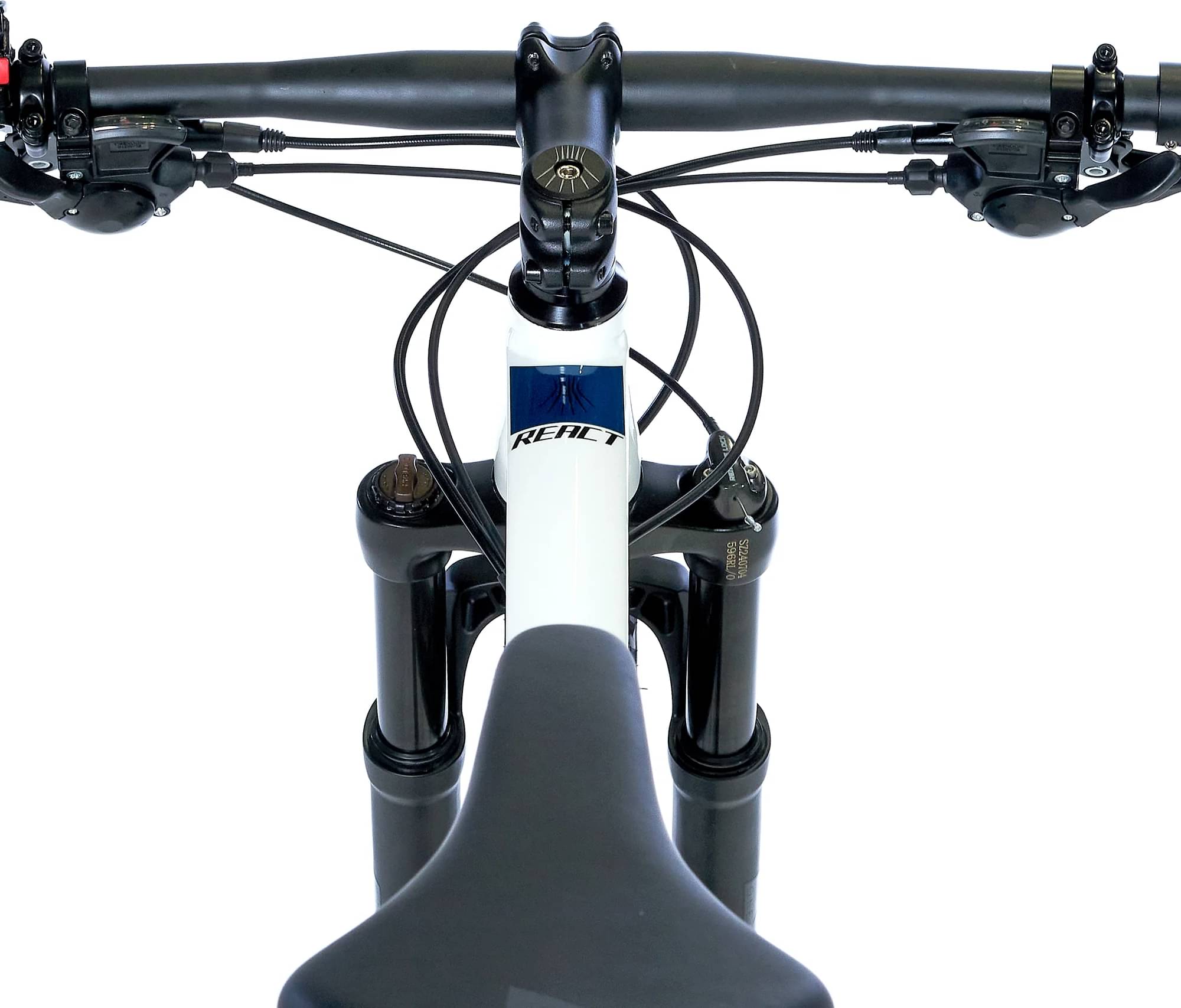

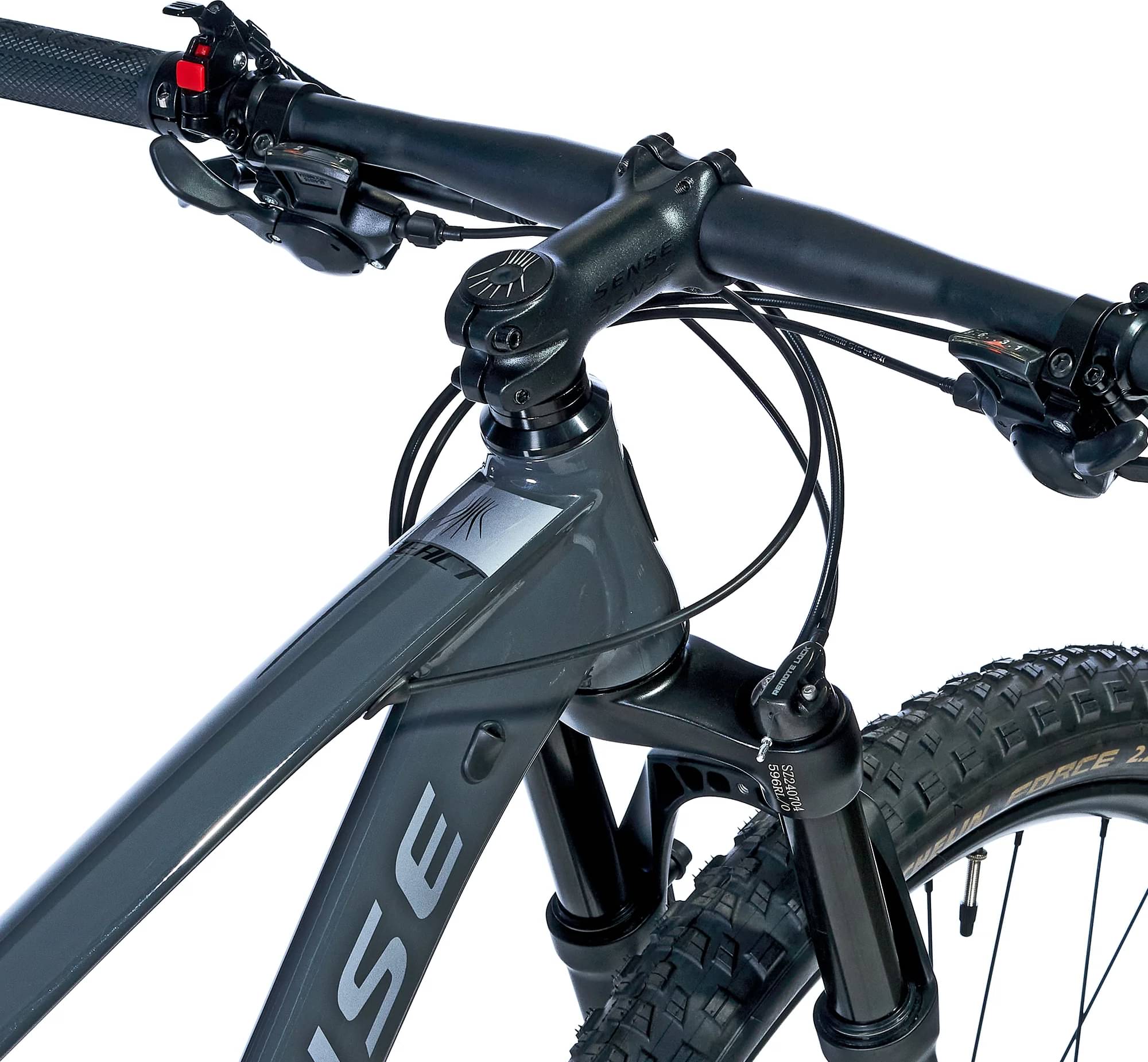

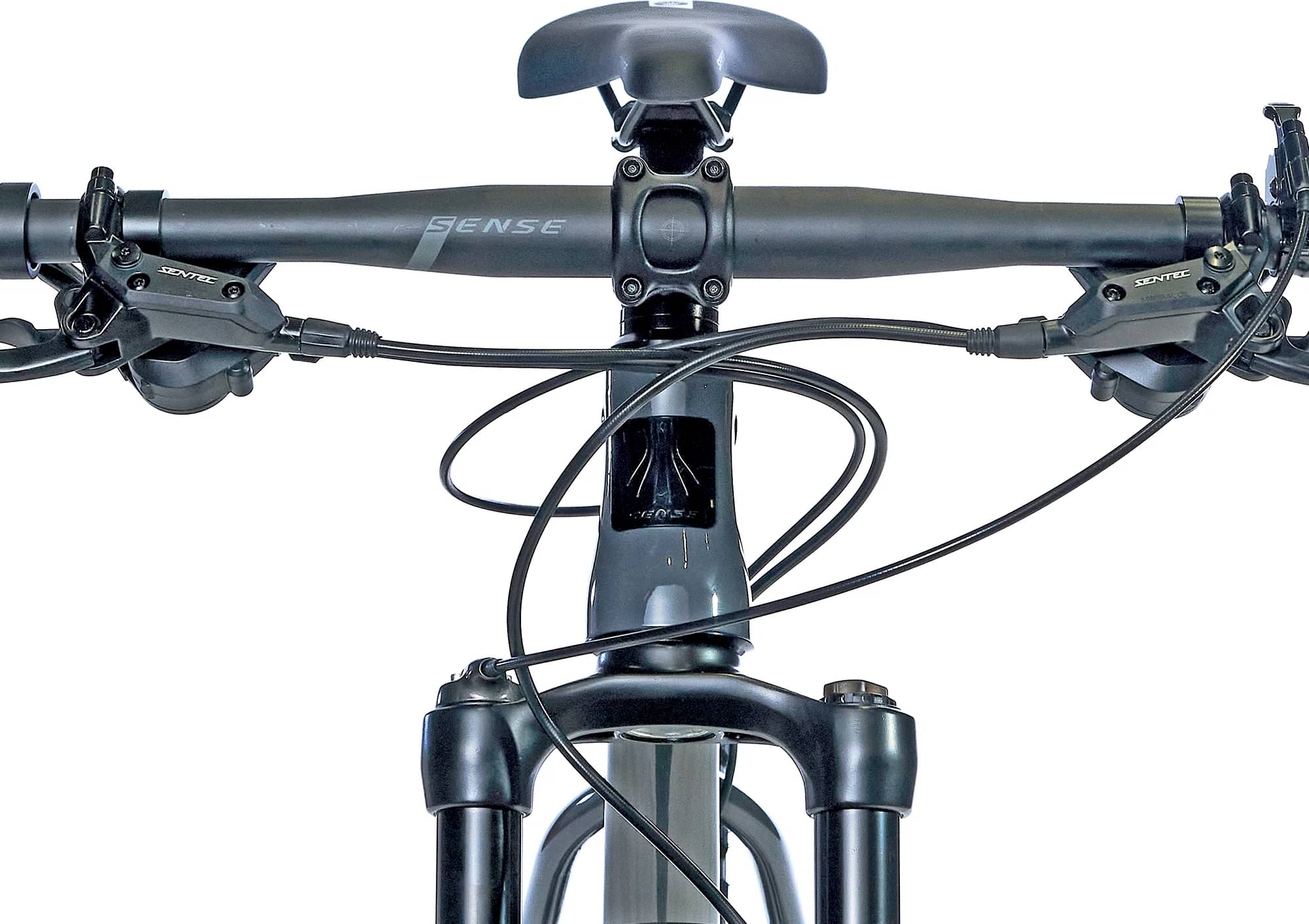

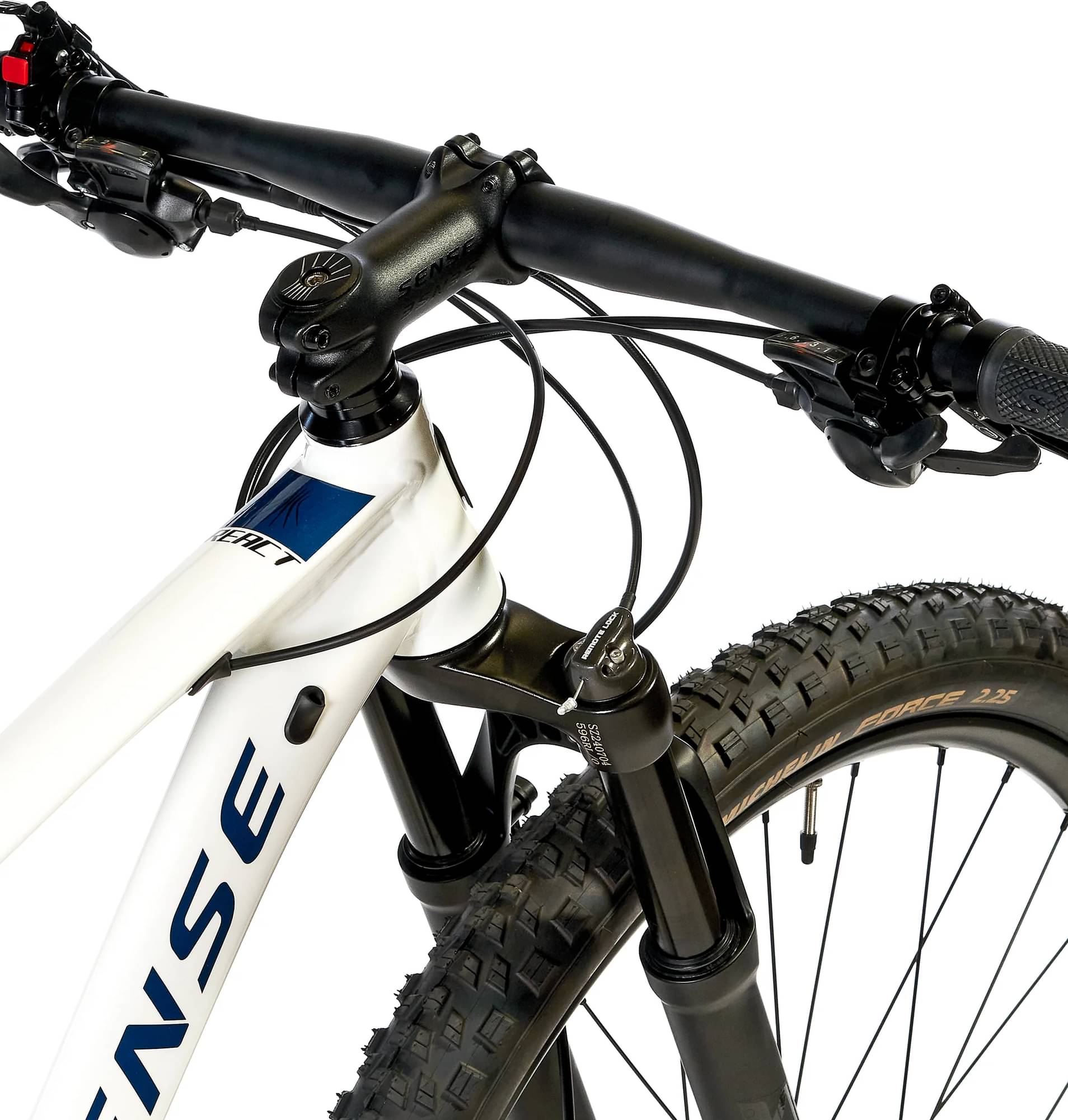

Cockpit
Stem
Sense 60mm (S/M) -10° e 75mm (L/XL) -/+6° com centro de 31.8mm
Handlebar
Sense em alumínio 710mm
Grips
Sense com trava
Headset
Neco Integrada Modelo H373-B52, 1.1/8 - 1.1/5 com cone conversor de espiga 1-1.8" para quadro 1.5"

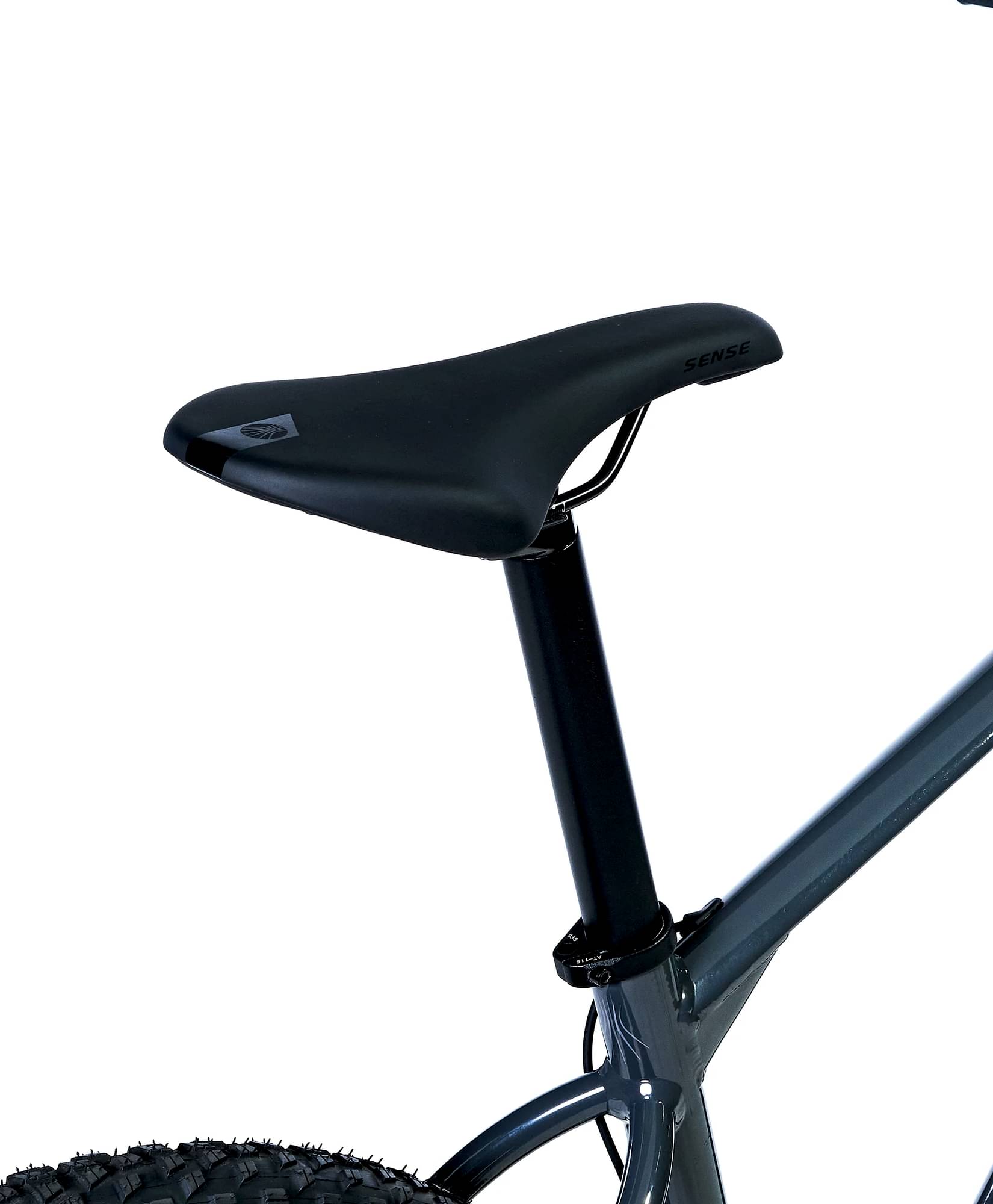

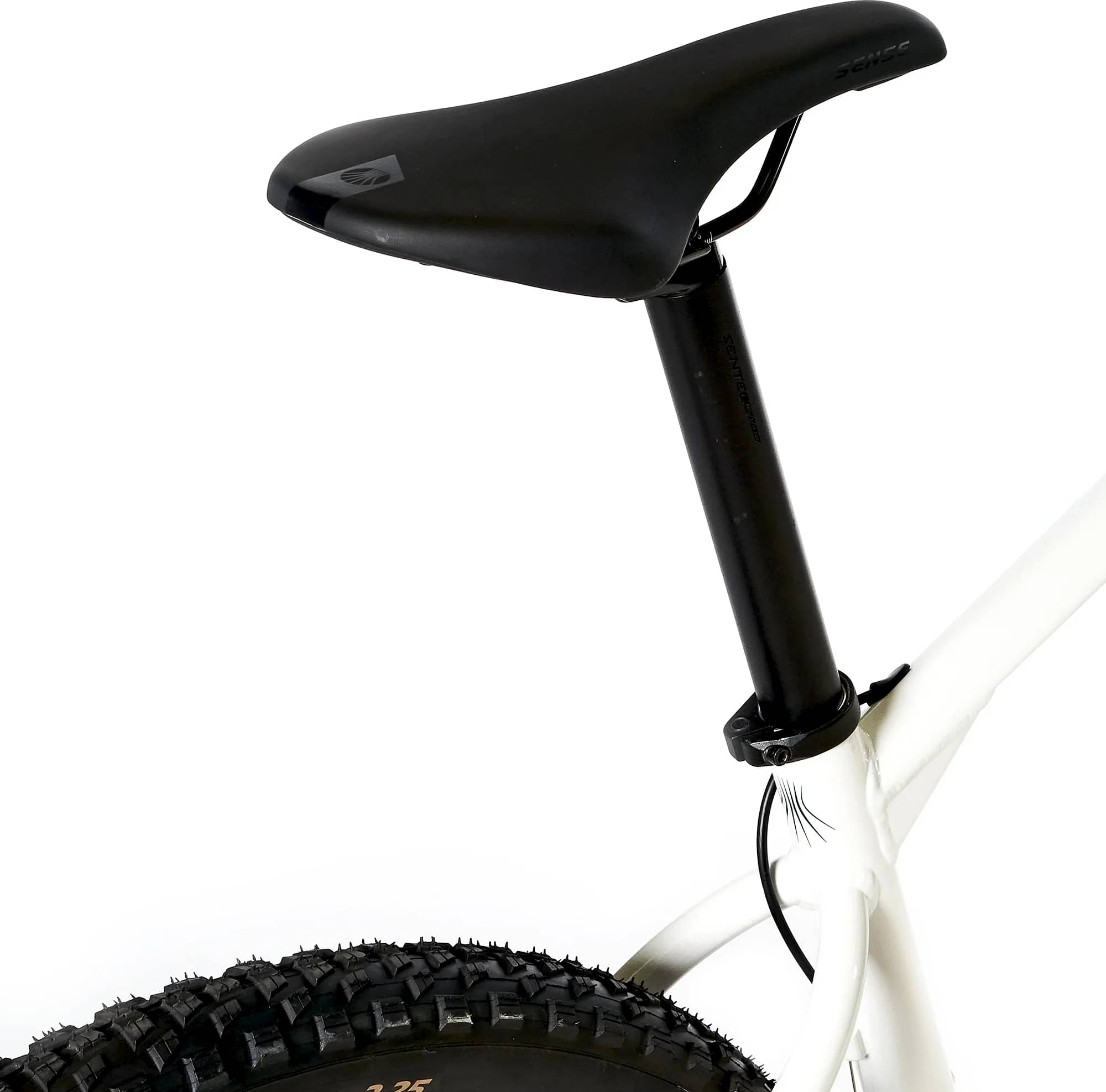

Seat
Saddle
Selle Royal 2058 DRN

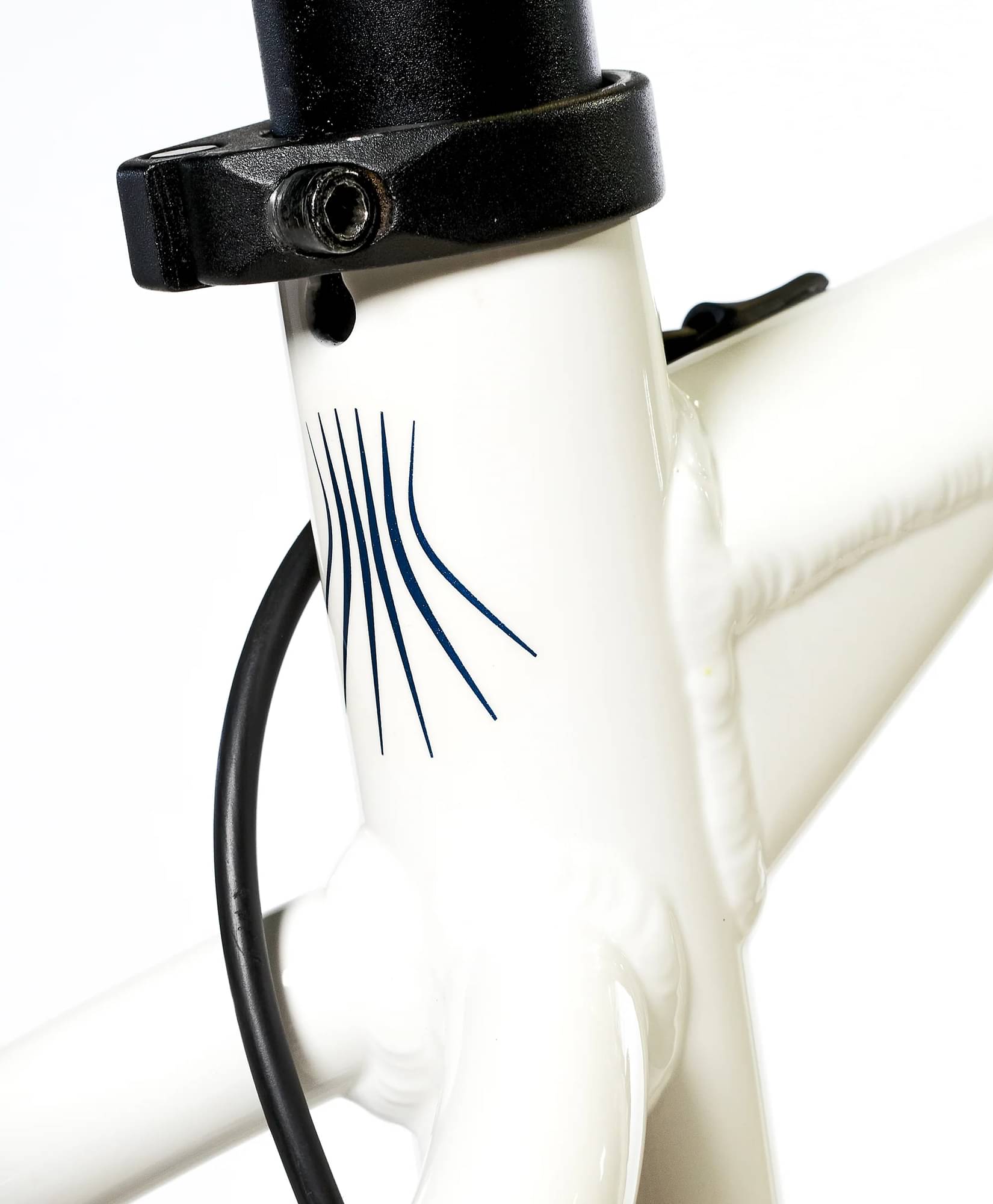

Seatpost
Sense Alumínio 31.6x400mm Off Set 16mm
Fit data

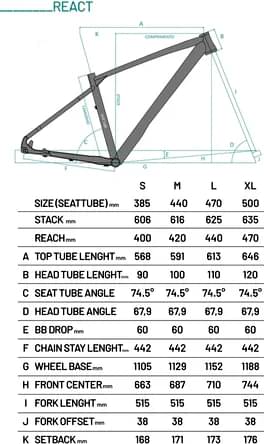

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
