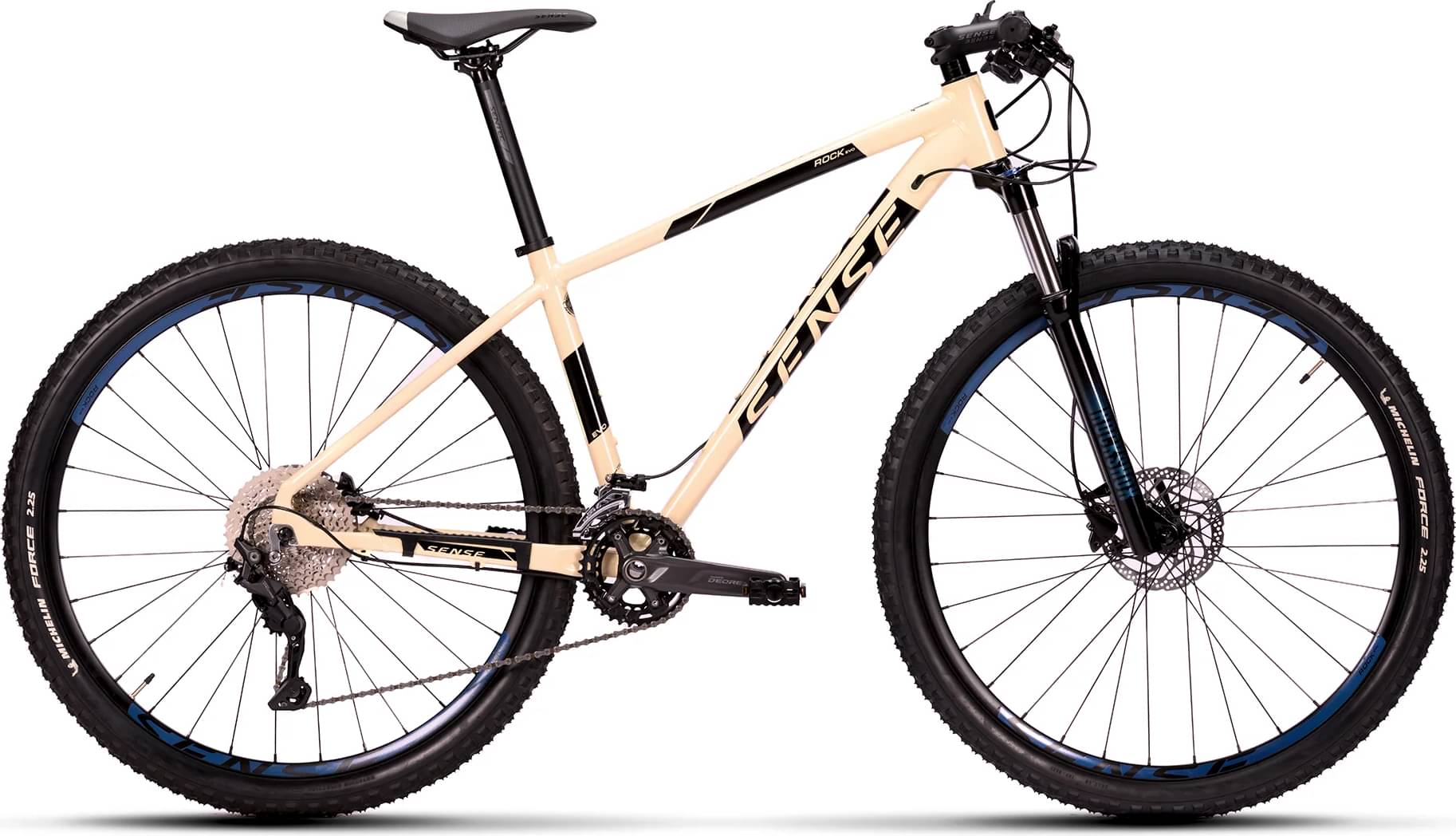

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

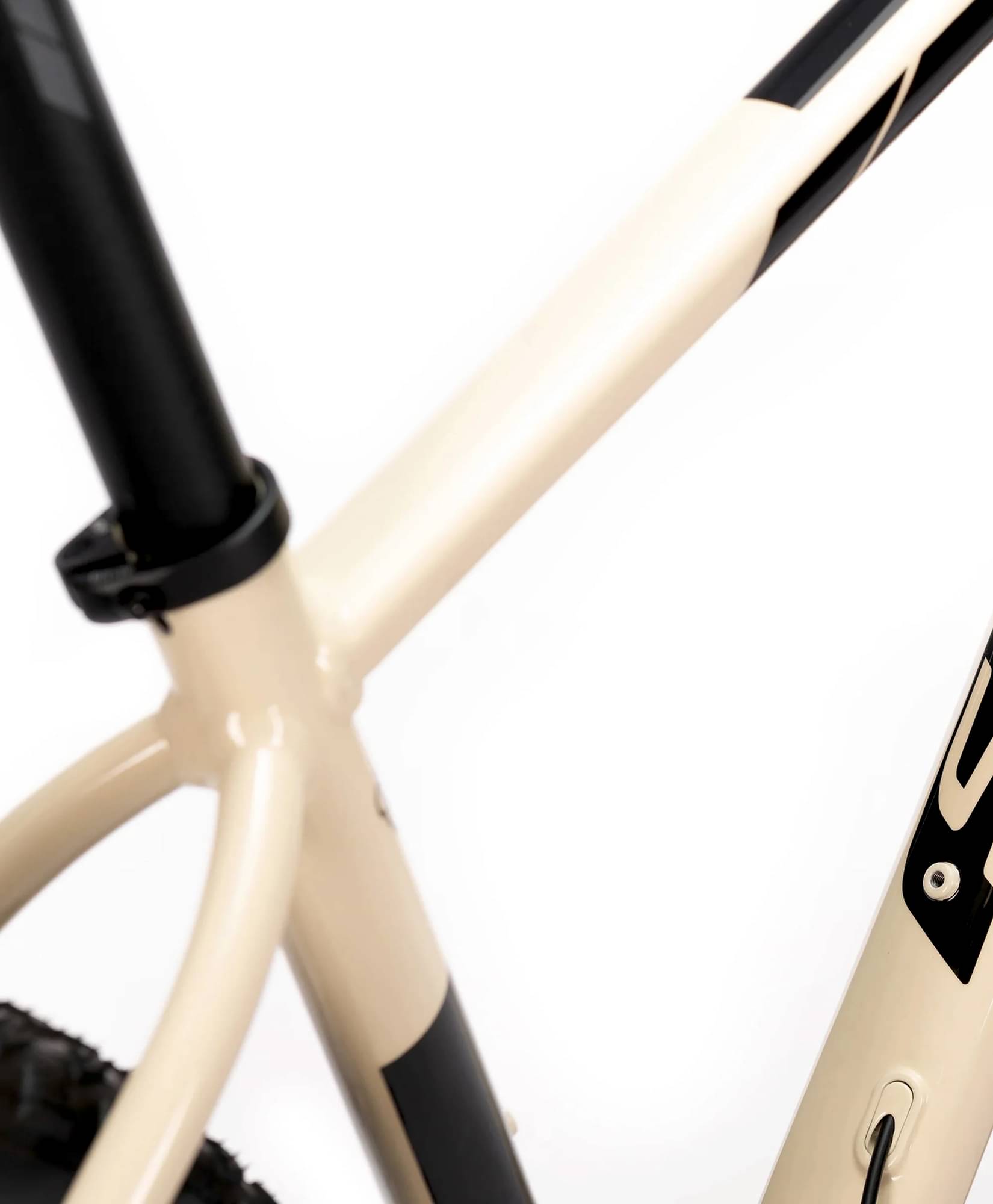

Frame
Frame
Sense Alumínio Hidroformado 6061 | Tripla Espessura| Cabeamento Interno | Geometria Race

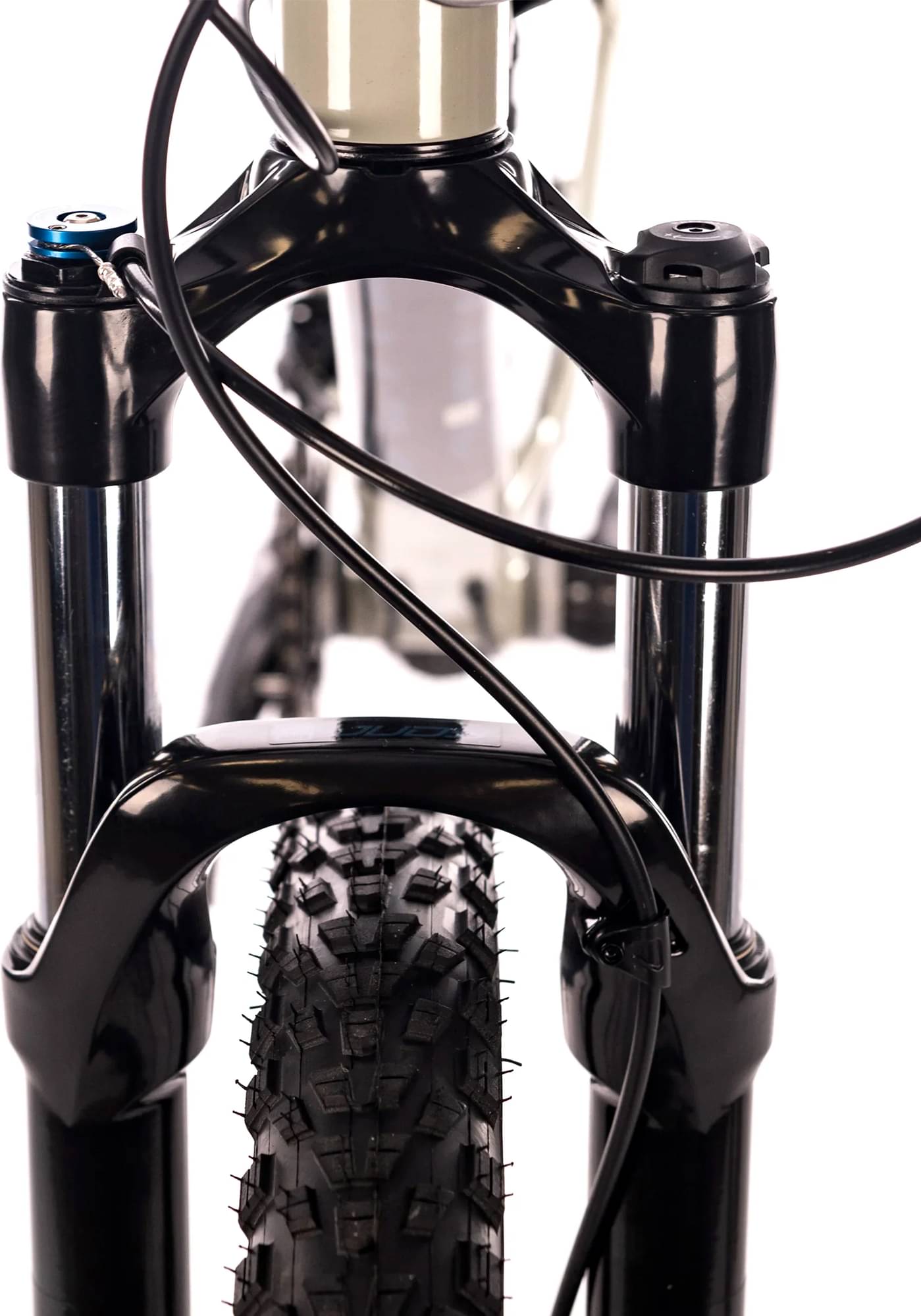

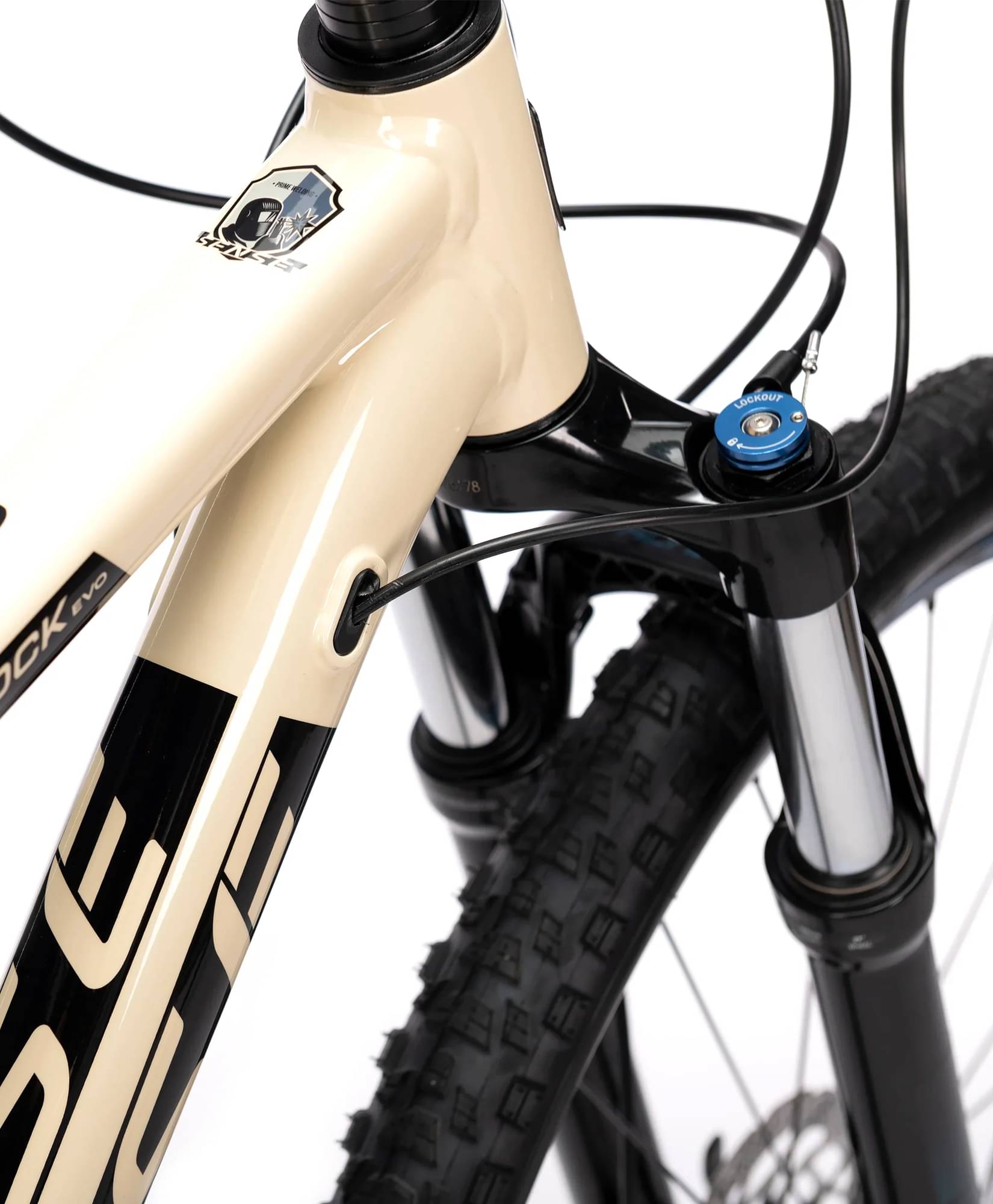

Suspension Fork
Rock Shox Judy Tk-R 100 Mm Com Trava

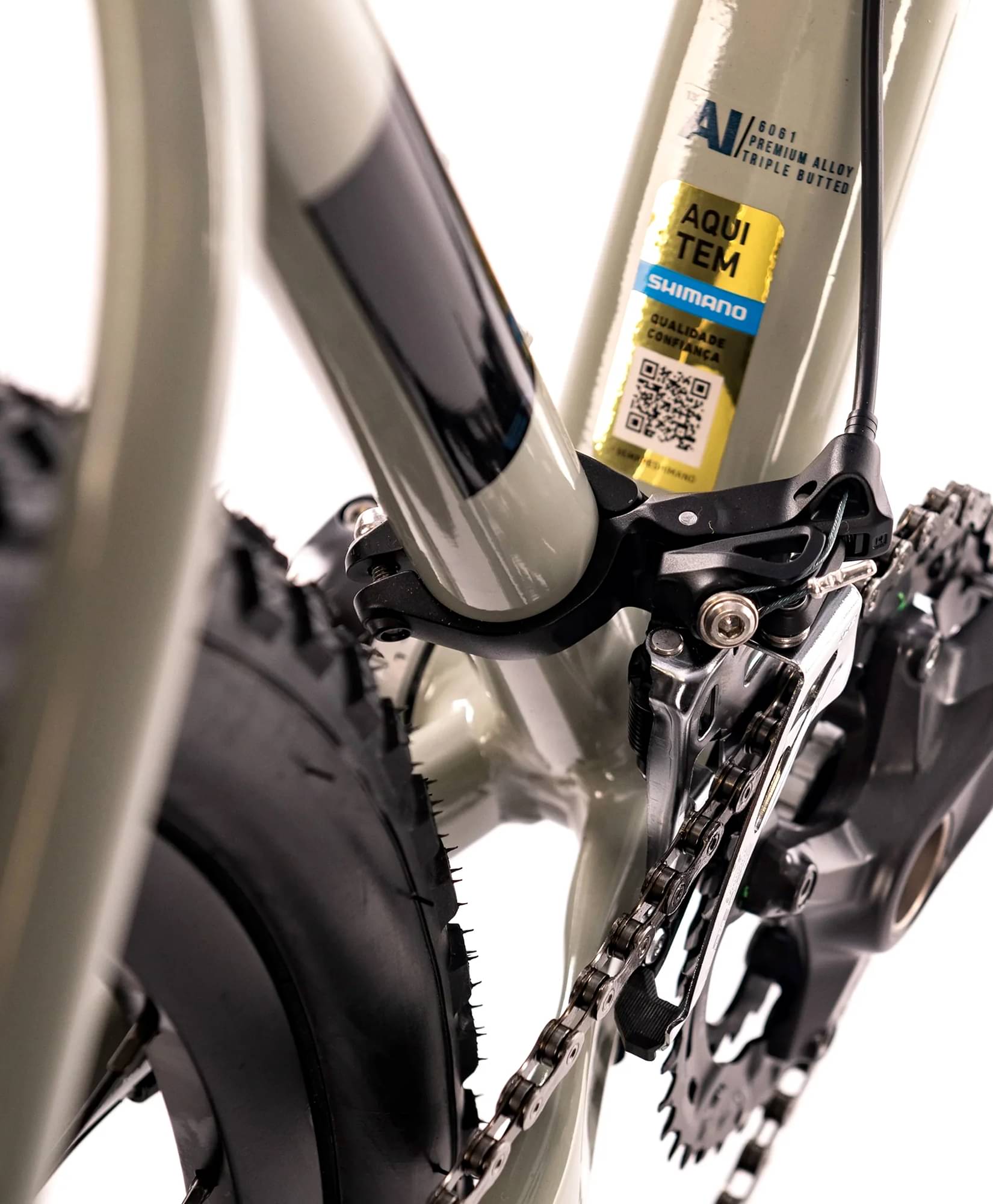

Drivetrain
Cassette
Shimano Deore Cs-M4100 | 10 Velocidades | 11 X 42d

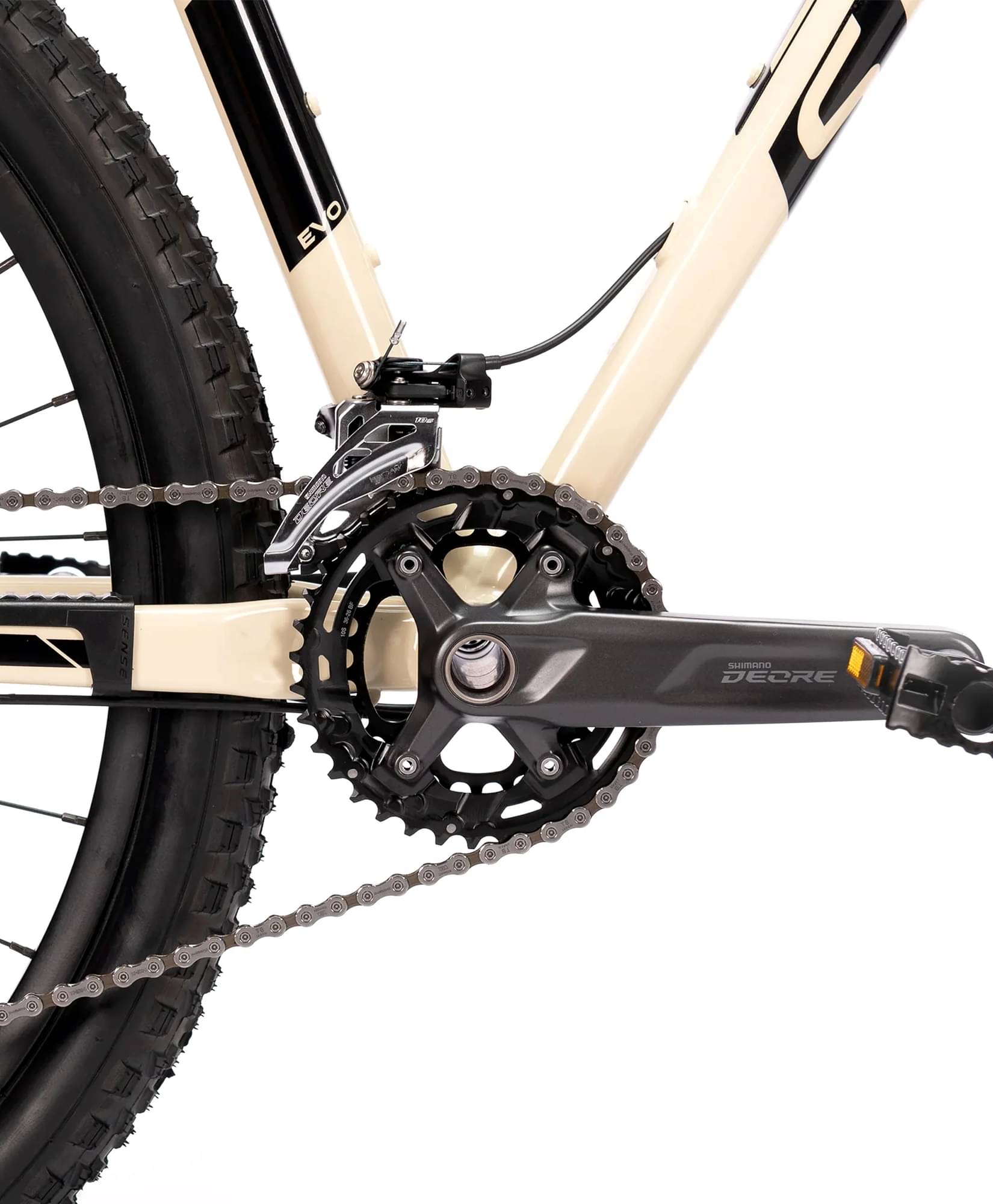

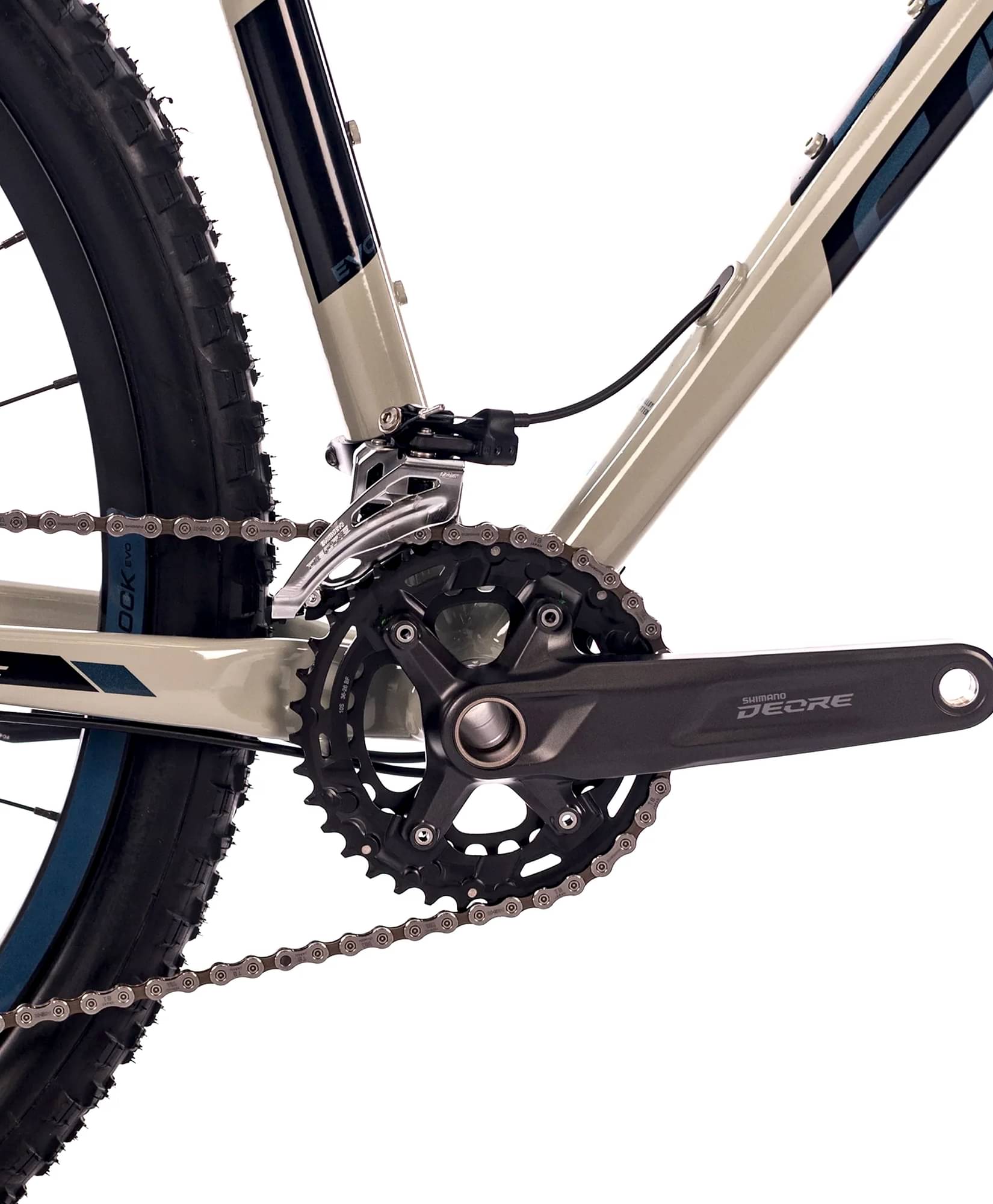

Crank
Shimano Deore Fc-4100 | Duplo 36x26d | (170 Mm Tam S | 175 Mm Tam M / L / Xl)
Bottom Bracket
Shimano Bb52 Integrado
Chain
Shimano Hg54 *A Corrente Poderá Sofrer Mudança De Especificação/Marca Sem Prévio*
Wheels
Rims
Sense Disc 29" | Raios Sapim | Cubo Shimano Hb-Mt200|Aro Alumínio 32 Furos

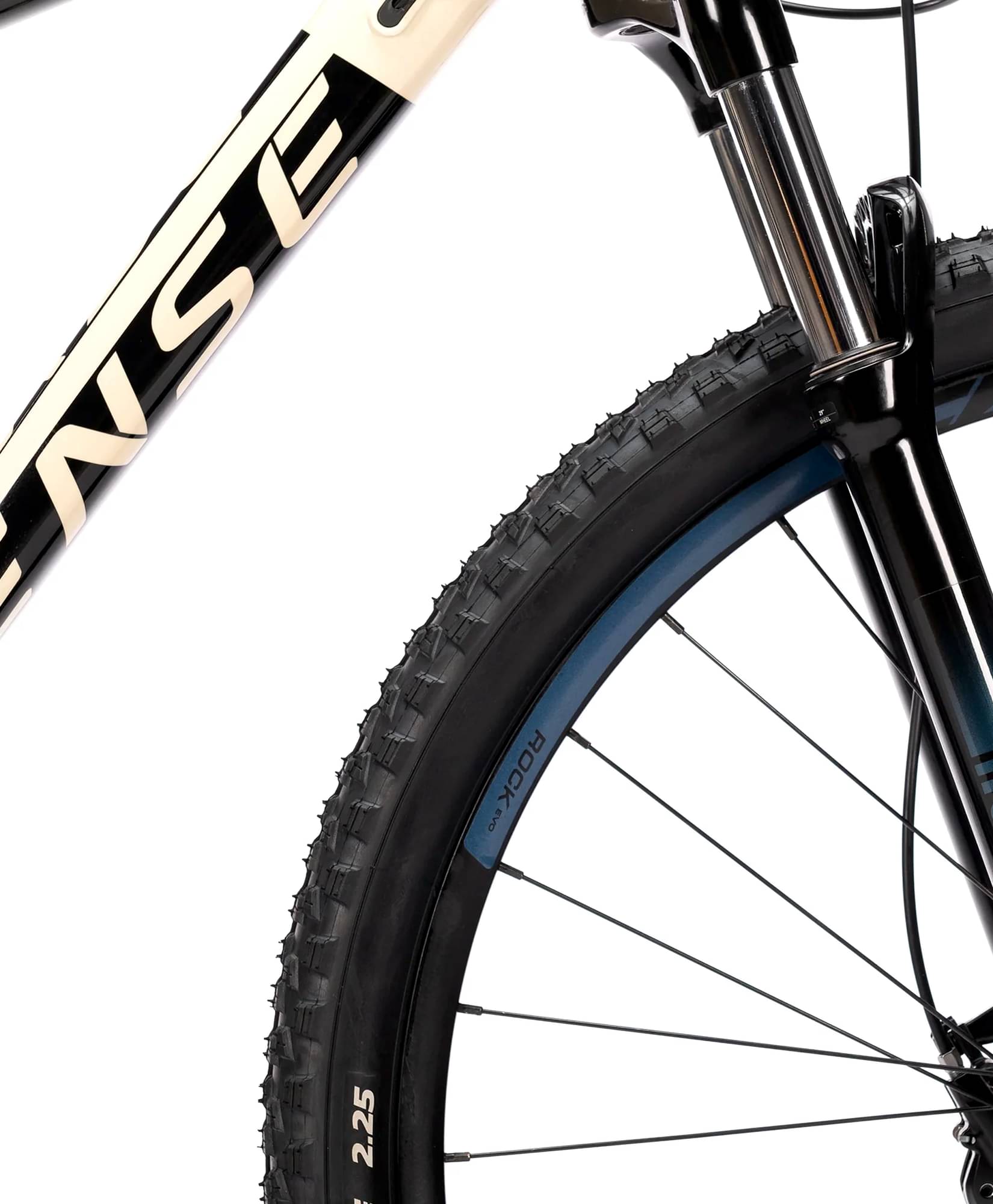

Tires
Michelin Force Acces Line | 29 X 2.25

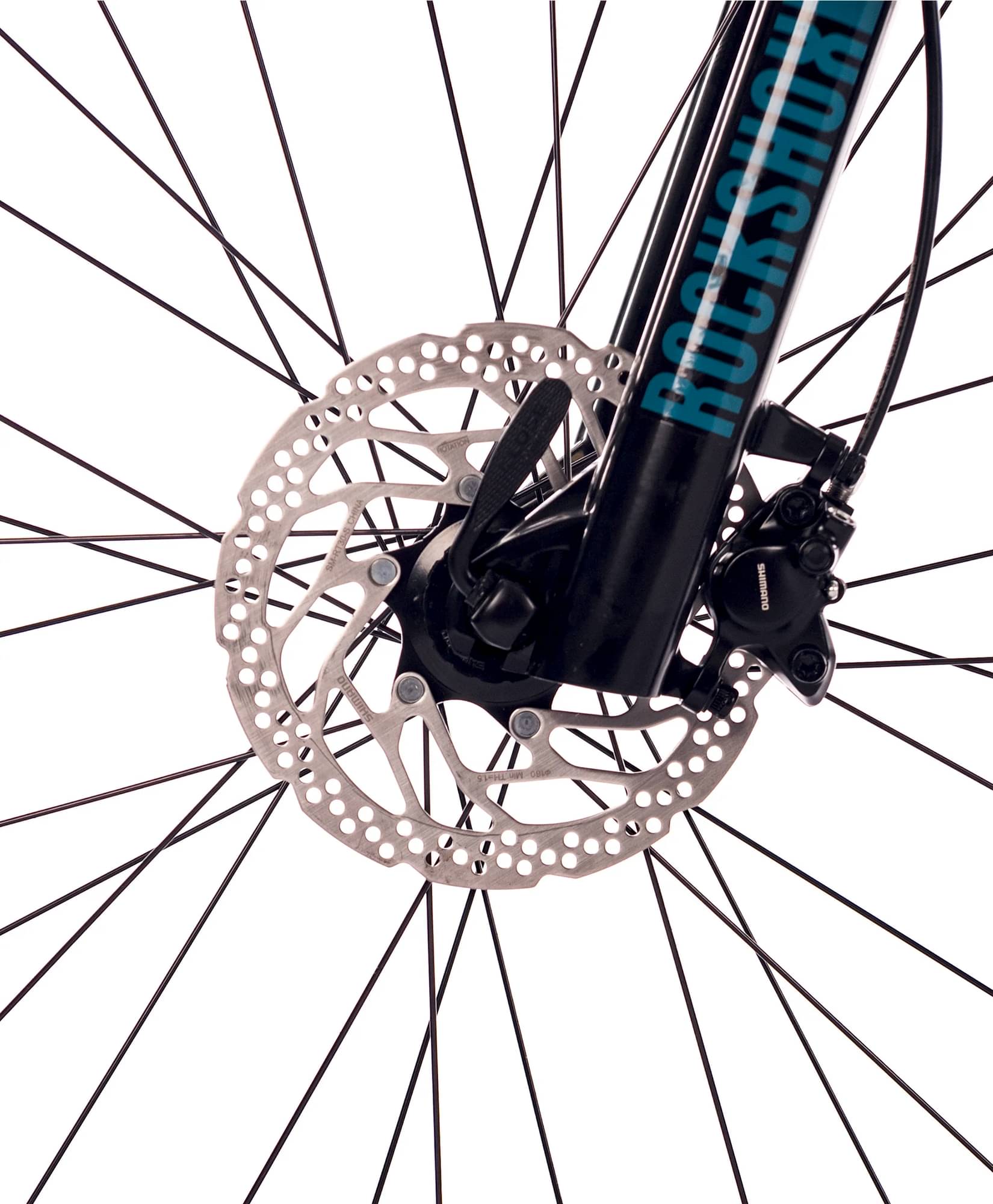

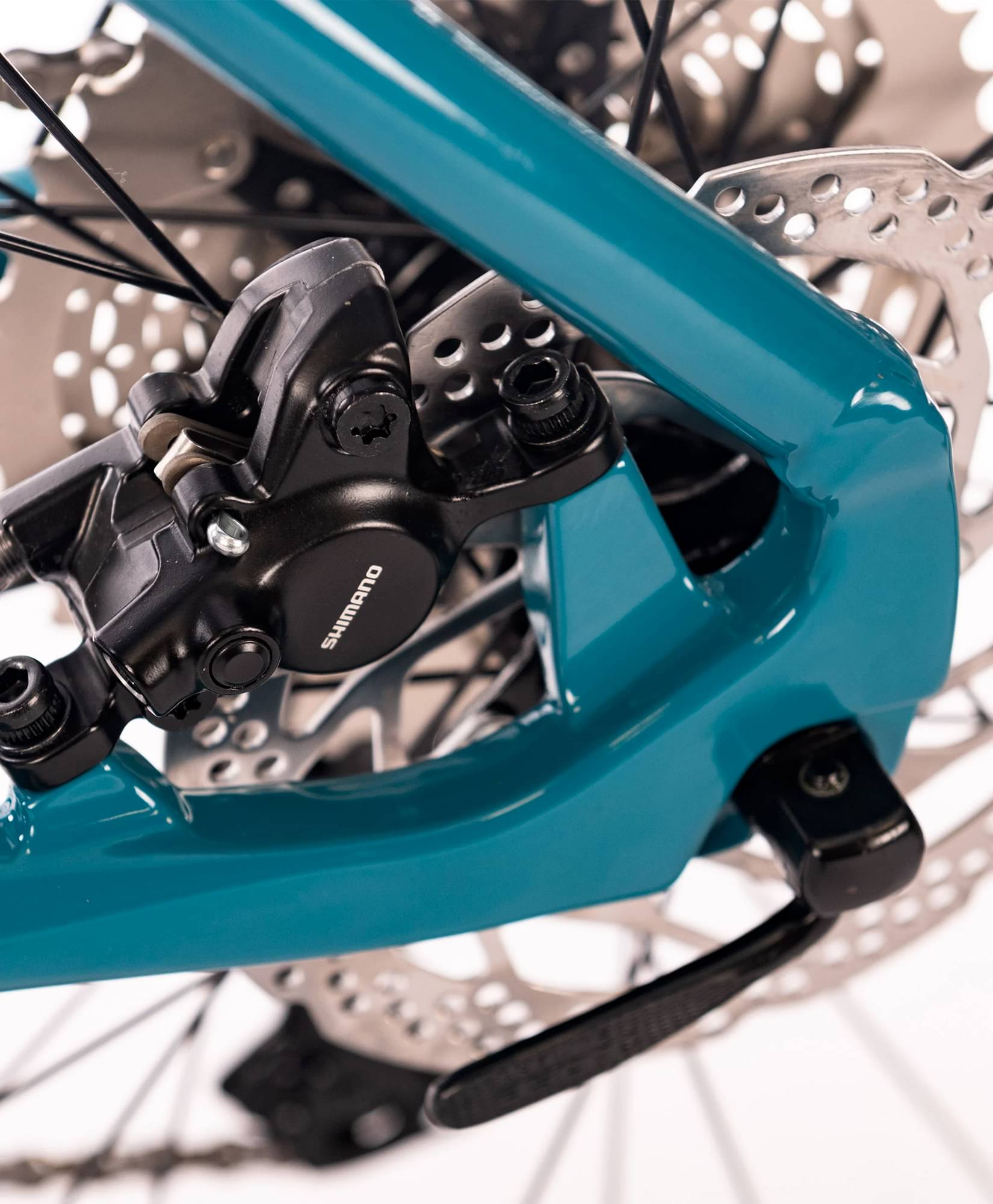

Brakes
Brakes
Mechanical Disc

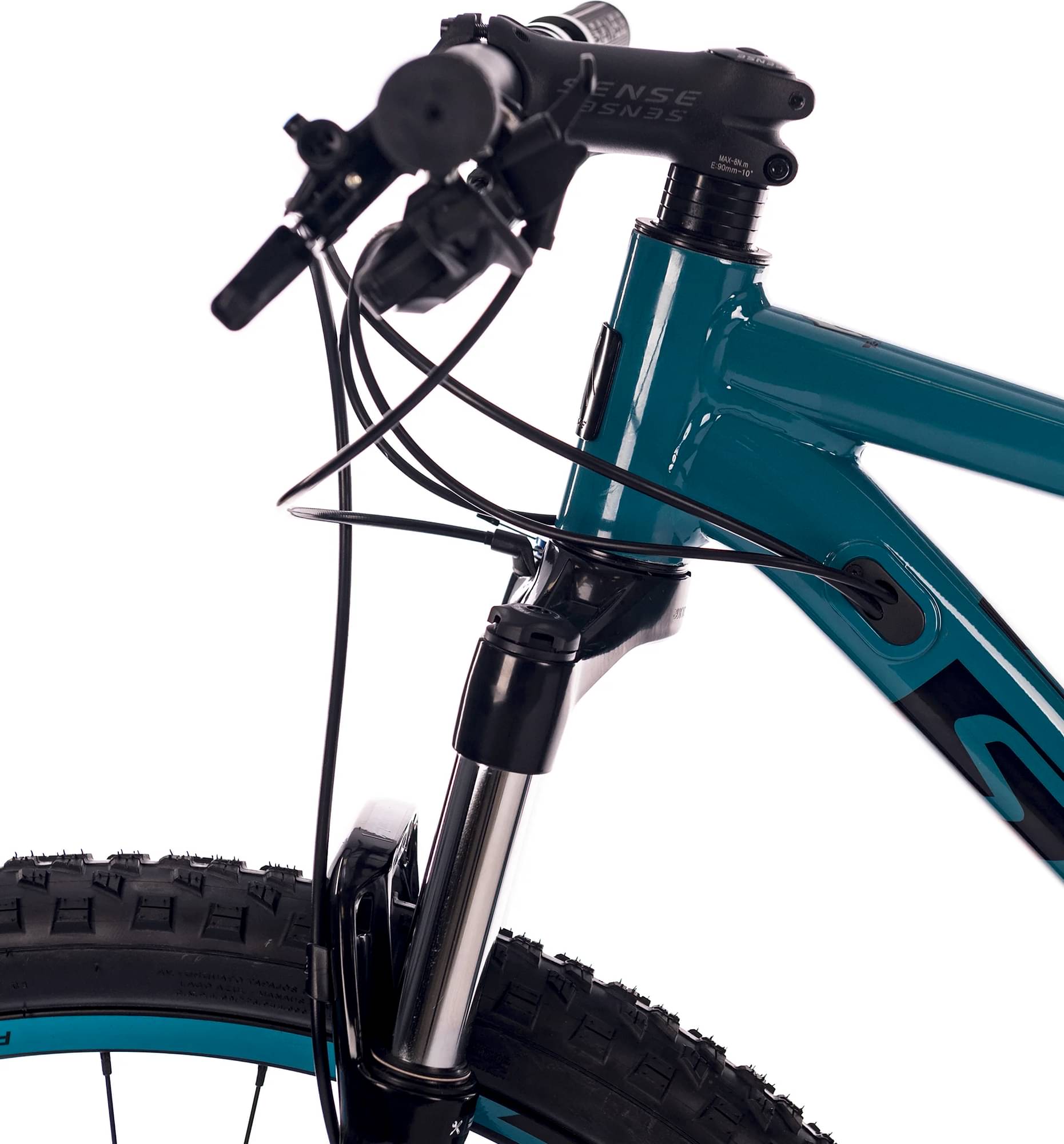

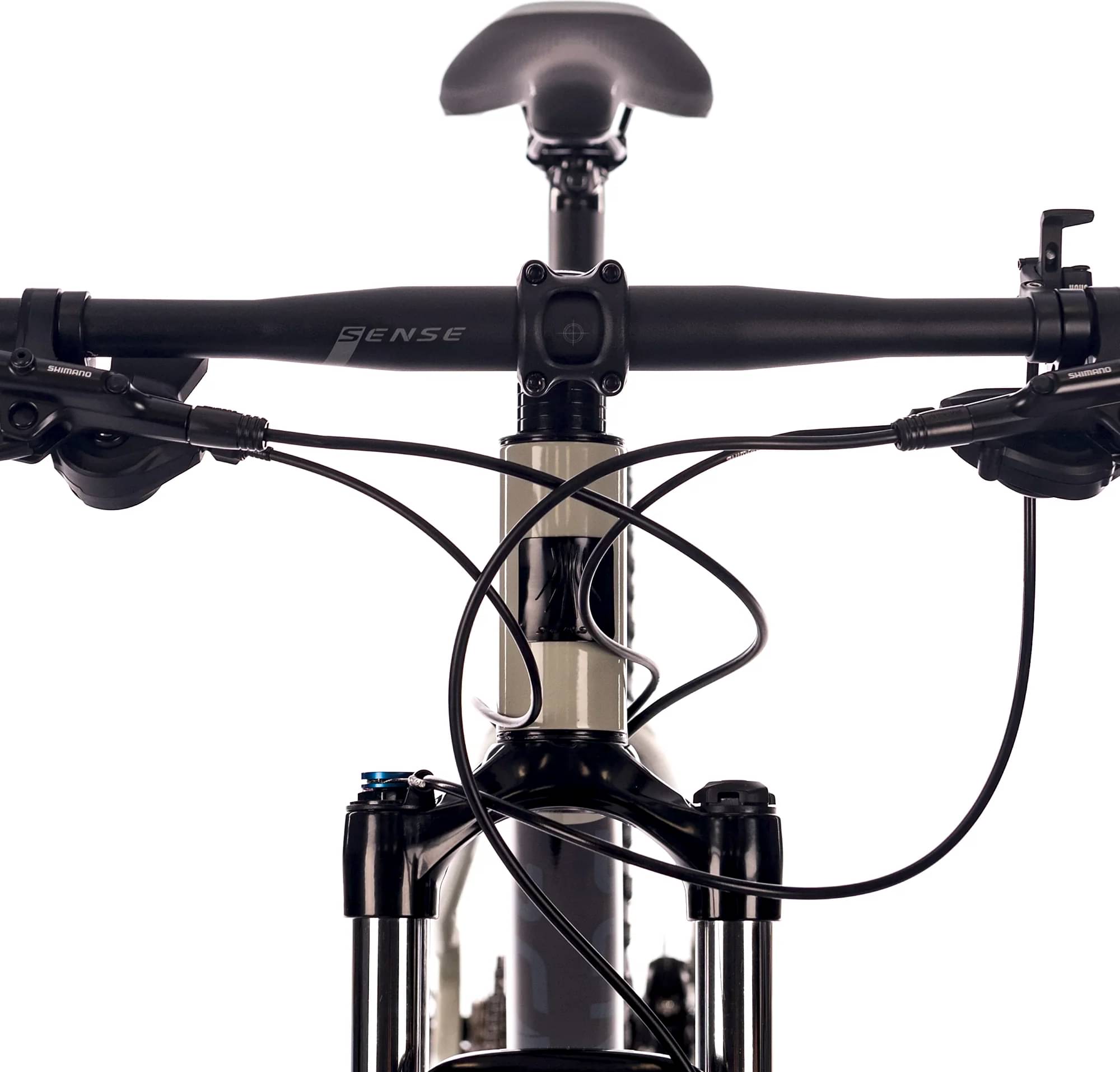

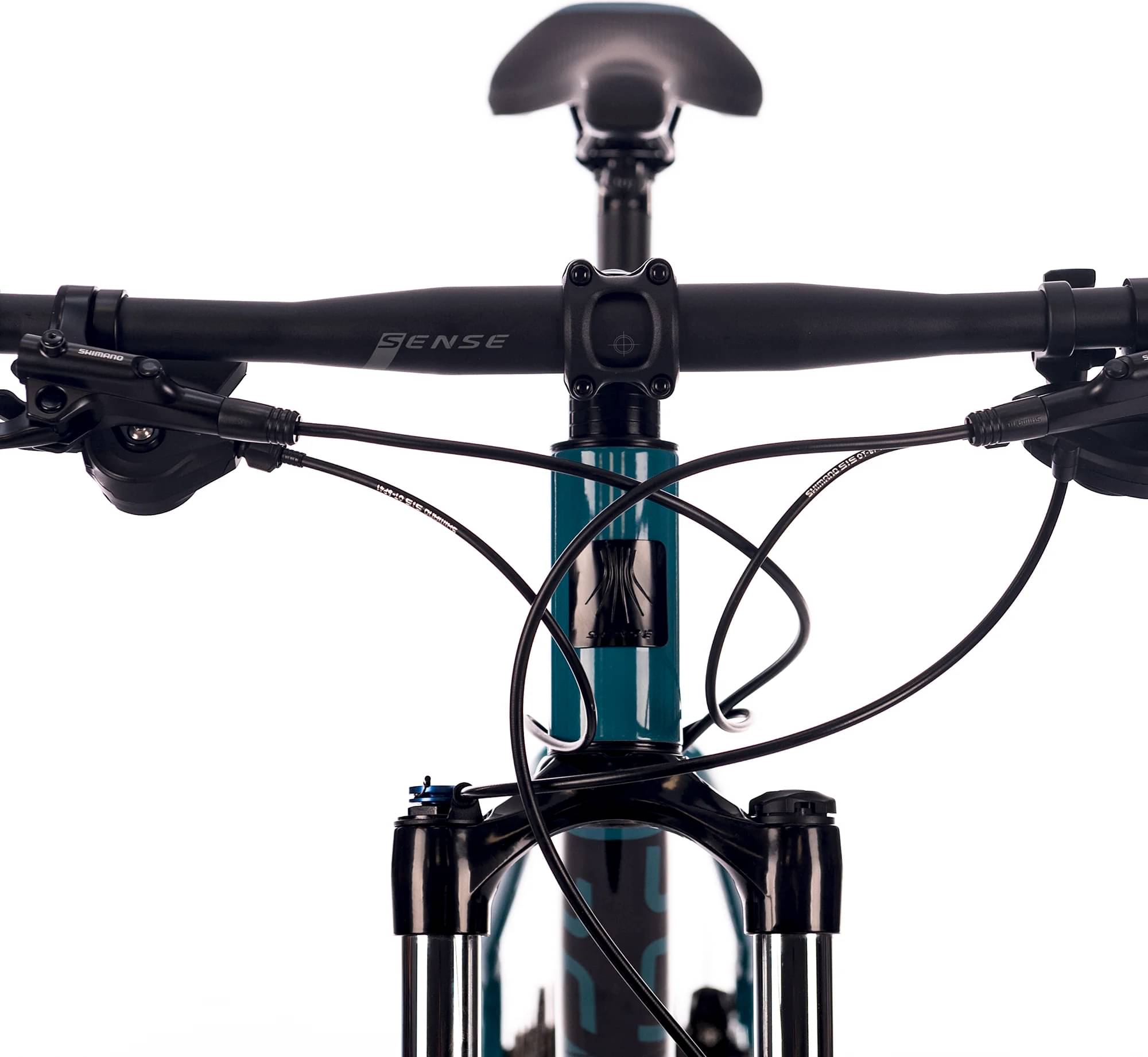

Cockpit
Stem
Sense 90 Mm | 31,8 Mm | -10°
Handlebar
Sense 710 Mm | 31,8 Mm
Grips
Sentec Com Trava
Headset
Neco H115 | Semi Integrado
Seat
Saddle
Selle Royal Vivo
Seatpost
Sentec 31,6 Mm | 400 Mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
