Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Alivio, Altus -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
38cm
154cm - 163cm
42cm
161cm - 168cm
46cm
166cm - 175cm
50cm
173cm - 183cm
54cm
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Type: Hardtail. Material Type: Aluminum. additional features: Fusion DB ICR
Suspension Fork
Type: suspension fork. Brand: Suntour. Type: XCT30-DS-HLO. Travel (mm): 100

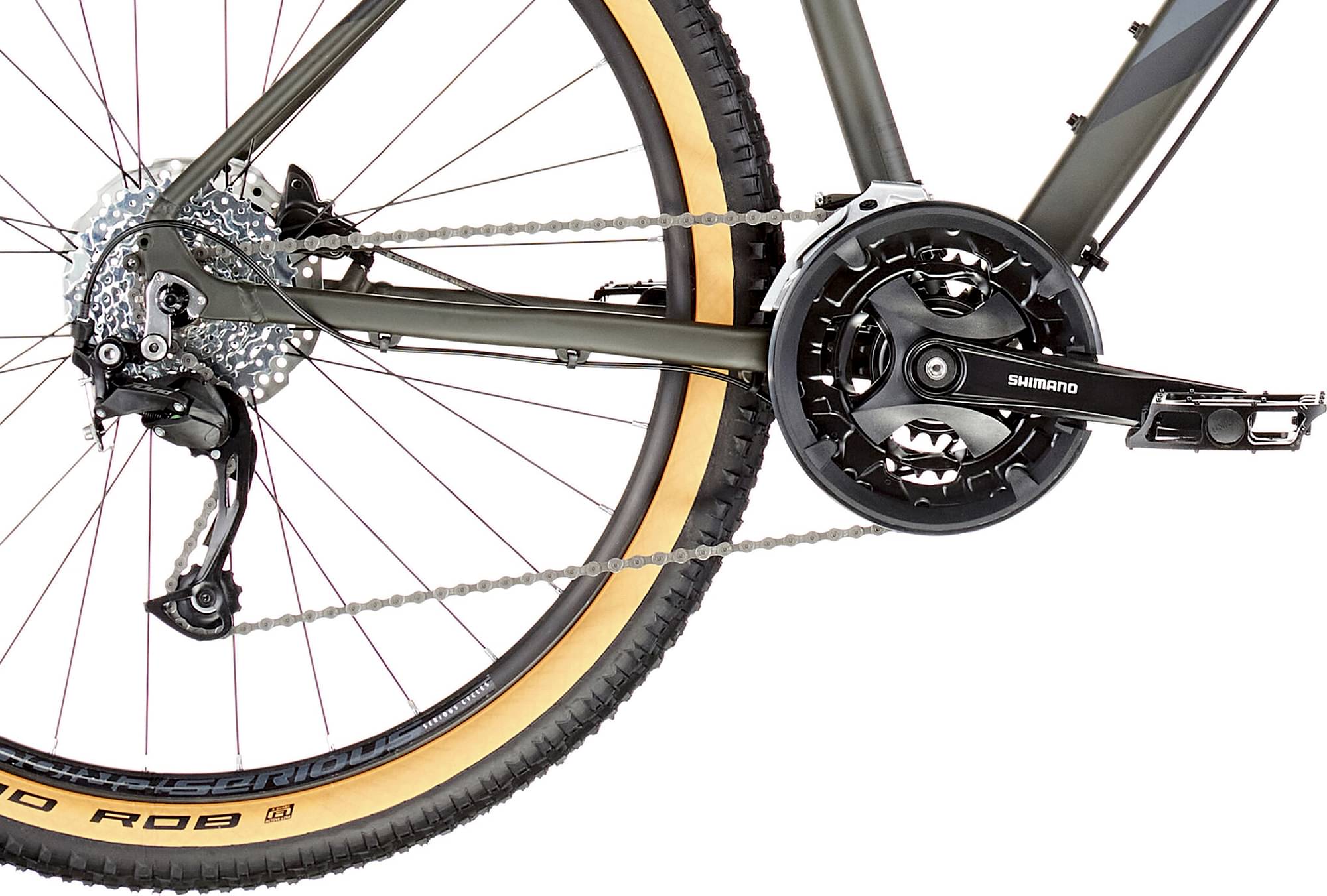

Drivetrain
Rear Derailleur
Drive type: derailleur. Number of gears: 9. Brand: Shimano. Type: Alivio
Front Derailleur
Version: 3-fold. Brand: Shimano. Model: FD-M2000TSM6. Type: Altus
Shift Levers
Model: Shimano ST-EF505
Cassette
Gear ratio sprocket: 11-36 teeth. Model: Shimano CS-HG200 9-speed
Crank
Model: Shimano FC-MT101, 170mm. Gear ratio 1: 40 teeth. Gear ratio 2: 30 teeth. Gear ratio 3: 22 teeth
Bottom Bracket
Model: Shimano UN-100B23X. Type: cartridge
Chain
Model: KMC X9

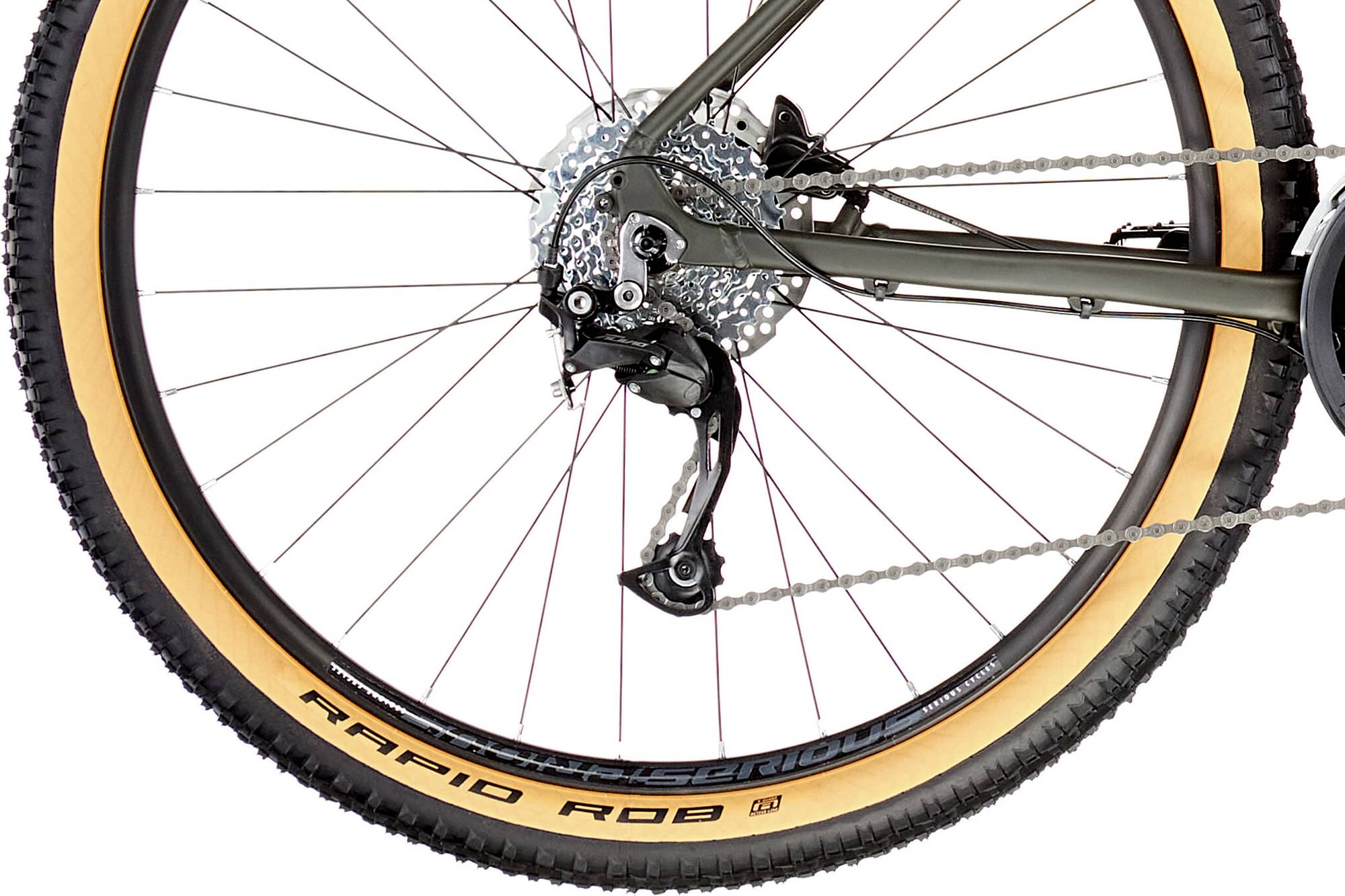

Wheels
Front Hub
Model: Shimano HB-TX505B, 32 holes / CL
Rear Hub
Model: Shimano FHTX5058BZB, 32 holes / CL
Rims
Model: X6 Disc / ETRTO 584x21. Material: aluminum. Construction type: hollow chamber. Size (in inches): 27.5 inches
Spokes
Spokes: black
Tires
Size (in inches): 27.5. Width: 2.25 inches. Model: Schwalbe Rapid Rob skin wall
Brakes
Brakes
Brand: Shimano. Type: ST-EF505. Braking system: hydraulic disc brake. Rotor: Shimano RT10. Brake disc diameter: 180 mm
Brake Levers
Model: Shimano ST-EF505

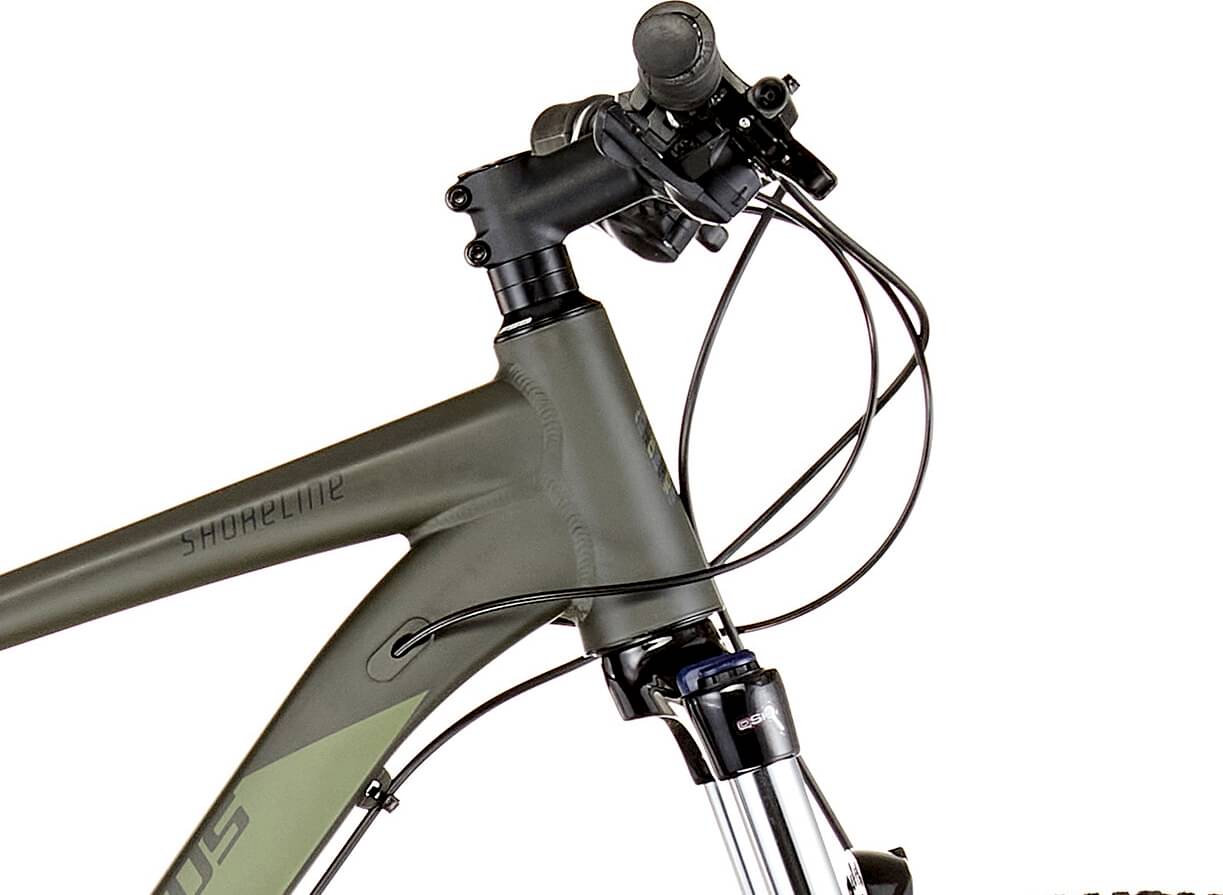

Cockpit
Stem
Type: A-Head. Model: HL TDS-C507-8, 80mm, black. Material: aluminum
Handlebar
Design: Rise Bar. Model: HL MTB-AL-320BT; Width: 680 mm / Rise: 20 mm / Back swept: 10°. Material: aluminum. Handles: Velo VLG-311AD2, black
Headset
VP A42E, 1 1/8", semi-integrated

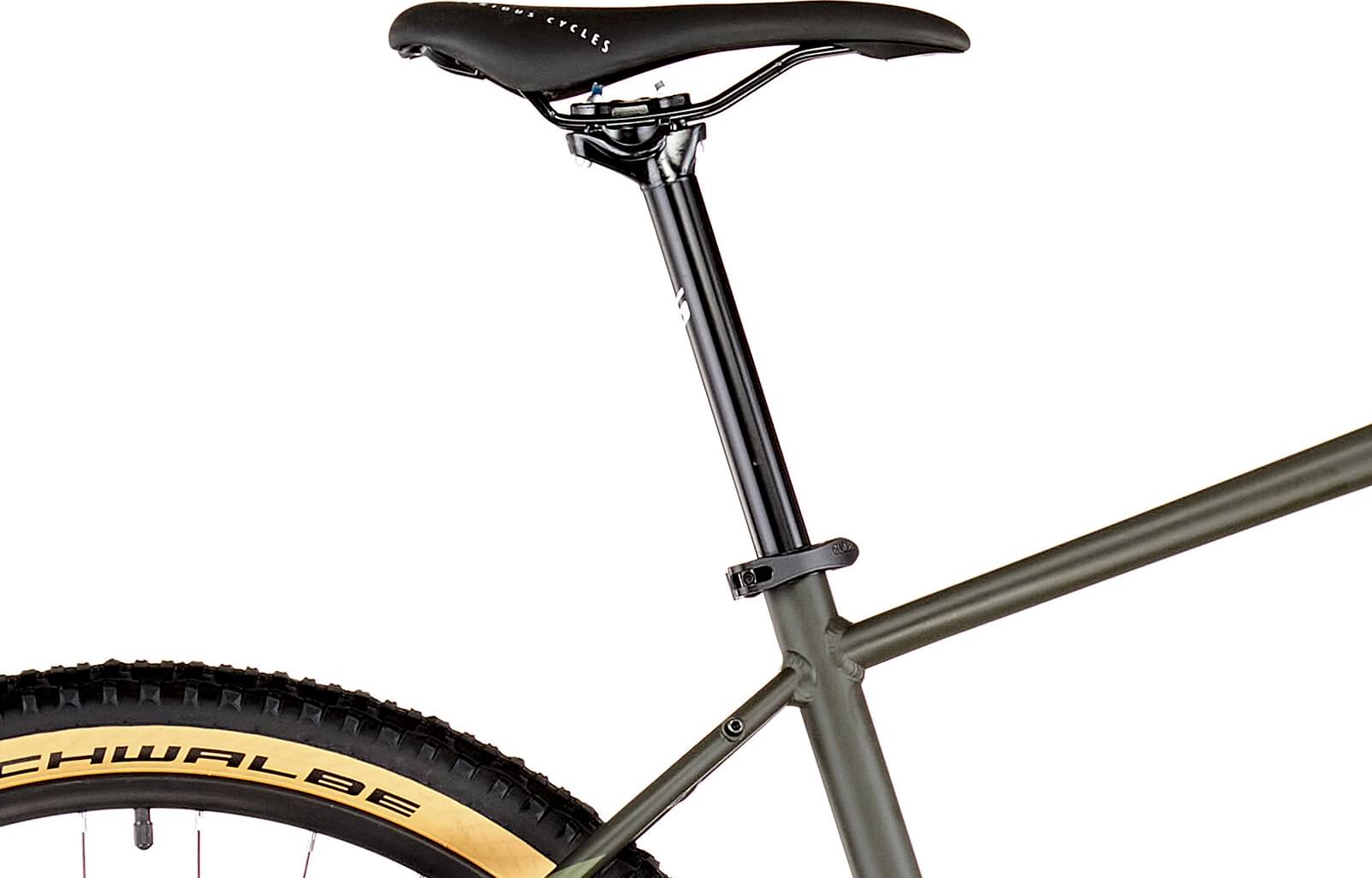

Seat
Saddle
Saddle: GW VD-1168
Seatpost
Design: patent support. Diameter: 31.60mm Type: Promax SP-222, length: 350 mm, black. Material: aluminum
Fit data

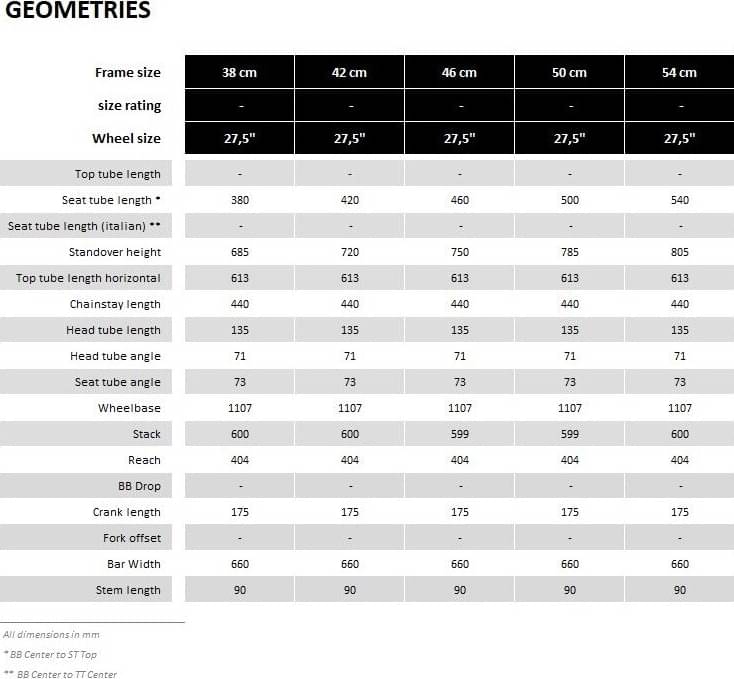

Geometry
Numbers for sizing and ride feel.
| Size | 38cm | 42cm | 46cm | 50cm | 54cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.49 mm | 1.49 mm | 1.49 mm | 1.49 mm |
| Stack | 597 mm | 597 mm | 596 mm | 596 mm | 597 mm |
| Reach | 401 mm | 401 mm | 401 mm | 401 mm | 401 mm |
| Top Tube Length | 610 mm | 610 mm | 610 mm | 610 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 135 mm | 135 mm | 135 mm | 135 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1104 mm | 1104 mm | 1104 mm | 1104 mm | 1104 mm |
| Standover Height | 682 mm | 717 mm | 747 mm | 782 mm | 802 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 161 cm | 166 cm | 173 cm | 181 cm |
| Rider Max Height | 163 cm | 168 cm | 175 cm | 183 cm | 191 cm |
Model Overview

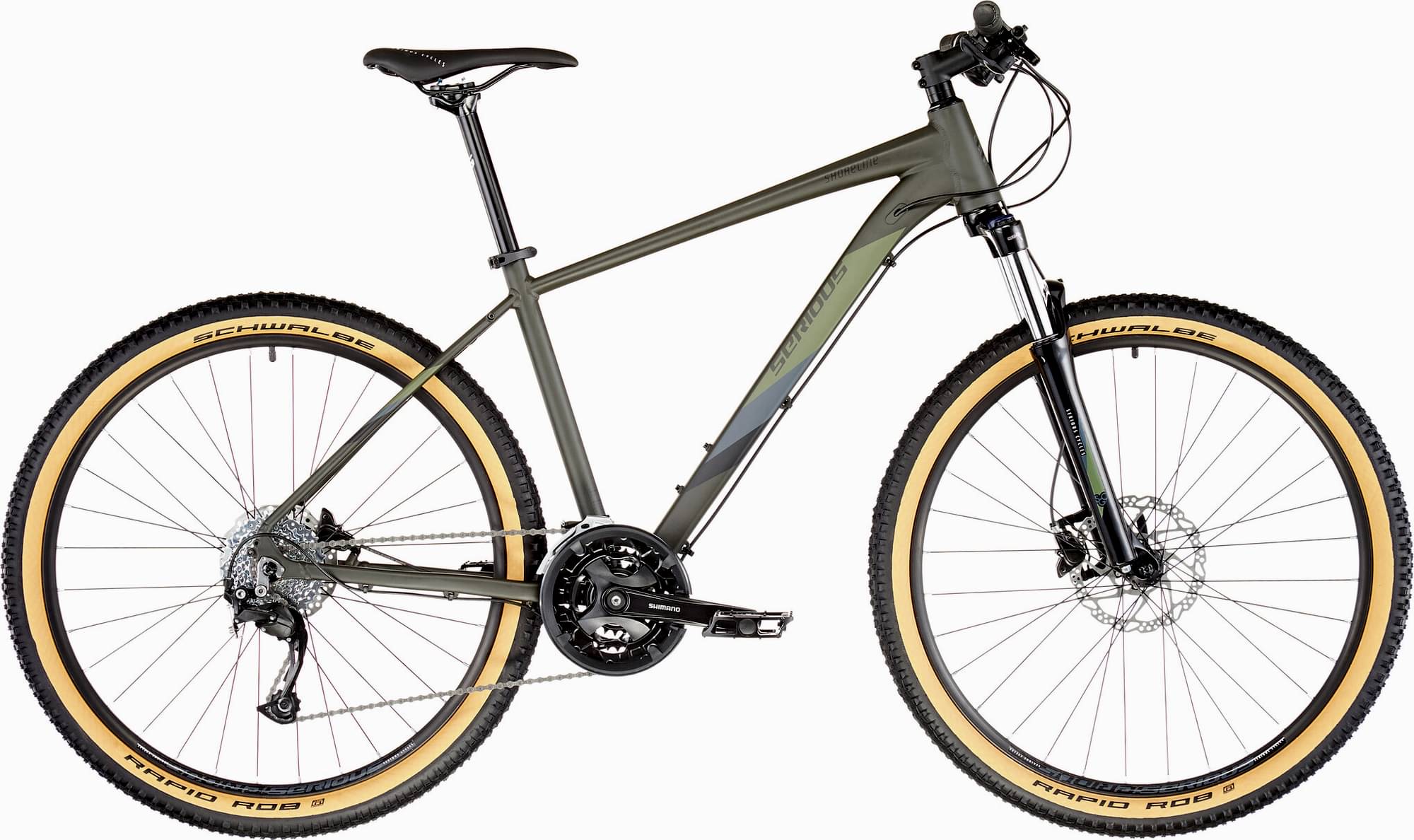

Shoreline 20 oliv completes the Serious Shoreline model. Serious launched 1 bike of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2021 and its price was 719$. Comparing this to the average Crosscountry bike price, we see that the price is 164.95% smaller.
Shoreline 20 oliv components

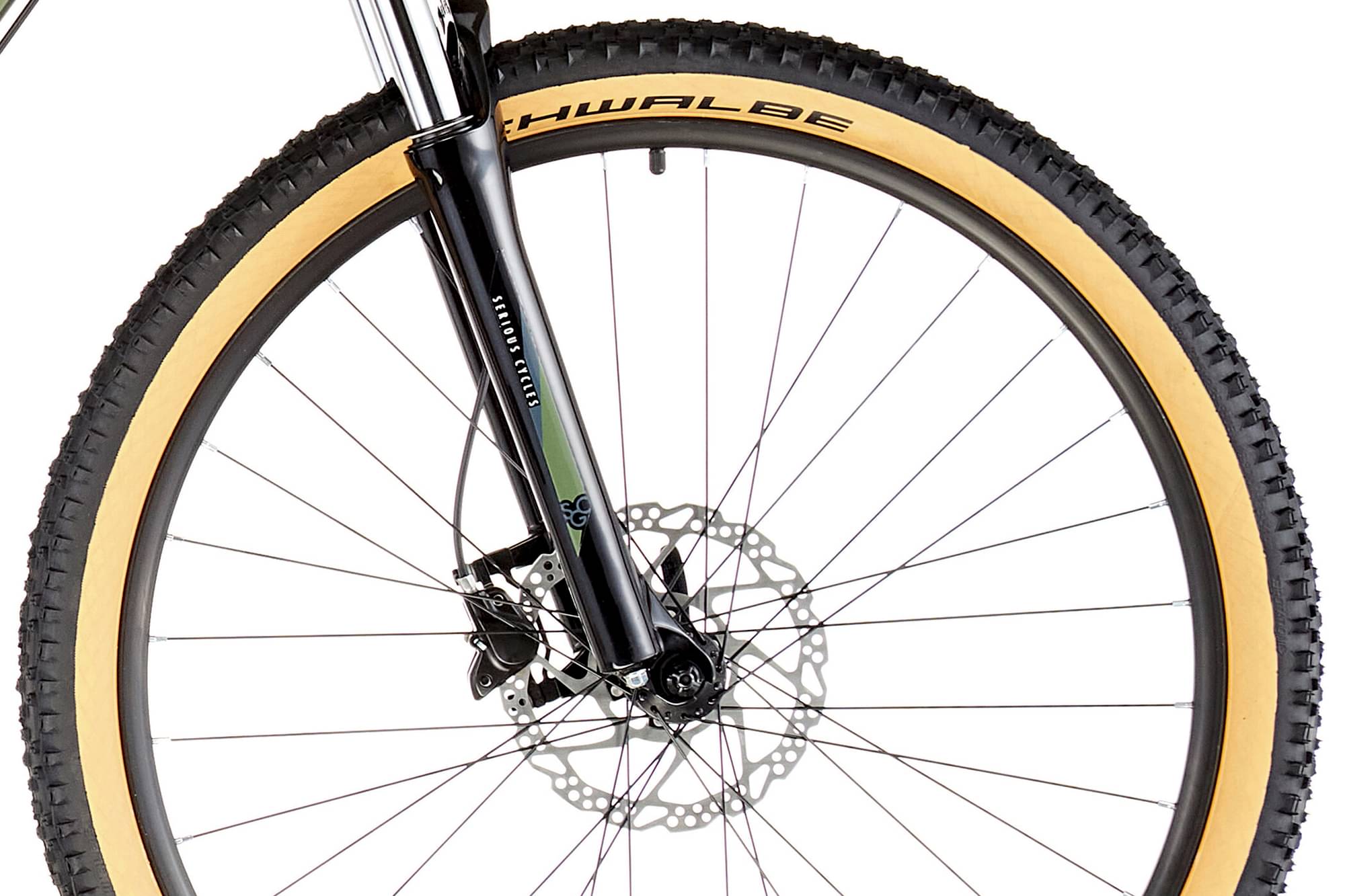

Fork
The Suntour XCT is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on Shoreline 20 oliv are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Serious Shoreline 20 oliv bike has 5 sizes, in the range of 154 cm – 191 cm (5.05 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
