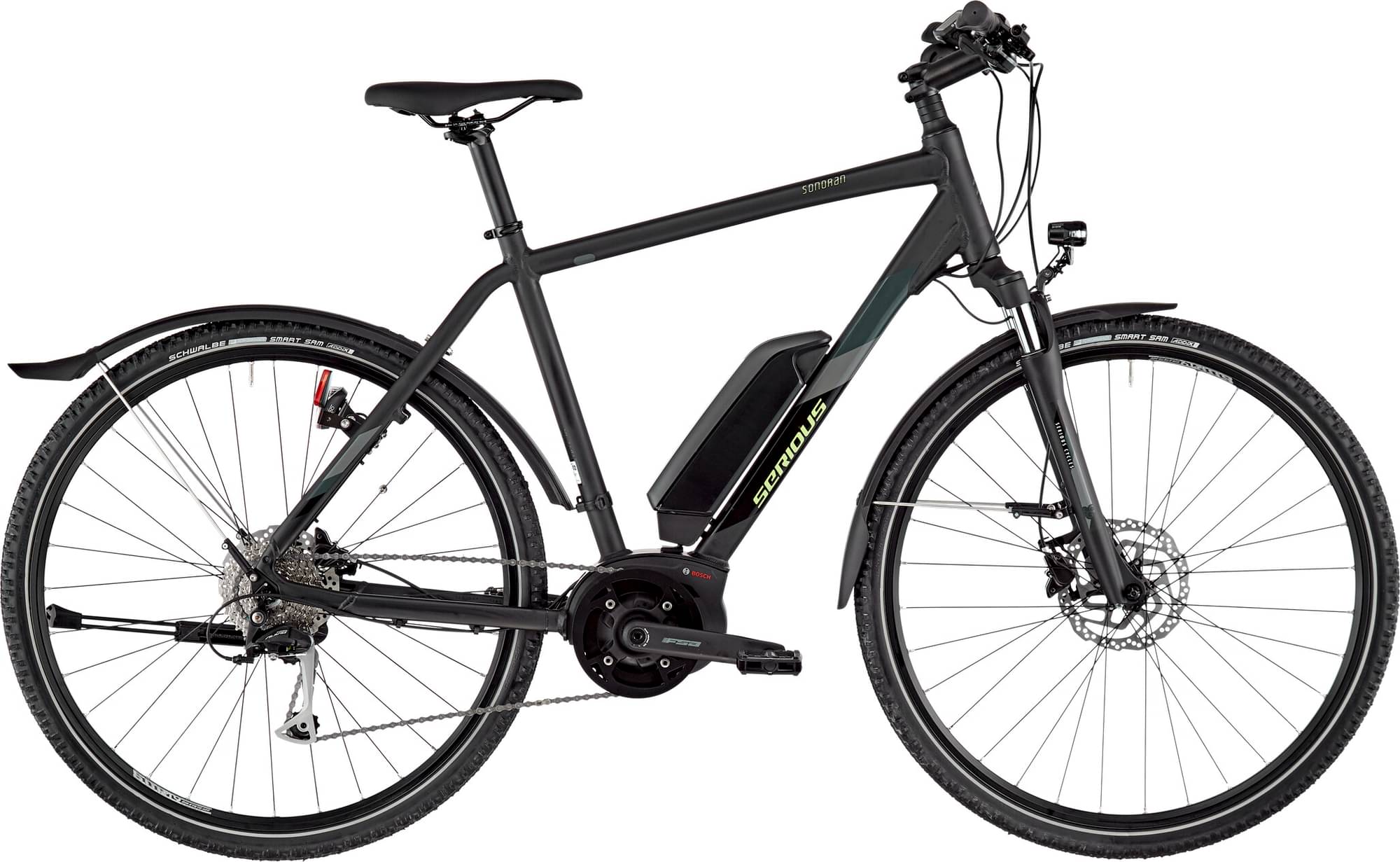

serious Sonoran Active 400 schwarz 2020
2020 E-bike
Estimate price |
2,907$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Alivio, Shimano -
Suspension Hardtail -
Motor Bosch 250W 60Nm mid-drive -
Battery Model: Bosch Power Pack. Type: Lithium Ion Battery capacity: 400.00 Wh. Battery installation: frame battery -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
45cm
157cm - 167cm
50cm
165cm - 177cm
55cm
175cm - 187cm
60cm
185cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Damper brand: without damper. Type: Diamond. Material Type: Aluminum
Suspension Fork
Type: suspension fork. Brand: Suntour. Type: NEX DS. Travel (mm): 50 mm
Drivetrain

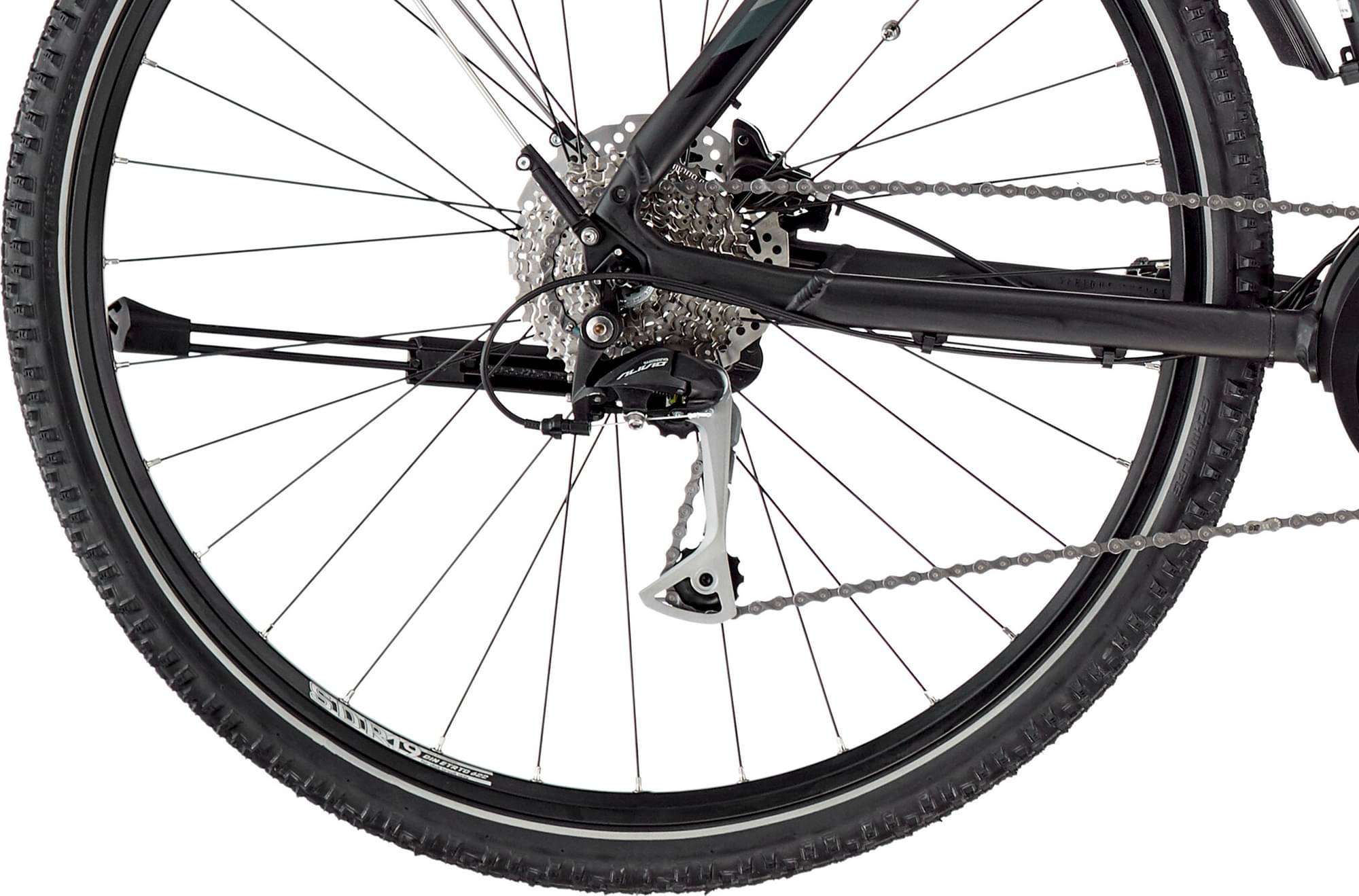

Rear Derailleur
Drive type: derailleur. Number of gears: 9. Brand: Shimano. Type: Alivio
Shift Levers
Model: Shimano SLM 4000
Cassette
Gear ratio sprocket: 11-34 teeth. Model: Shimano
Crank
Model: Miranda, 170 mm. Gear ratio 1: 38 teeth
Chain
Model: KMC CNX9
Wheels
Front Hub
Model: Shimano HBTX505
Rear Hub
Model: Shimano HBTX505
Rims
Model: Schürmann SDR-Light with eyelets. Material: aluminum. Construction type: hollow chamber
Tires
Size (in inches): 28. Tire width: 44.00 mm. Model: Schwalbe Smart Sam, Addix. special features: reflex
Brakes
Brakes
Brand: Shimano. Type: MT 200. Braking system: hydraulic disc brake
Brake Levers
Model: Shimano MT 200
Cockpit
Stem
Type: A-Head. Model: Kalloy AS-DC1. Material: aluminum
Handlebar
Type: Riser. Model: Width: 680 mm. Material: aluminum. Grips: Velo VLG1389
Seat

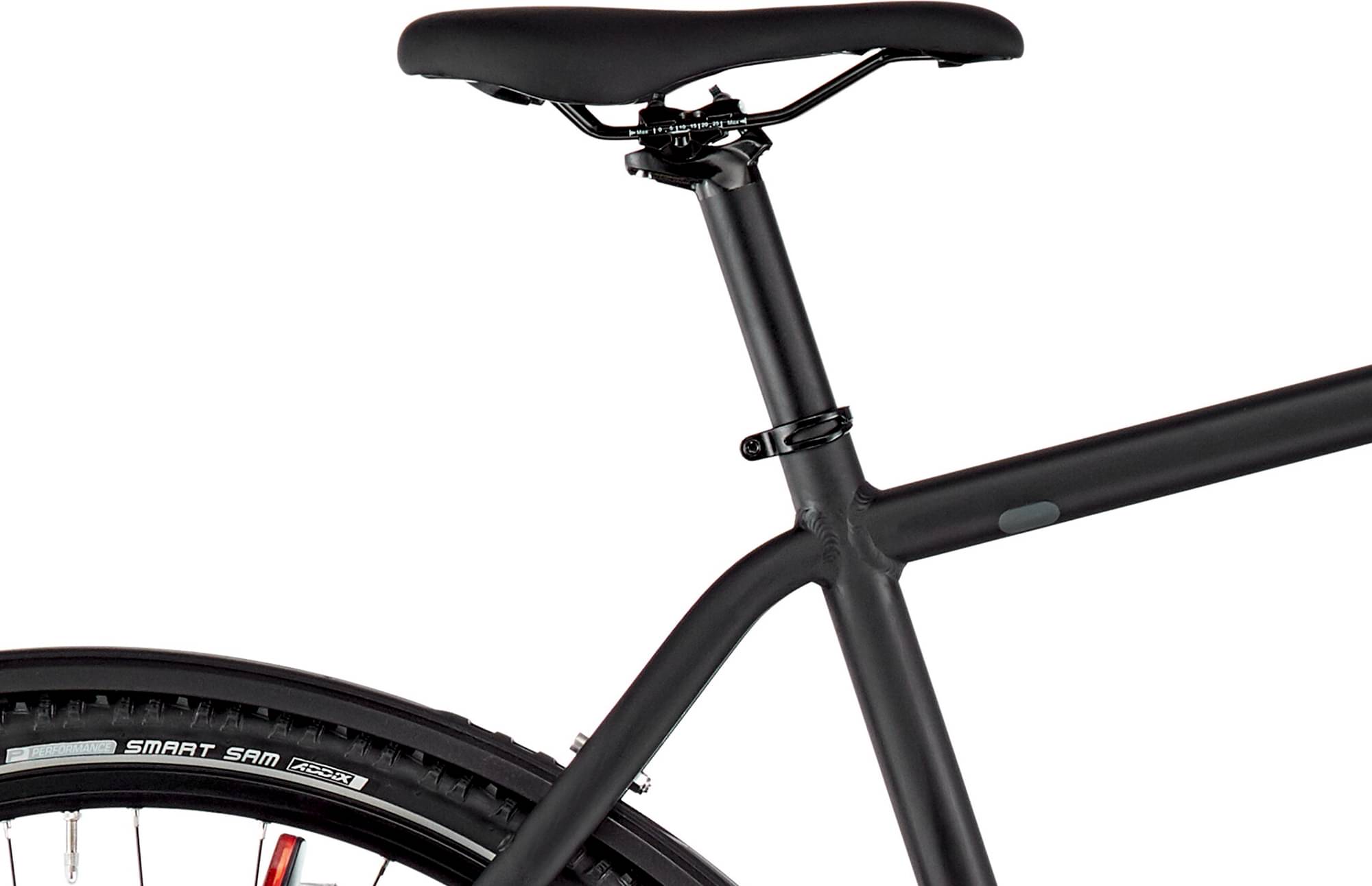

Saddle
Saddle: Velo VL-3363
Seatpost
Design: patent support. Diameter: 31.60mm
Motor & Battery
Motor

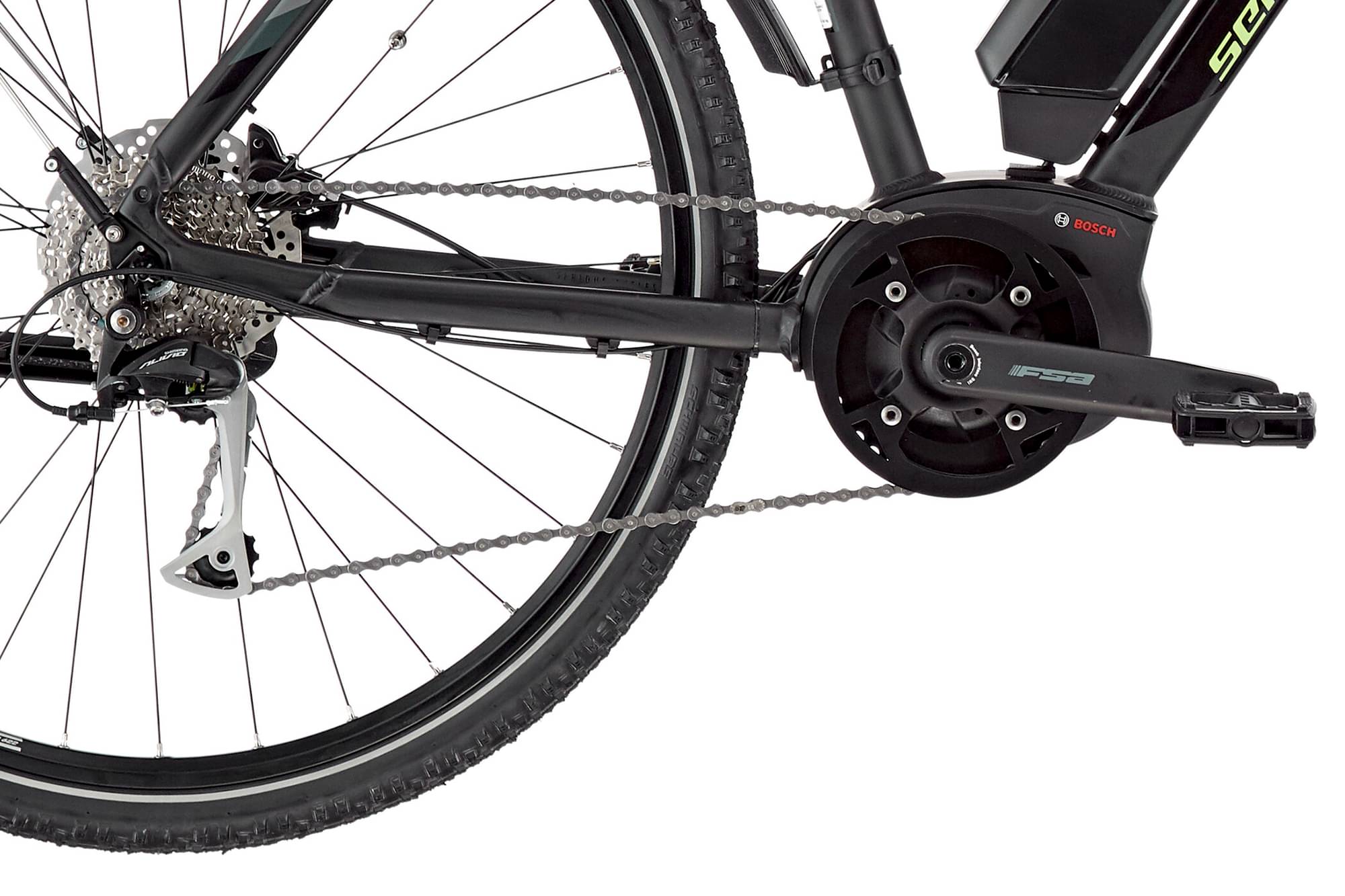

Brand: Bosch. Model: Performance Gen.3 (60 Nm). Type: mid-engine. Power: 250 watts
Battery
Model: Bosch Power Pack. Type: Lithium Ion Battery capacity: 400.00 Wh. Battery installation: frame battery
Charger
Type: Bosch Compact charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.53 mm | 1.6 mm | 1.74 mm |
| Stack | 611 mm | 608 mm | 637 mm | 684 mm |
| Reach | 393 mm | 398 mm | 399 mm | 393 mm |
| Top Tube Length | 569 mm | 579 mm | 594 mm | 609 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 125 mm | 135 mm | 170 mm | 220 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 167 cm | 177 cm | 187 cm | 196 cm |
Model Overview
Sonoran Active 400 schwarz is a Serious E Sonoran model. Serious released 1 e-bike variation of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2020 and its price was 2646$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 7.87% more expensive.
Sonoran Active 400 schwarz components
Fork

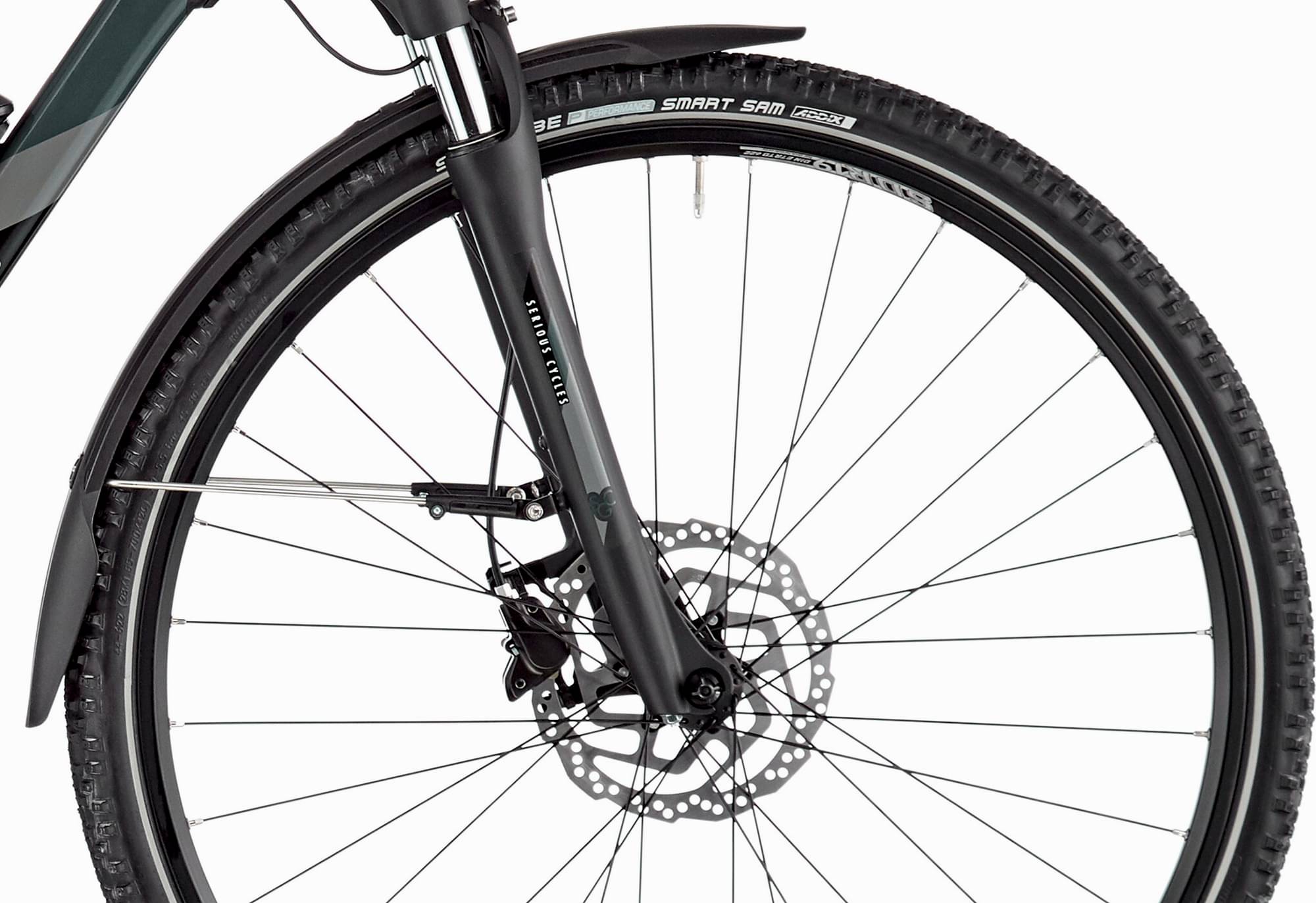

The Suntour NEX is included from the factory. It has a travel distance of 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the Sonoran Active 400 schwarz model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Serious Sonoran Active 400 schwarz is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 157 cm – 196 cm (5.15 ft – 6.43 ft). In short, you can easily find one that suits you.
