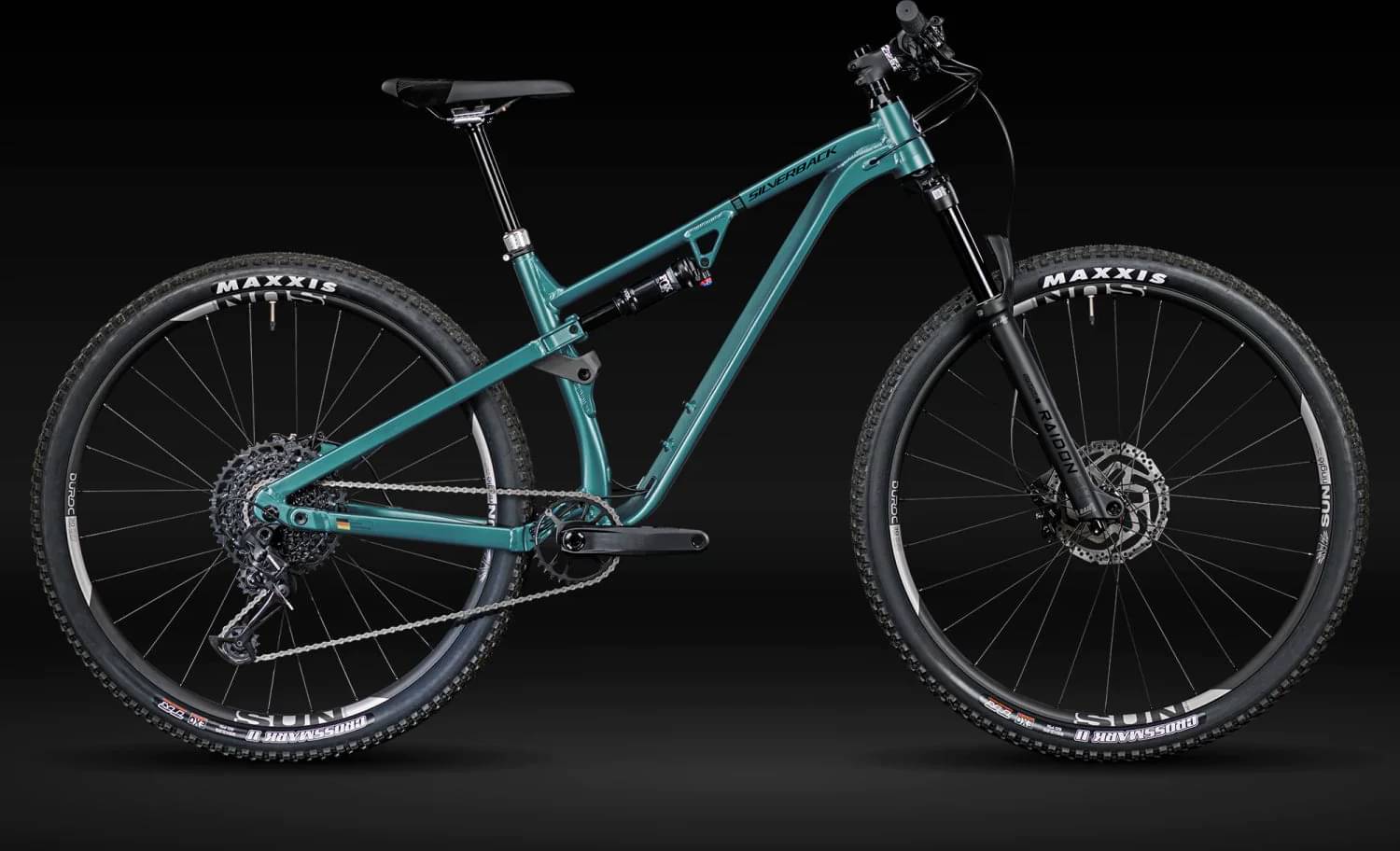

silverback AL SE 2023
2023 Mountain
Estimate price |
2,907$
Weight | 14.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Suntour RAIDON
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
168cm - 180cm
LG
178cm - 192cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium XC/Trail frame based on the award-winning Silverback CF platform. The Silverback AL is designed around 130mm travel front & 105mm rear to provide a little extra comfort with almost no performance trade-off.
Suspension Fork
SR Suntour Raidon 34, 29", 34mm stanchions 15x110mm Thru-axle Boost, 130mm Travel
Rear Shock
Fox Float DPS, P-S, 3 position, EVOL SV
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100, 11 Speed
Shift Levers
R: Shimano Deore SL-M5100-R, 11 Speed
Cassette
Shimano Deore CS-M5100, 11 Speed, 11-51T
Crank
Alloy Crankset, 32T Narrow-Wide, External BB
Bottom Bracket
BSA 73mm
Chain
KMC X11-1, 11 Speed
Pedals
Not Included
Wheels
Front Hub
F: Alloy, 32H, 15x110mm Thru-Axle, 6 bolt
Rear Hub
F: Alloy, 32H, 15x110mm Thru-Axle, 6 bolt
Rims
F: SURFACE 29"; Asymmetrical Alloy Rim, Tubeless Ready
Tires
Maxxis Rekon Race, 29x2.35", 120tpi, EXO, Tubeless
Brakes
Brakes
Tektro Hydraulic Disc
Cockpit
Stem
SURFACE Alloy, 31.8mm, Rise 6°
Handlebar
SURFACE Alloy, Dia: 31,8mm, 760mm, 9° Backsweep, 20mm Rise
Grips
SURFACE Enduro
Headset
Steel Semi-Integrated, ZS44/28.6 ZS56/40
Seat
Saddle
SURFACE
Seatpost
SURFACE Dropper with Lever, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.386 mm | 1.346 mm | 1.308 mm | 1.272 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 711 mm | 735 mm | 759 mm | 783 mm |
| Rake | 35 mm | 35 mm | 35 mm | 34 mm |
| Trail | 128 mm | 128 mm | 128 mm | 130 mm |
| Stack | 589 mm | 599 mm | 608 mm | 617 mm |
| Reach | 425 mm | 445 mm | 465 mm | 485 mm |
| Top Tube Length | 572 mm | 594 mm | 617 mm | 639 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 430 mm | 480 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1144 mm | 1168 mm | 1192 mm | 1216 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 775 mm | 777 mm | 780 mm | 795 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 168 cm | 178 cm | 188 cm |
| Rider Max Height | 170 cm | 180 cm | 192 cm | 200 cm |
