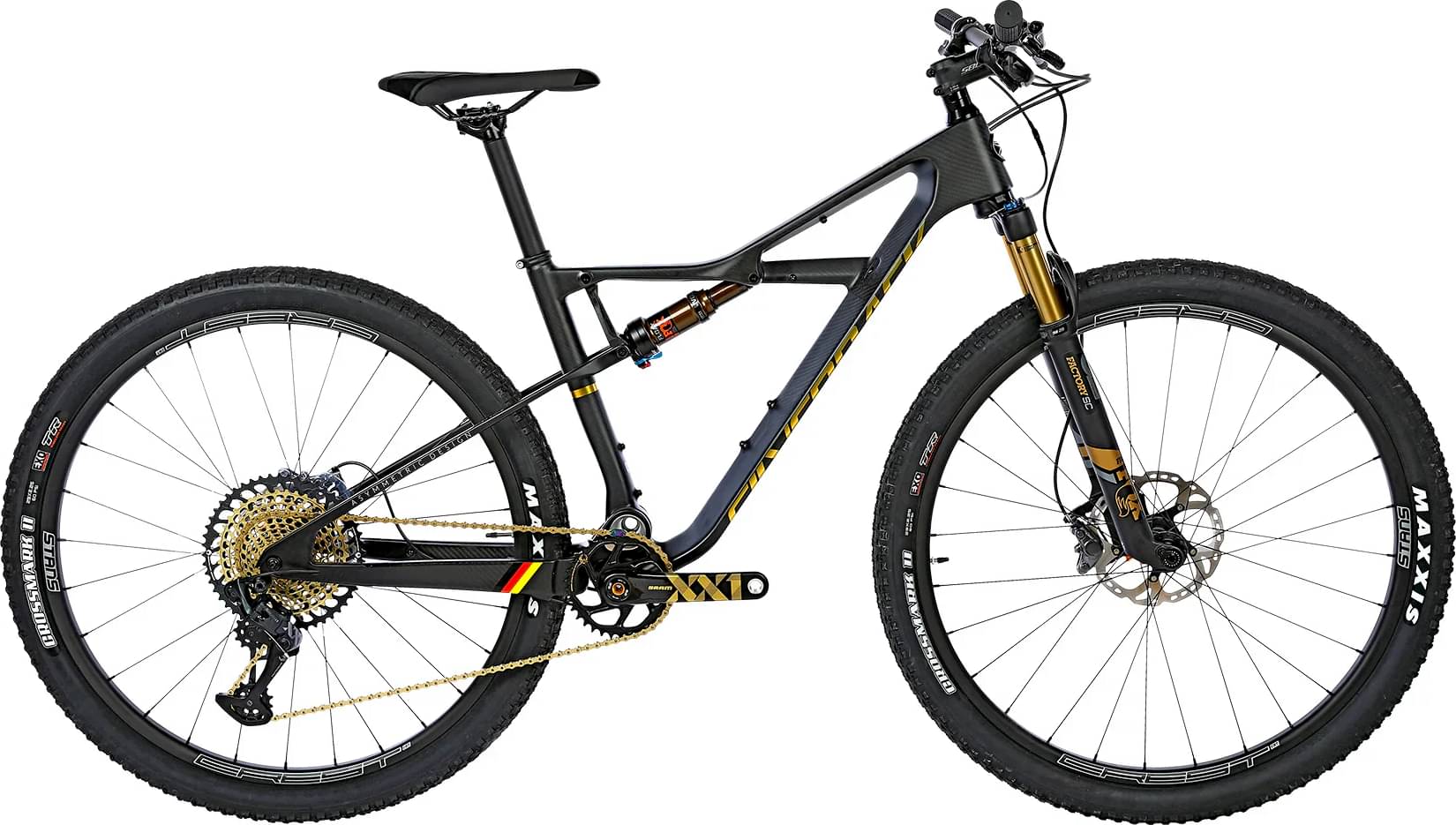

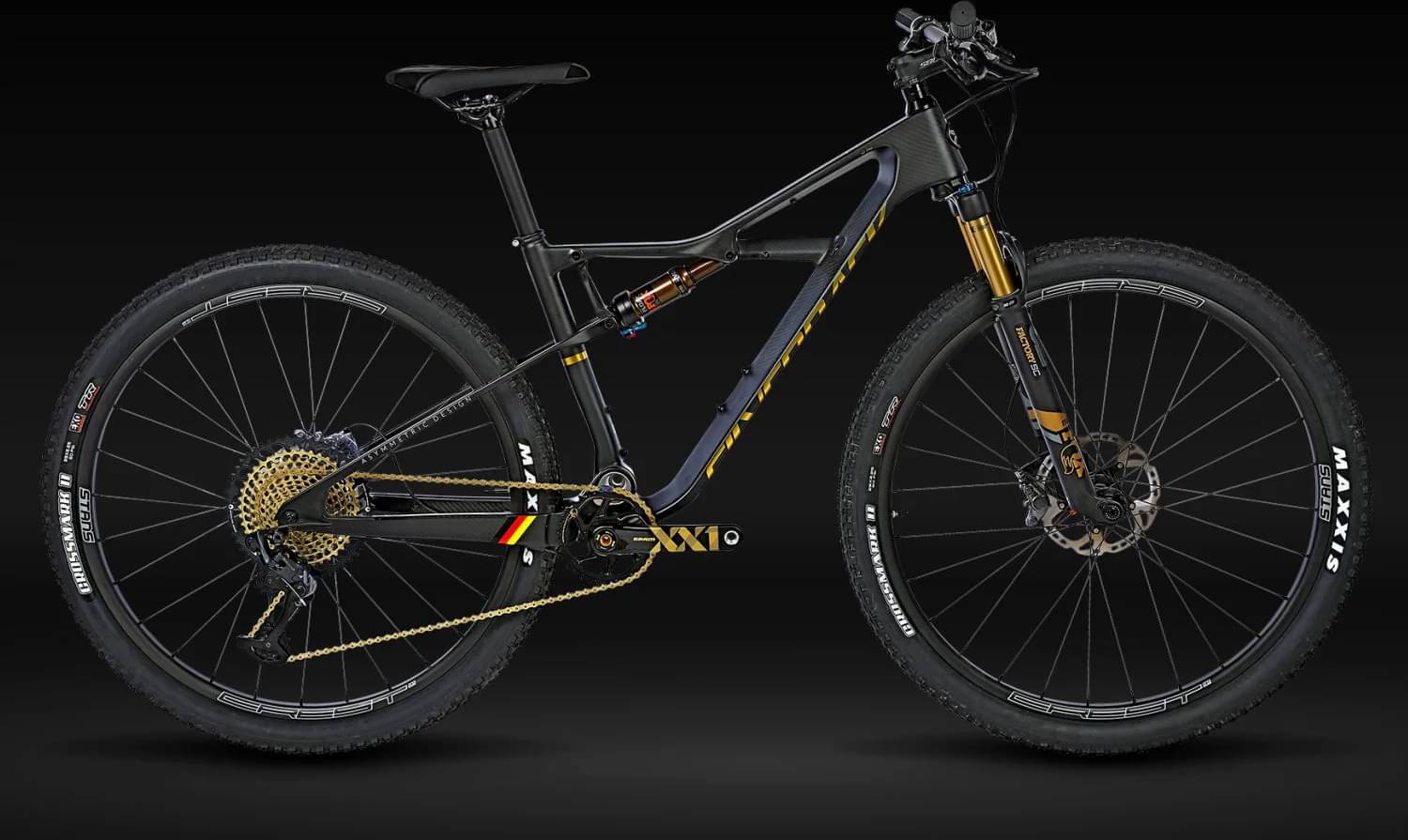

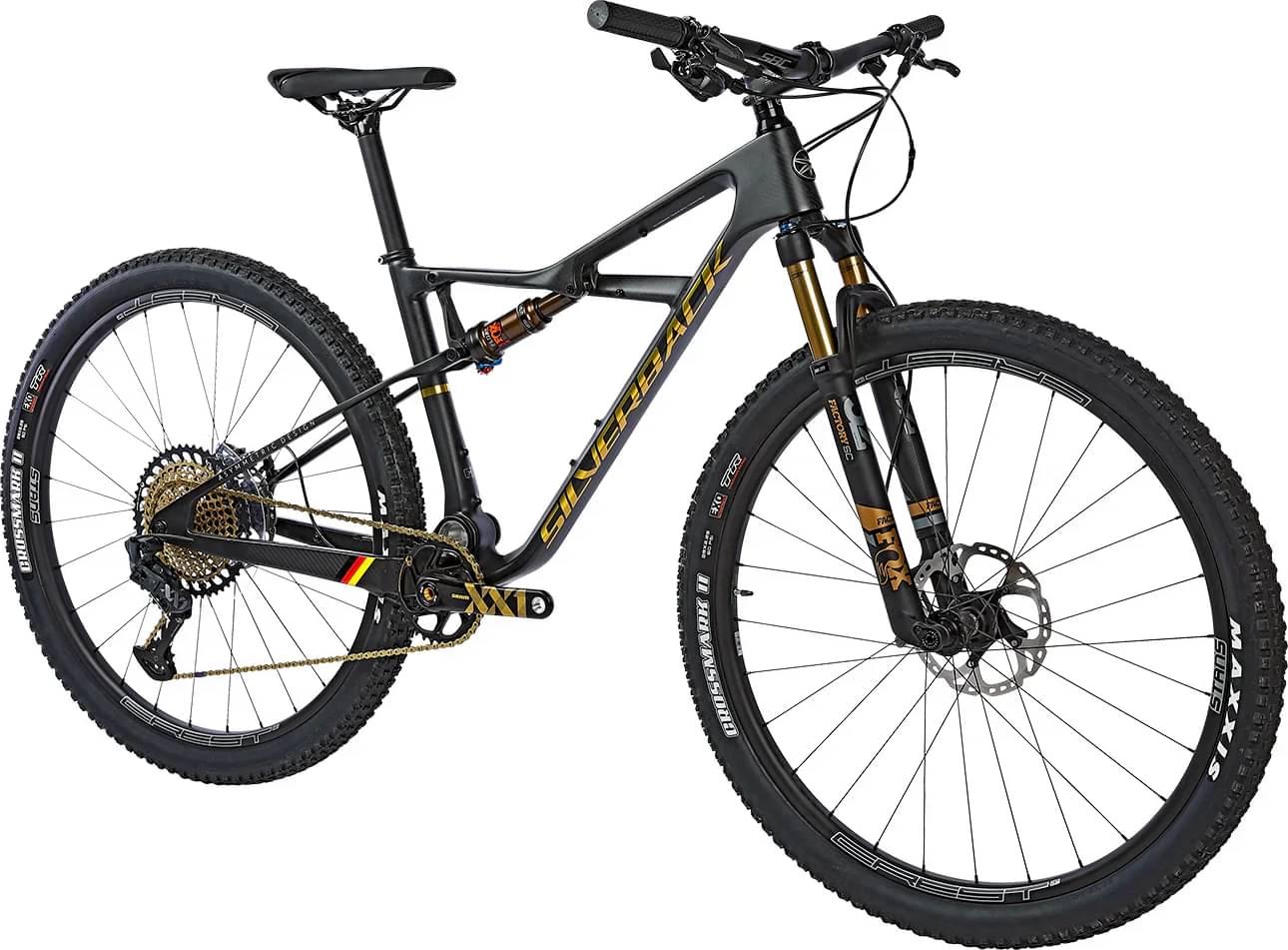

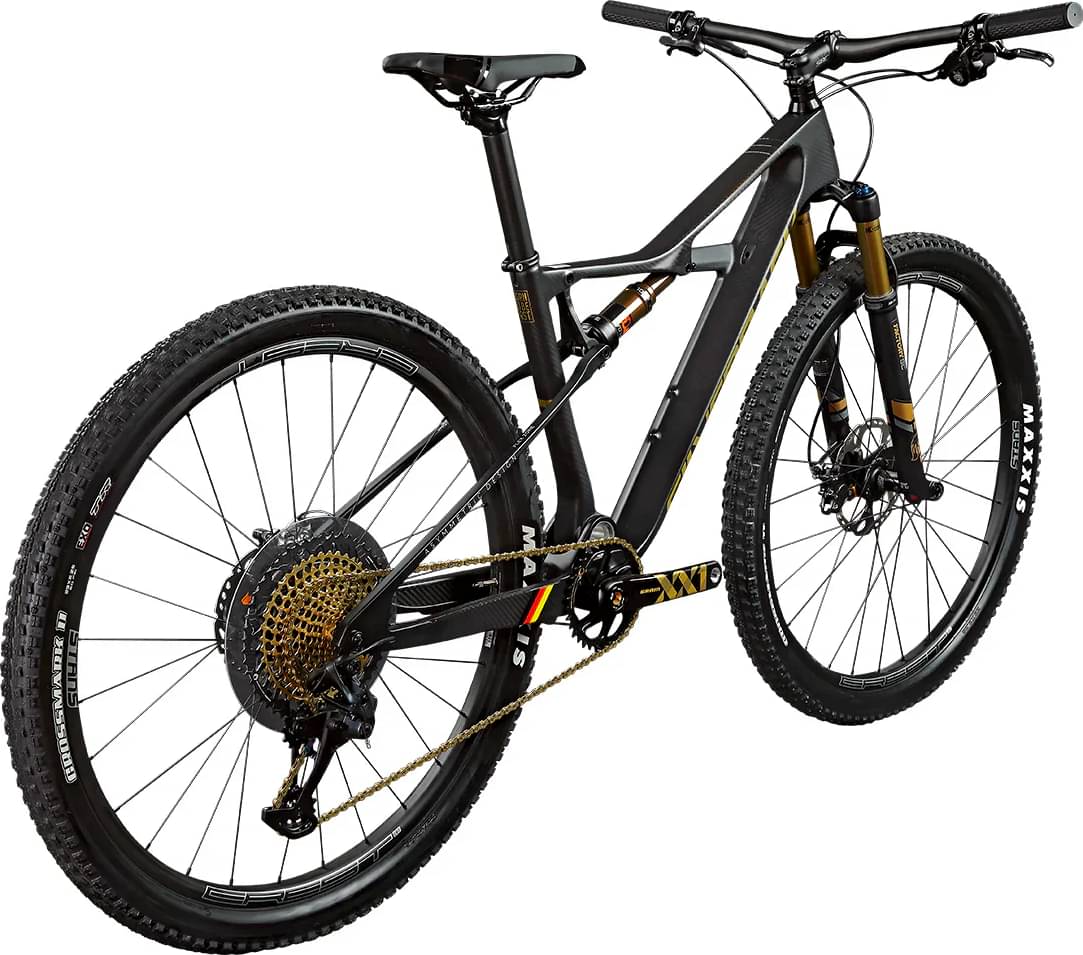

silverback CF SBC 2024
2024 Mountain
Estimate price |
7,212$
Weight | 9.99 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Rhythm Float 34
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
168cm - 180cm
LG
178cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

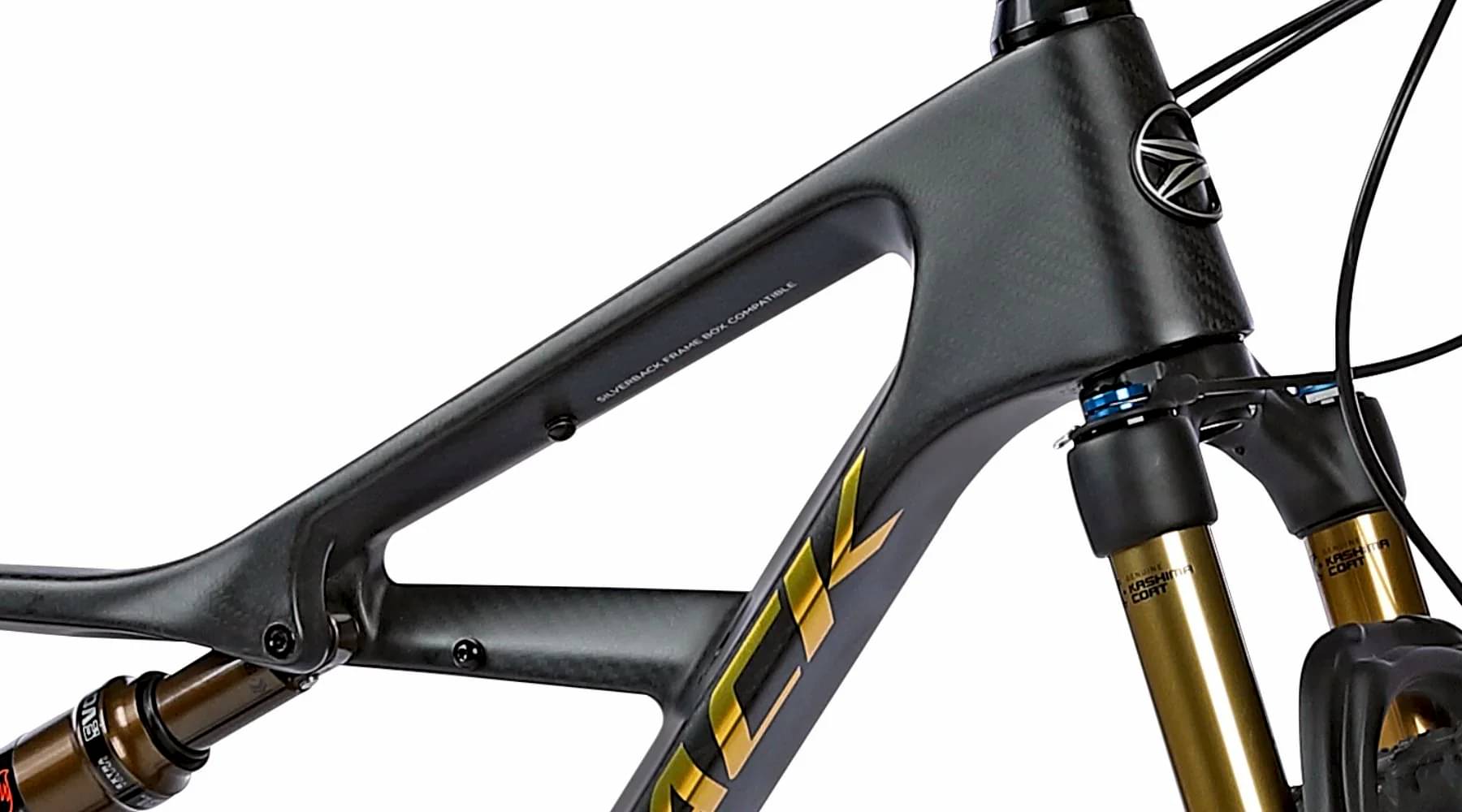

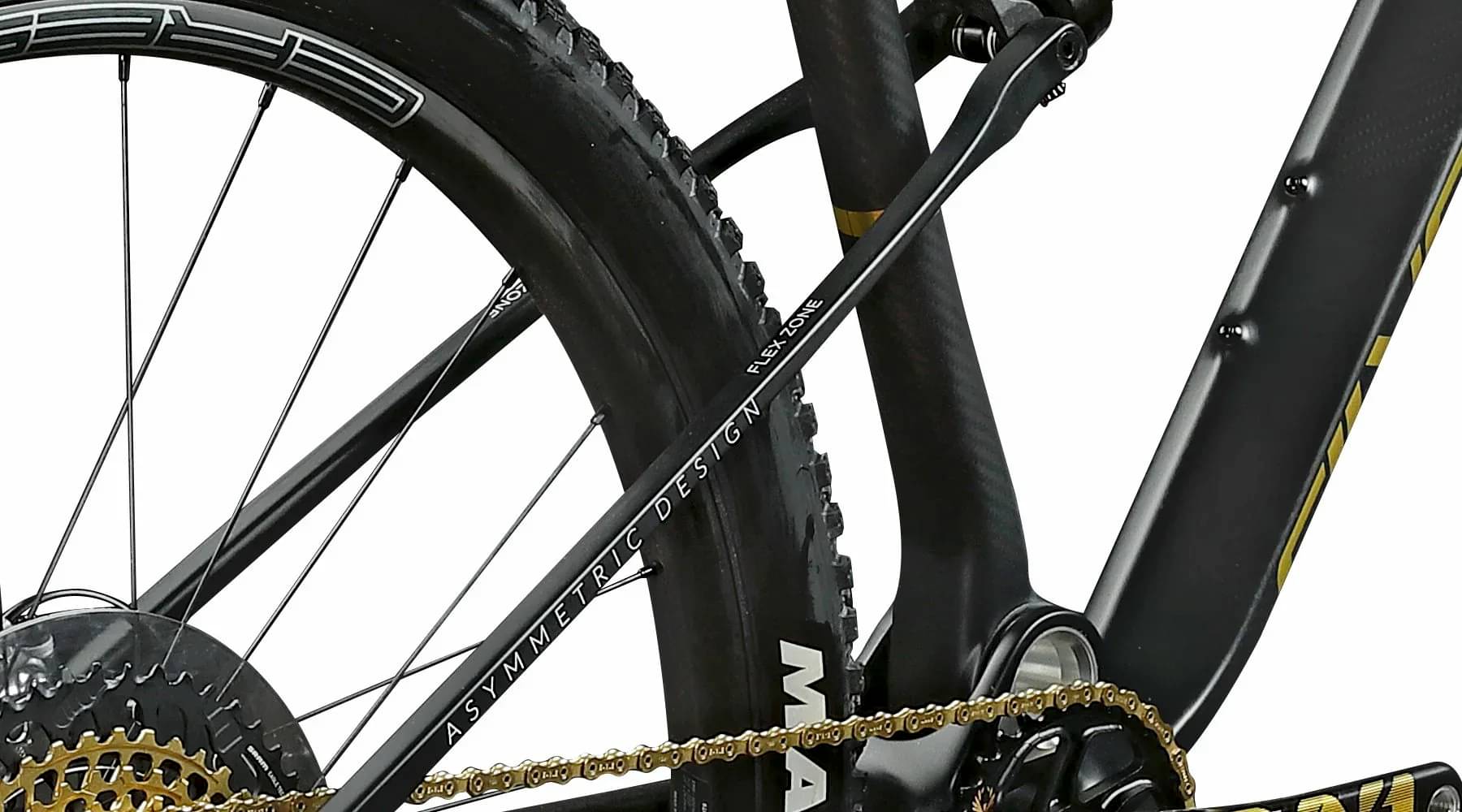

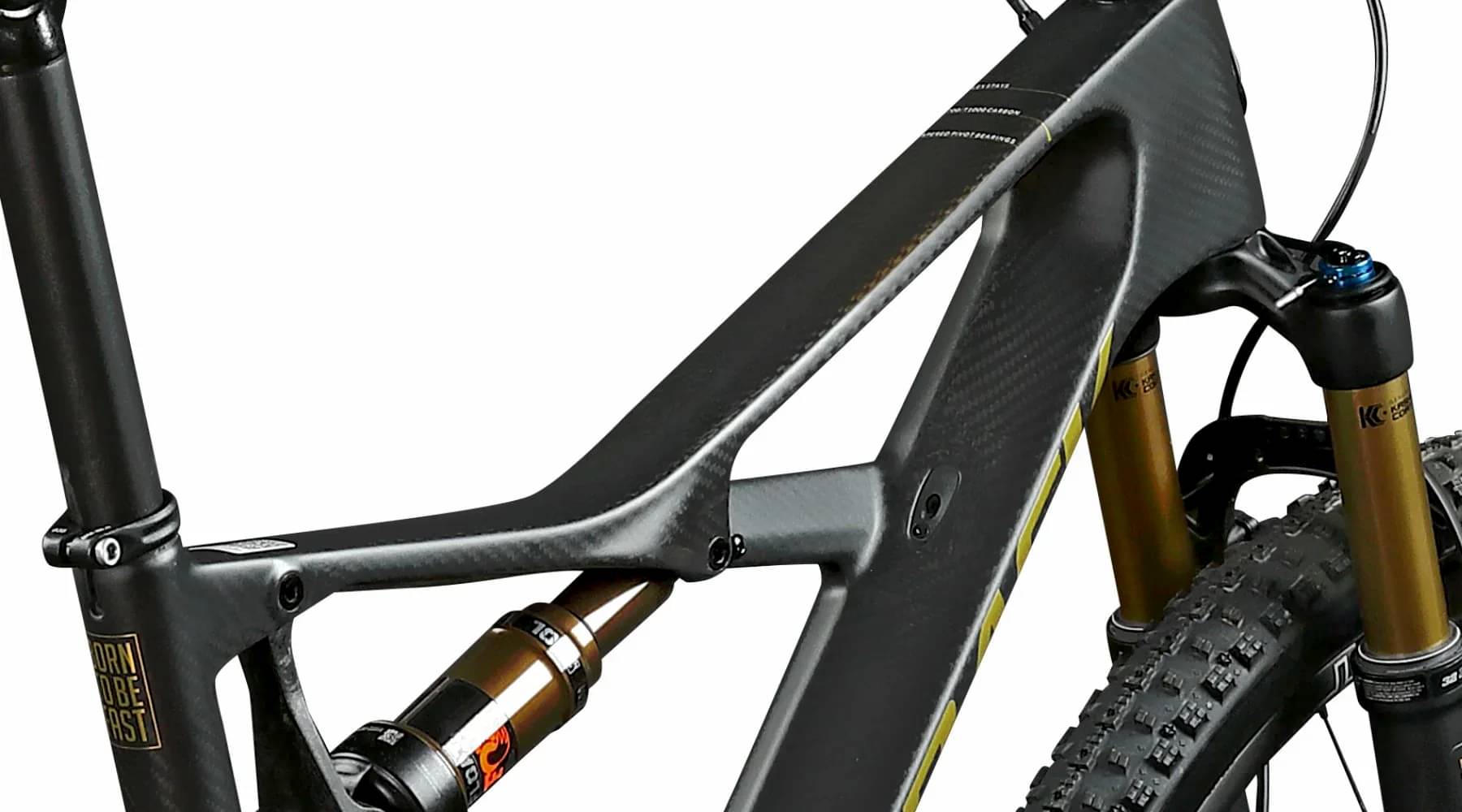

Silverback Asymmetric Carbon Frame, 3K Twill Carbon Fiber, UD Carbon Flex stays and oversize pivots. BOOST, 29", 100mm Travel, Tapered HT
Suspension Fork
Fox Rhythm 34 Float 29", 120mm Travel, BOOST, 15x110mm, Tapered Steerer

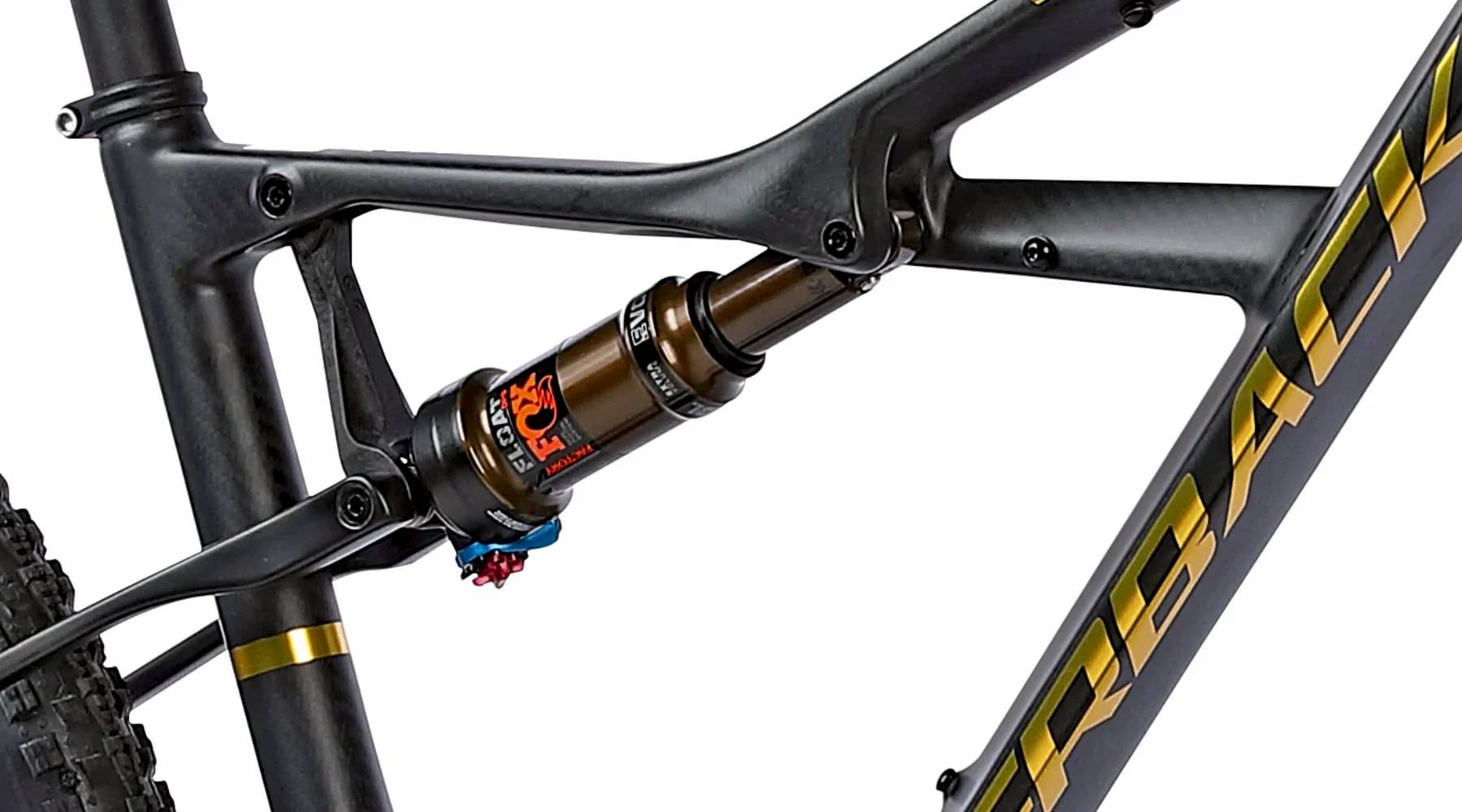

Rear Shock
Fox Performance Elite, 190x42mm Metric, Custom Tune

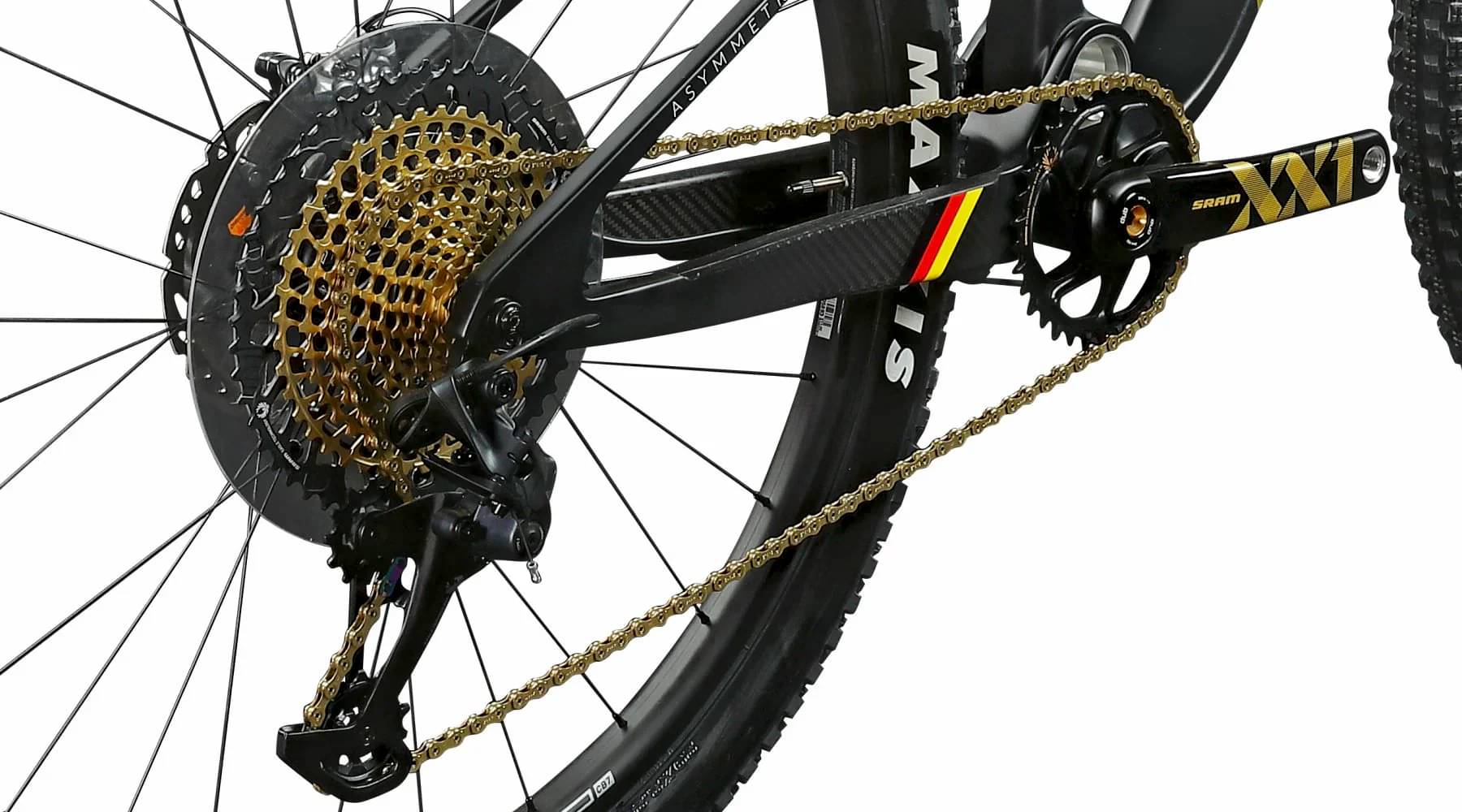

Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Shift Levers
SRAM XX1 Trigger shifter
Cassette
SRAM CS XG 1299 Eagle 10-50T
Crank
SRAM XX1 Eagle, DUB, 34T
Bottom Bracket
SRAM BB Dub PF MTB 92
Chain
SRAM
Pedals
Not Included
Wheels
Front Hub
DT Swiss 350, Sealed bearing, 6bolt, XD Driver
Rear Hub
DT Swiss 350, Sealed bearing, 6bolt, XD Driver
Rims
Surface carbon rim
Tires
Maxxis Rekon Race 29" x 2.25" Tubeless Ready
Brakes
Brakes
SRAM DB LVL Ultimate, 160mm rotors
Cockpit
Stem
Surface 3D Forged Alloy, 7deg Rise, 60mm S/M, 75mm L/XL
Handlebar
SBC Carbon Low rise 31.8mm, 9deg Back sweep, 12mm Rise, 780mm
Grips
Surface
Headset
Token A83-15 Headset, IS42/28.6 IS52/40
Seat
Saddle
Surface Race, Carbon Rails
Seatpost
Carbon 30,9mm, Ti Bolts
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.388 mm | 1.347 mm | 1.303 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm |
| Front Center | 701 mm | 704 mm | 732 mm |
| Rake | 73 mm | 53 mm | 57 mm |
| Trail | 66 mm | 87 mm | 83 mm |
| Stack | 576 mm | 586 mm | 594 mm |
| Reach | 415 mm | 435 mm | 456 mm |
| Top Tube Length | 575 mm | 597 mm | 625 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1133 mm | 1136 mm | 1164 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm |
| Standover Height | 710 mm | 774 mm | 800 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 168 cm | 178 cm |
| Rider Max Height | 170 cm | 180 cm | 192 cm |
