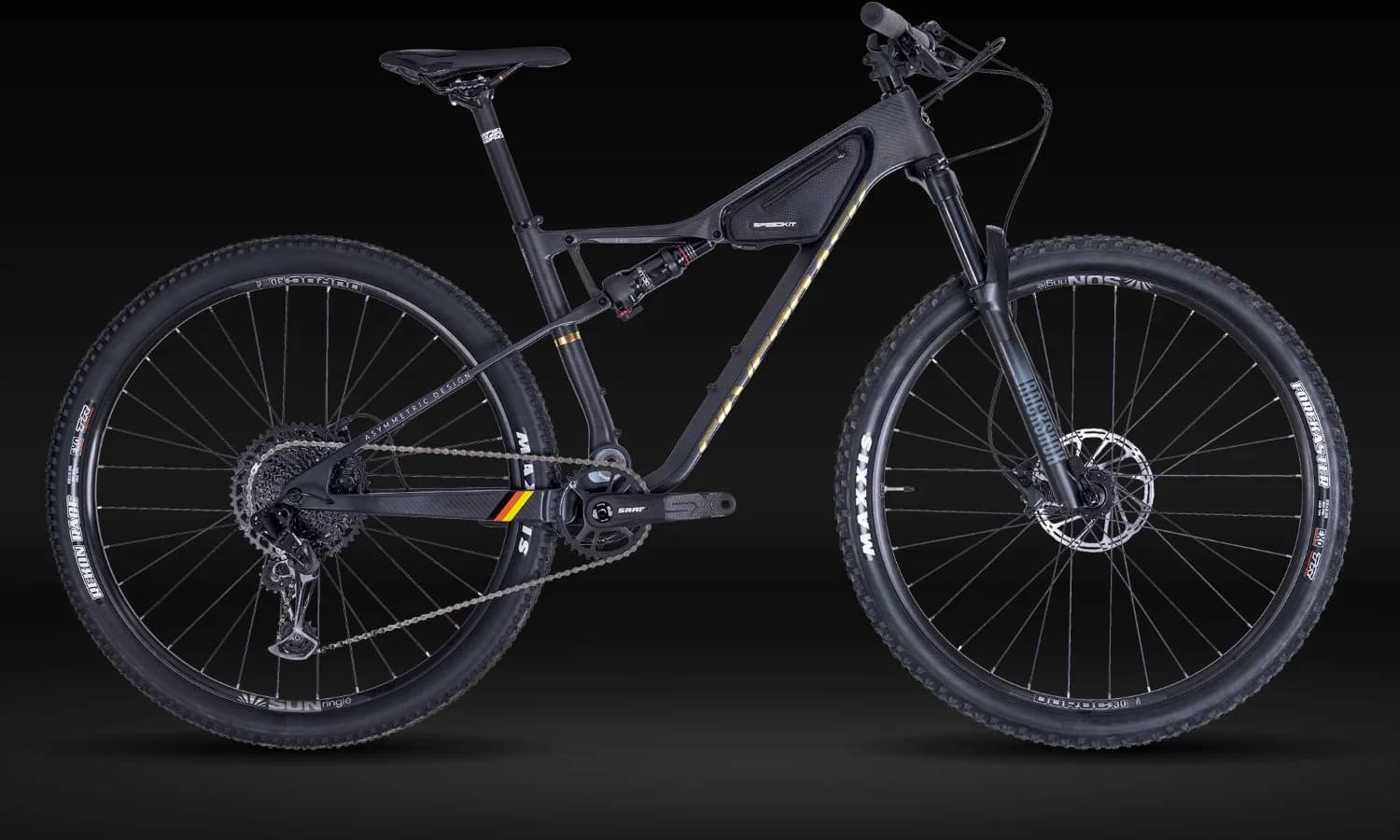

silverback CF SX 2025
2025 Mountain
Estimate price |
3,440$
Weight | 12.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
168cm - 180cm
LG
178cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Silverback Asymmetric Silverback CF Frame, 3K Twill Carbon Fiber, UD Carbon Flex stays and oversize pivots. BOOST, 29", 100mm Travel, Tapered HT
Suspension Fork
Rockshox Recon Silver, 100mm Travel, Lockout, Boost
Rear Shock
Rockshox, 190x42mm, custom-tuned
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Trigger
Cassette
SRAM SX Eagle 11-50T
Crank
SRAM SX Eagle DUB, 32T
Bottom Bracket
SRAM BB DUB PF MTB 92
Chain
SRAM
Pedals
Not included
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Surface Alloy
Tires
Maxxis Rekon Race 29" x 2.25"
Brakes
Brakes
Shimano BR-MT200
Cockpit
Stem
Surface Alloy
Handlebar
SBC alloy 780mm
Grips
Surface Double Density Lock-on
Headset
Semi-Integrated, ZS44/28.6 ZS56/40
Seat
Saddle
Surface Race
Seatpost
Surface Alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.388 mm | 1.347 mm | 1.303 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm |
| Front Center | 701 mm | 704 mm | 732 mm |
| Rake | 73 mm | 53 mm | 57 mm |
| Trail | 66 mm | 87 mm | 83 mm |
| Stack | 576 mm | 586 mm | 594 mm |
| Reach | 415 mm | 435 mm | 456 mm |
| Top Tube Length | 575 mm | 597 mm | 625 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1133 mm | 1136 mm | 1164 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm |
| Standover Height | 710 mm | 774 mm | 800 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 168 cm | 178 cm |
| Rider Max Height | 170 cm | 180 cm | 192 cm |
