silverback S-Electro Elite AL 2 2024
2024 E-bike
Estimate price |
5,001$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 145mm -
Fork Marzocchi Bomber Z2
-
Groupset SX Eagle -
Suspension Full -
Motor Shimano 500W 85Nm mid-drive -
Battery Darfon 720Wh, 36V, 20Ah Li-Ion, 3.8Kg Weight -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 173cm
MD
170cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy Dual Suspension with Shimano EP800 motor and Darfon 720Wh internal battery. Trail/Enduro frame with 150mm front and 145mm single-pivot rear travel. Designed to be light, nimble and easy to maintain.
Suspension Fork
Marzocchi Bomber Z2, 150mm travel, 44mm Rake, Sweep Adj, 1.5" Tapered Steerer, Thru Axle
Rear Shock
RockShox Deluxe Select+ RT, 185x55mm Linear Air Can 0 Neg, 3 Pos Tokens, Linear Reb-Low Comp Tune, 320LB Threshold, Trunnion Standard

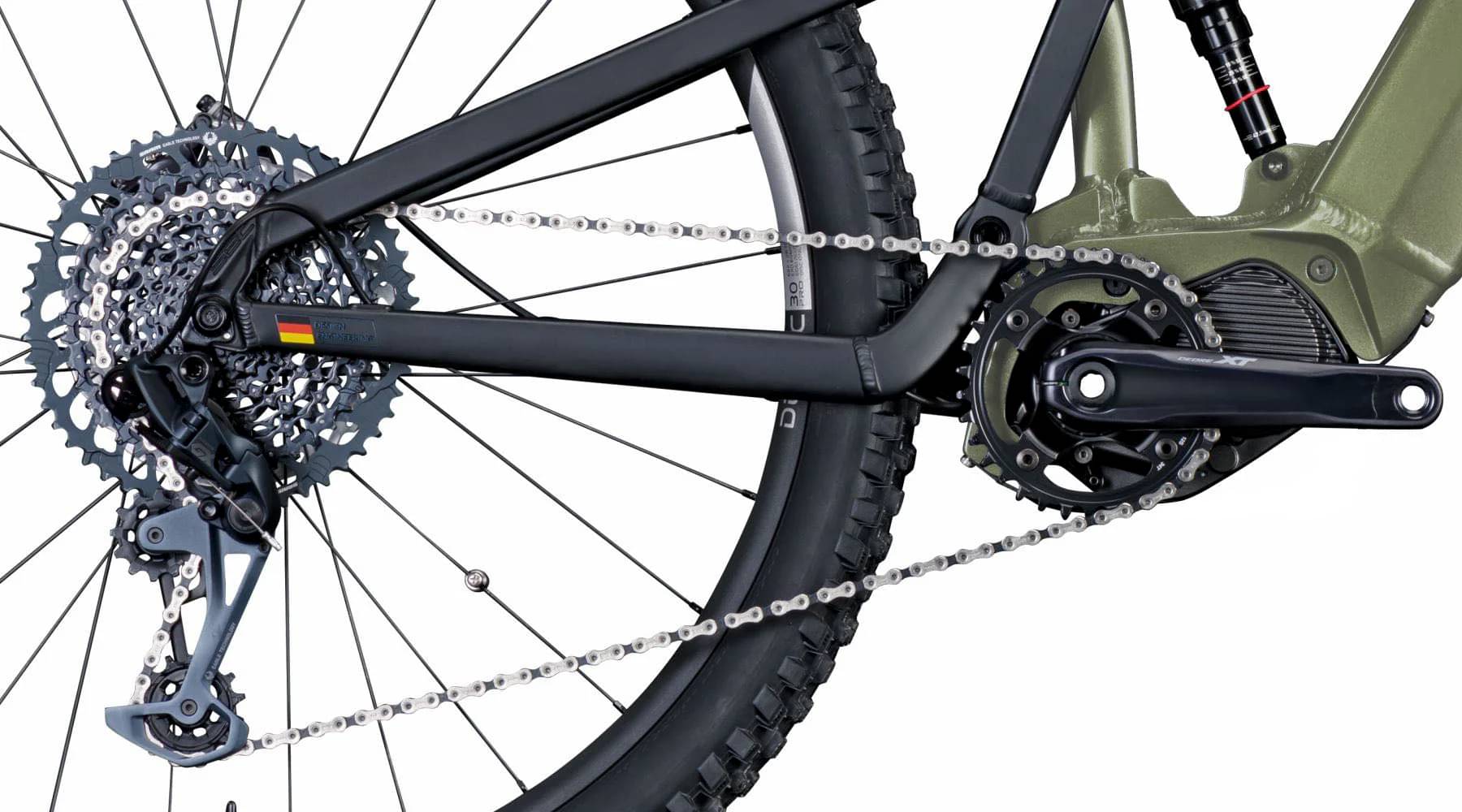

Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
R: SRAM SX Eagle
Cassette
SRAM SX Eagle, 11-50T
Crank
Shimano FC-EM600 170mm crank arm, 32T SRAM X-SYNC chainring,
Chain
SRAM SX Eagle
Wheels
Front Hub
F: SUNringlé SRC, Boost, 110x15mm, 6 Bolt, 32H
Rear Hub
F: SUNringlé SRC, Boost, 110x15mm, 6 Bolt, 32H
Rims
F: SUNringlé Duroc 35, STR Tubeless ready, 32mm Internal Width, 35mm Outer Width
Tires
F: Maxxis Minion DHF, 29x2.50", TR/EXO
Brakes
Brakes
SRAM Level Hydraulic Disc
Cockpit
Stem
SURFACE Trail alloy, Ø35mm, Rise 7°
Handlebar
SURFACE alloy Trail 35mm, Backsweep 6°, Rise 12mm
Grips
SUFACE Double Density Lock-On
Headset
TOKEN TK1556SP S-Box Headset (IS52/28.6 l IS52/40)
Seat
Saddle
SURFACE E-BIKE
Seatpost
SURFACE Dropper Post with Lever, 30.9mm
Motor & Battery
Motor
Shimano EP800 Drive Unit, Mid-Position, 25km/h, 85N.m Torque
Battery
Darfon 720Wh, 36V, 20Ah Li-Ion, 3.8Kg Weight
Charger
Darfon Smart Plus, 100-240V, 4A, EU use
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.456 mm | 1.402 mm | 1.339 mm | 1.28 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 763 mm | 785 mm | 817 mm | 839 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 626 mm | 631 mm | 640 mm | 640 mm |
| Reach | 430 mm | 450 mm | 478 mm | 500 mm |
| Top Tube Length | 521 mm | 548 mm | 583 mm | 612 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 135 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1229 mm | 1251 mm | 1283 mm | 1305 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 805 mm | 825 mm | 847 mm | 866 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 170 cm | 179 cm | 189 cm |
| Rider Max Height | 173 cm | 181 cm | 191 cm | 200 cm |
