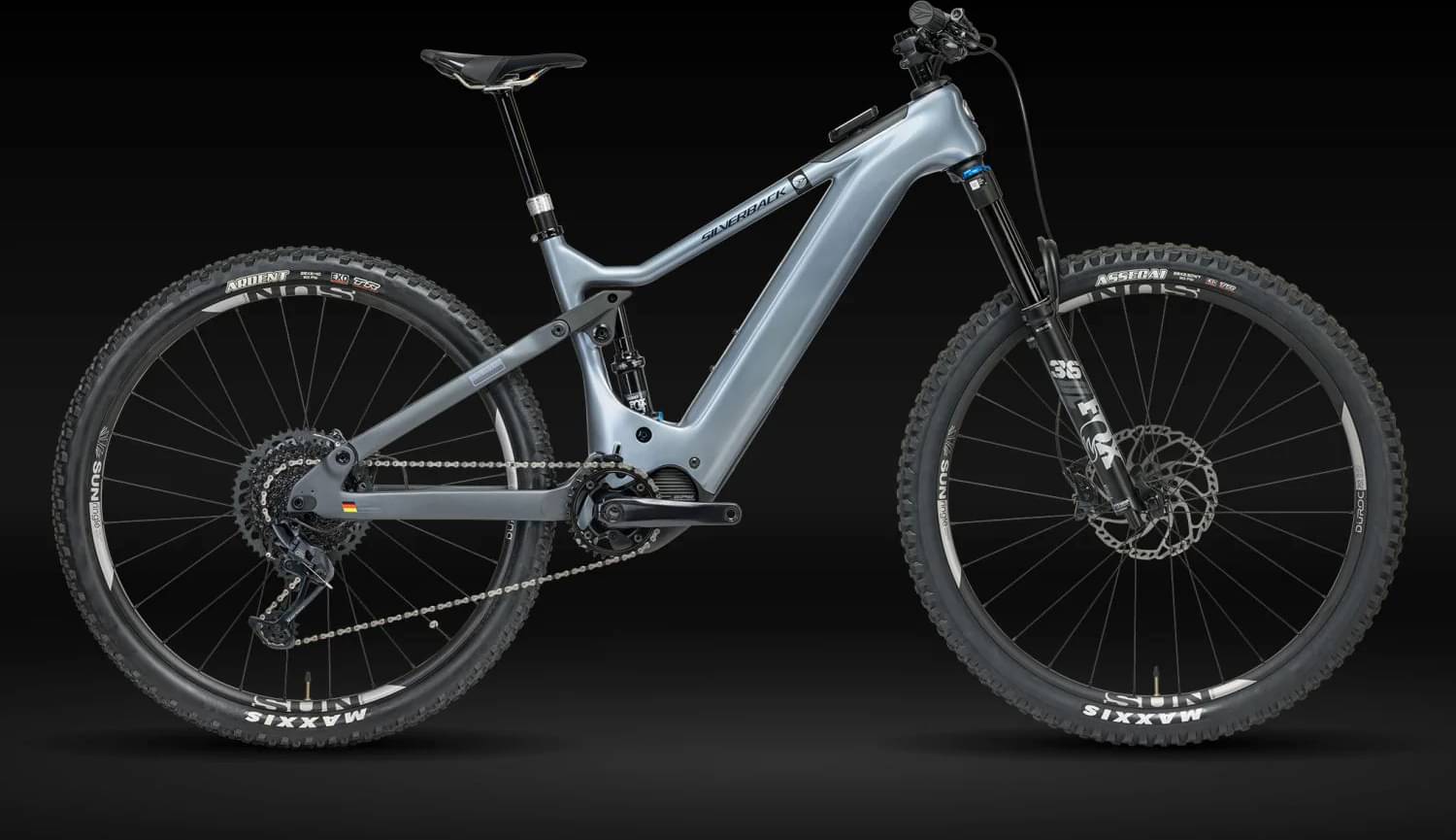

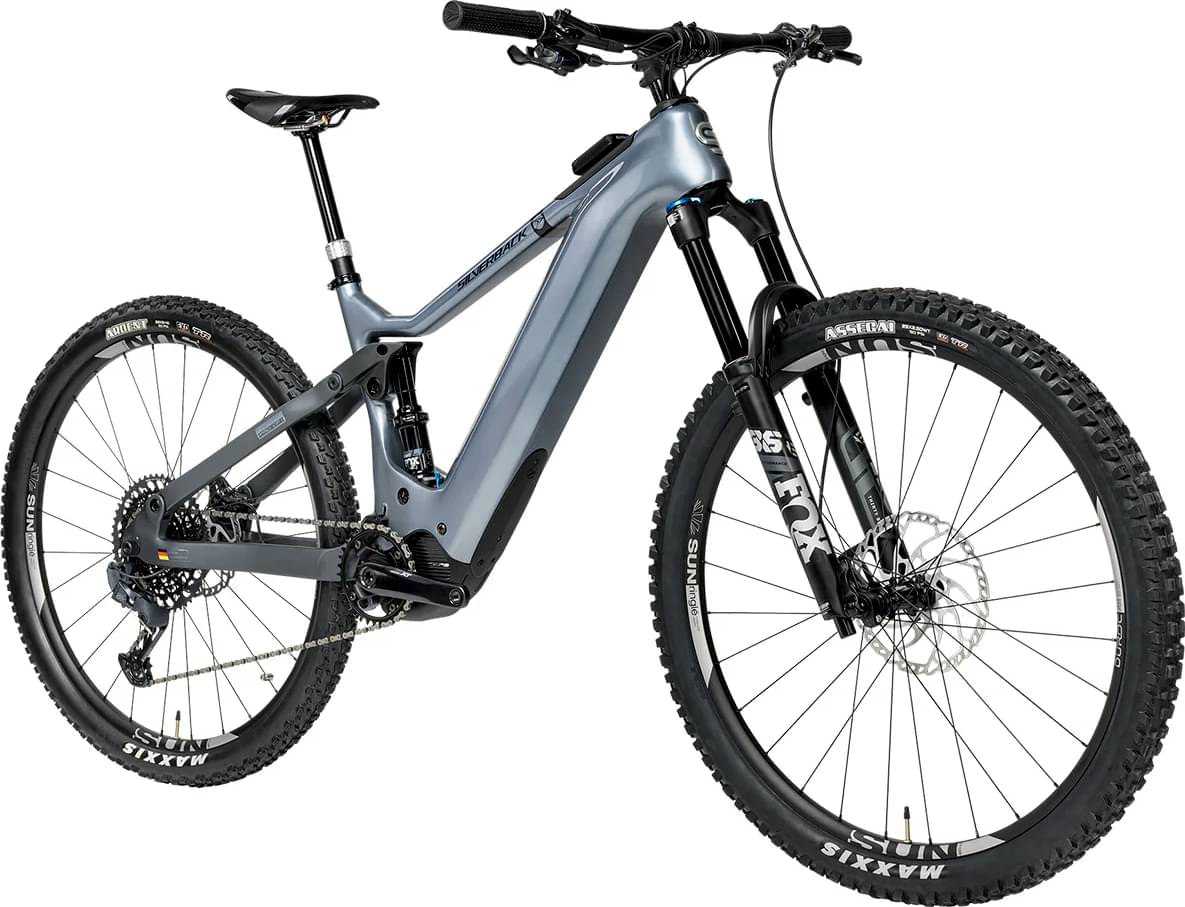

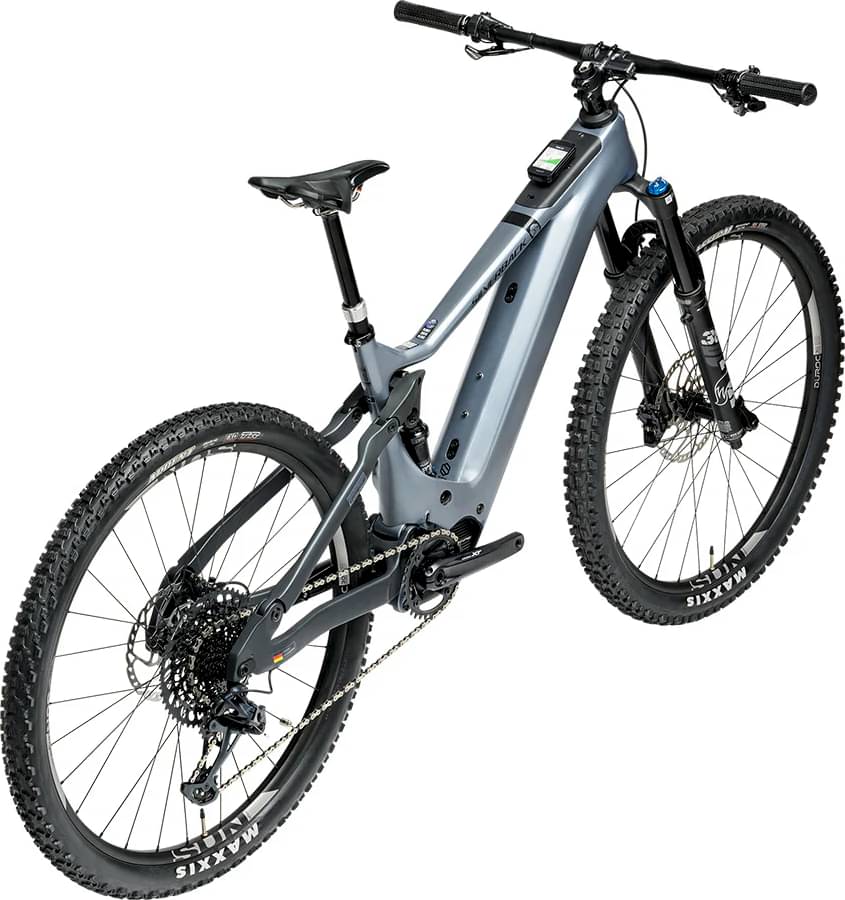

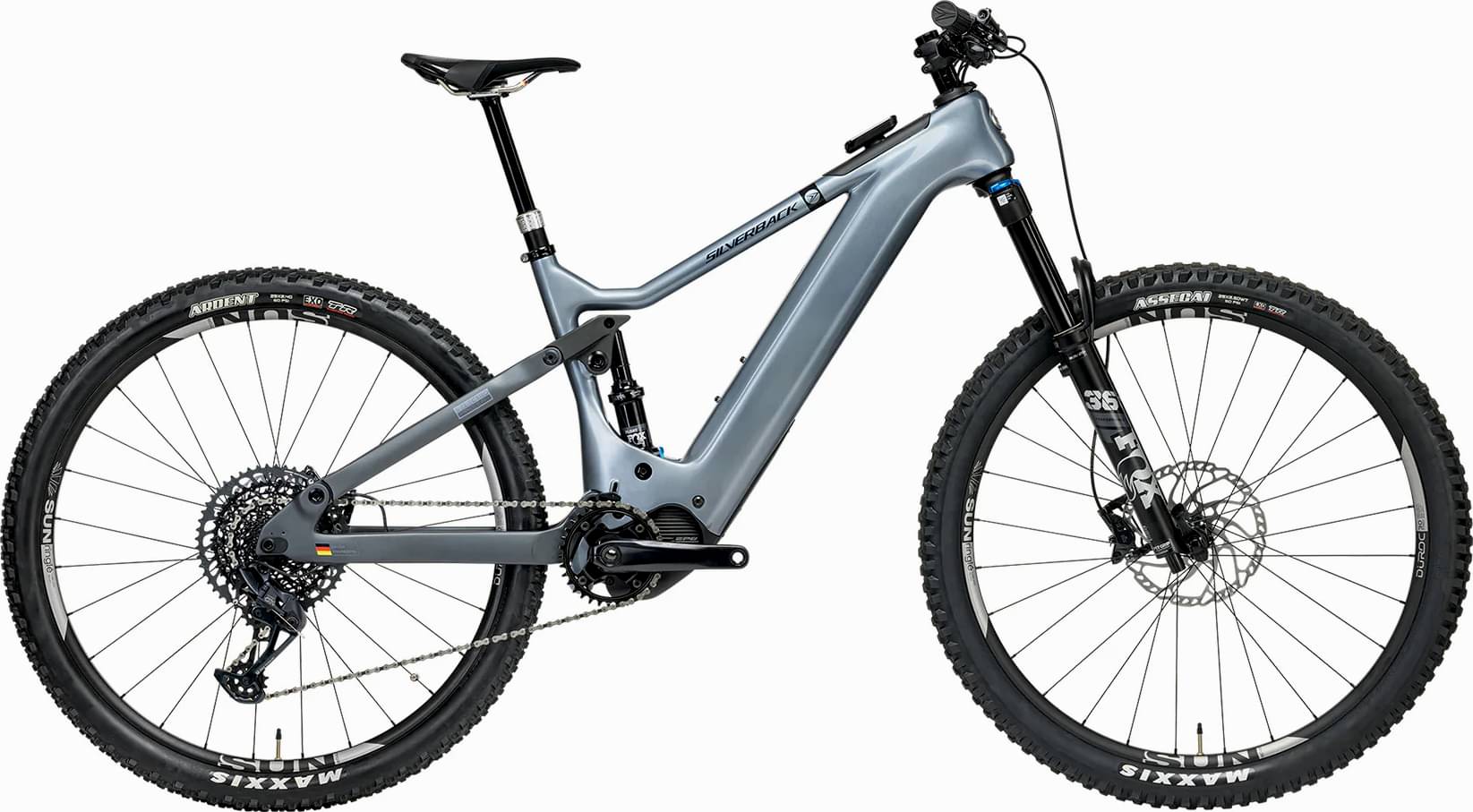

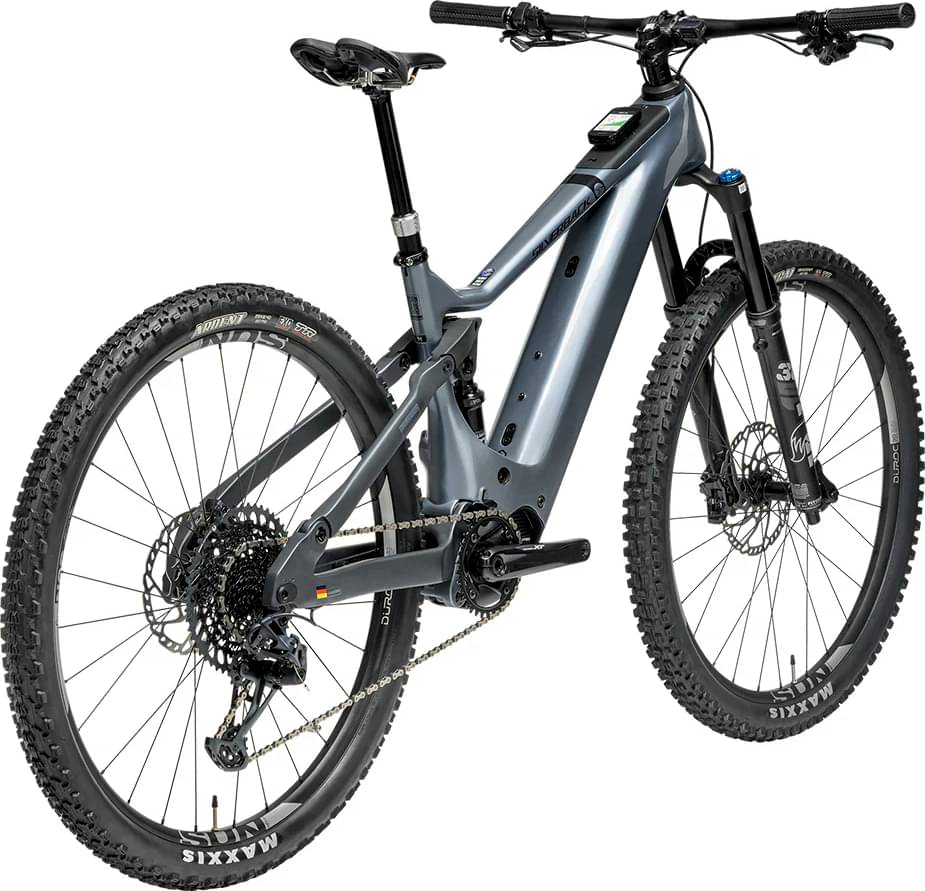

silverback S-Electro Pro CF 2 2024
2024 E-bike
Estimate price |
6,979$
Weight | 22 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 145mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle, XT -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery Li-Ion, 720Wh 36V, 20Ah, 3.8kg -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
168cm - 180cm
LG
178cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

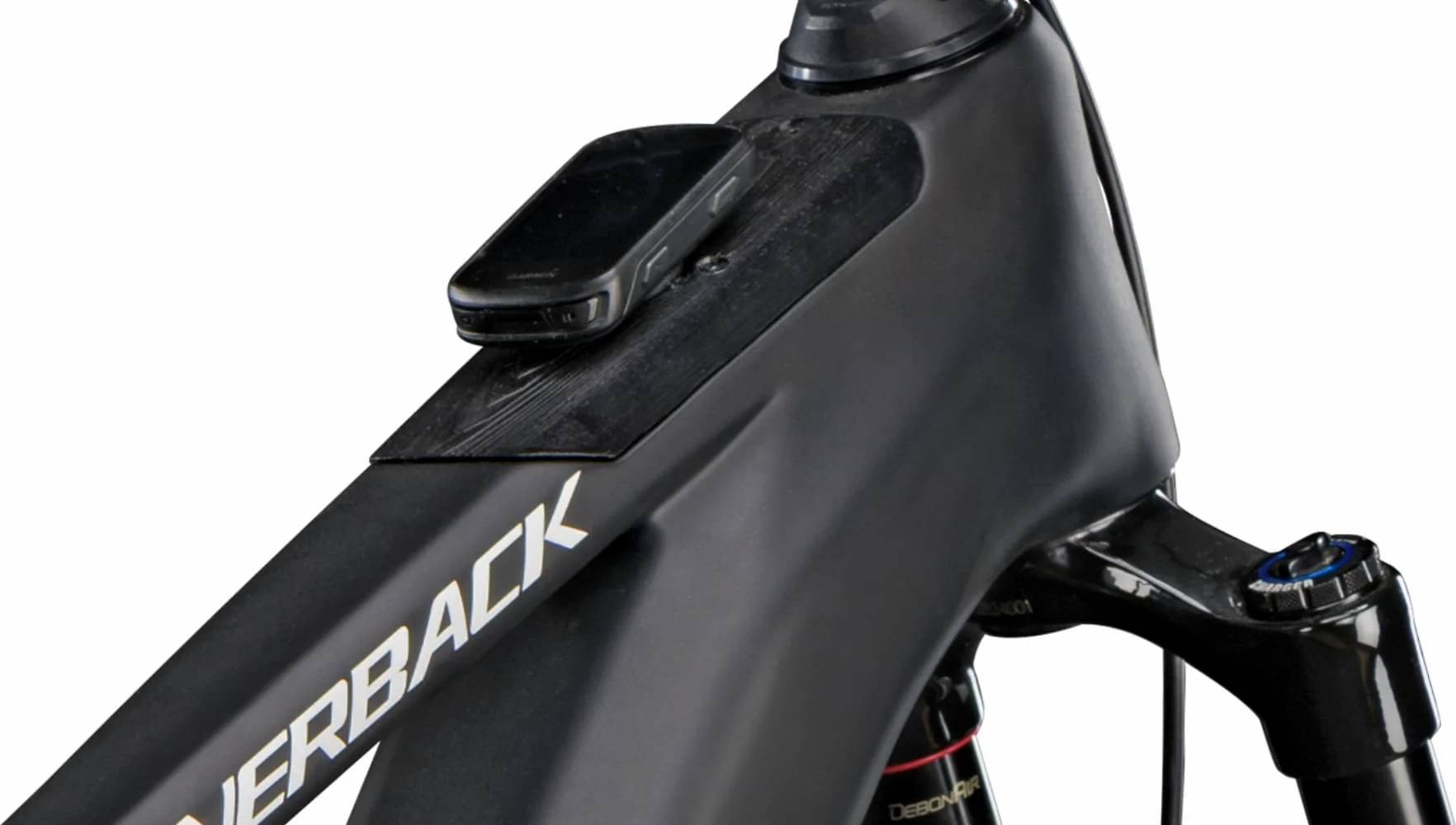

Carbon Fiber Dual Suspension E-bike. Adjustable Chainstay Length for 29" & 27.5" Mullet wheel setup. Rear Travel is 145mm. Garmin 1030 top tube integration or smartphone integration (Garmin device is not included). Fully Integrated cable routing. 720Wh battery with Shimano EP801. Lightweight frame made possible by removing the battery cutout.
Suspension Fork
Fox Racing Shox 36 Float 29" GRIP Performance Boost E-Optimized fork, 150 mm
Rear Shock
Fox Performance Float DPS, EVOL, 3 Position, Trunnion

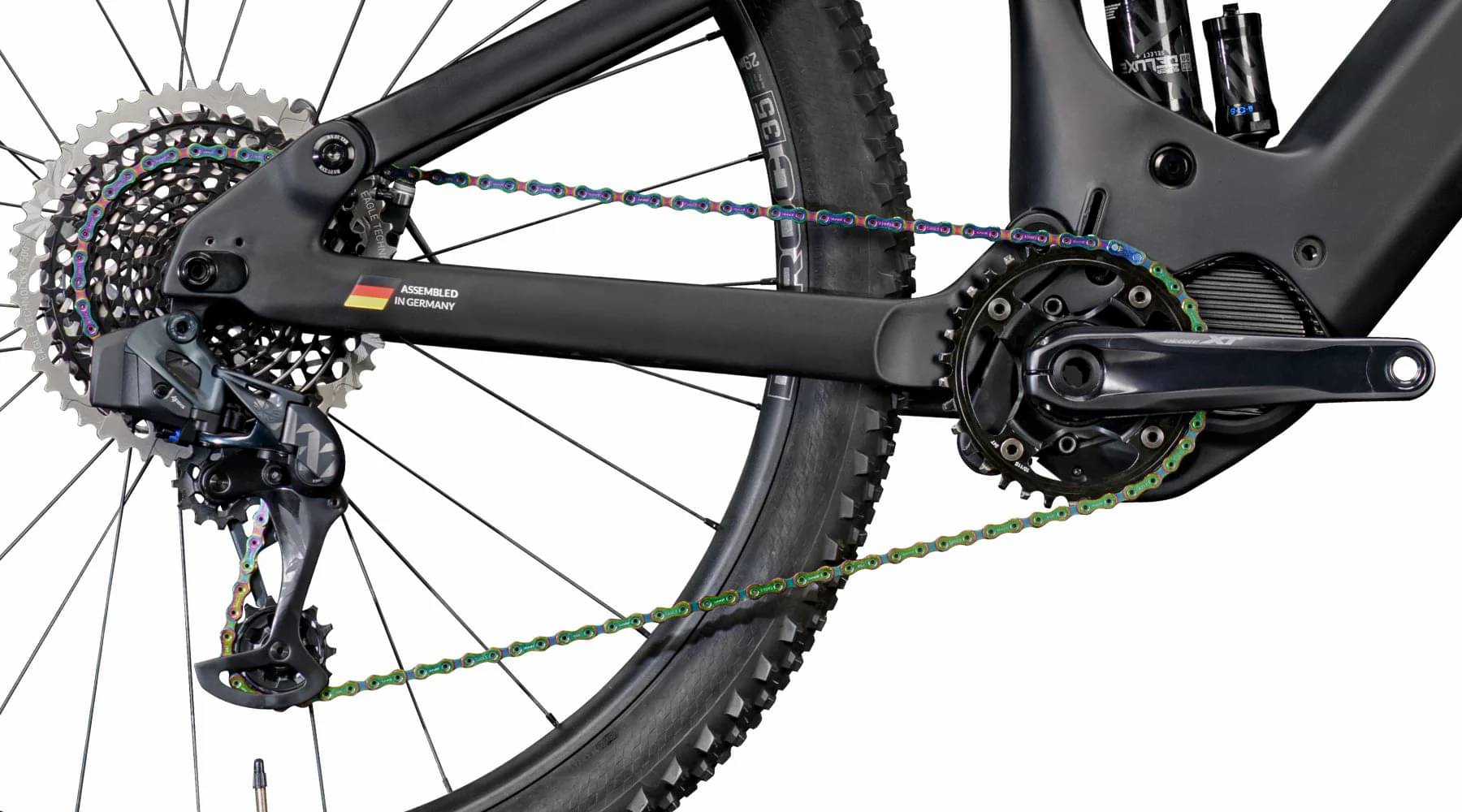

Drivetrain
Rear Derailleur
SRAM GX EAGLE LUNAR, 12spd
Shift Levers
SRAM GX EAGLE TRIGGER LUNAR, 12spd
Cassette
SRAM GX EAGLE LUNAR SRAM XG-1275, 10-52 Eagle
Crank
Shimano XT M8150
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM GX chain, 12spd
Pedals
Not included
Wheels
Front Hub
Sunringle
Rear Hub
Sunringle
Rims
SUNringle
Tires
F: Maxxis Assegai 29x2.5", 120TPI, 3C Maxxgrip
Brakes
Brakes
Shimano BL-MT501(L),BR-MT500(F)

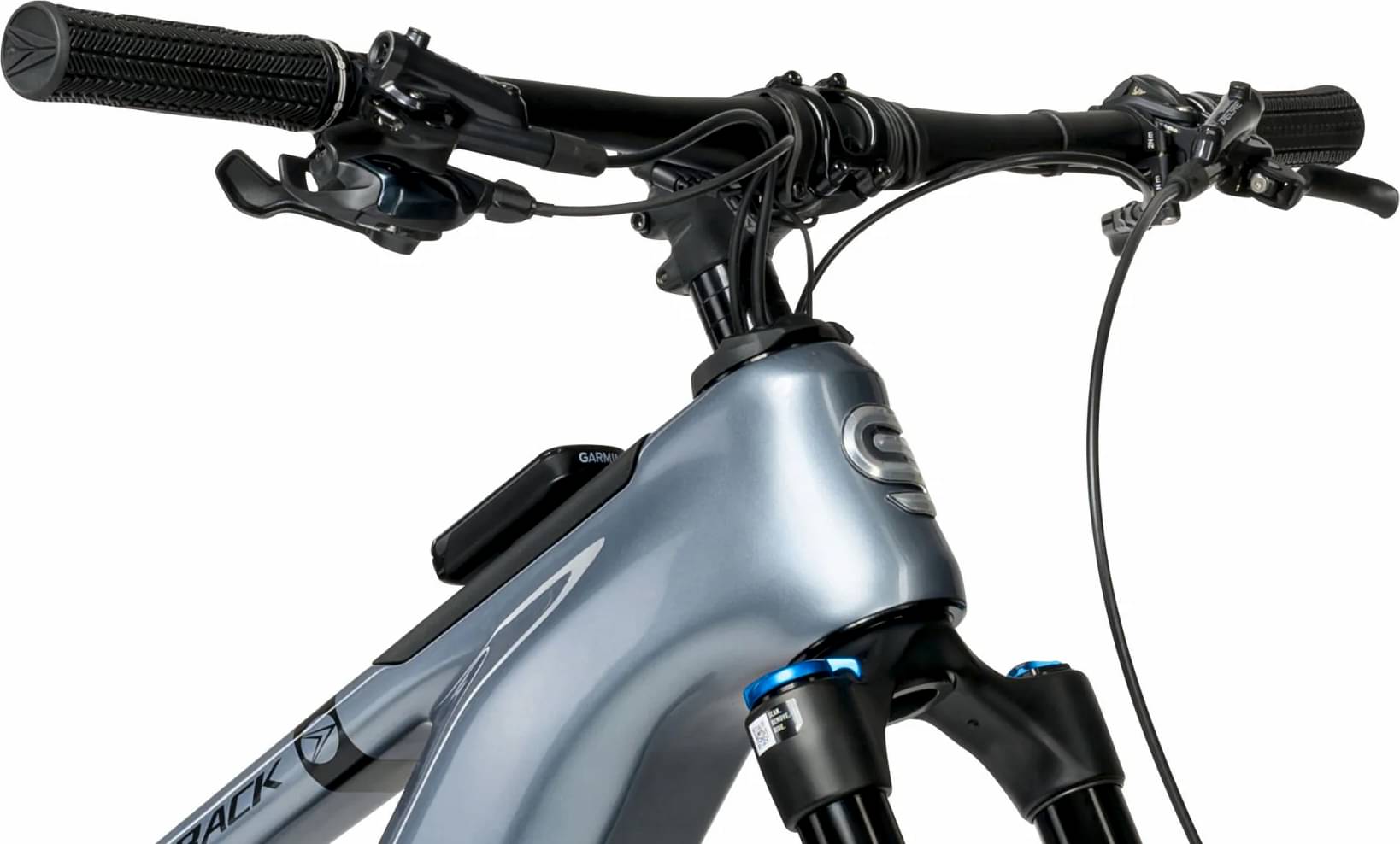

Cockpit
Stem
Surface Trail, Alloy
Handlebar
Surface Trail, 35mm Alloy, Backsweep: 6°, Rise: 12mm
Grips
SBC Lockon
Headset
Token E-Box Headset (ZS56/28.6 l ZS66/40), E-bike Integrated Cable Routing Headset

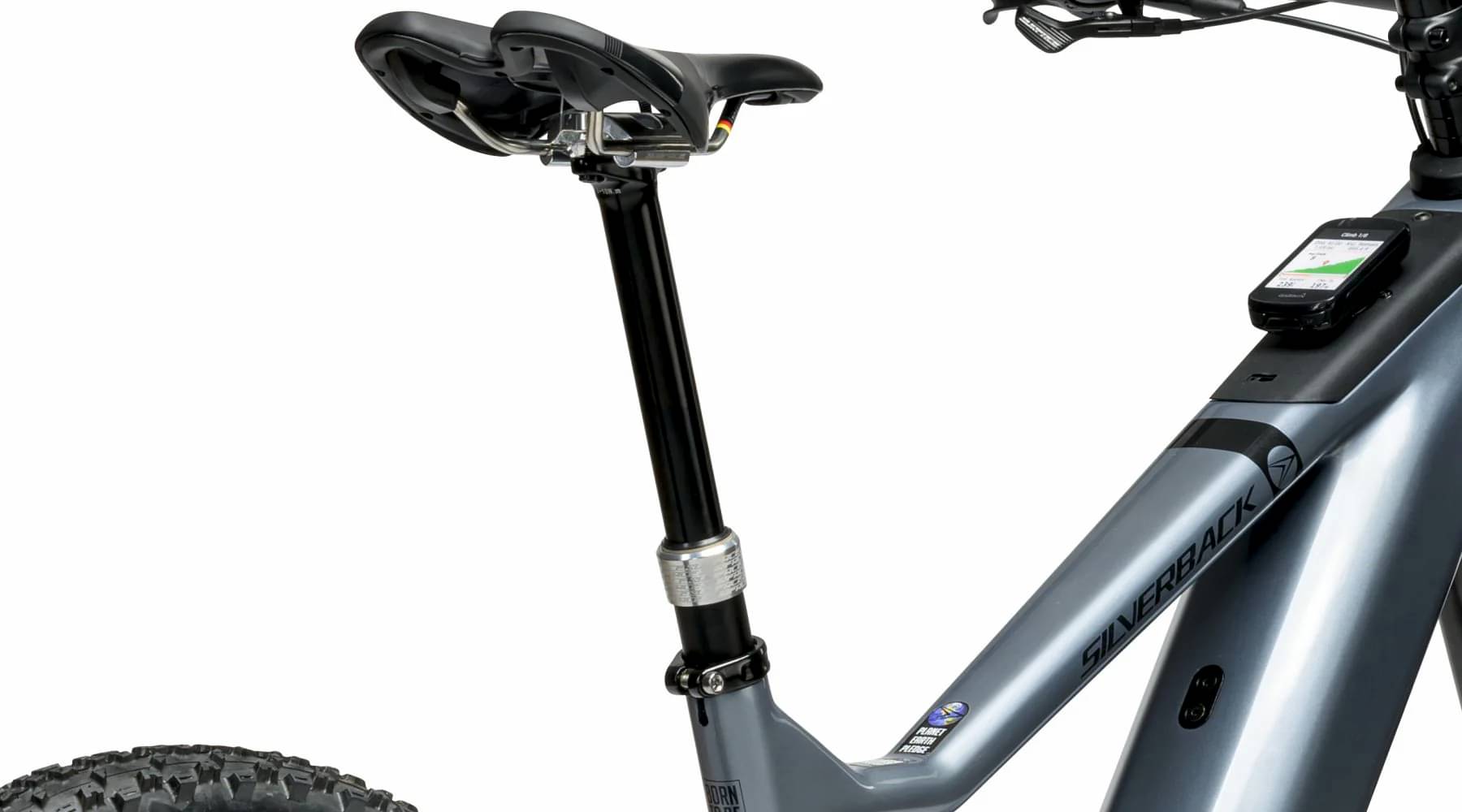

Seat
Saddle
Surface Race, Ti Rails
Seatpost
Surface Dropper Post with Lever, Dia: 30.9mm
Motor & Battery
Motor
Shimano EP801, Torque: 85Nm
Battery
Li-Ion, 720Wh 36V, 20Ah, 3.8kg
Charger
Darfon Smart Plus, 4A, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.333 mm | 1.296 mm | 1.263 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm |
| Front Center | 742 mm | 764 mm | 788 mm |
| Rake | 21 mm | 19 mm | 18 mm |
| Trail | 151 mm | 154 mm | 155 mm |
| Stack | 600 mm | 609 mm | 619 mm |
| Reach | 450 mm | 470 mm | 490 mm |
| Top Tube Length | 622 mm | 630 mm | 653 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1188 mm | 1210 mm | 1234 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm |
| Standover Height | 767 mm | 767 mm | 767 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 168 cm | 178 cm |
| Rider Max Height | 170 cm | 180 cm | 195 cm |
