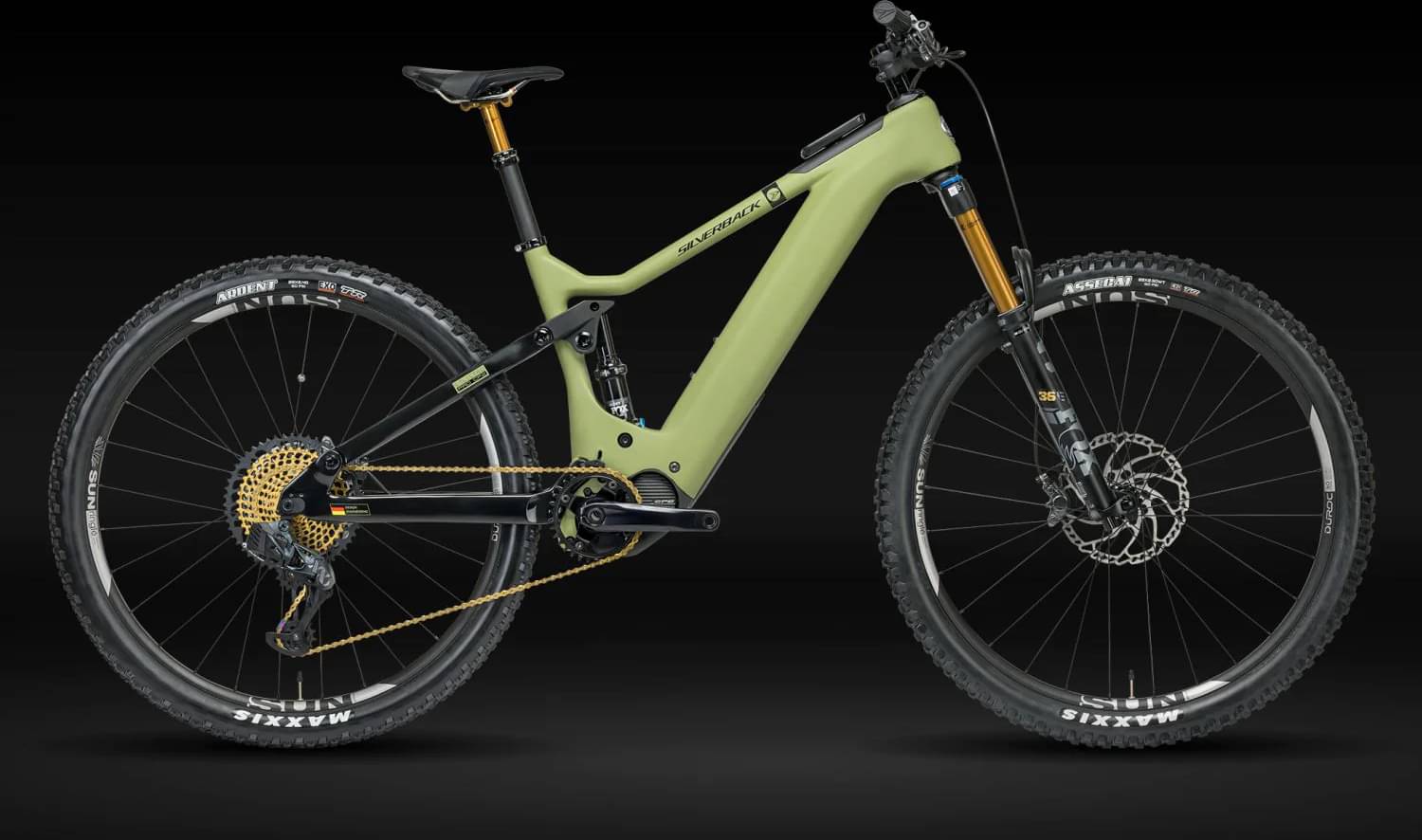

silverback S-ElectroTM Pro CF 1 2025
2025 E-bike
Estimate price |
9,306$
Weight | 20.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 145mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS, XT -
Suspension Full -
Motor Shimano 600W 85Nm mid-drive -
Battery 720Wh, 36V, 20Ah Li-Ion Battery, Weight: 3.8kg -
Drivetrain 1 × 12 Electronic -
Brakes Shimano XTR Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
168cm - 180cm
LG
178cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Carbon Fiber Dual Suspension E-bike. Adjustable Chainstay Length for 29" & 27.5" Mullet wheel setup. Rear Travel is 145mm. Garmin 1030 top tube integration or smartphone integration bracket. Fully Integrated cable routing. 720Wh battery with Shimano EP801. Lightweight frame made possible by removing the battery cutout.
Suspension Fork
Fox 36 Float Factory, GRIP2, 150mm Travel, 44mm Offset, Air
Rear Shock
Fox Factory Float DPS, EVOL, 3 Position, Trunion
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS, 12spd incl. charger
Shift Levers
SRAM XX1 AXS, 12spd
Cassette
SRAM XG-1299 10-52T, 12 speed, gold, 10-52T
Crank
Shimano XT M8150, 34T
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM XX1 Eagle Hollow Pin 12 speed, incl. PowerLock, 126, gold
Pedals
Not Included
Wheels
Front Hub
Sunringle Boost 110x15, 148x12, 6 Bolt
Rear Hub
Sunringle Boost 110x15, 148x12, 6 Bolt
Rims
SUNringle SD37 Pro 29''
Tires
F: Maxxis Assegai 29x2.5WT, 120TPI, 3C Maxxgrip, DoubleDown
Brakes
Brakes
Shimano XTR BL/BR-M9000,
Cockpit
Stem
Surface Alloy, 31.8mm, Rise: 6°
Handlebar
Surface Carbon, Dia: 31.8mm, Width: 780mm, Backsweep: 9°, Rise: 5mm
Grips
SBC Lockon
Headset
Token E-Box Headset (ZS56/28.6 l ZS66/40), E-bike Integrated Cable Routing Headset
Seat
Saddle
Surface Race, Titanium Rails
Seatpost
Fox Factory Transfer Dropper, gold, Dia: 30.9mm, Drop length: 170mm
Motor & Battery
Motor
Shimano EP801, 85Nm Torque
Battery
720Wh, 36V, 20Ah Li-Ion Battery, Weight: 3.8kg
Charger
Darfon Smart Plus, 4A, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.333 mm | 1.296 mm | 1.263 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm |
| Front Center | 742 mm | 764 mm | 788 mm |
| Rake | 21 mm | 19 mm | 18 mm |
| Trail | 151 mm | 154 mm | 155 mm |
| Stack | 600 mm | 609 mm | 619 mm |
| Reach | 450 mm | 470 mm | 490 mm |
| Top Tube Length | 622 mm | 630 mm | 653 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1188 mm | 1210 mm | 1234 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm |
| Standover Height | 767 mm | 767 mm | 767 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 168 cm | 178 cm |
| Rider Max Height | 170 cm | 180 cm | 195 cm |
