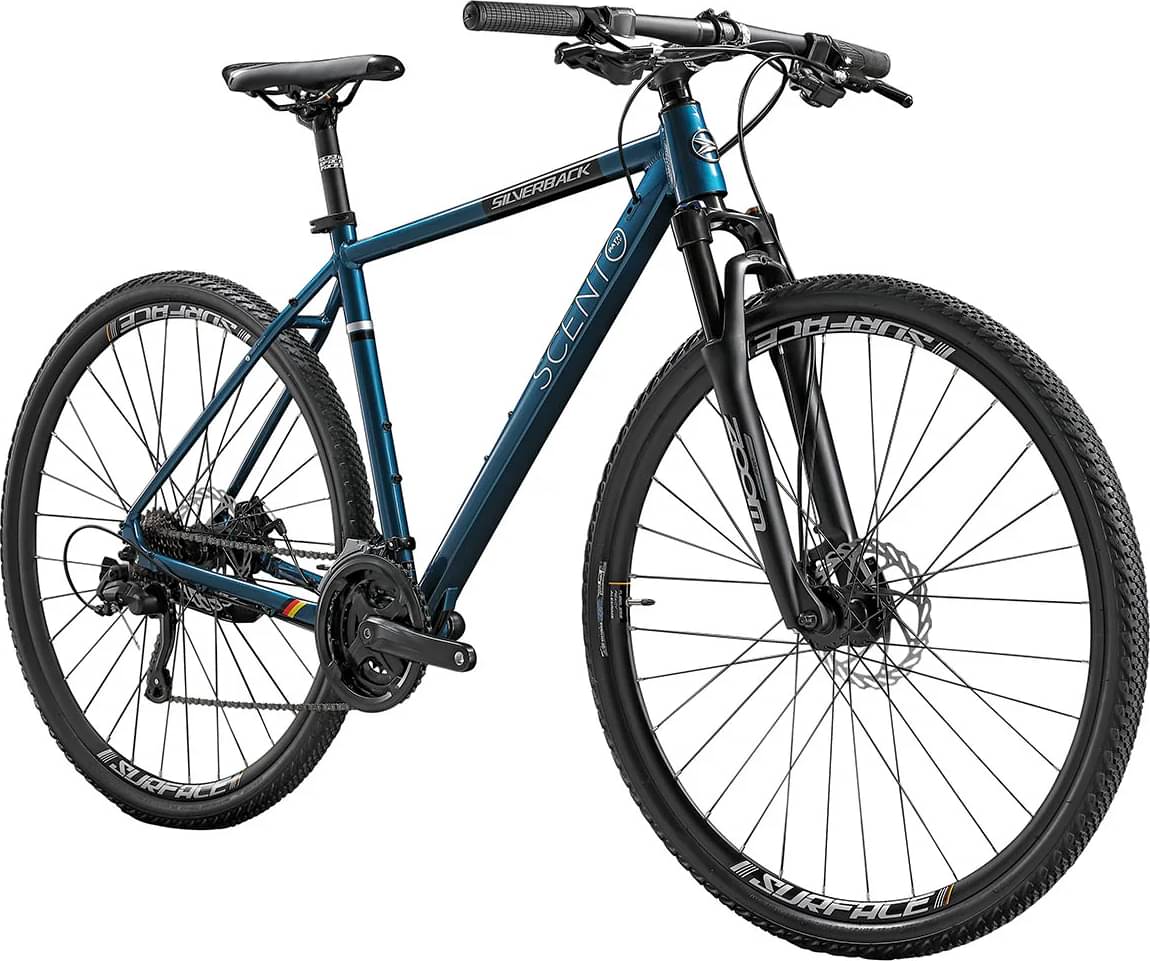

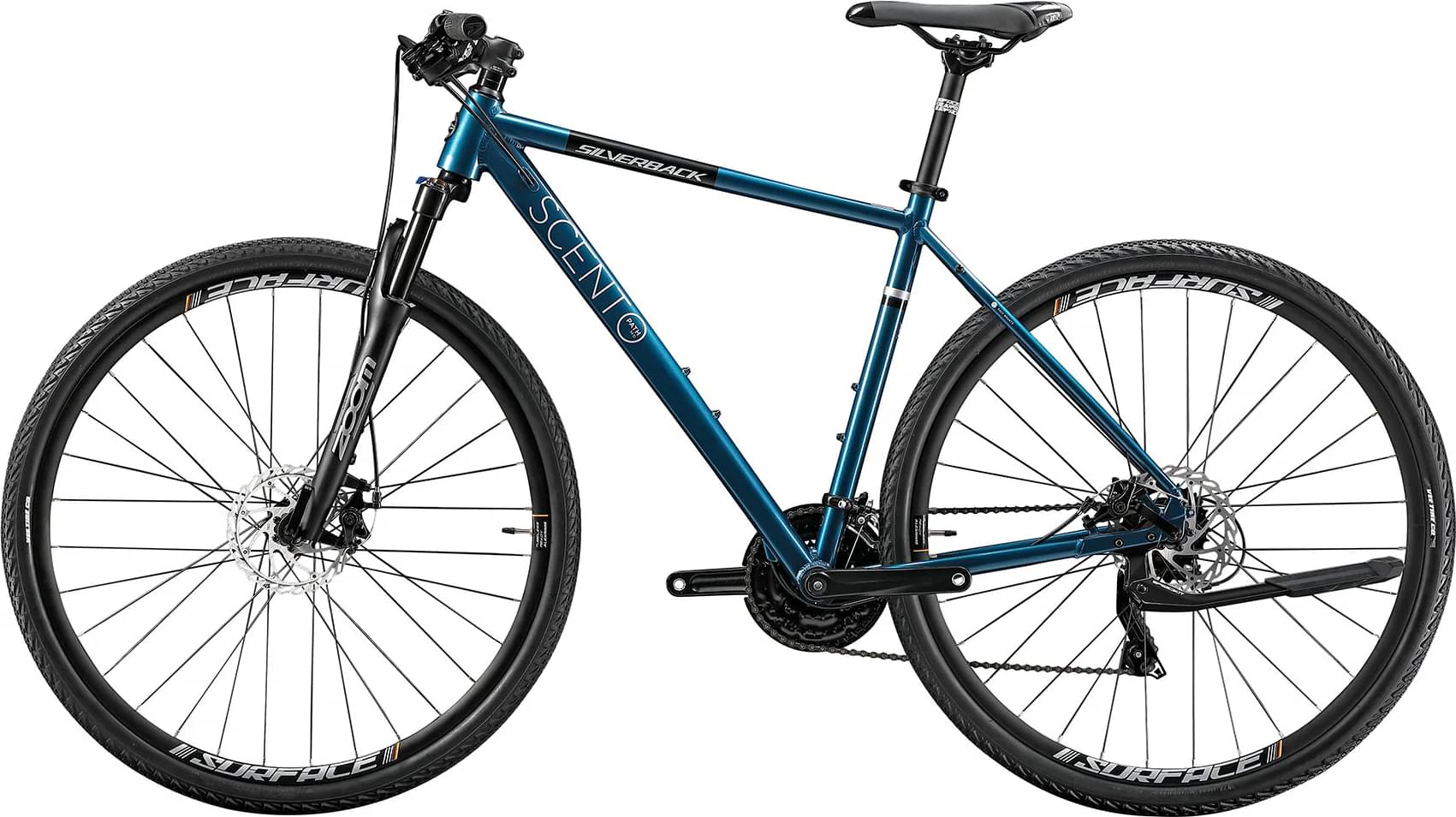

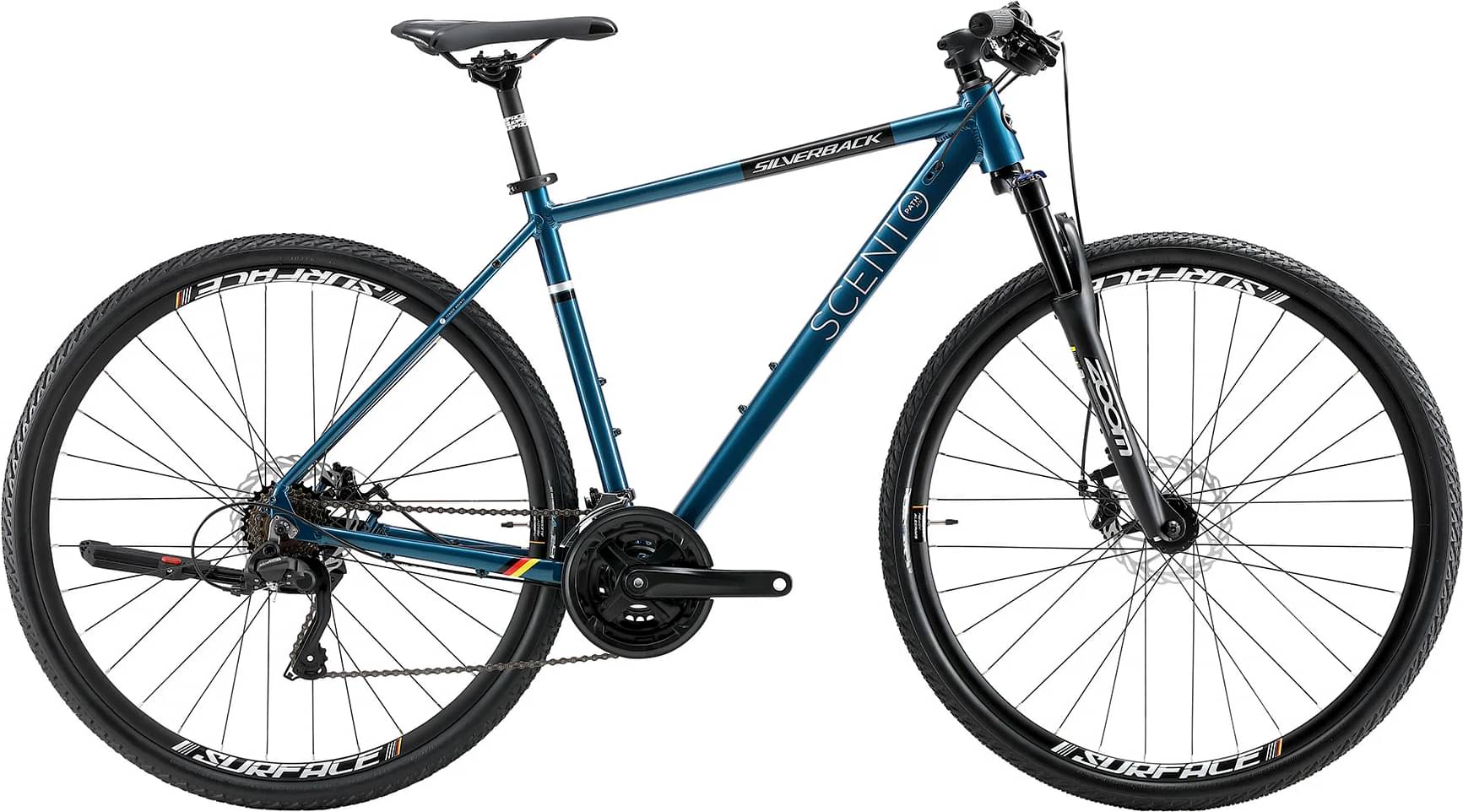

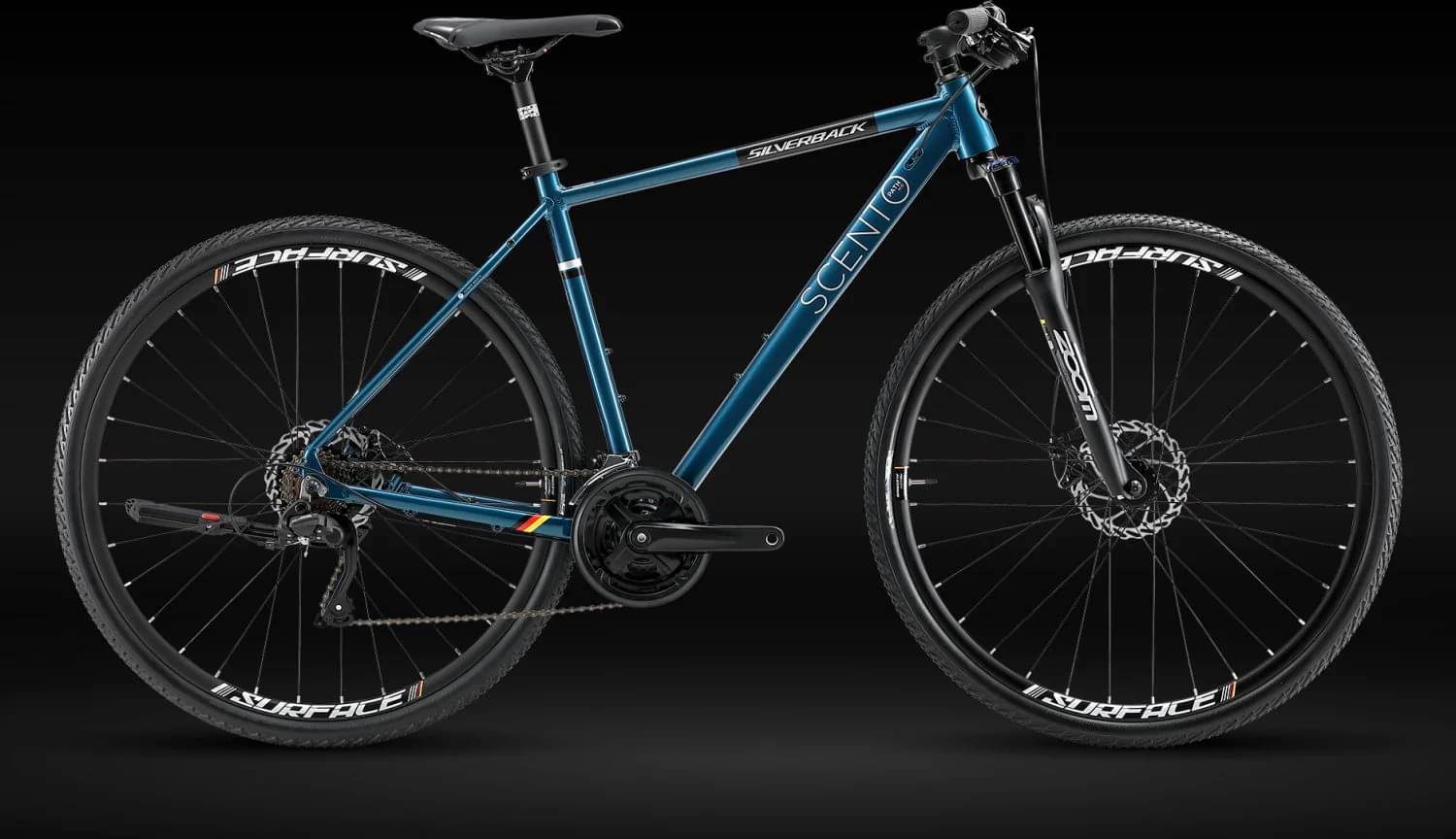

silverback Scento Path MD 2024
2024 Mountain
Estimate price |
930$
Weight | 13.88 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
160cm - 169cm
MD
167cm - 176cm
LG
174cm - 184cm
XL
182cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components

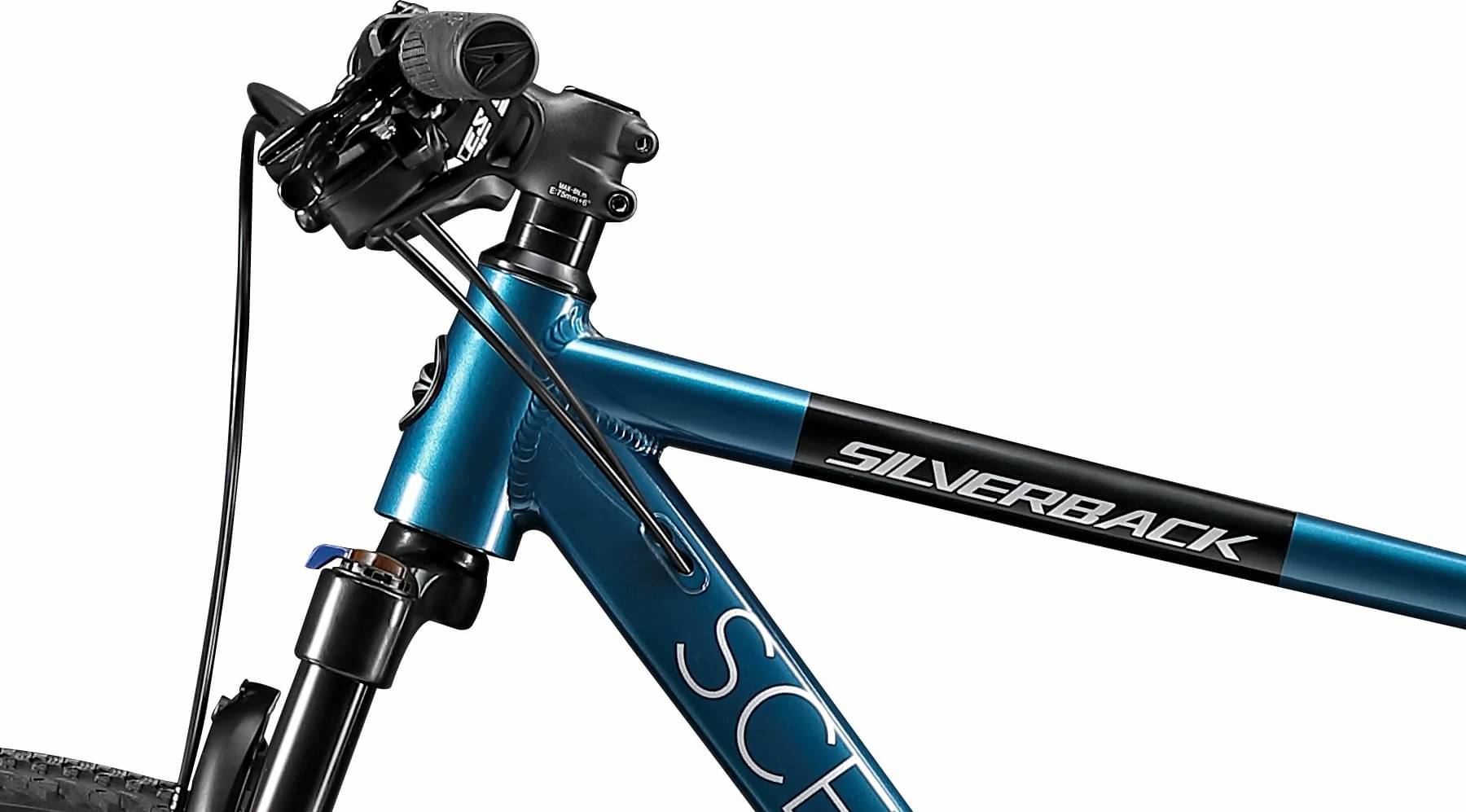

Frame
Frame
Aluminium City Bike, Custom Triple Butted Hydro-formed 6061 Frame, Post-mount Disc Brake Mounts. Supports 700C Wheelsize. Compatible mounts for Fender and Rack installation.
Suspension Fork
SR Suntour NEX HLO DS 700, 63mm, Hydraulic Lockout

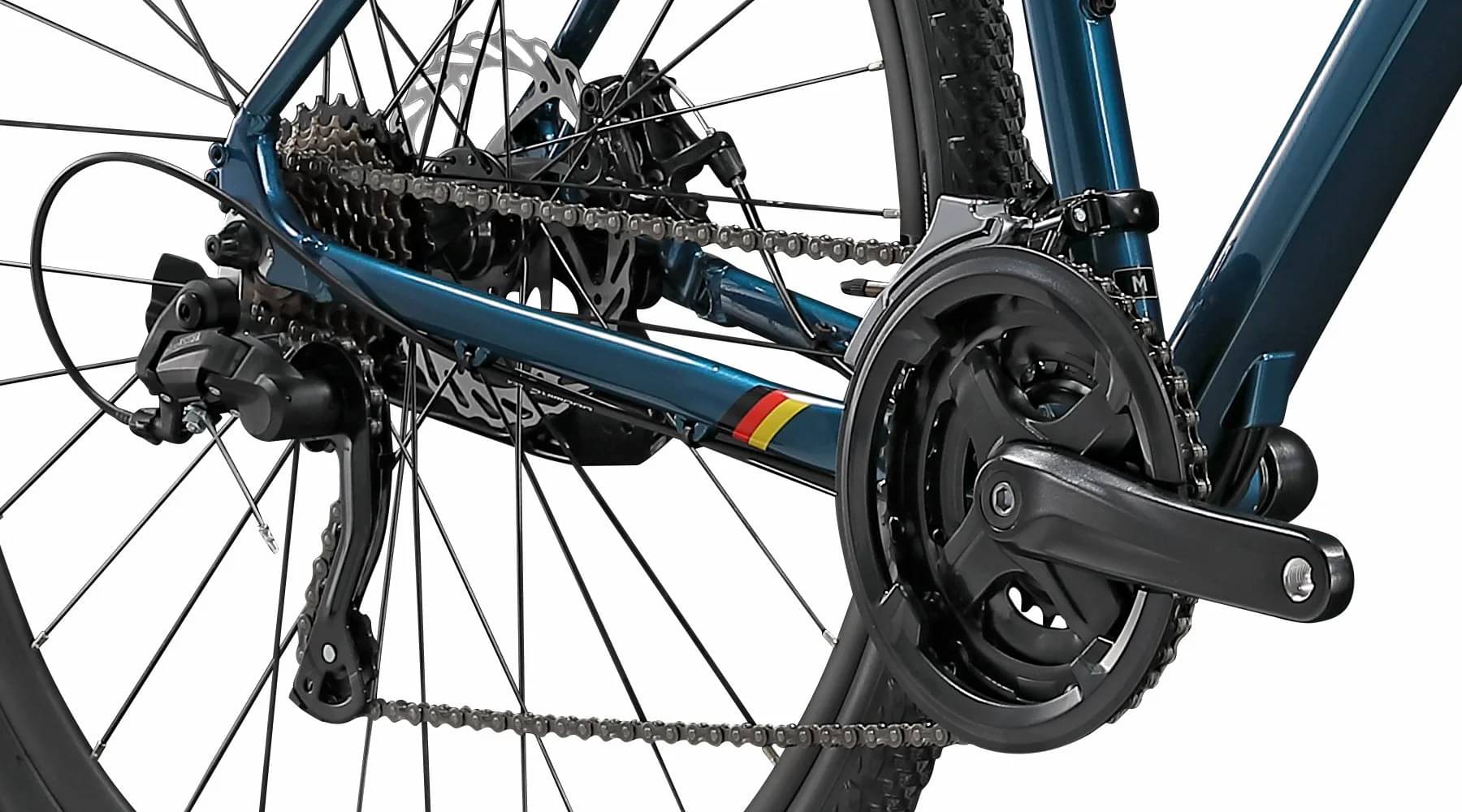

Drivetrain
Rear Derailleur
Shimano Altus RD-M310-L, 7-speed
Front Derailleur
Shimano FD-TY300 Tourney, Band Type 31,8mm
Shift Levers
L; Shimano ST-EF41-L Shift/Brake Lever, 3-speed
Cassette
Shimano MF-TZ500-7 Sprocket, 14-28T
Crank
SURFACE Alloy 42/34/24T
Bottom Bracket
BSA73
Chain
PYC 7 Speed
Pedals
One Piece Alloy
Wheels

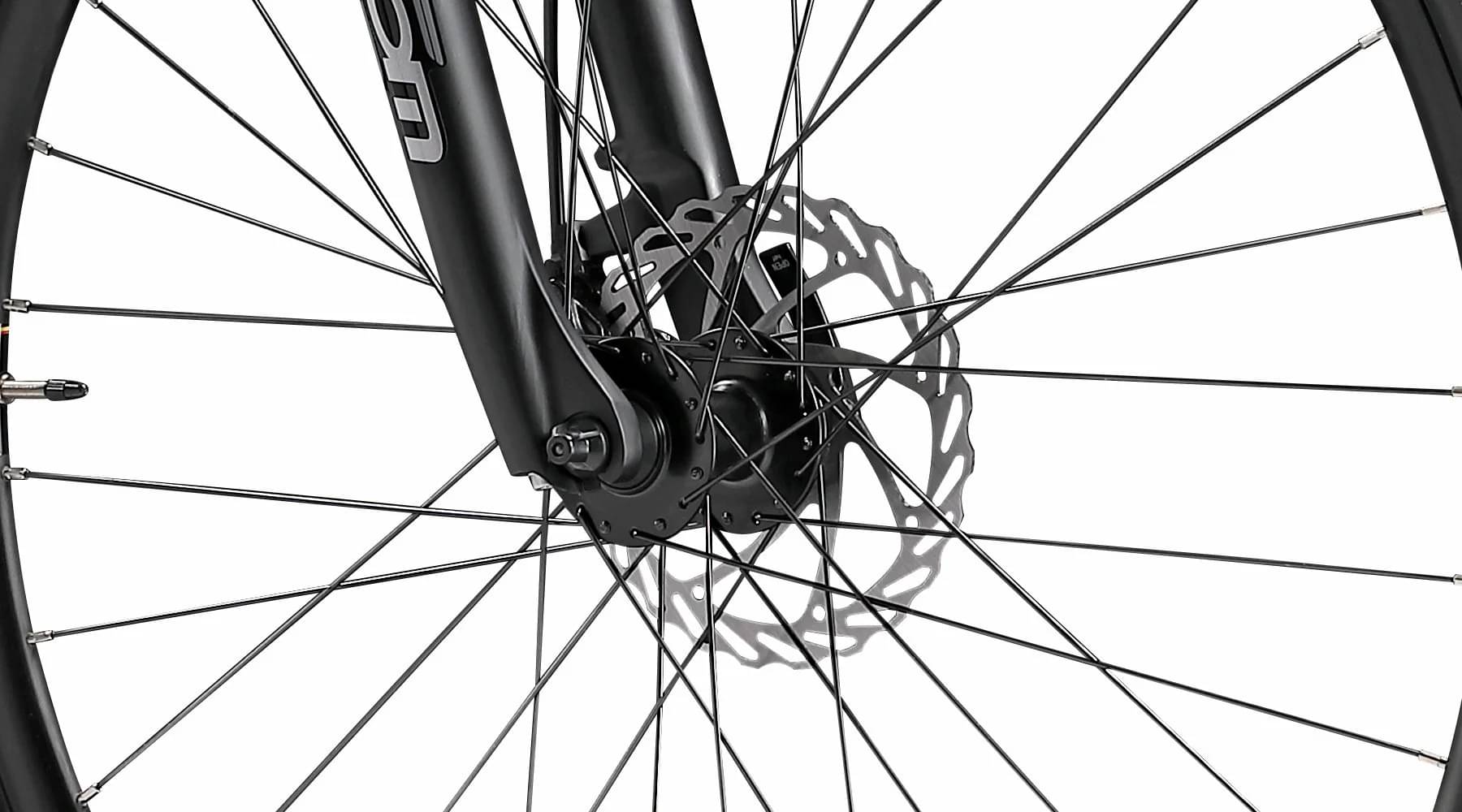

Front Hub
F; Alloy, 100x9mm QR, 6 Bolt, 32H
Rear Hub
F; Alloy, 100x9mm QR, 6 Bolt, 32H
Rims
F; Alexrims AT470 Double Wall
Tires
F; Kenda Kwick Drumlin, 700C x 40C

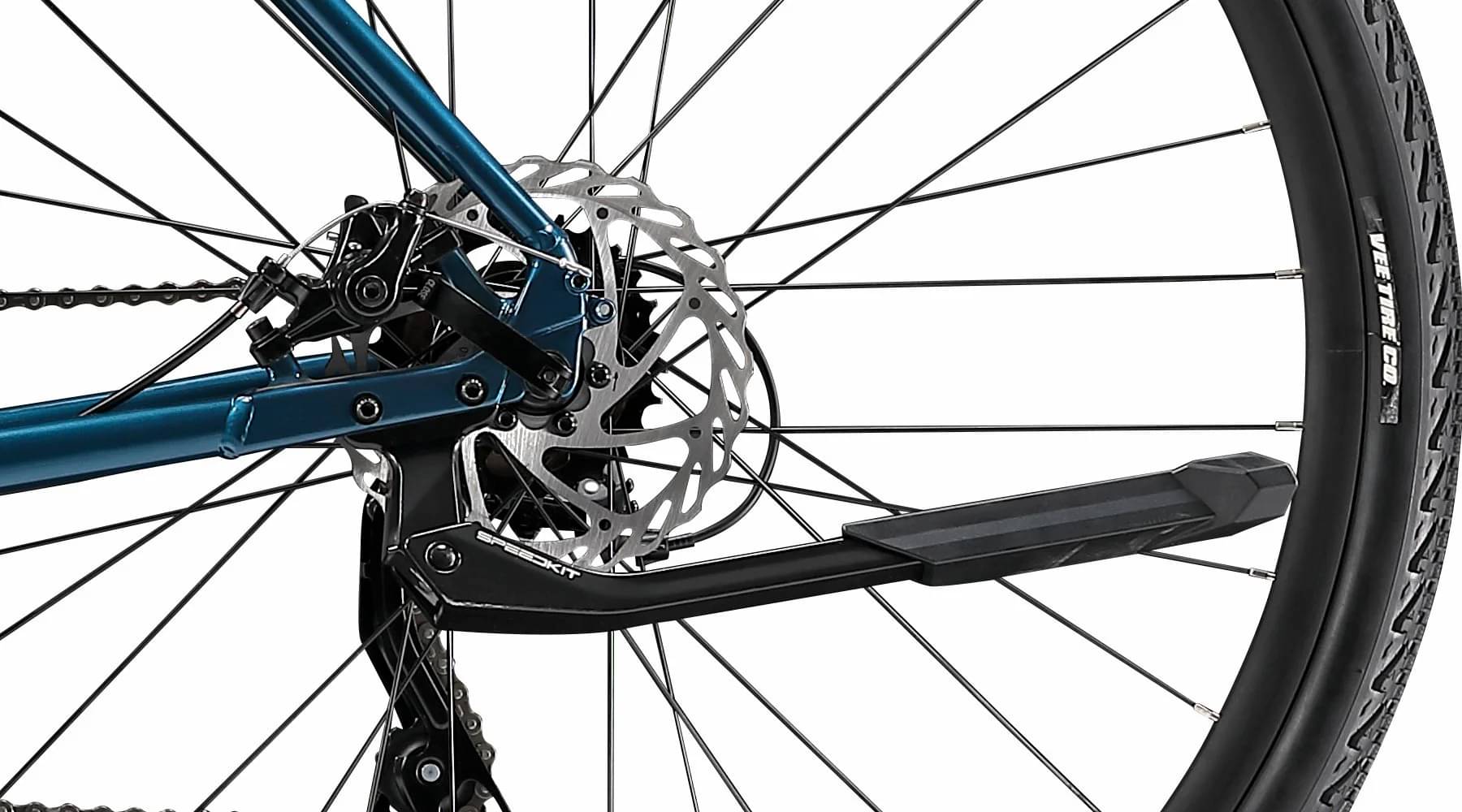

Brakes
Brakes
F; JAK-7 Mechanical Disc Brake
Cockpit
Stem
SURFACE Alloy

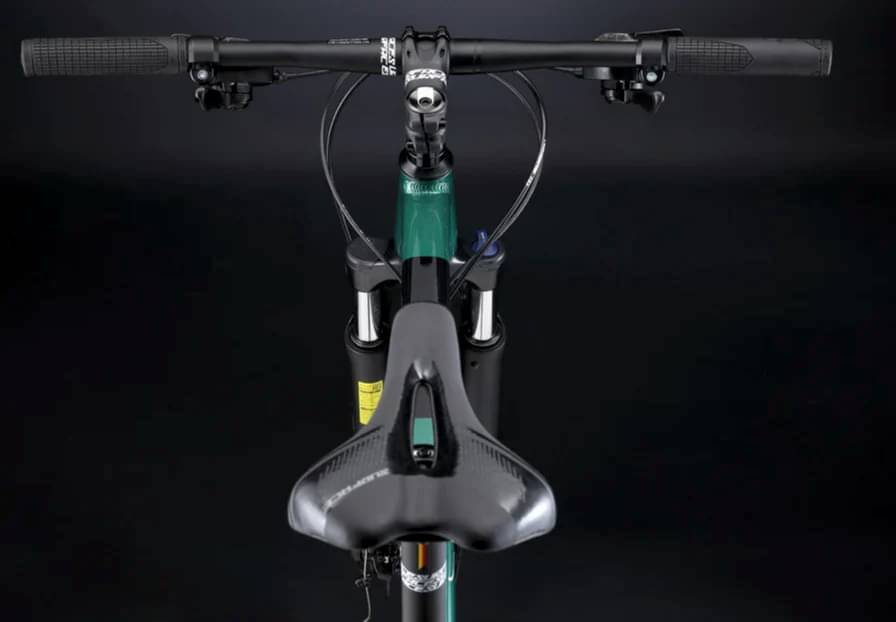

Handlebar
SURFACE Alloy, Dia:31.8mm, Backsweep:9°, Rise 5mm
Grips
SURFACE Push-on Grip
Headset
Integrated 1-1/8" to 1-1/2" Headset ZS44/28.6 ZS56/40
Seat
Saddle
SURFACE
Seatpost
SURFACE Aluminium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.535 mm | 1.468 mm | 1.469 mm | 1.515 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm |
| Stack | 594 mm | 596 mm | 617 mm | 647 mm |
| Reach | 387 mm | 406 mm | 420 mm | 427 mm |
| Top Tube Length | 550 mm | 570 mm | 590 mm | 605 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.6 ° | 74.6 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 150 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1054 mm | 1069 mm | 1085 mm | 1096 mm |
| Standover Height | 773 mm | 791 mm | 817 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 167 cm | 174 cm | 182 cm |
| Rider Max Height | 169 cm | 176 cm | 184 cm | 191 cm |
