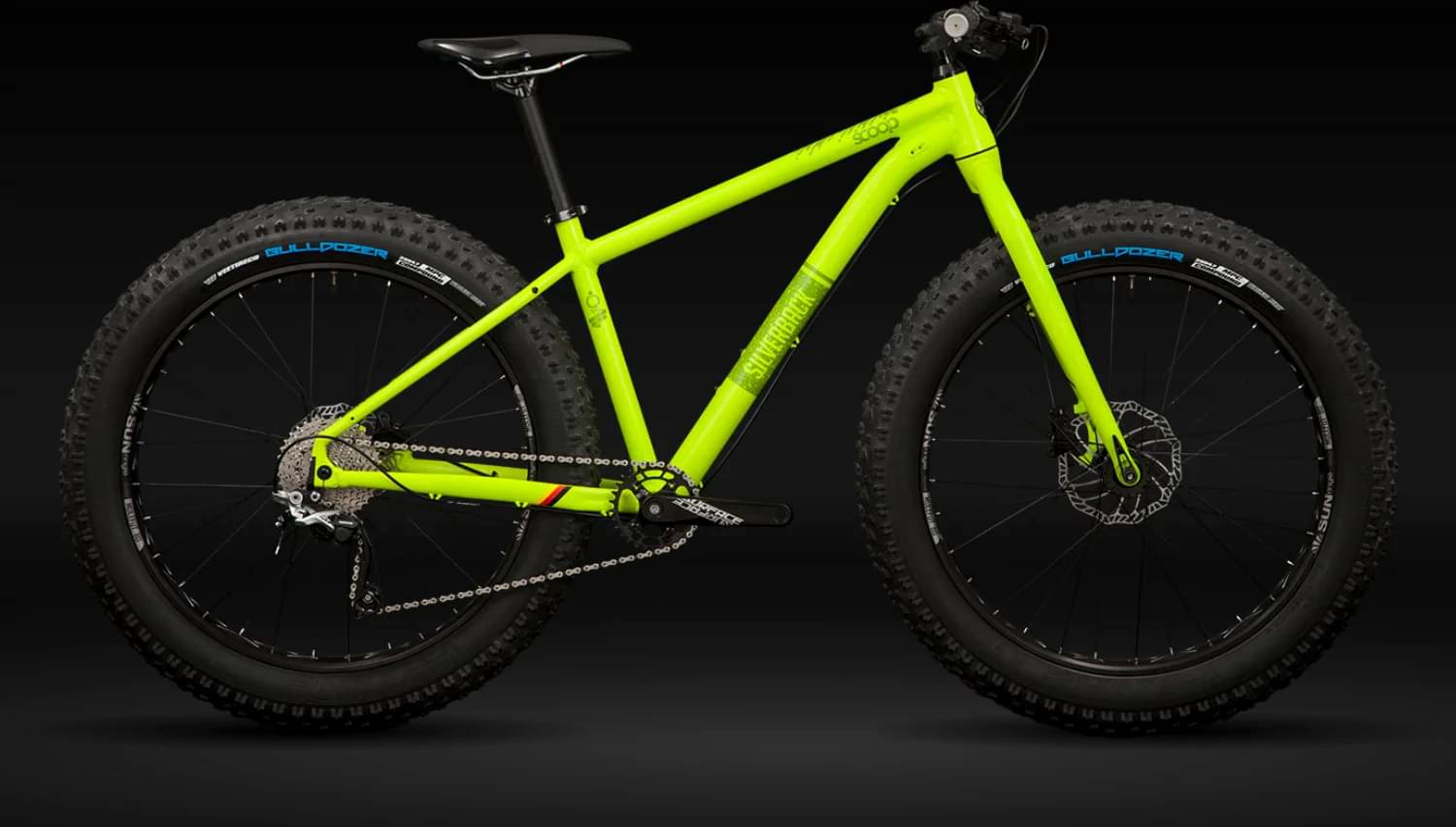

silverback SE-Series Fat Deluxe 2024
2024 Mountain
Estimate price |
1,162$
Weight | 15.24 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
169cm - 180cm
LG
178cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
26" Butted 6061 Aluminium, Tapered 1-1/8"-1.5" headtube, 197mm x 12mm Thru Axle Dropouts, 100mm BB width
Suspension Fork
SBC Alloy, 26" Rigid, 150x15mm Thru Axle
Drivetrain
Rear Derailleur
Shimano Deore RDM6000 10speed, Shadow Plus Long Cage
Front Derailleur
N/A
Shift Levers
Shimano Deore 10 Speed, Black
Cassette
Shimano HG-500-10 10 Speed 11-42t
Crank
Surface Forged Alloy Crankset, 28t chainring test1
Bottom Bracket
BSA120
Chain
KMC
Pedals
One Piece Alloy
Wheels
Front Hub
SUNRingle SRD TA, 15x150mm F / 12x197mm R
Rear Hub
SUNRingle SRD TA, 15x150mm F / 12x197mm R
Rims
SUNringle Mulefut 80SL, Tubeless Ready
Tires
VEE Tire Bulldozer 26x4.7", Foldable, Tubeless Ready, 120TPI
Brakes
Brakes
Tektro MD-M275 Hydraulic Disc
Cockpit
Stem
Surface Alloy Stem, 31.8mm, Rise 6°, with stainless steel bolts; 60mm
Handlebar
Surface Alloy Handlebar, Dia:31.8mm, Backsweep:9°, Rise 5mm; 720mm
Grips
Surface
Headset
Sealed Bearing ZS44/28.6 ZS56/40
Seat
Saddle
Surface Ergo, Cromo Rails
Seatpost
Surface Aluminium, Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.534 mm | 1.423 mm | 1.367 mm | 1.344 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 641 mm | 671 mm | 693 mm | 717 mm |
| Rake | 37 mm | 37 mm | 36 mm | 37 mm |
| Trail | 89 mm | 89 mm | 90 mm | 89 mm |
| Stack | 595 mm | 595 mm | 600 mm | 614 mm |
| Reach | 388 mm | 418 mm | 439 mm | 457 mm |
| Top Tube Length | 570 mm | 600 mm | 622 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1090 mm | 1120 mm | 1142 mm | 1166 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 762 mm | 778 mm | 802 mm | 832 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 169 cm | 178 cm | 187 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 200 cm |
