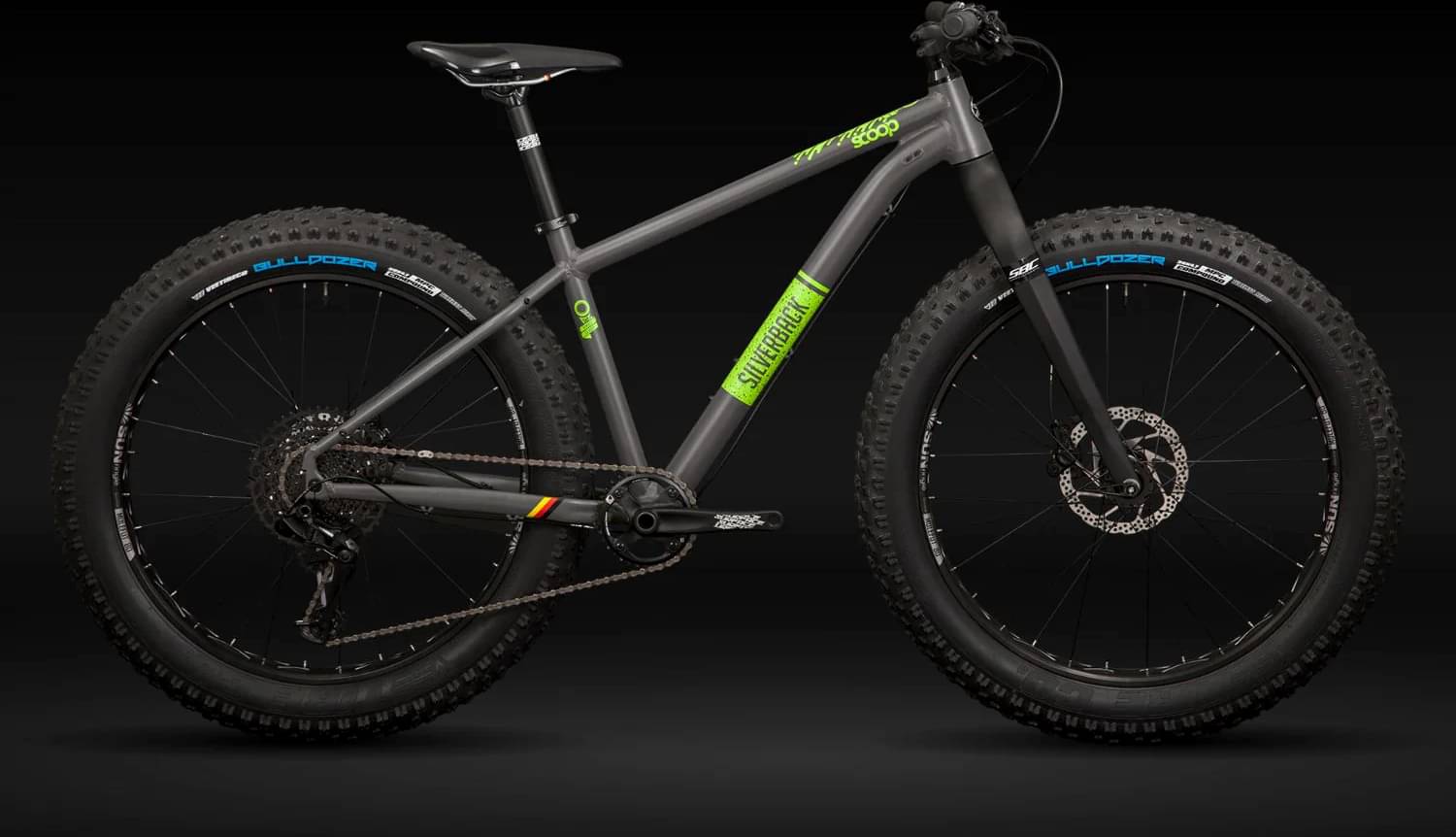

silverback SE-Series Fat Single 2024
2024 Mountain
Estimate price |
1,977$
Weight | 15.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
169cm - 180cm
LG
178cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Silverback SE-Series Fat 26" Butted 6061 Aluminium, Tapered 1-1/8"-1.5" Headtube, 197mmx12mm T/A Dropouts, 120mm BB width
Suspension Fork
SBC Fat Specific 26" Carbon Fork, Tapered, 15 x 150mm T/A
Drivetrain
Rear Derailleur
Shimano RD-M6100, Deore, Shadow Plus, SGS 12 Spd
Shift Levers
Shimano SL-M6100-R, Deore, Rapid Fire Plus, 12 Spd
Cassette
Sunrace CSMZ800 12spd, 11-51T
Crank
Surface forged alloy arms, 175mm all sizes, 34T Chain Ring
Bottom Bracket
BSA120
Chain
KMC X12 NBPK, 118 links
Pedals
VPE-506 Du Bearing Alloy
Wheels
Front Hub
F: SUNRingle SRC sealed hubs, 6 Bolt, Alloy, sealed Bearings, 15mm x 150mm
Rear Hub
F: SUNRingle SRC sealed hubs, 6 Bolt, Alloy, sealed Bearings, 15mm x 150mm
Rims
SUNRingle Mulefut 80 SL, 32 H, Tubeless Ready, 26"
Tires
VEE Rubber Bulldozer 26" x 4.7" MPC Tubeless
Brakes
Brakes
Shimano BL-M6100, Deore, Hydraulic Disc
Cockpit
Stem
Surface alloy, 31.8mm, 6 deg Rise, 60mm all sizes
Handlebar
Surface Alloy butted, 31.8mm, 720mm all sizes
Grips
Surface
Headset
Token Sealed headset, ACB 1-1/8" Upper, 1.5" Lower
Seat
Saddle
Surface Performance Comfort
Seatpost
Surface Dropper Post, 30.9mm, 125mm - S, 150mm - M/L/XL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.534 mm | 1.423 mm | 1.367 mm | 1.344 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 641 mm | 671 mm | 693 mm | 717 mm |
| Rake | 37 mm | 37 mm | 36 mm | 37 mm |
| Trail | 89 mm | 89 mm | 90 mm | 89 mm |
| Stack | 595 mm | 595 mm | 600 mm | 614 mm |
| Reach | 388 mm | 418 mm | 439 mm | 457 mm |
| Top Tube Length | 570 mm | 600 mm | 622 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1090 mm | 1120 mm | 1142 mm | 1166 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 762 mm | 778 mm | 802 mm | 832 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 169 cm | 178 cm | 187 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 200 cm |
