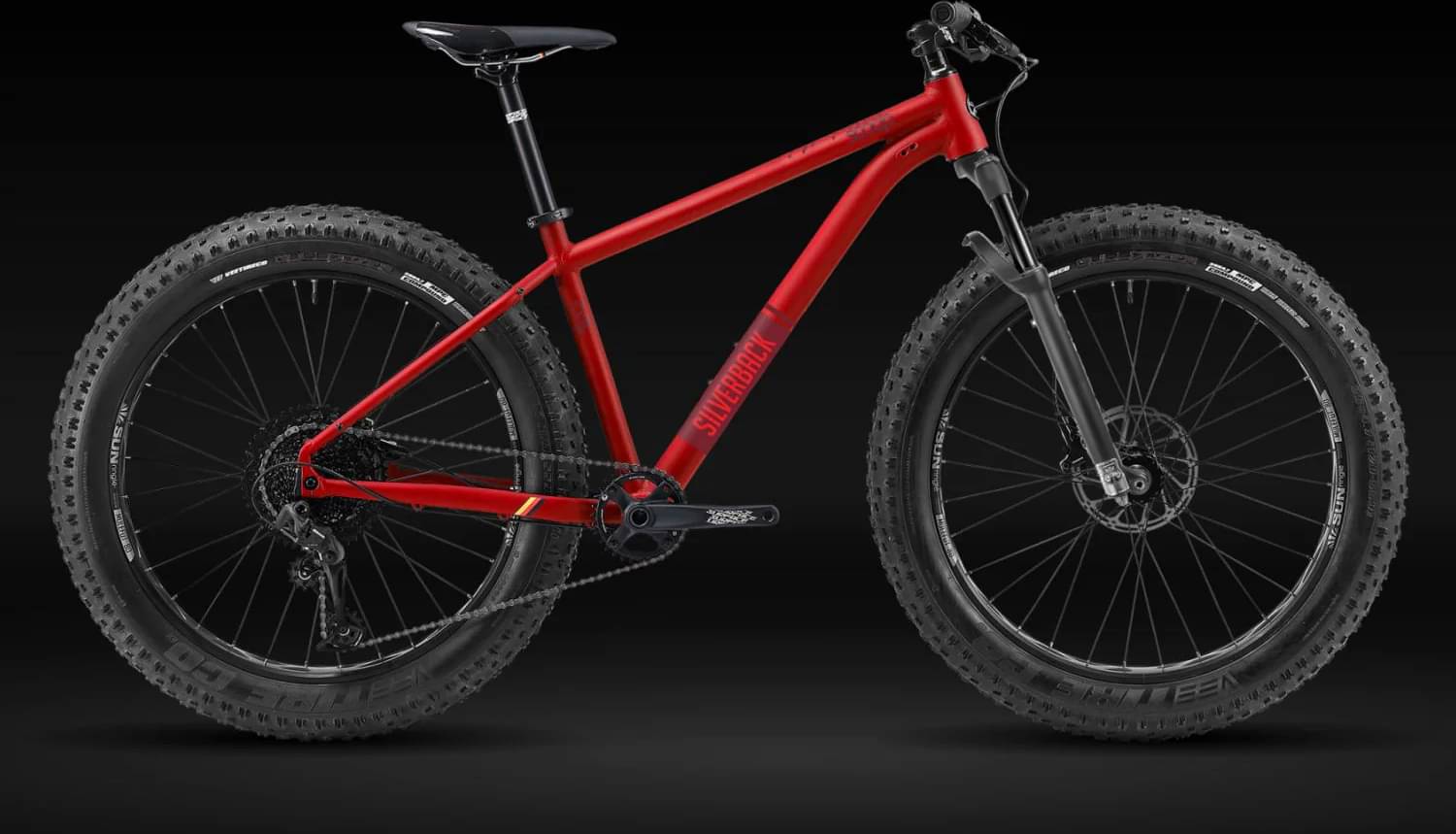

silverback SE-Series Fat SX 2025
2025 Mountain
Estimate price |
2,209$
Weight | 16.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Bluto RL
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
169cm - 180cm
LG
178cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Silverback SE:Series Fat 26" Butted 6061 Aluminium, Tapered 1-1/8"-1.5" headtube, 197mmx12mm T/A Dropouts, 120mm BB width
Suspension Fork
Rockshox Bluto Motion Control RL, 100mm, Solo Air, Crown adjust, 15x150mm MXL Lite, 51mm offset, tapered steerer
Drivetrain
Rear Derailleur
SRAM SX Eagle 12 Speed
Shift Levers
SRAM SX Eagle Trigger Shifter
Cassette
SRAM Eagle PG1210 11-50T
Crank
Surface forged alloy arms, 175mm all sizes, 32T Chain ring
Bottom Bracket
BSA120
Chain
SRAM SX Eagle
Pedals
VPE-506 Du Bearing Alloy
Wheels
Front Hub
F: SUNRingle SRC sealed hubs, 6 Bolt, Alloy, sealed Bearings, 15mm x 150mm
Rear Hub
F: SUNRingle SRC sealed hubs, 6 Bolt, Alloy, sealed Bearings, 15mm x 150mm
Rims
SUNRingle Mulefut 80 SL, 32 H, Tubeless Ready, 26"
Tires
VEE Rubber Bulldozer 26" x 4.7" MPC Tubeless
Brakes
Brakes
SRAM DB LVLT, Centerline F :180mm R : 160mm rotors
Cockpit
Stem
Surface alloy, 31.8mm, 6 deg Rise, 60mm all sizes
Handlebar
Surface Alloy butted, 31.8mm, 720mm all sizes
Grips
Surface
Headset
Token Sealed headset, ACB 1-1/8" Upper, 1.5" Lower
Seat
Saddle
Surface Performance Comfort
Seatpost
Surface Dropper Post, 30.9mm, 125mm - S, 150mm - M/L/XL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.534 mm | 1.423 mm | 1.367 mm | 1.344 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 641 mm | 671 mm | 693 mm | 717 mm |
| Rake | 37 mm | 37 mm | 36 mm | 37 mm |
| Trail | 89 mm | 89 mm | 90 mm | 89 mm |
| Stack | 595 mm | 595 mm | 600 mm | 614 mm |
| Reach | 388 mm | 418 mm | 439 mm | 457 mm |
| Top Tube Length | 570 mm | 600 mm | 622 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1090 mm | 1120 mm | 1142 mm | 1166 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 762 mm | 778 mm | 802 mm | 832 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 169 cm | 178 cm | 187 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 200 cm |
