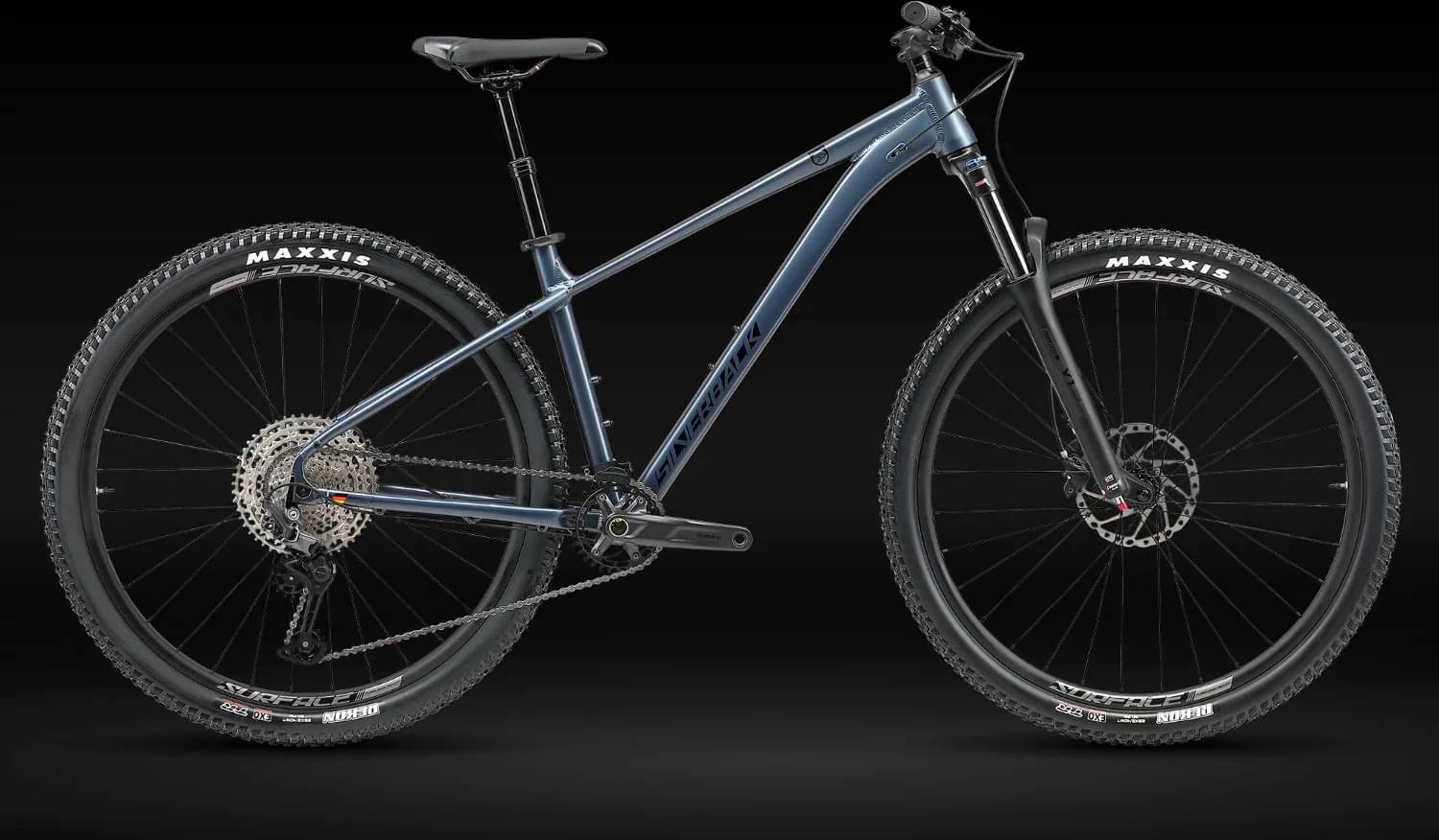

silverback SE:Series 12 2024
2024 Mountain
Estimate price |
1,007$
Weight | 16.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 120mm -
Travel Rear 18mm -
Fork Suntour X1
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 171cm
MD
169cm - 180cm
LG
178cm - 190cm
XL
185cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New Frame, Updated Geometry and Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger, 148mm x 12mm through axle dropouts, 18mm direct-mount 2-bolt kickstand, water bottle bosses, ISCG Tabs, 29" x 2.4" tyre clearance, rack and fender mounts
Suspension Fork
SR Suntour X1 Boost Air LOR DS, 120mm Travel, 32mm Black Stanchions, LOR Damper
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100, 12-Speed, Shadow Plus
Shift Levers
R: Shimano Deore RD-M6100-R, 12-Speed, Rapidfire Plus
Cassette
Shimano Deore CS-M6200, 12-Speed, Hyperglide+, 11-51T
Crank
Shimano Deore FC-MT512-1, 12-Speed, 170mm, 32T
Bottom Bracket
BSA73
Chain
Shimano Deore CN-M6100, 12-Speed
Pedals
One Piece Alloy Pedal, Black
Wheels
Front Hub
F: Shimano HB-TC500-15-B, Centre Lock Disc, 32H, 15mm Thru-Axle, OLD: 110mm
Rear Hub
F: Shimano HB-TC500-15-B, Centre Lock Disc, 32H, 15mm Thru-Axle, OLD: 110mm
Rims
F: Surface Alloy, 32H, 29" x 25mm, Asymmetrical, Tubeless Ready
Tires
F: Maxxis Rekon, 29x2.4" Wire Bead, EXO/TR
Brakes
Brakes
Shimano MT200 2-piston Hydraulic Disc, Resin Pads
Cockpit
Stem
Surface, Alloy, Ø31.8mm, 60mm Extension, ±6° Rise
Handlebar
Surface, Alloy, Ø31,8mm, 740~780mm wide, 9° Backsweep, 12mm Rise
Grips
Surface Double Density
Headset
Semi-Integrated Threadless Headset, ZS44/28.6, ZS56/39.8
Seat
Saddle
Surface
Seatpost
Surface Dropper, 100/130mm Travel, Ø30.9mm, w/alloy lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.492 mm | 1.427 mm | 1.381 mm | 1.325 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 719 mm | 747 mm | 779 mm | 815 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 106 mm | 106 mm | 106 mm | 106 mm |
| Stack | 619 mm | 628 mm | 642 mm | 656 mm |
| Reach | 415 mm | 440 mm | 465 mm | 495 mm |
| Top Tube Length | 581 mm | 608 mm | 637 mm | 671 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 390 mm | 420 mm | 455 mm | 490 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1158 mm | 1187 mm | 1219 mm | 1255 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 742 mm | 741 mm | 741 mm | 740 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 169 cm | 178 cm | 185 cm |
| Rider Max Height | 171 cm | 180 cm | 190 cm | 210 cm |
