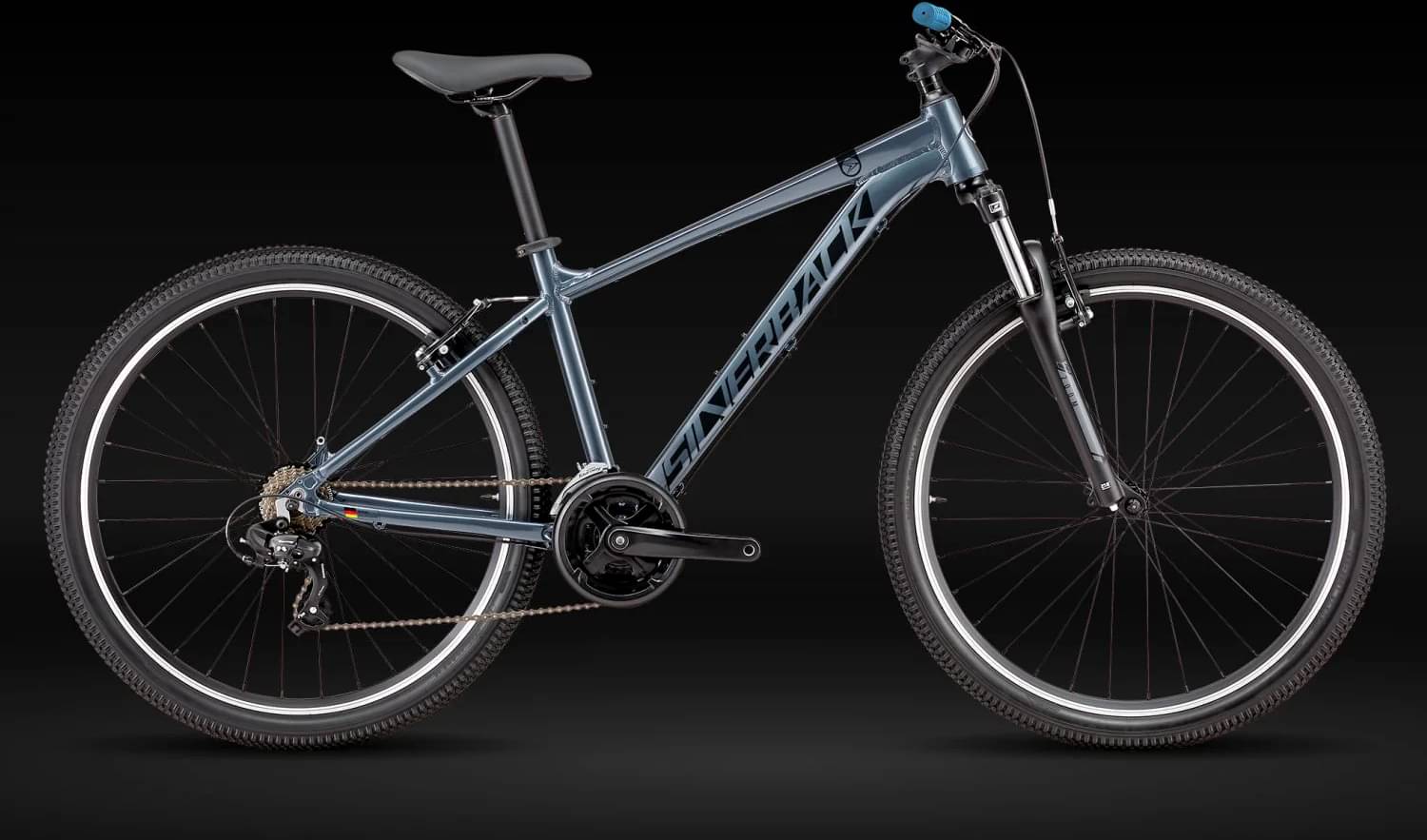

silverback SE:SeriesTM 275V 2025
2025 Mountain
Estimate price |
336$
Weight | 16.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Zoom
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
XS
143cm - 156cm
SM
153cm - 171cm
MD
169cm - 180cm
LG
178cm - 190cm
XL
188cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Updated Geometry and Hydroformed tubing, Tapered headtube, 6061 Alloy, full length cable routing, replaceable derailleur hanger, integrated mount for 40mm direct-mount 2-bolt kickstand
Suspension Fork
Zoom 565D AMS, Coil, 100m Travel, Preload Adjuster
Drivetrain
Rear Derailleur
Shimano RD-TY300 Rear Derailleur, 6/7-speed
Front Derailleur
Shimano FD-TY600-L6 Tournet Front Derailleur, Top-Swing
Shift Levers
L: Shimano SL-M315-L Altus Shift Lever, 3-speed
Cassette
Shimano MF-TZ500-7 Sprocket, 14-28T, 7 Speed
Crank
Surface, 42x34x24T, 7-Speed
Bottom Bracket
BSA73
Chain
PYC 7-speed
Pedals
One Piece PP, Black
Wheels
Front Hub
F: Joytech Alloy, 32H, 100mm OLD, 115mm QR,V-brake
Rear Hub
F: Joytech Alloy, 32H, 100mm OLD, 115mm QR,V-brake
Rims
F: Surface Alloy, 32H, 27.5" x 25mm, Symmetrical, Tubeless Ready
Tires
F: Wanda P1226D, 27.5x2.10"; Wire Bead
Brakes
Brakes
Alloy, V-brakes
Cockpit
Stem
Surface, Alloy, Ø31.8mm, ±3° Rise, 45mm Extension
Handlebar
Surface, Alloy, Ø31.8mm, 680mm, 9° Backsweep, 30mm Rise
Grips
Surface Single Density, 120mm
Headset
Semi-Integrated Threadless Headset, ZS44/28.6, ZS56/30
Seat
Saddle
Surface
Seatpost
Surface Alloy, Ø30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.514 mm | 1.458 mm | 1.384 mm | 1.333 mm | 1.312 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 660 mm | 675 mm | 697 mm | 719 mm | 753 mm |
| Rake | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Trail | 106 mm | 106 mm | 106 mm | 106 mm | 106 mm |
| Stack | 595 mm | 595 mm | 595 mm | 600 mm | 623 mm |
| Reach | 393 mm | 408 mm | 430 mm | 450 mm | 475 mm |
| Top Tube Length | 564 mm | 579 mm | 601 mm | 622 mm | 654 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 350 mm | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 115 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1103 mm | 1118 mm | 1140 mm | 1162 mm | 1196 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 686 mm | 705 mm | 730 mm | 757 mm | 790 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 143 cm | 153 cm | 169 cm | 178 cm | 188 cm |
| Rider Max Height | 156 cm | 171 cm | 180 cm | 190 cm | 210 cm |
