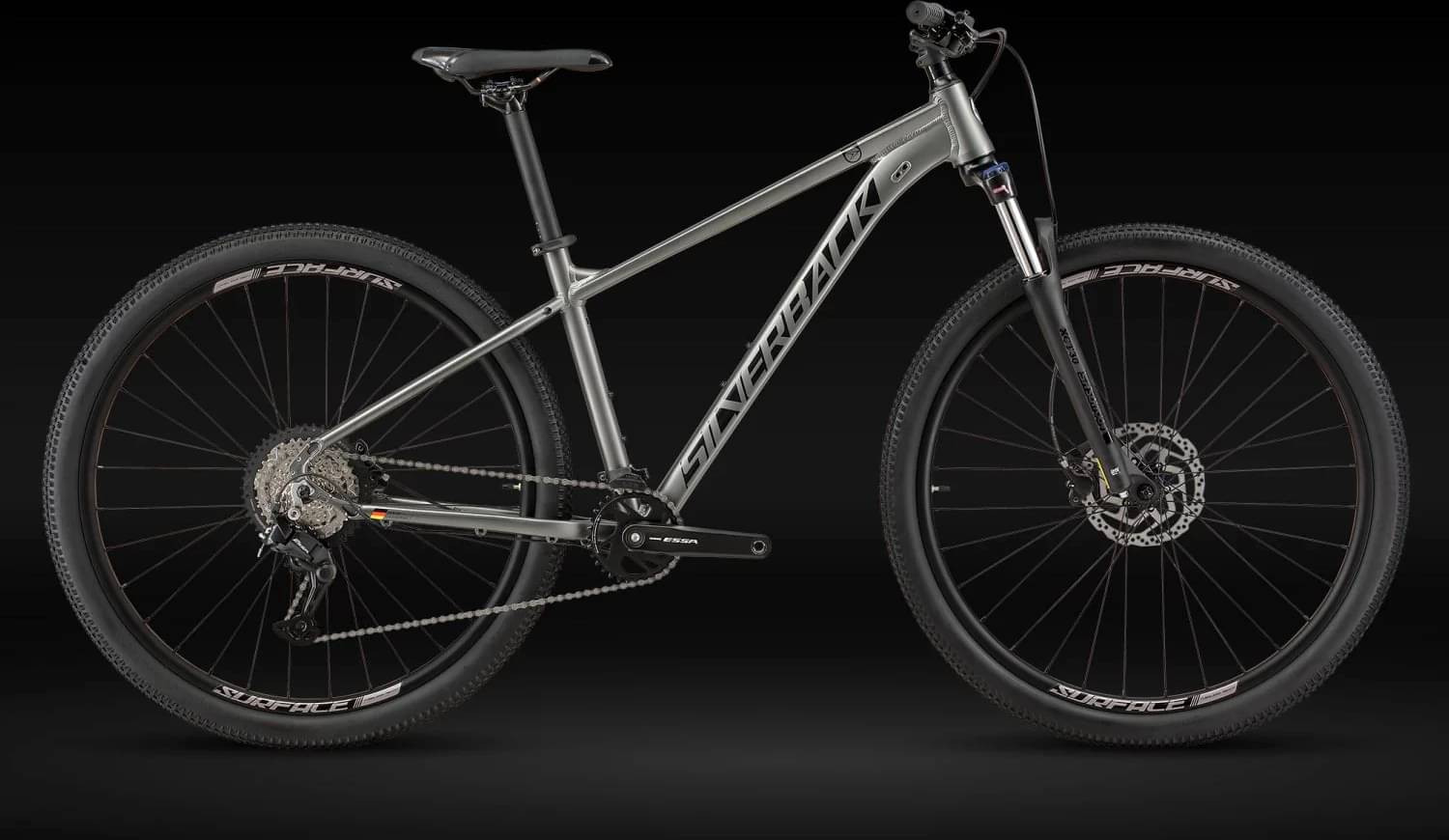

silverback SE:SeriesTM 8 2025
2025 Mountain
Estimate price |
565$
Weight | 15.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Travel Rear 40mm -
Fork Suntour XCT
-
Groupset Altus -
Suspension Full -
Drivetrain 1 × 8 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
143cm - 156cm
XS
143cm - 156cm
SM
153cm - 171cm
SM
153cm - 171cm
MD
169cm - 180cm
MD
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger, integrated 40mm direct-mount 2-bolt kickstand mounts, water bottle bosses, 135mm x 10mm QR rear hub spacing, 27.5 & 29" x 2.35" tyre clearance, rack and fender mounts.
Suspension Fork
SR Suntour XCT30 Coil, 29" x 2.25", 100mm Travel, Hydraulic Lockout with Preload Adjuster
Drivetrain
Rear Derailleur
Shimano RD-U2000 Essa, 8-Speed, Top normal, Shadow Design, Direct Attachment
Shift Levers
R: Shimano SL-M315-8R Altus Shift Lever, 8-Speed
Cassette
Shimano CS-GH400-8 Cassette, 11-45T, 8-Speed
Crank
Shimano FC-U2000-1 Essa, 32T, 7/8-Speed
Bottom Bracket
BSA73
Chain
Shimano CN-HG40
Pedals
One Piece Alloy Pedal, Black
Wheels
Front Hub
F: Shimano HB-QC300 Front Hub, QR, 32H, 100mm OLD, Centre Lock
Rear Hub
F: Shimano HB-QC300 Front Hub, QR, 32H, 100mm OLD, Centre Lock
Rims
F: Surface Alloy, 32H, 29" x 25mm, Symmetrical, Tubeless Ready
Tires
F: CST 1820, 29x2.10"; Wire Bead
Brakes
Brakes
Shimano MT200 2-piston Hydraulic Disc, Resin Pads
Cockpit
Stem
Surface, Alloy, Ø31.8mm, ±6° Rise, 45mm Extension
Handlebar
Surface, Alloy, Ø31,8mm, 720~760mm, 9° Backsweep, 30mm Rise
Grips
Surface Single Density
Headset
Semi-Integrated Threadless Headset, ZS44/28.6, ZS56/39.8
Seat
Saddle
Surface
Seatpost
Surface Alloy, Ø30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.522 mm | 1.522 mm | 1.459 mm | 1.459 mm | 1.412 mm | 1.412 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 666 mm | 669 mm | 683 mm | 685 mm | 707 mm | 709 mm |
| Rake | 39 mm | 48 mm | 39 mm | 48 mm | 40 mm | 48 mm |
| Trail | 102 mm | 100 mm | 102 mm | 100 mm | 100 mm | 100 mm |
| Stack | 598 mm | 598 mm | 598 mm | 598 mm | 607 mm | 607 mm |
| Reach | 393 mm | 393 mm | 410 mm | 410 mm | 430 mm | 430 mm |
| Top Tube Length | 565 mm | 565 mm | 582 mm | 582 mm | 604 mm | 604 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 350 mm | 350 mm | 380 mm | 380 mm | 420 mm | 420 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | 105 mm | 105 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1109 mm | 1109 mm | 1126 mm | 1126 mm | 1150 mm | 1150 mm |
| Bottom Bracket Drop | 30 mm | 49 mm | 30 mm | 49 mm | 30 mm | 49 mm |
| Standover Height | 711 mm | 711 mm | 706 mm | 706 mm | 735 mm | 735 mm |
| Wheels | 27" | 29" | 27" | 29" | 27" | 29" |
| Rider Min Height | 143 cm | 143 cm | 153 cm | 153 cm | 169 cm | 169 cm |
| Rider Max Height | 156 cm | 156 cm | 171 cm | 171 cm | 180 cm | 180 cm |
