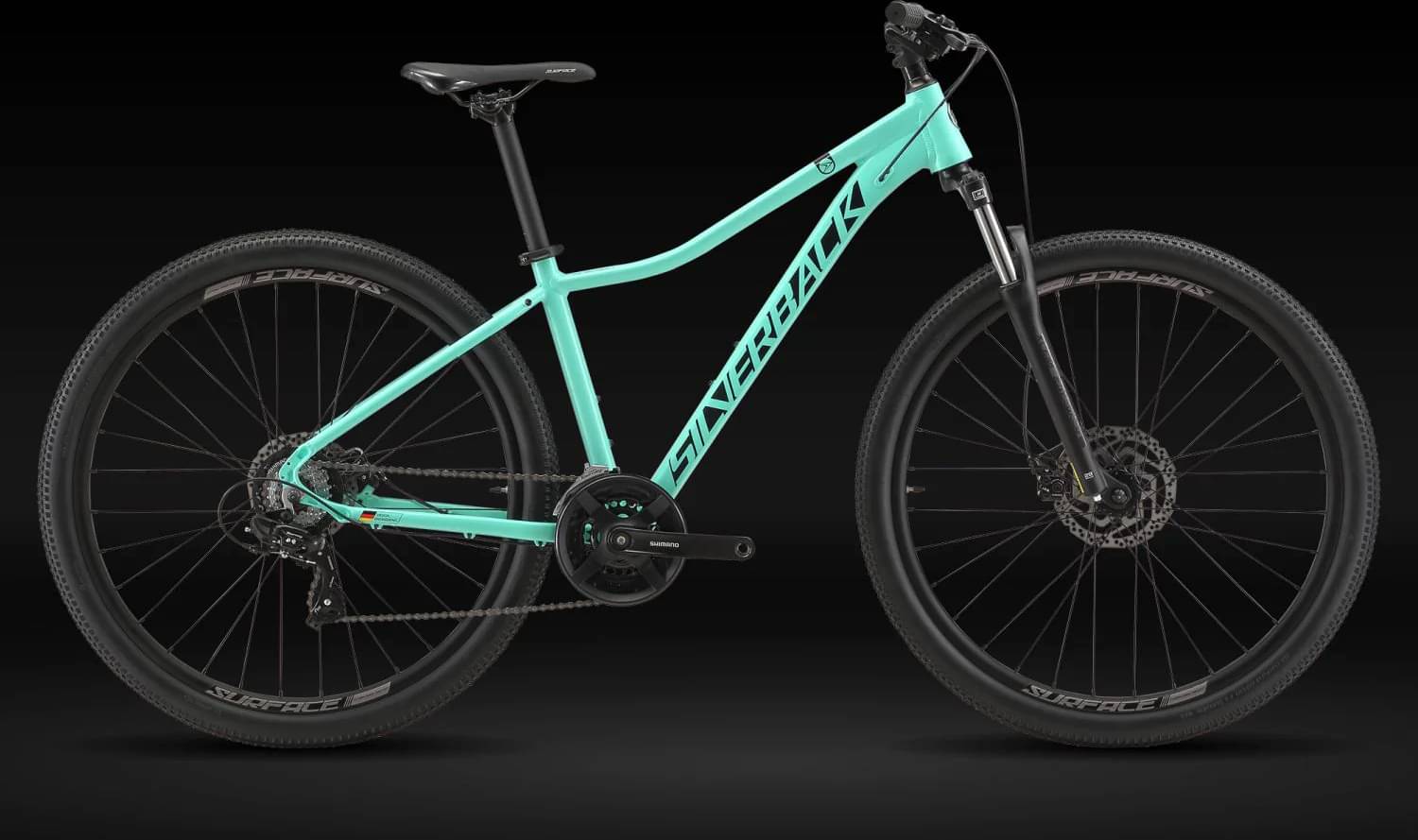

silverback SE:SeriesTM 8 L 2025
2025 Mountain
Estimate price |
565$
Weight | 15.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Travel Rear 40mm -
Fork Suntour XCT
-
Groupset Altus -
Suspension Full -
Drivetrain 1 × 8 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
134cm - 147cm
XS
134cm - 147cm
SM
145cm - 159cm
SM
145cm - 159cm
MD
157cm - 170cm
MD
157cm - 170cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger, integrated 40mm direct-mount 2-bolt kickstand mounts, water bottle bosses, 135mm x 10mm QR rear hub spacing, 27.5 & 29" x 2.25" tyre clearance, rack and fender mounts.
Suspension Fork
SR Suntour XCT30 Coil, 100mm Travel, Hydraulic Lockout with Preload Adjuster
Drivetrain
Rear Derailleur
Shimano Essa RD-U2000, 8-Speed, Top normal, Shadow Design, Direct Attachment
Shift Levers
R: Shimano Altus SL-M315-8R, 8-Speed
Cassette
Shimano CS-GH400-8 Cassette, 11-45T, 8-Speed
Crank
Shimano Essa FC-U2000-1, 32T, 7/8-Speed
Bottom Bracket
BSA73
Chain
Shimano CN-HG40, 8-Speed
Pedals
One Piece Alloy Pedal, Black
Wheels
Front Hub
F: Shimano HB-QC300, Centre Lock Disc, QR, 100mm OLD
Rear Hub
F: Shimano HB-QC300, Centre Lock Disc, QR, 100mm OLD
Rims
F: Surface Alloy, 32H, 29" x 25mm, Symmetrical, Tubeless Ready
Tires
F: CST 1820, 29x2.10", Wire Bead
Brakes
Brakes
Shimano MT200 2-piston Hydraulic Disc, Resin Pads
Cockpit
Stem
Surface, Alloy, Ø31.8mm, ±3° Rise, 45mm Extension
Handlebar
Surface, Alloy, Ø31,8mm, 700~740mm, 9° Backsweep, 30mm Rise
Grips
Surface Single Density
Headset
Semi-Integrated Threadless Headset, ZS44/28.6, ZS56/39.8
Seat
Saddle
Surface Ladies-specific
Seatpost
Surface Alloy, Ø30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.506 mm | 1.506 mm | 1.454 mm | 1.454 mm | 1.409 mm | 1.409 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 649 mm | 653 mm | 673 mm | 677 mm | 697 mm | 701 mm |
| Rake | 44 mm | 54 mm | 45 mm | 54 mm | 45 mm | 54 mm |
| Trail | 96 mm | 93 mm | 95 mm | 93 mm | 95 mm | 93 mm |
| Stack | 580 mm | 580 mm | 589 mm | 589 mm | 599 mm | 599 mm |
| Reach | 385 mm | 385 mm | 405 mm | 405 mm | 425 mm | 425 mm |
| Top Tube Length | 551 mm | 551 mm | 574 mm | 574 mm | 597 mm | 597 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 340 mm | 340 mm | 370 mm | 370 mm | 410 mm | 410 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1089 mm | 1089 mm | 1113 mm | 1113 mm | 1137 mm | 1137 mm |
| Bottom Bracket Drop | 50 mm | 69 mm | 50 mm | 69 mm | 50 mm | 69 mm |
| Standover Height | 654 mm | 654 mm | 671 mm | 671 mm | 700 | 700 |
| Wheels | 27" | 29" | 27" | 29" | 27" | 29" |
| Rider Min Height | 134 cm | 134 cm | 145 cm | 145 cm | 157 cm | 157 cm |
| Rider Max Height | 147 cm | 147 cm | 159 cm | 159 cm | 170 cm | 170 cm |
