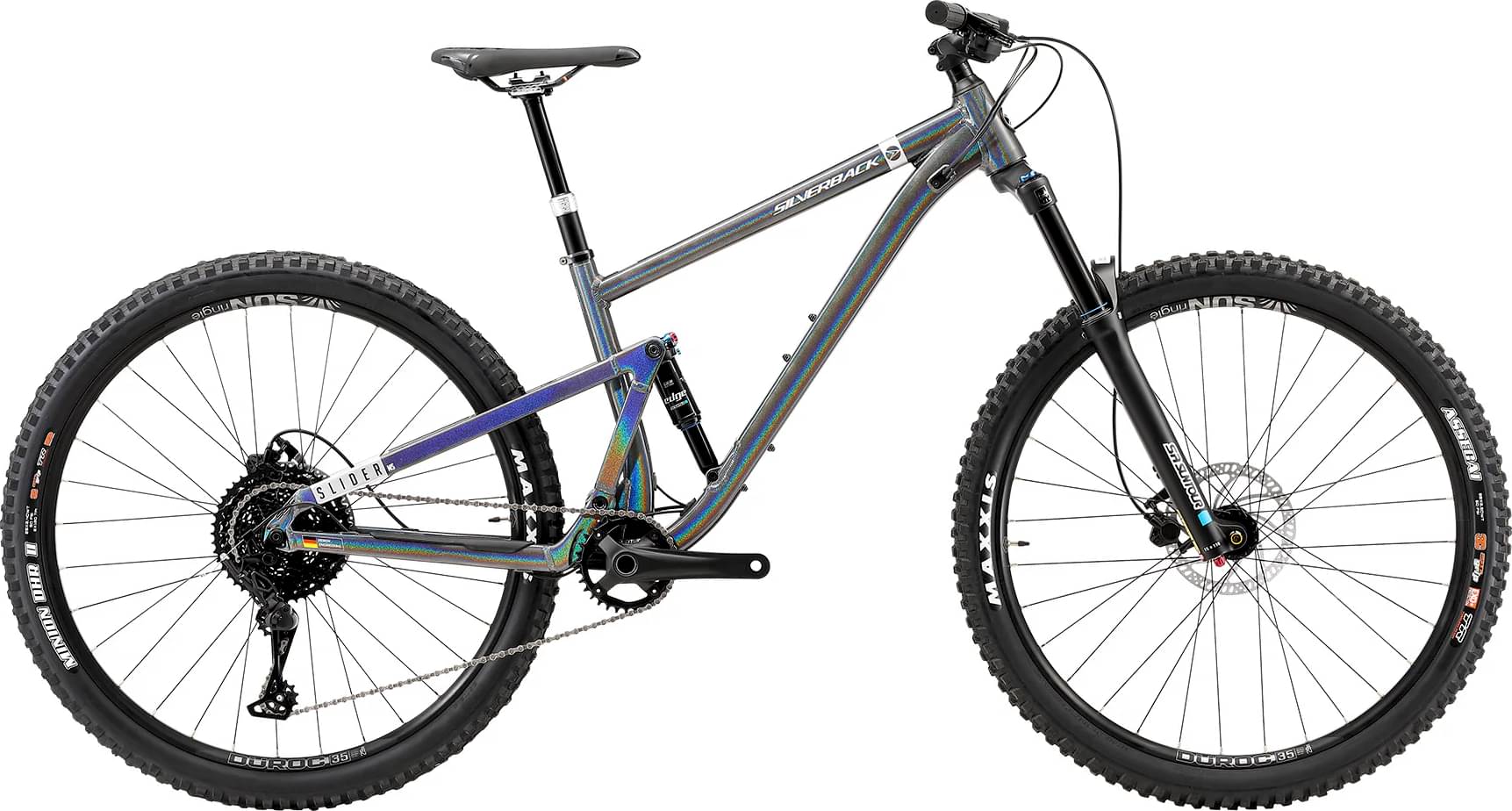

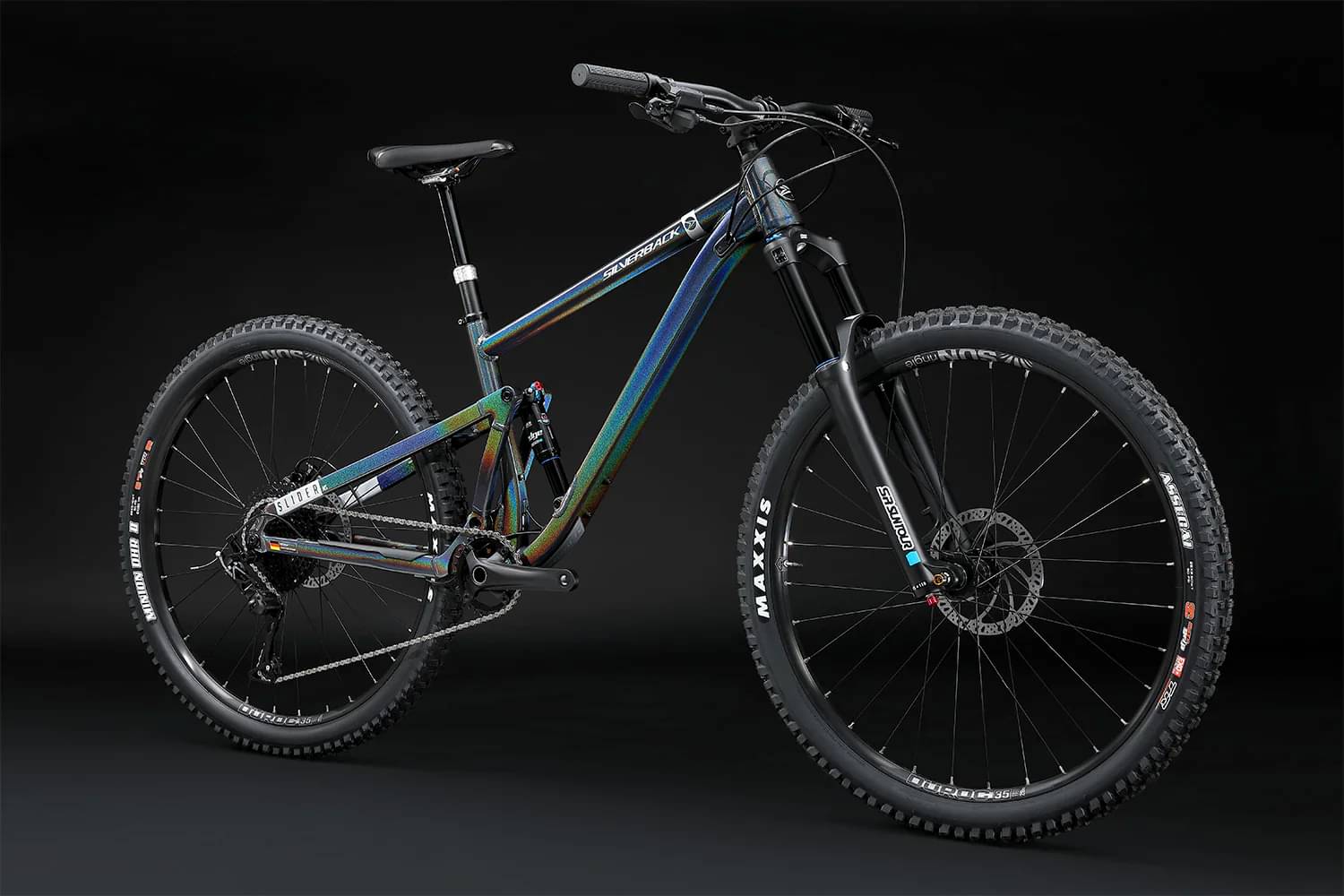

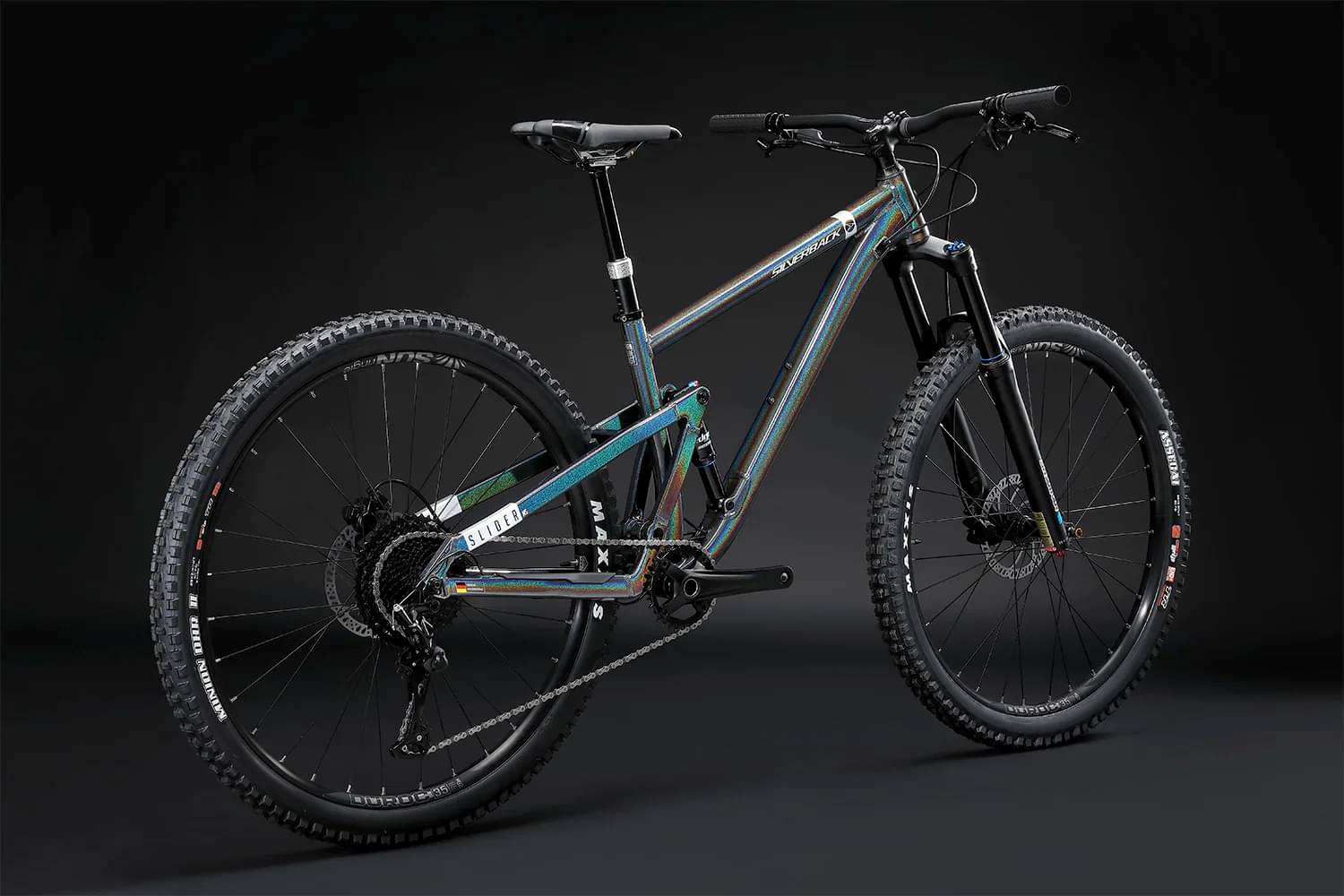

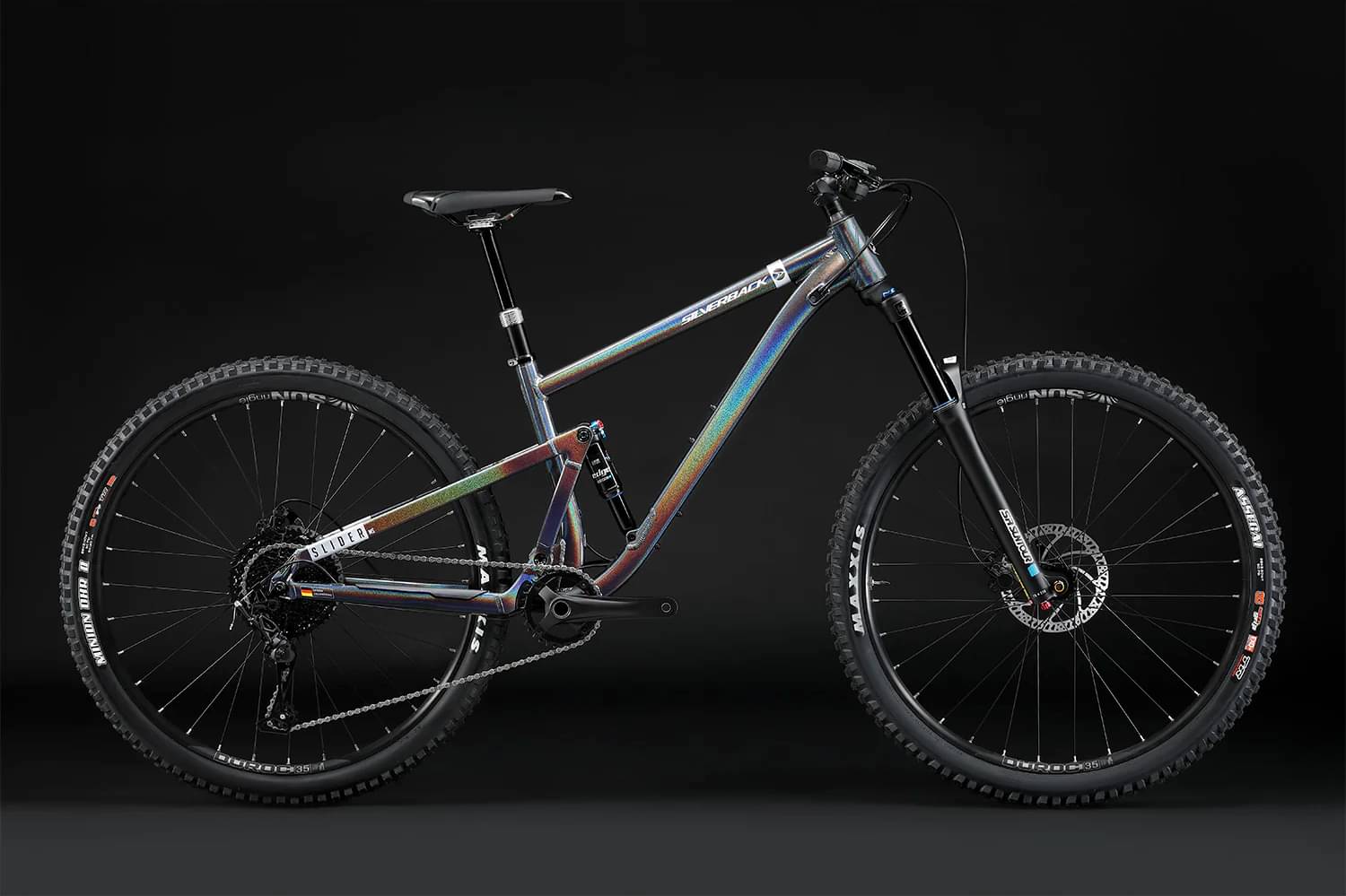

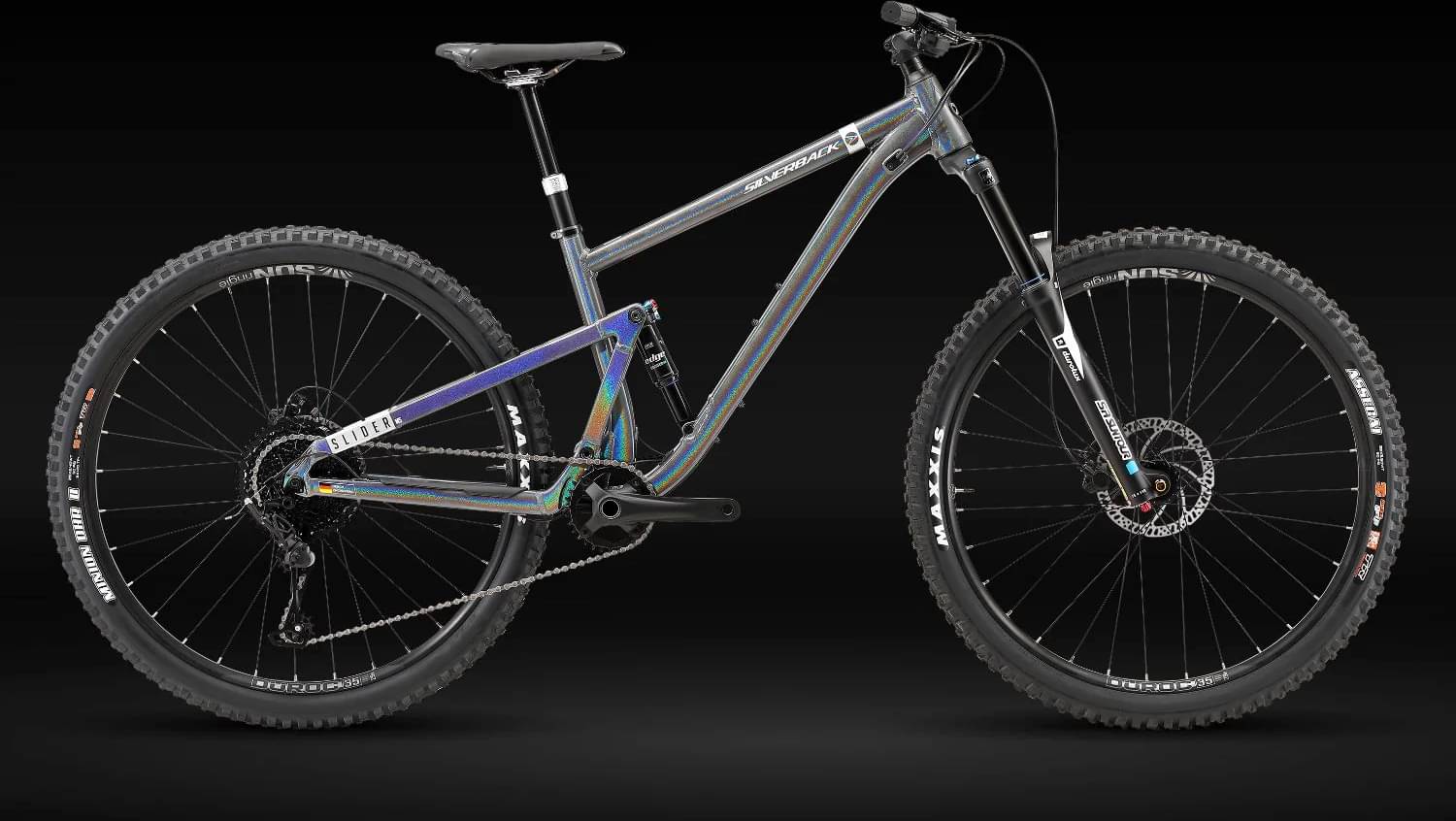

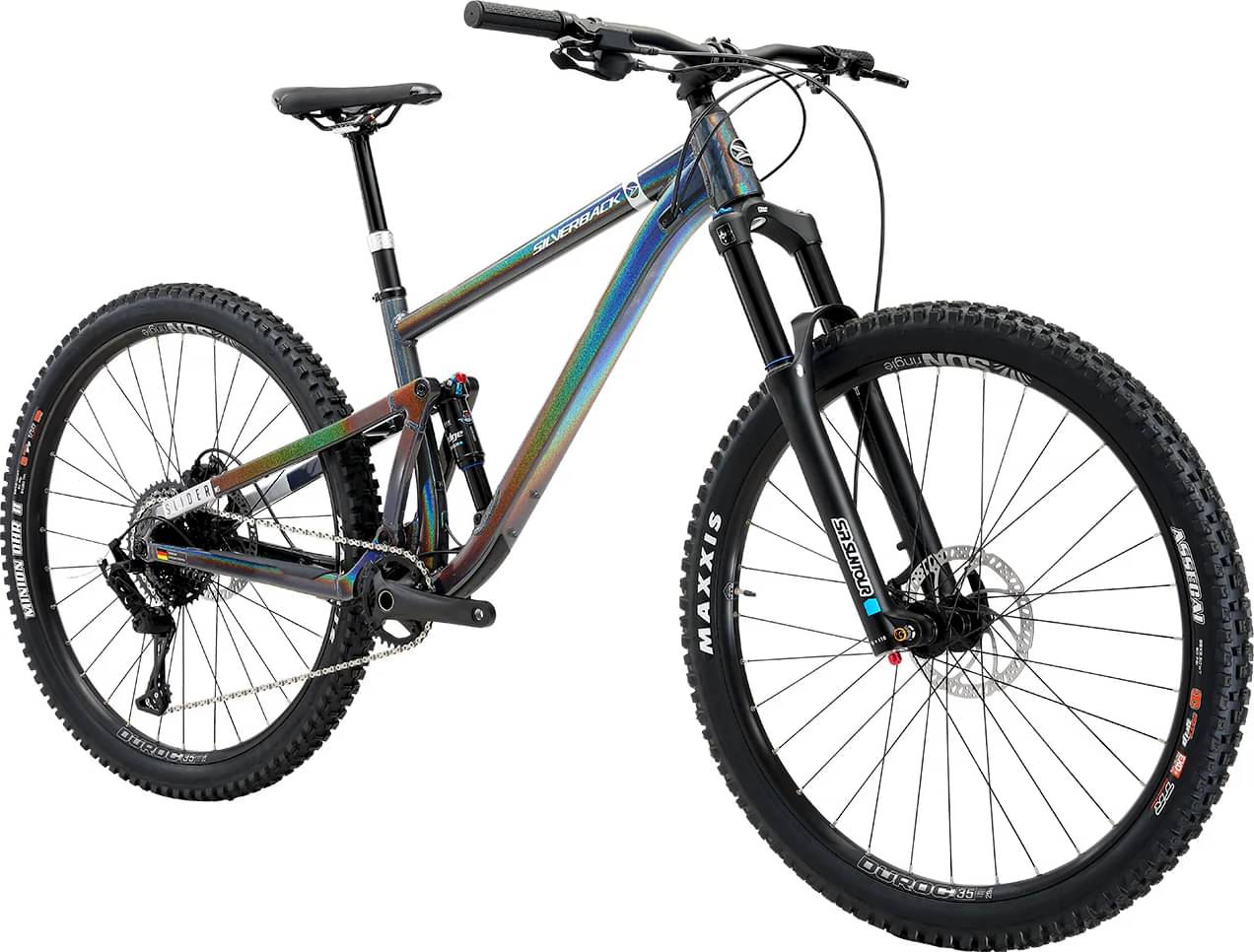

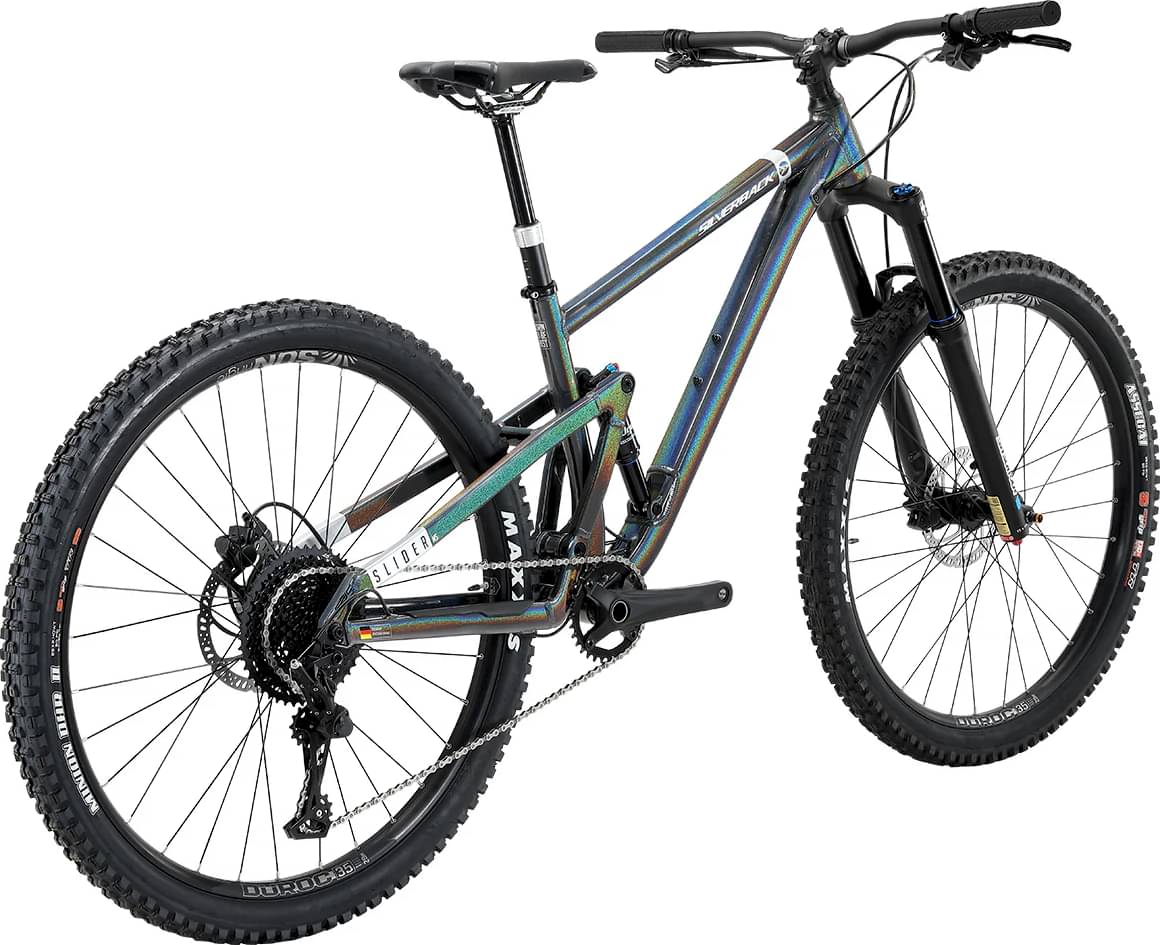

silverback Slider MS 2024
2024 Mountain
Estimate price |
3,373$
Weight | 17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 150mm -
Fork Suntour DUROLUX
-
Groupset microSHIFT XLE, microSHIFT Advent -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 171cm
MD
169cm - 181cm
LG
179cm - 190cm
XL
188cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components

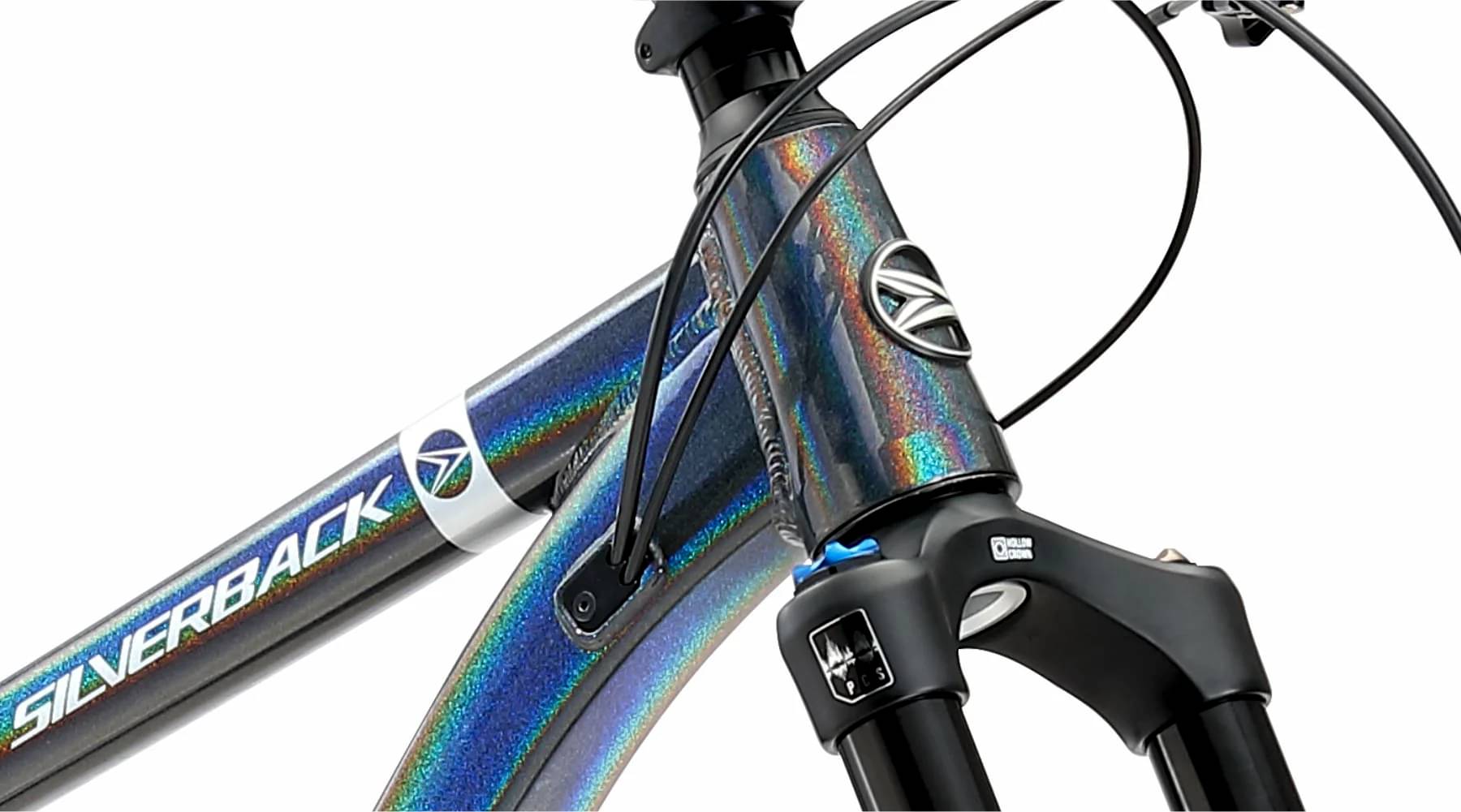

Frame
Frame
Alloy Trail/Enduro Frame. True single pivot design, 150mm Rear Travel. BSA Bottom Bracket. Boost 148mm

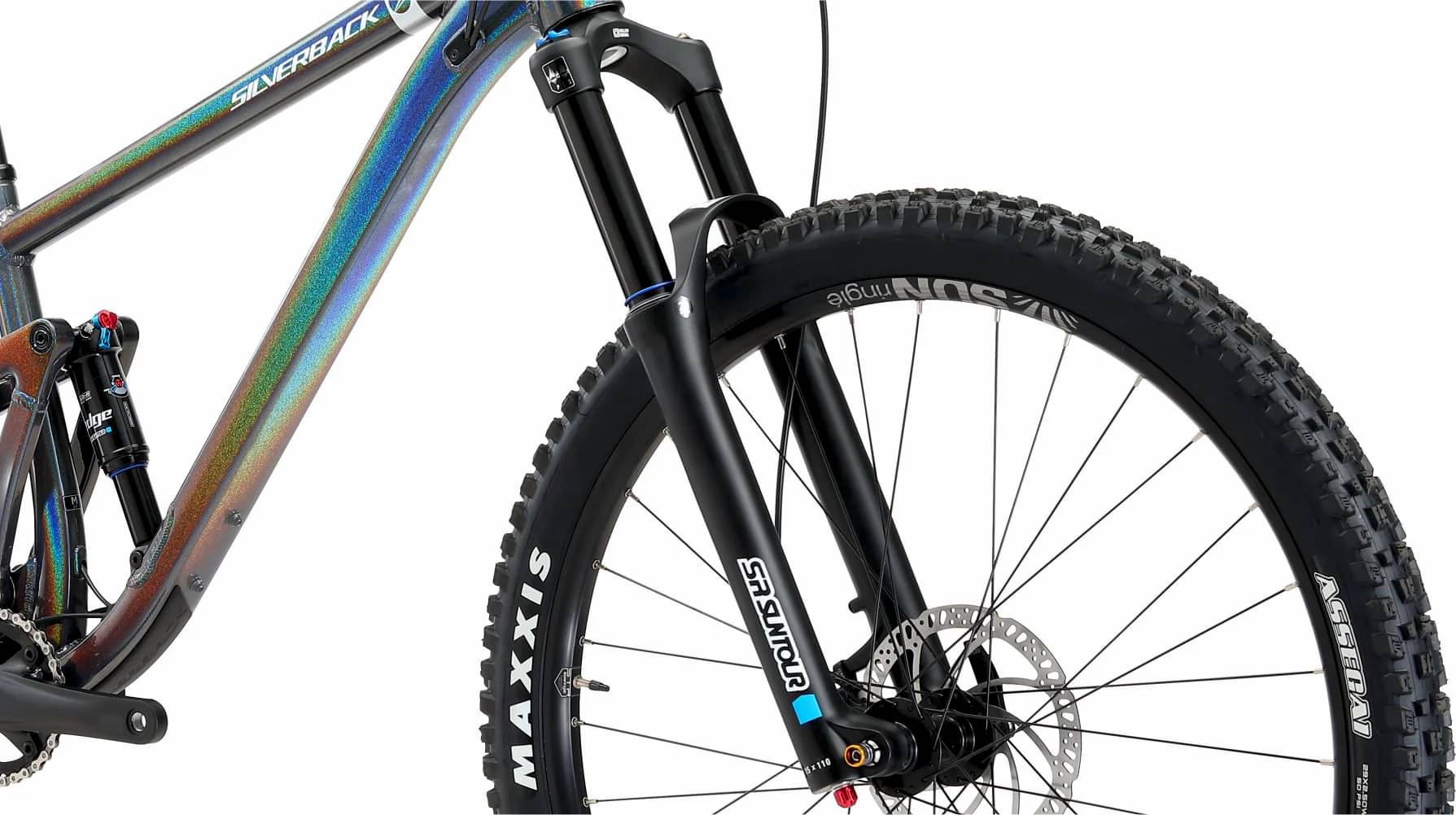

Suspension Fork
SR Suntour Durolux 36, 150mm Travel, Black Stanchions, Boost, 29", Air

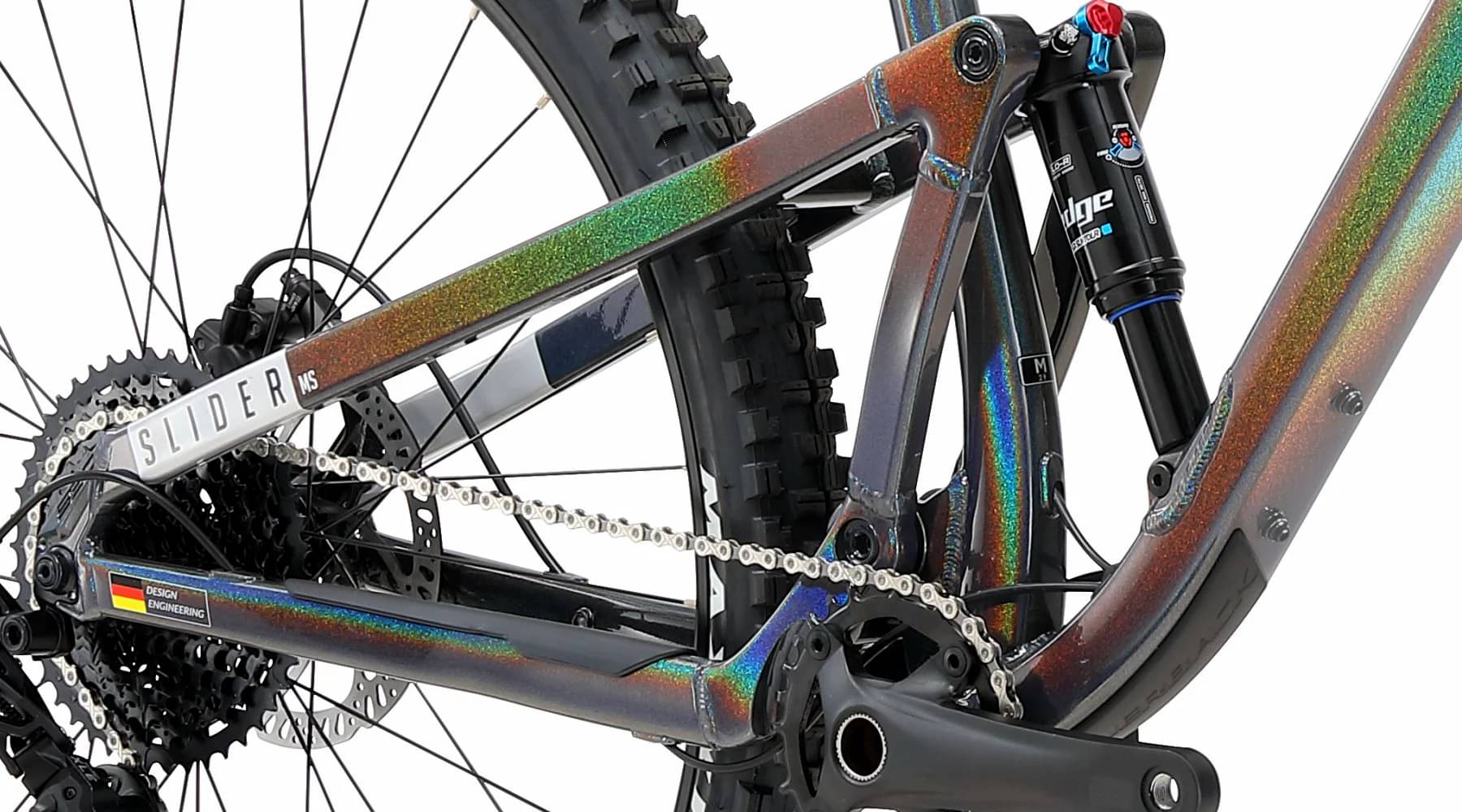

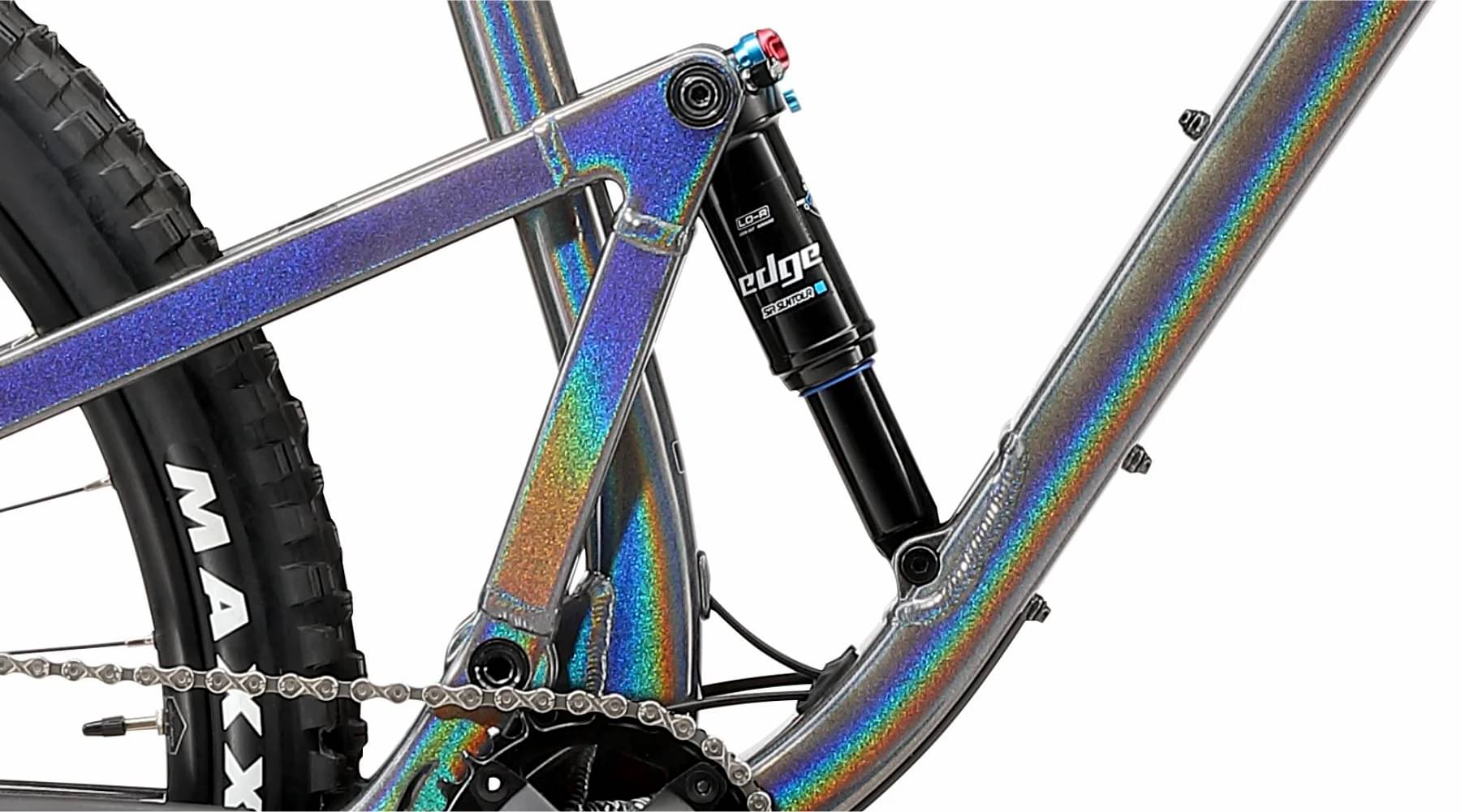

Rear Shock
SR Suntour RS19 EDGE TR LOR, 185 X 55mm, Air

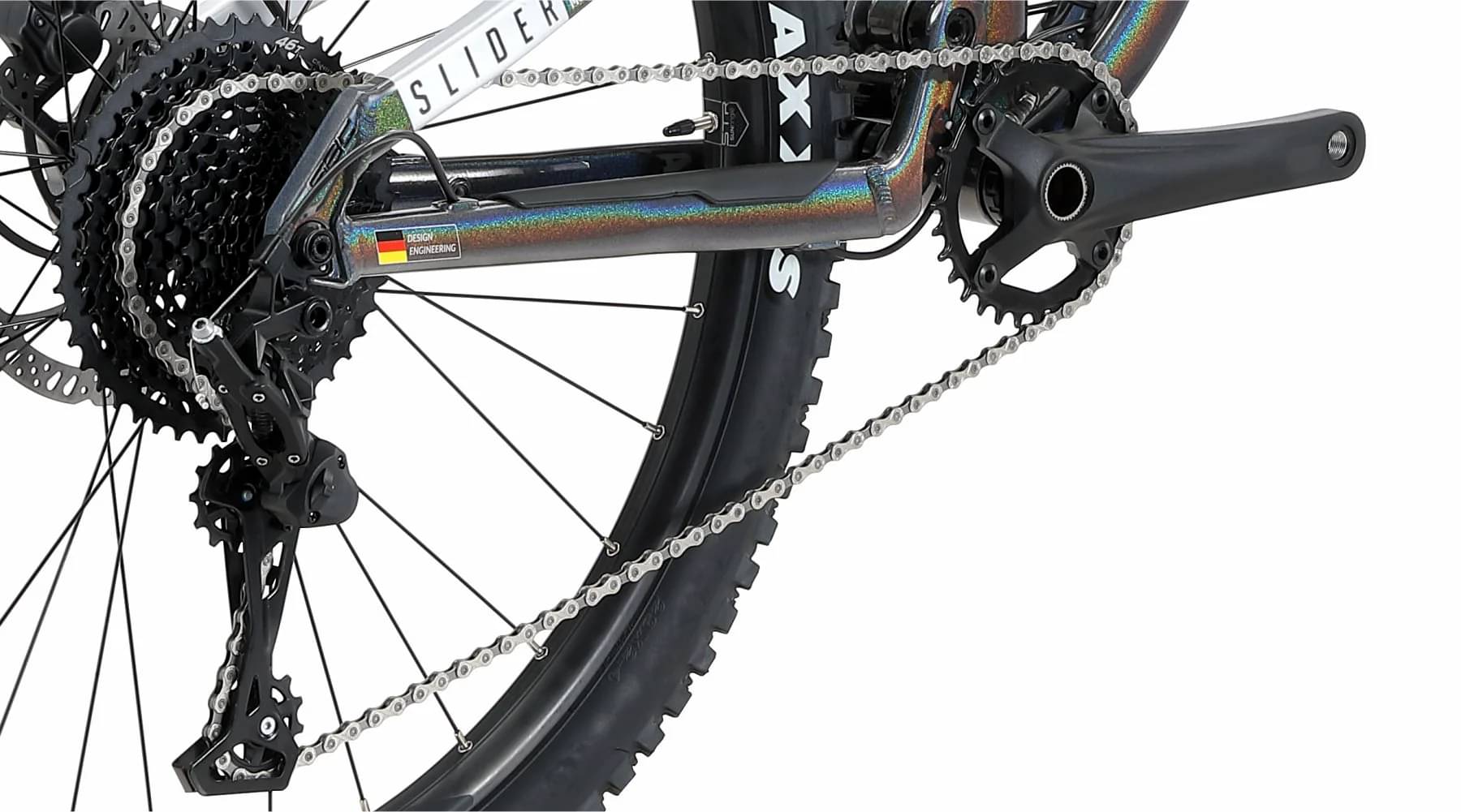

Drivetrain
Rear Derailleur
Microshift XLE RD-M665L, 11spd, Active Motion RD+ with clutch, total capacity 47T
Shift Levers
R: Microshift Xpress Plus, 11speed
Cassette
Microshift Cassette, 11spd, 11-46T, 11-13-15-18-21-24-28-32-36-40-46(AL)
Crank
170mm Alloy Crank arms, 32t chainring, External BB
Bottom Bracket
BSA73
Chain
KMC X11-1, 11 Speed
Pedals
Not Included
Wheels
Front Hub
F: 15x110mm, 6 Bolt
Rear Hub
F: 15x110mm, 6 Bolt
Rims
F: 29" SUNringlé Duroc 35, STR Tubeless, 32mm Internal Width
Tires
F: Maxxis Assegai 29x2.5", 120TPI, 3C Maxxgrip, EXO+
Brakes
Brakes
F: Tektro Hydraulic
Cockpit
Stem
Alloy, 31.8mm, Rise: 3°
Handlebar
SURFACE Alloy Handlebar, Dia: 31,8mm, 9° Back sweep, 20mm Rise
Grips
SURFACE Double Density Lock-On
Headset
Steel Semi-Integrated, ZS44/28.6 ZS56/40
Seat
Saddle
SURFACE Ergo, Cromo Rails

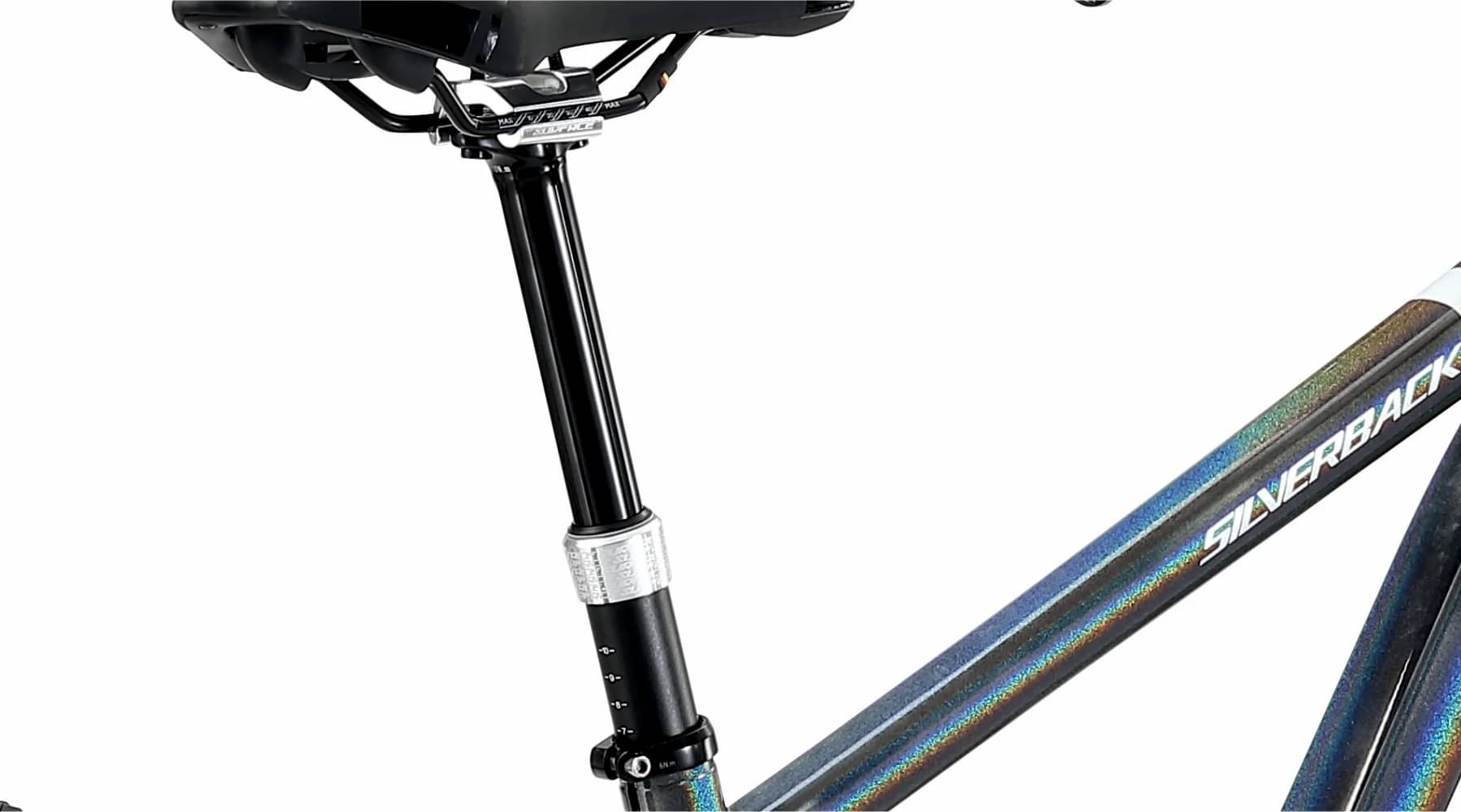

Seatpost
SURFACE Dropper, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.395 mm | 1.358 mm | 1.32 mm | 1.283 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 741 mm | 763 mm | 785 mm | 809 mm |
| Rake | 32 mm | 37 mm | 35 mm | 35 mm |
| Trail | 136 mm | 130 mm | 132 mm | 132 mm |
| Stack | 614 mm | 618 mm | 627 mm | 635 mm |
| Reach | 440 mm | 455 mm | 475 mm | 495 mm |
| Top Tube Length | 583 mm | 605 mm | 630 mm | 655 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1194 mm | 1216 mm | 1238 mm | 1262 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 710 mm | 774 mm | 801 mm | 832 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 169 cm | 179 cm | 188 cm |
| Rider Max Height | 171 cm | 181 cm | 190 cm | 210 cm |
