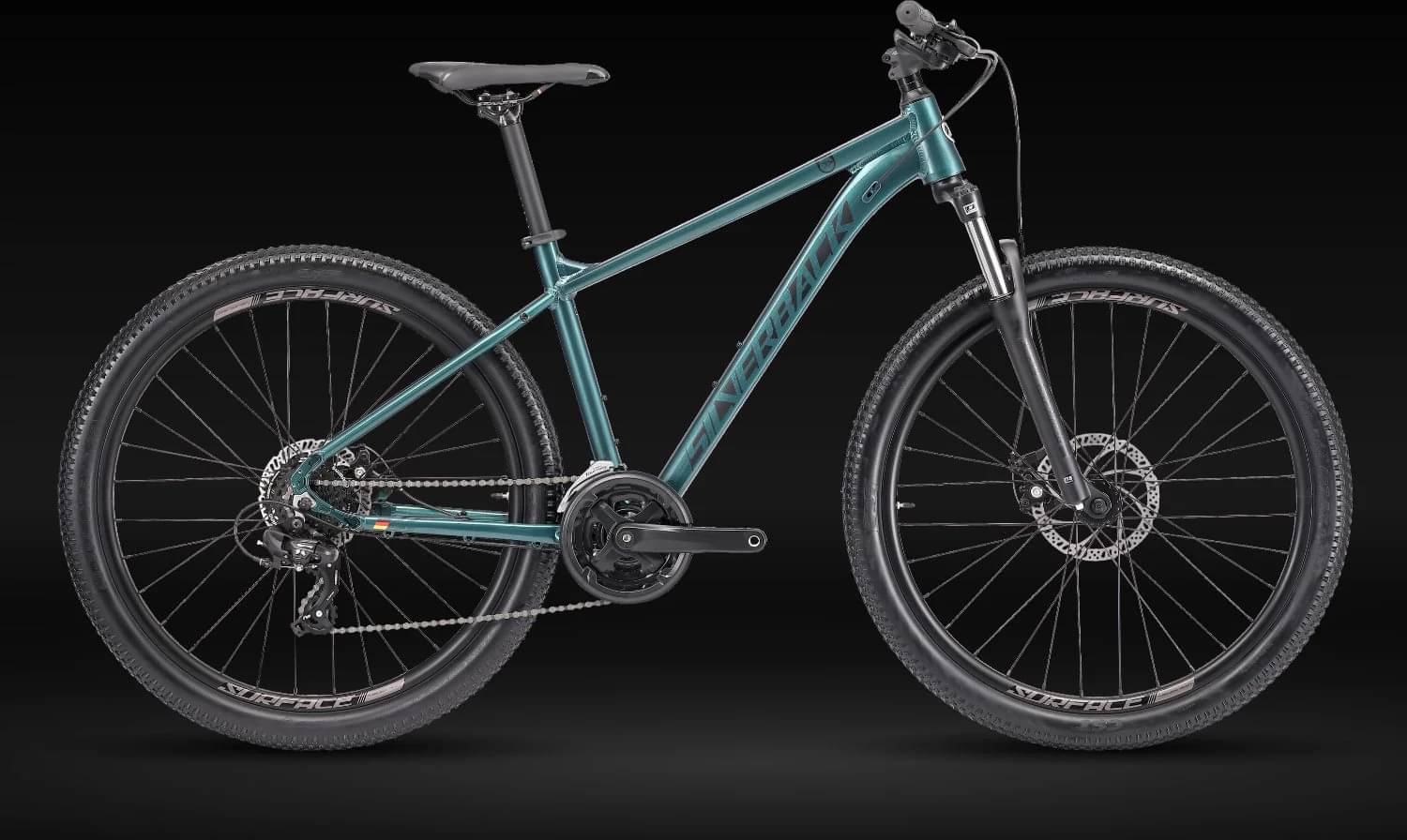

silverback Splash Delight (Gen 4) 2025
2025 Mountain
Estimate price |
464$
Weight | 15.48 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Tektro Mechanical Disc
Sizing
Recommended size guide.
XS
134cm - 147cm
SM
145cm - 159cm
MD
157cm - 171cm
LG
169cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Silverback Ladies Design - Engineered Custom Butted 6061 Aluminium, Tapered 1-1/8"-1.5" Headtube, Semi-Integrated Headset, SB Formed Stays, Replaceable Alloy Hanger
Suspension Fork
SR Suntour XCE28 DS 27.5", 100mm Travel, Coil w/ Preload Adjustment
Drivetrain
Rear Derailleur
Shimano RD-TY300, 6/7-speed
Front Derailleur
Shimano FD-TY600-L6 Tourney, Top-Swing
Shift Levers
L: Shimano Tourney ST-EF41-L, 3-Speed
Cassette
Shimano CS-HG200-7, 7-speed, 12-32T
Crank
Surface alloy 42/34/24T
Bottom Bracket
BSA73
Chain
Shimano CN-HG40
Pedals
One Piece Alloy
Wheels
Front Hub
F: Joytech Alloy, 32h, 100 x 9mm QR, 6-bolt
Rear Hub
F: Joytech Alloy, 32h, 100 x 9mm QR, 6-bolt
Rims
Surface Symmetrical Alloy, 32H, Tubeless Ready
Tires
Wanda P1820, 27.5" x 2.35"
Brakes
Brakes
Tektro Mechanical Disc
Cockpit
Stem
Surface, Alloy, Ø31.8mm, 3° rise
Handlebar
Surface Alloy Butted, Ø31.8mm, Backsweep 9°, Rise 30mm
Grips
Surface Push-on
Headset
Semi-Integrated, ZS44/28.6 ZS56/40
Seat
Saddle
Surface, steel rails
Seatpost
Surface, Alloy Ø30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.619 mm | 1.635 mm | 1.509 mm | 1.433 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 613 mm | 624 mm | 654 mm | 685 mm |
| Rake | 49 mm | 49 mm | 49 mm | 49 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 586 mm | 600 mm | 600 mm | 609 mm |
| Reach | 362 mm | 367 mm | 397.5 mm | 425 mm |
| Top Tube Length | 535 mm | 545 mm | 575 mm | 605 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 350 mm | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1051 mm | 1062 mm | 1092 mm | 1123 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 725 mm | 729 mm | 757 mm | 793 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 134 cm | 145 cm | 157 cm | 169 cm |
| Rider Max Height | 147 cm | 159 cm | 171 cm | 182 cm |
