silverback Splash SE (Gen 3) 2024
2024 Mountain
Estimate price |
371$
Weight | 14.36 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Zoom
-
Groupset microSHIFT M21 -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
XS
134cm - 147cm
SM
145cm - 159cm
MD
157cm - 171cm
LG
169cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components

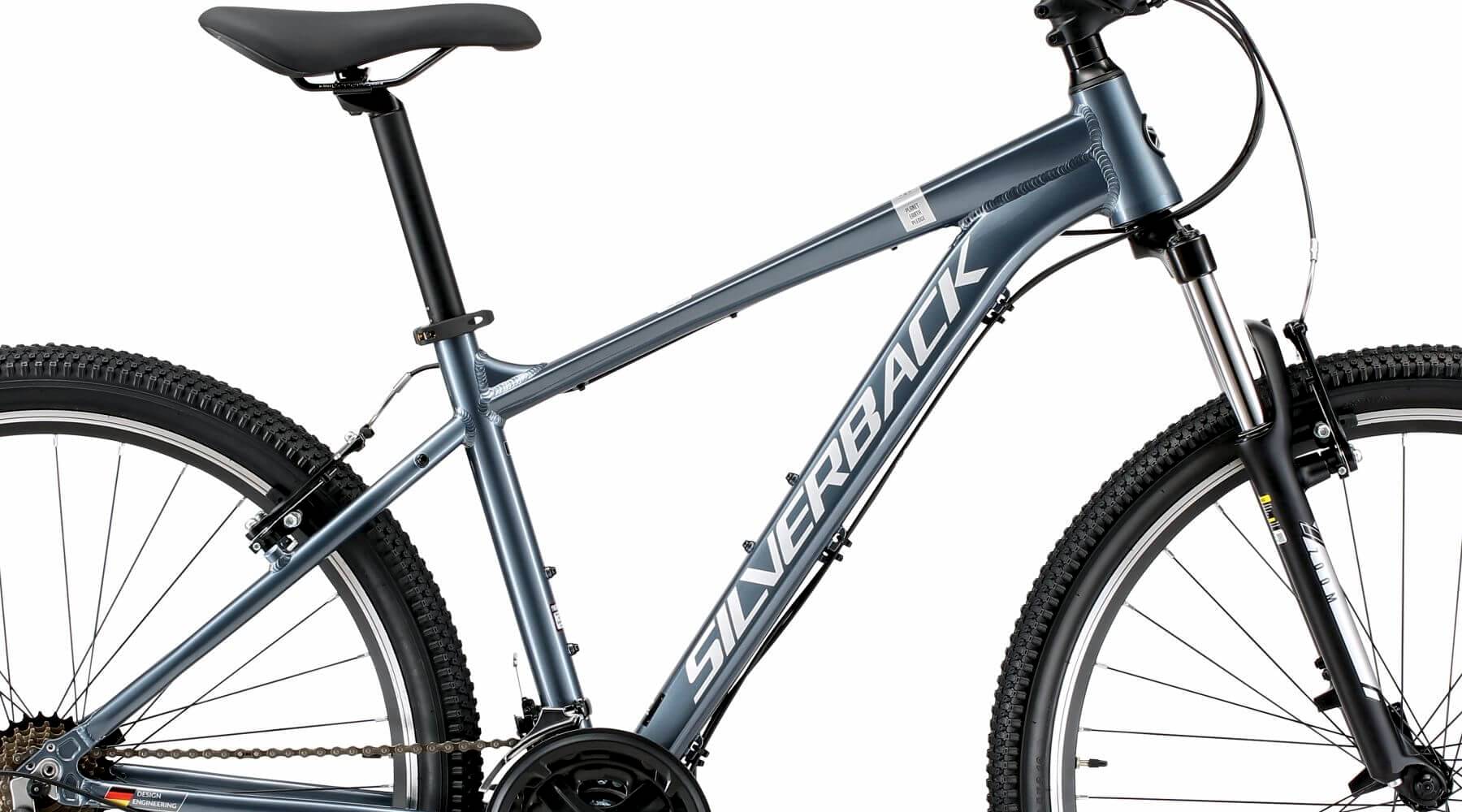

Frame
Frame
Silverback Ladies Design - Engineered Custom Butted 6061 Aluminium, Tapered 1-1/8"-1.5" Headtube, Semi-Integrated Headset, SB Formed Stays, Replaceable Alloy Hanger

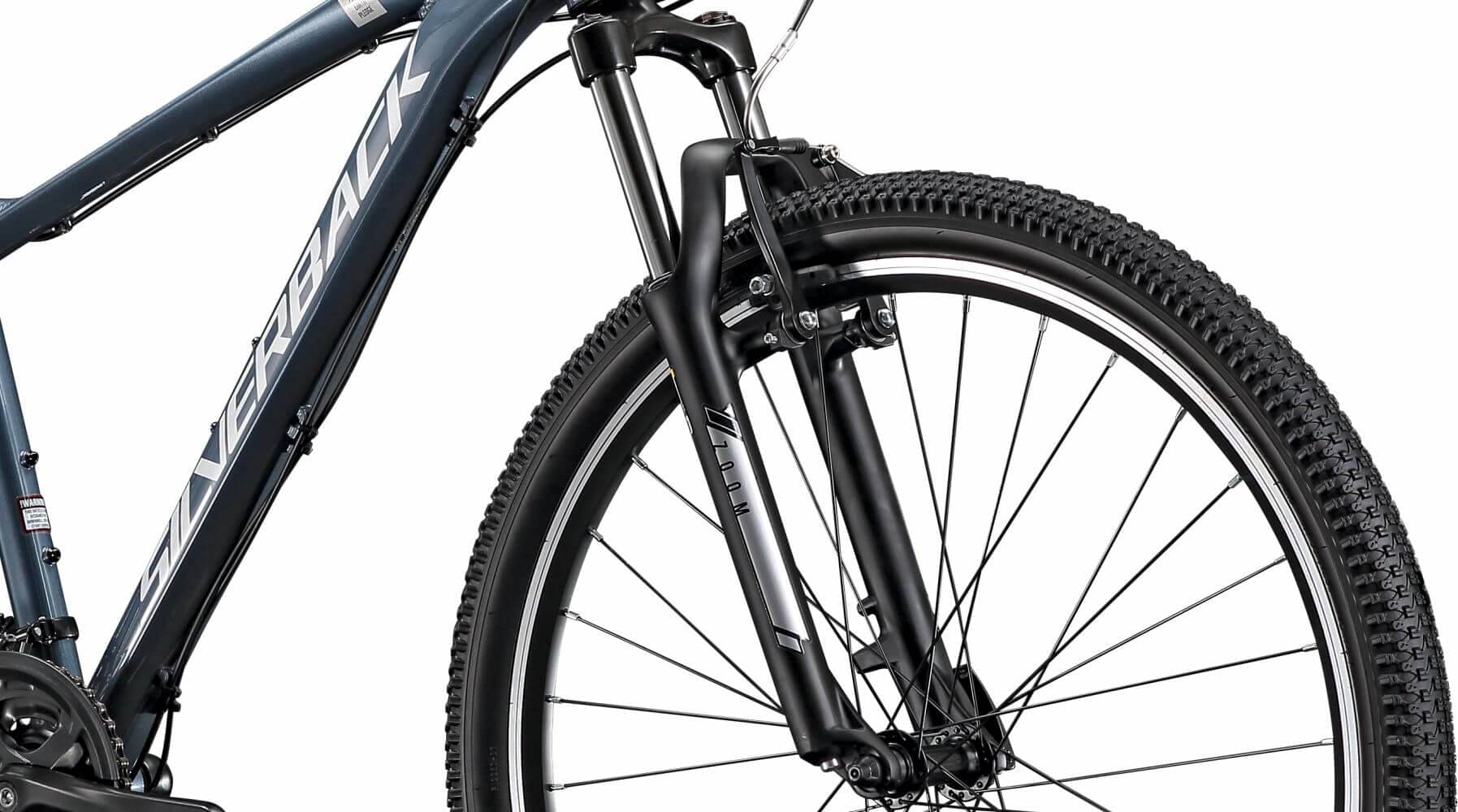

Suspension Fork
Zoom 565 AMS Suspension Fork, 100mm travel, Coil, with Preload Adjust

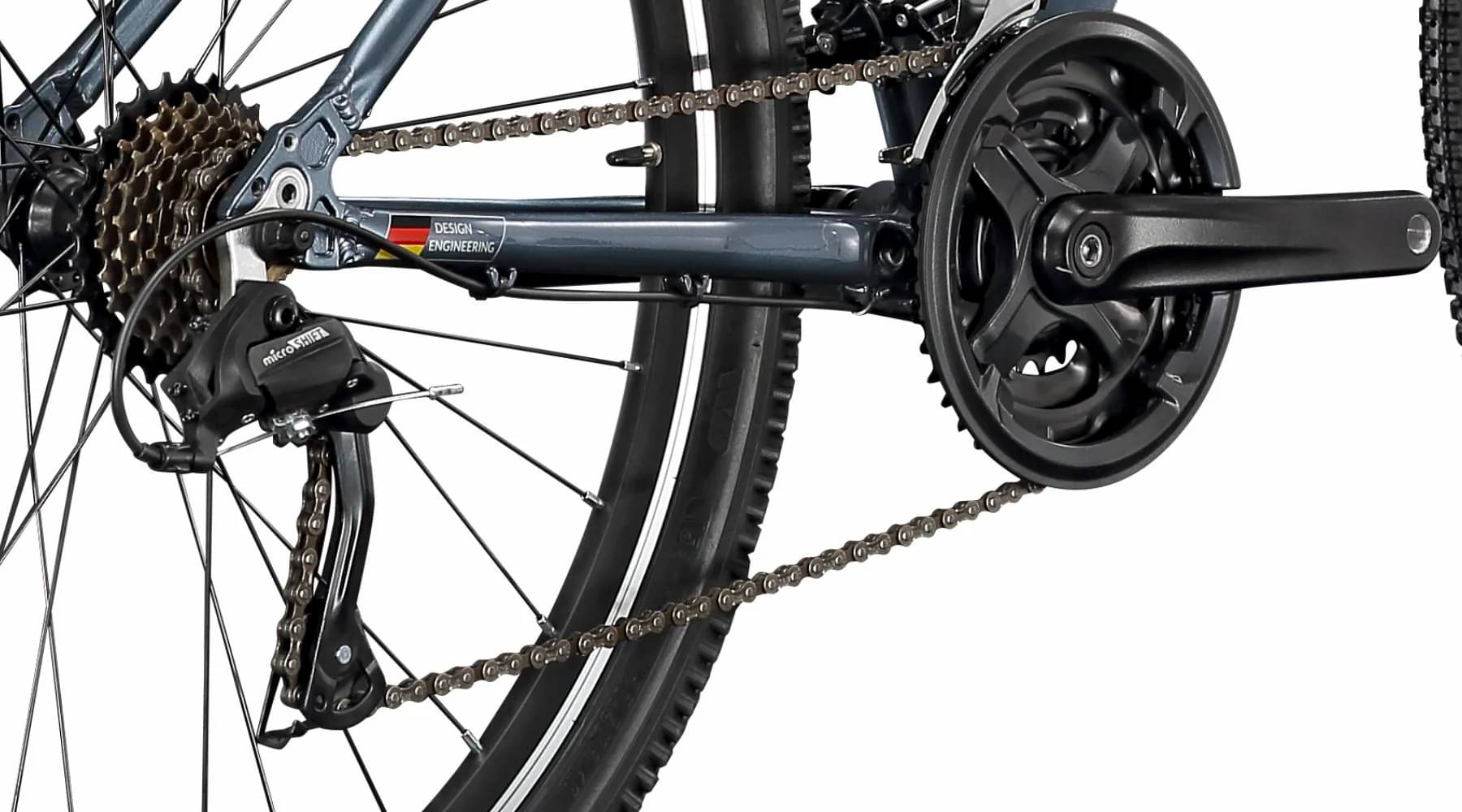

Drivetrain
Rear Derailleur
Microshift RD-M21L 7spd
Front Derailleur
Microshift FD-M20, Dual Pull
Shift Levers
L: Microshift 3-Speed
Cassette
Microshift 7spd, 14-28T
Crank
Surface alloy 42/34/24T
Bottom Bracket
BSA73
Chain
PYC 7spd
Pedals
One Piece Alloy
Wheels
Front Hub
F: Alloy, 32h, 100 x 9mm QR
Rear Hub
F: Alloy, 32h, 100 x 9mm QR
Rims
Surface Symmetrical Alloy, 32H
Tires
Wanda P1226D 27.5"x2.1"
Brakes
Brakes
Power alloy V-Brake
Cockpit
Stem
Surface, Alloy, Ø31.8mm, 6° rise
Handlebar
Surface Alloy Butted, Ø31.8mm, Backsweep 10°, Rise 45mm
Grips
Surface Push-on
Headset
Steel Semi-Integrated, ZS44/28.6 ZS56/40
Seat
Saddle
Surface, steel rails
Seatpost
Surface, Alloy Ø30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.619 mm | 1.635 mm | 1.509 mm | 1.433 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 613 mm | 624 mm | 654 mm | 685 mm |
| Rake | 49 mm | 49 mm | 49 mm | 49 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 586 mm | 600 mm | 600 mm | 609 mm |
| Reach | 362 mm | 367 mm | 397.5 mm | 425 mm |
| Top Tube Length | 535 mm | 545 mm | 575 mm | 605 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 350 mm | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1051 mm | 1062 mm | 1092 mm | 1123 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 725 mm | 729 mm | 757 mm | 793 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 134 cm | 145 cm | 157 cm | 169 cm |
| Rider Max Height | 147 cm | 159 cm | 171 cm | 182 cm |
