simplon Chenoa Bosch CX,Uni,Premium,E14 2024
2024 E-bike
Estimate price |
7,989$
Weight | 21.58 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 65mm -
Fork RockShox Recon Gold RL
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery 625 Wh -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

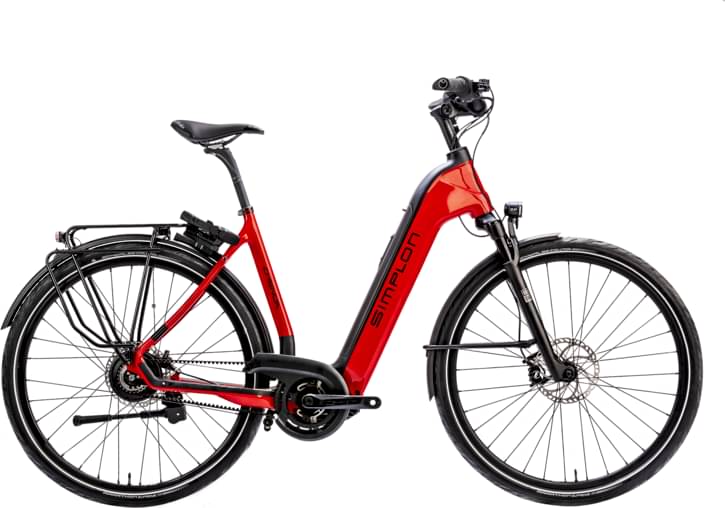

Chenoa Bosch CX, Uni, Cosmic Red Glossy | Black Matt, S (40)
Suspension Fork
Rock Shox Recon Gold crown adjust 65mm
Drivetrain
Shift Levers
Gear hub Rohloff E14;belt drive
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Frame mount belt guard A08
Pedals
Pedal-Set Simplon Grip EVO, Sandblock, sealed bearings, allo
Wheels
Rims
DT Swiss U623-hubs Simplon FDT/Rohloff E14-Schwalbe Marathon
Tires
Schwalbe MARATHON MONDIAL 28 x 2,0"
Brakes
Brakes
Shimano Cues U8020/80000;4/2-Kolben (pistons);203mm;180mm
Cockpit
Stem
Simplon ZERO II 50mm x 17°
Handlebar
Simplon CX-4 COMFORT
Grips
Griffe Ergon GP 10 L
Headset
Headset FSA #69, SRS, ZS56/56
Seat
Saddle
Sportourer GARDA Gel Flow Woman
Seatpost
KS LEV Integra 272, 100mm Southpaw
Motor & Battery
Motor
BOSCH PL CX Gen4
Battery
625 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.589 mm | 1.584 mm | 1.576 mm |
| Front Center | 664 mm | 680 mm | 696 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 79 mm | 79 mm |
| Stack | 626 mm | 640 mm | 654 mm |
| Reach | 394 mm | 404 mm | 415 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 470 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1129 mm | 1145 mm | 1161 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
