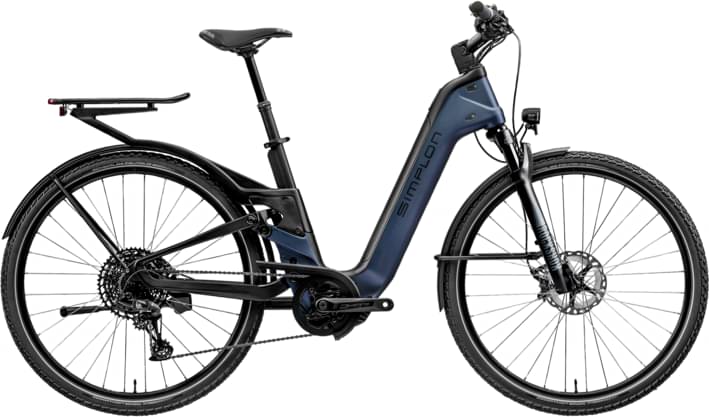

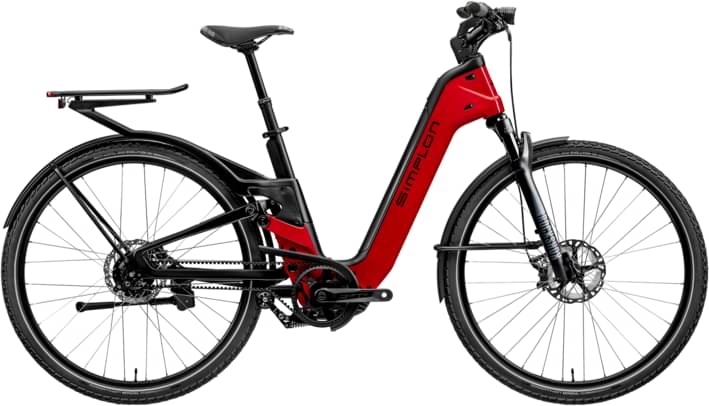

simplon Chenoa Max Base Cues 6000-10s 2025
2025 E-bike
Estimate price |
6,374$
Weight | 26.19 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 65mm -
Fork RockShox Recon Gold RL
-
Groupset CUES -
Suspension Full -
Motor Bosch hub-drive -
Battery 625 Wh -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa MAX, Cosmic Red Glossy | Black Matt, M (47)
Suspension Fork
Rockshox Recon Gold RL 65mm
Rear Shock
Rock Shox Deluxe SELECT
Drivetrain
Rear Derailleur
Shimano Cues 6000
Shift Levers
Shimano Cues 6000
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Pedal-Set Simplon Grip EVO, Sandblock, sealed bearings, allo
Wheels
Rims
DT Swiss U623-Naben Simplon FDT/RDT-Schwalbe Marathon Mondia
Tires
Schwalbe MARATHON MONDIAL 28 x 2,0"
Brakes
Brakes
Shimano Cues 6000
Cockpit
Stem
Simplon ZERO II 50mm x 17°
Handlebar
Simplon CX-4 COMFORT
Grips
Griffe Ergon GP 10 L
Headset
Headset FSA #69, SRS, ZS56/56
Seat
Saddle
Sportourer GARDA Gel Flow Woman
Seatpost
BikeYoke Revive, 125mm, 31.6 (Remote Seatpost only)
Motor & Battery
Motor
BOSCH PL CX Gen4
Battery
625 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.539 mm | 1.548 mm | 1.545 mm |
| Front Center | 683 mm | 694 mm | 710 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 88 mm | 88 mm | 88 mm |
| Stack | 628 mm | 641 mm | 655 mm |
| Reach | 408 mm | 414 mm | 424 mm |
| Top Tube Length | 606 mm | 616 mm | 631 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 470 mm | 540 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 522 mm | 522 mm | 522 mm |
| Wheelbase | 1199 mm | 1210 mm | 1226 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
