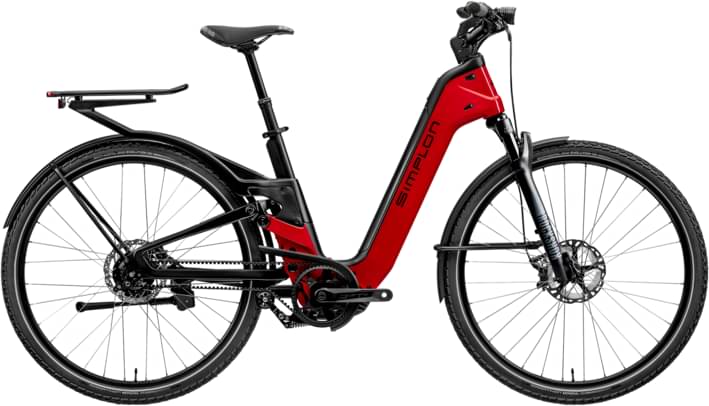

simplon Chenoa Max;UNI;B2;ETD;E14 – GATES 2022
2022 Urban
Estimate price |
6,835$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset FSA -
Suspension Full -
Battery Bosch Performance Line CX + Power T. 625 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa MAX, denim blue/black matt, 400
Suspension Fork
Rock Shox PARAGON Gold Disc, 65mm
Rear Shock
Rock Shox Deluxe SELECT
Drivetrain
Rear Derailleur
Rohloff E14 für Chenoa MAX (Riemen)
Shift Levers
Rohloff E14 für Chenoa MAX (Riemen)
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
8.5D-FDT5*100-E14OEM2,12*142,Mondi50,MA
Tires
Schwalbe MARATHON MONDIAL 28 x 2,0"
Brakes
Brakes
Rohloff E14 für Chenoa MAX (Riemen)
Cockpit
Stem
Simplon ZERO II 80mm x 17°
Handlebar
Simplon CX-4 COMFORT
Grips
Simplon "SOFT PUS"
Headset
Smart Headset
Seat
Saddle
Selle Italia S5 GEL Superflow
Seatpost
Simplon Carbon Rod SL 31.6x320
Motor & Battery
Battery
Bosch Performance Line CX + Power T. 625
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.539 mm | 1.548 mm | 1.545 mm |
| Front Center | 683 mm | 694 mm | 710 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 88 mm | 88 mm | 88 mm |
| Stack | 628 mm | 641 mm | 655 mm |
| Reach | 408 mm | 414 mm | 424 mm |
| Top Tube Length | 606 mm | 616 mm | 631 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 470 mm | 540 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 522 mm | 522 mm | 522 mm |
| Wheelbase | 1199 mm | 1210 mm | 1226 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
