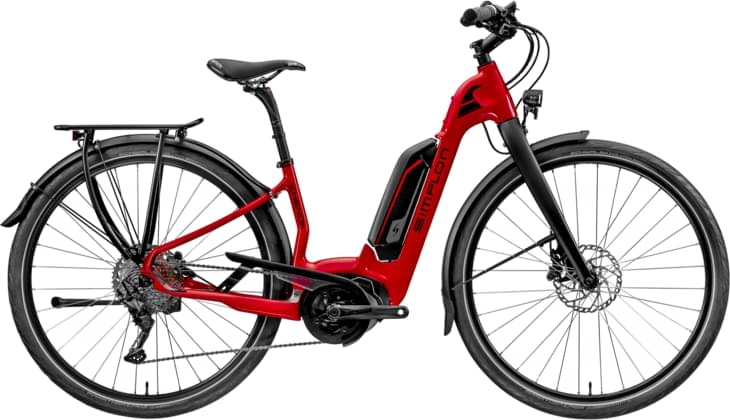

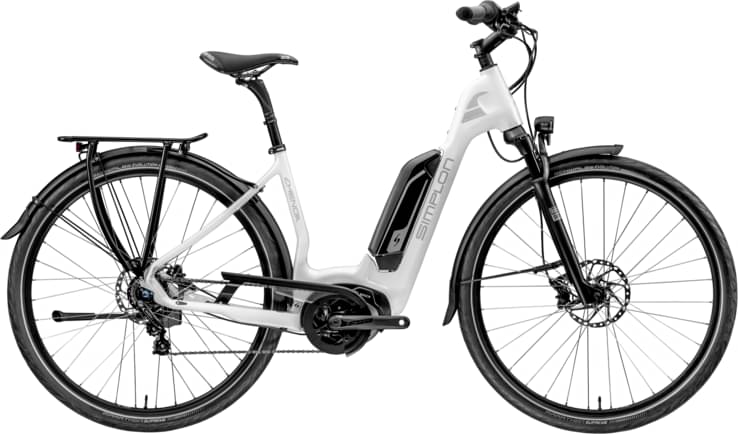

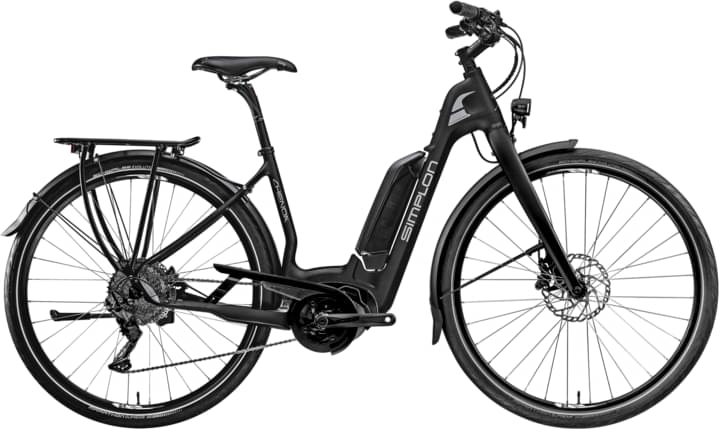

simplon Chenoa Uni Low, Shimano Deore 10 Linkglide 2024
2024 E-bike
Estimate price |
4,652$
Weight | 19.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Deore -
Suspension Rigid -
Motor Bosch 600W 50Nm mid-drive -
Battery 500 Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa Uni, Black Matt | Silver Matt, S (40)
Suspension Fork
Simplon F10.3 Carbon/ Schwarz
Drivetrain
Shift Levers
Shimano Deore-10, Linkglide
Crank
FSA crankarms for Bosch GEN3 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
Ryde Andra22-DT Swiss FDT/RDT 5*100, 5*135,Schwalbe Marathon
Tires
Schwalbe MARATHON ALMOTION 28 x 1,5"
Brakes
Brakes
Magura CT;2-Kolben (pistons);180mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON RISER 680
Grips
Griffe Ergon GP 10 L
Headset
Headset Acros AZX-201
Seat
Saddle
Selle Italia S5 GEL Superflow
Seatpost
CARBON ROD VT, 27.2x320mm, 25mm Offset
Motor & Battery
Motor
Bosch Active Line Plus
Battery
500 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40cm | 47cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.609 mm | 1.584 mm | 1.576 mm |
| Front Center | 659 mm | 680 mm | 696 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 79 mm | 79 mm |
| Stack | 626 mm | 640 mm | 654 mm |
| Reach | 389 mm | 404 mm | 415 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 470 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1139 mm | 1160 mm | 1176 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 |
