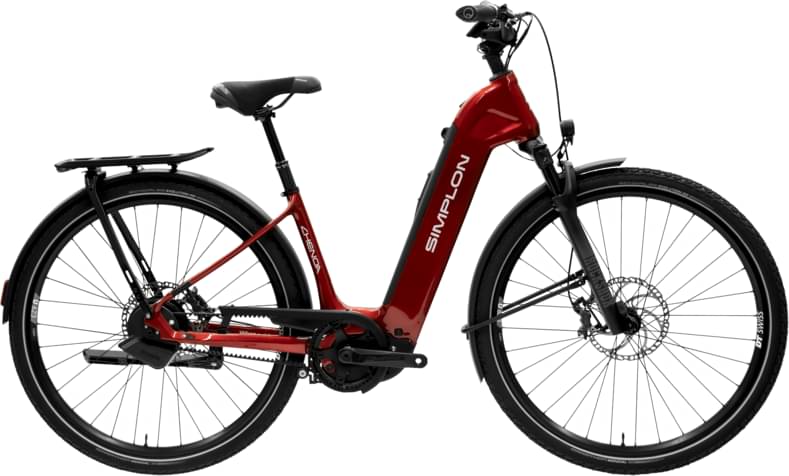

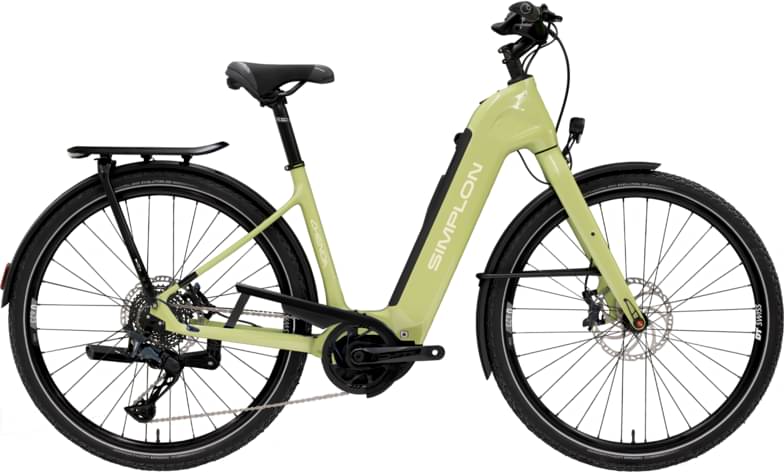

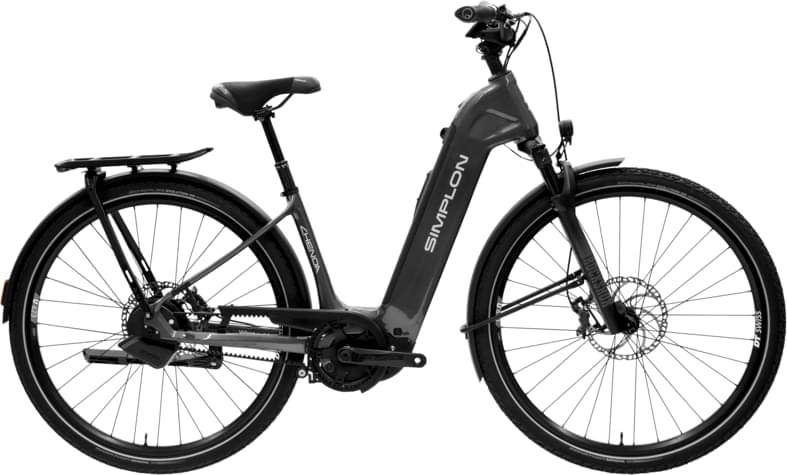

simplon Chenoa:e,low,Selection,U8000 2025
2025 E-bike
Estimate price |
7,328$
Weight | 22 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 80mm -
Fork RockShox Recon Gold RL
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery 600 / 800 Wh -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CHENOA :e,Low,Ruby Red/Silver Grey (Metallic),S(41)
Suspension Fork
Rockshox Recon Gold RL 65mm
Drivetrain
Shift Levers
Shimano Cues 8000
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Pedal-Set Simplon Grip EVO, Sandblock, sealed bearings, allo
Wheels
Rims
DT Swiss U623; Nabe Simplon by DT;Schwalbe Marathon 50-622
Tires
Schwalbe MARATHON MONDIAL 28 x 2,0"
Brakes
Brakes
Shimano Cues U8020;4/4-Kolben (pistons);203mm;203mm
Cockpit
Stem
Simplon ZERO II 80mm x 17°
Handlebar
Simplon HI-BEAM
Grips
Griffe Ergon GP 10 L
Headset
Acros AZX-297
Seat
Saddle
w/o saddle
Seatpost
BikeYoke Revive Three, 100mm, 31.6 (Remote Seatpost only)
Motor & Battery
Motor
BOSCH PL CX Gen5
Battery
600 / 800 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.627 mm | 1.621 mm | 1.612 mm |
| Front Center | 664 mm | 681 mm | 697 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 80 mm | 78 mm | 79 mm |
| Stack | 636 mm | 650 | 664 mm |
| Reach | 391 mm | 401 mm | 412 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 470 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1119 mm | 1136 mm | 1152 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
