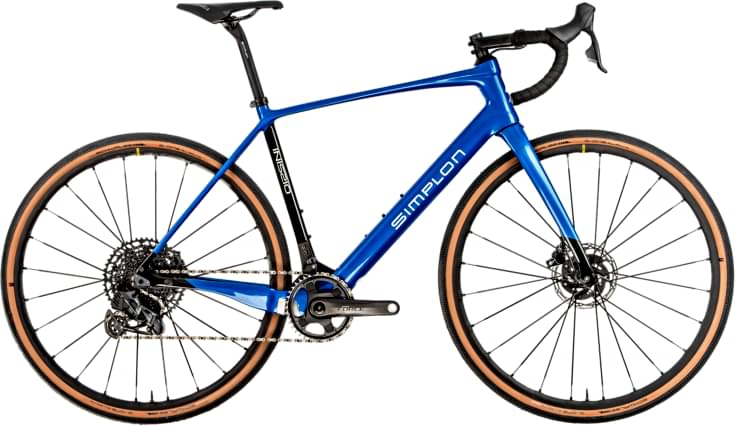

simplon Inissio Gravel,Ultimate AXS,Rival 2by 2024
2024 Road
Estimate price |
6,165$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain Electronic -
Brakes Magura Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Inissio Gravel, Island Blue Glossy | Black Glossy, XS (45)
Drivetrain
Rear Derailleur
SRAM Rival eTAP AXS - 2*12 Gravel with Magura MT 8
Shift Levers
SRAM Rival eTAP AXS - 2*12 Gravel with Magura MT 8
Cassette
Cassette SRAM Riva AXS 10-36
Crank
Crankset SRAM Rival 43/30T 172,5mm
Pedals
no pedal selected
Wheels
Rims
DT Swiss GRC1400-SCHWALBE G-ONE ALLROUND 40-622
Brakes
Brakes
SRAM Rival eTAP AXS - 2*12 Gravel with Magura MT 8
Cockpit
Stem
No Stem selected
Handlebar
Handlebar/ Stem-Combo ARC1, 90mm x 400mm
Headset
Acros AiX-344
Seat
Saddle
Selle Italia DIVA FLOW black
Seatpost
KS LEV Integra 272, 100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.427 mm | 1.448 mm | 1.464 mm | 1.488 mm | 1.512 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 609 mm | 613 mm | 634 mm | 645 mm | 656 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 84 mm | 77 mm | 76 mm | 69 mm | 63 mm |
| Stack | 535 mm | 553 mm | 577 mm | 604 mm | 632 mm |
| Reach | 375 mm | 382 mm | 394 mm | 406 mm | 418 mm |
| Top Tube Length | 523 mm | 535 mm | 565 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 120 mm | 135 mm | 160 mm | 185 mm | 210 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1025 mm | 1029 mm | 1050 mm | 1061 mm | 1072 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 715 mm | 748 mm | 781 mm | 812 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
