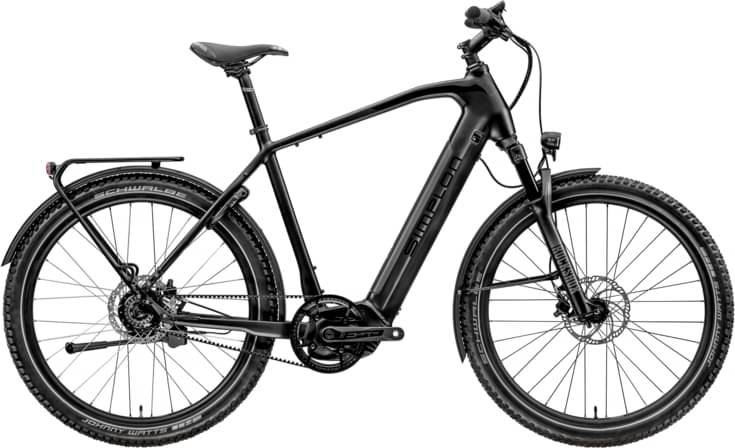

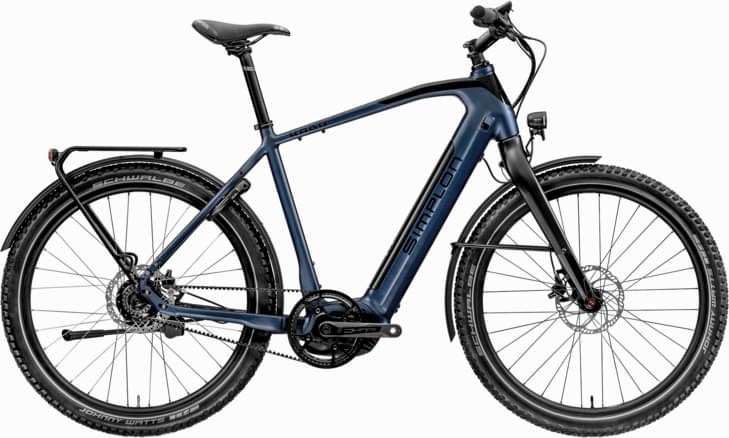

simplon Kagu Bosch CX 275 B3 High, Rohloff E14 Speed, (only CH) 2024
2024 E-bike
Estimate price |
9,073$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 65mm -
Fork RockShox 35 Gold RL
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch mid-drive -
Battery 625 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kagu Bosch CX 275, Man, Black Matt | Black Glossy, S (46)
Suspension Fork
35 Gold RL 80mm (21)
Drivetrain
Shift Levers
Gear hub Rohloff E14;belt drive
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Frame mount belt guard A08
Pedals
Pedal-Set Simplon Grip EVO, Sandblock, sealed bearings, allo
Wheels
Rims
Simplon 5.5 Disc-FDT5*100-Rohloff E14-Schwalbe Johnny Watts
Tires
Schwalbe JOHNY WATTS 27,5 x 2,35"
Brakes
Brakes
Magura MT5/MT4;4/2-Kolben (pistons);203mm;180mm
Cockpit
Stem
Simplon ZERO II 50mm x 17°
Handlebar
Simplon CX-4 COMFORT
Grips
Griffe Ergon GP 10 L
Headset
Headset Acros AZX-258
Seat
Saddle
Sportourer GARDA Gel Flow Man
Seatpost
Sattelstütze bySchulz G.2 LT 31.6x380
Motor & Battery
Motor
BOSCH PL CX Gen4
Battery
625 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.668 mm | 1.647 mm | 1.661 mm | 1.671 mm |
| Front Center | 670 mm | 681 mm | 686 mm | 692 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 73 mm | 73 mm | 73 mm |
| Stack | 652 mm | 657 mm | 666 mm | 675 mm |
| Reach | 391 mm | 399 mm | 401 mm | 404 mm |
| Top Tube Length | 590 mm | 600 mm | 605 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 175 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1146 mm | 1157 mm | 1162 mm | 1168 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 749 mm | 786 mm | 823 mm | 858 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
