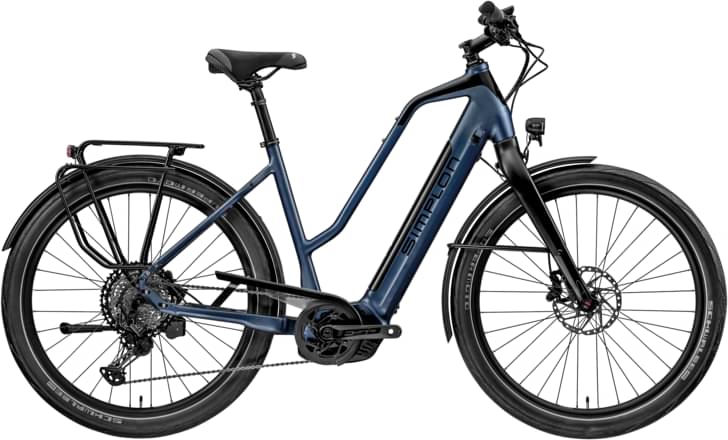

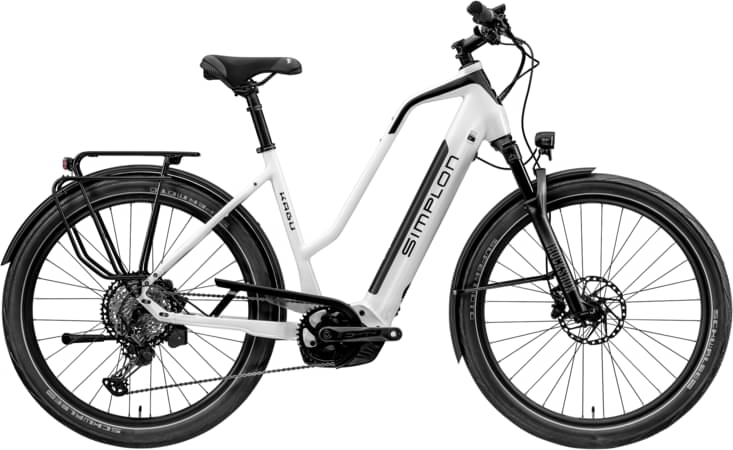

simplon Kagu Bosch CX 275 B3 Lady, Shimano Cues 8000 Speed, (only switzerland) 2024
2024 E-bike
Estimate price |
6,979$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 80mm -
Fork RockShox 35 Gold RL
-
Groupset CUES, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kagu Bosch CX 275, Lady, Denim Blue Matt | Black Matt, XS (4
Suspension Fork
35 Gold RL 80mm (21)
Drivetrain
Shift Levers
Shimano Cues 8000
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
no pedal selected
Wheels
Rims
Simplon 5.5 Disc-Schwalbe Johnny Watts 60-584
Tires
Schwalbe JOHNY WATTS 27,5 x 2,35"
Brakes
Brakes
Bosch ABS 2.0 + Magura CT Allroad;4/2-Kolben (pistons);203mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CX-4 COMFORT
Grips
Griffe Ergon GP 10 L
Headset
Headset Acros AZX-258
Seat
Saddle
w/o saddle
Seatpost
Sattelstütze bySchulz G.2 LT 31.6x380
Motor & Battery
Motor
Bosch Performance Line Speed BES3 +Bosch Powertube 625 verti
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.757 mm | 1.748 mm | 1.735 mm | 1.73 mm |
| Front Center | 656 mm | 666 mm | 677 mm | 688 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 73 mm | 73 mm | 73 mm | 73 mm |
| Stack | 657 mm | 666 mm | 675 mm | 685 mm |
| Reach | 374 mm | 381 mm | 389 mm | 396 mm |
| Top Tube Length | 575 mm | 585 mm | 595 mm | 605 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 180 mm | 190 mm | 200 mm | 210 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1132 mm | 1142 mm | 1153 mm | 1164 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 587 mm | 558 mm | 560 mm | 569 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
