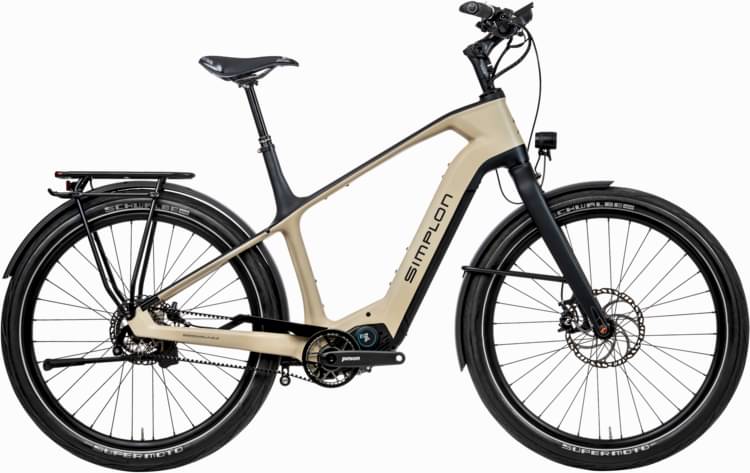

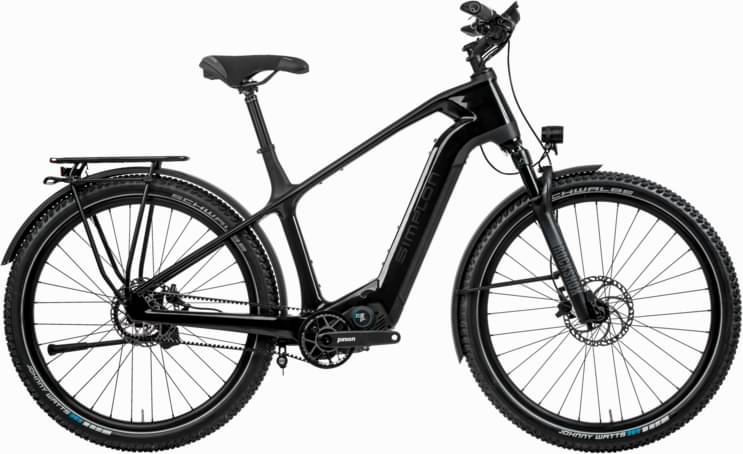

simplon Kagu :ePinion High, Selection 2024
2024 E-bike
Estimate price |
8,724$
Weight | 23.25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 80mm -
Fork RockShox Recon Gold RL
-
Groupset Pinion -
Suspension Hardtail -
Motor mid-drive -
Battery 820 / 1100 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kagu Pinion, Man, Sparkling Black Glossy | Black Matt, S (46
Suspension Fork
Rockshox Recon Gold RL 80mm
Drivetrain
Shift Levers
drivetrain Gates CDX, 39-34 für Pinion E1.12
Crank
Pinion Kurbelarme,schwarz, forged, 170mm
Bottom Bracket
Pinion, press-fit
Chain Guide
Horn Catena A08
Pedals
Pedal-Set Simplon Grip EVO, Sandblock, sealed bearings, allo
Wheels
Rims
DT Swiss U663; hub FDT 15*110; hub RDT 12*148; Schwalbe John
Tires
Schwalbe JOHNY WATTS 27,5 x 2,35"
Brakes
Brakes
Shimano Cues U8020/8020;4/4-Kolben (pistons);203mm;203mm
Cockpit
Stem
Simplon ZERO II 70mm x 17°
Handlebar
Simplon CARBON RISER 700 High
Grips
Griffe Ergon GP 10 L
Headset
Headset FSA #69, SRS, ZS56/56
Seat
Saddle
w/o saddle
Seatpost
BikeYoke Revive Three, 100mm, 31.6 (Remote Seatpost only)
Motor & Battery
Motor
Pinion MGU E1.9 / E1.12
Battery
820 / 1100 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.668 mm | 1.647 mm | 1.661 mm | 1.671 mm |
| Front Center | 670 mm | 681 mm | 686 mm | 692 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 73 mm | 73 mm | 73 mm |
| Stack | 652 mm | 657 mm | 666 mm | 675 mm |
| Reach | 391 mm | 399 mm | 401 mm | 404 mm |
| Top Tube Length | 590 mm | 600 mm | 605 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 175 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1146 mm | 1157 mm | 1162 mm | 1168 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 749 mm | 486 mm | 823 mm | 858 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
