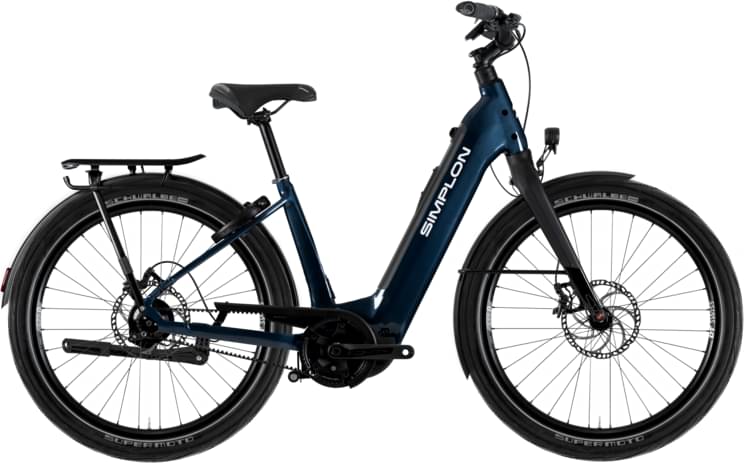

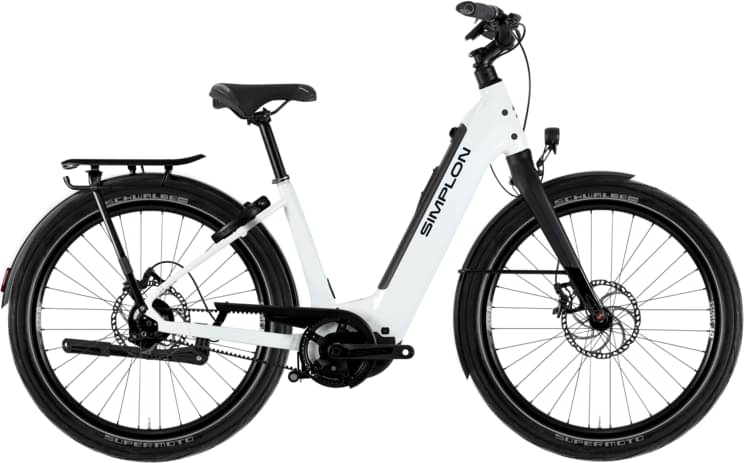

simplon Kagu:e,low,Premium,E14 2025
2025 E-bike
Estimate price |
8,375$
Weight | 26.14 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 80mm -
Fork RockShox Recon Gold RL
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch hub-drive -
Battery 600 / 800Wh -
Brakes Magura Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KAGU :e,Low,Steel Blue/Pearl White(Glossy),S(40)
Suspension Fork
Rockshox Recon Gold RL 80mm
Drivetrain
Shift Levers
hub Rohloff E14; Gates Riemen drivetrain CDX
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Frame mount belt guard A08
Pedals
Pedal-Set Simplon Grip EVO, Sandblock, sealed bearings, allo
Wheels
Rims
DT Swiss U663; hub FDT 15*110; Rohloff E14; Schwalbe Johnny
Tires
Schwalbe JOHNY WATTS 27,5 x 2,35"
Brakes
Brakes
Bosch ABS 2.0 + Magura CT Allroad;4/2-Kolben (pistons);203mm
Cockpit
Stem
Simplon ZERO II 50mm x 17°
Handlebar
Simplon HI-BEAM
Grips
Griffe Ergon GP 10 L
Headset
Acros AZX-318
Seat
Saddle
w/o saddle
Seatpost
BikeYoke Revive Three, 100mm, 31.6 (Remote Seatpost only)
Motor & Battery
Motor
BOSCH PL CX Gen5
Battery
600 / 800Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.651 mm | 1.656 mm | 1.661 mm | 1.65 mm |
| Front Center | 676 mm | 676 mm | 681 mm | 691 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 75 mm | 72 mm | 68 mm | 70 mm |
| Stack | 647 mm | 654 mm | 666 mm | 675 mm |
| Reach | 392 mm | 395 mm | 401 mm | 409 mm |
| Top Tube Length | 590 mm | 595 mm | 605 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 175 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1131 mm | 1131 mm | 1136 mm | 1146 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
