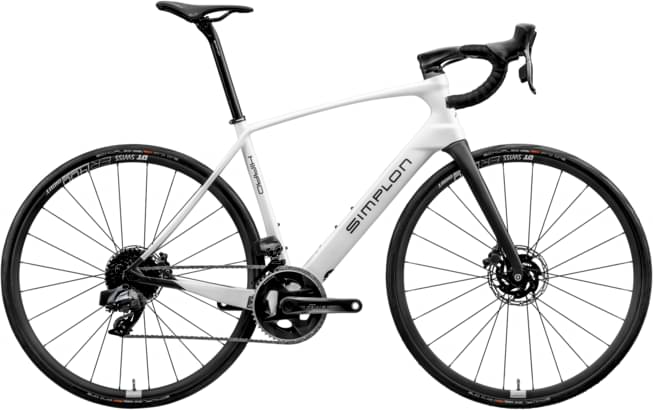

simplon Kiaro Disc Shimano Dura Ace DI2 2024
2024 Road
Estimate price |
8,142$
Weight | 6.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

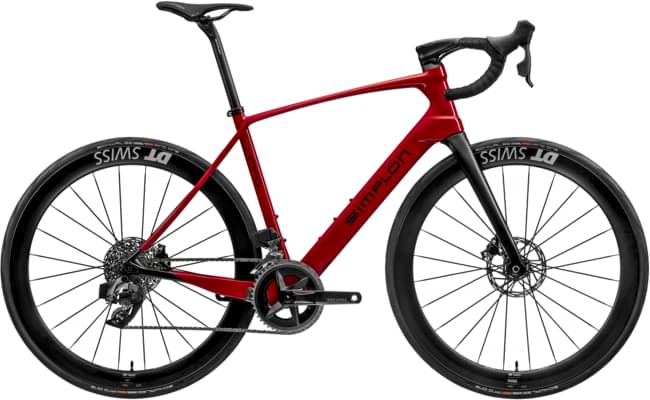

Kiaro Disc, Cosmic Red Glossy | Black Glossy, XXS (46)
Drivetrain
Rear Derailleur
Shimano Dura Ace Disc Di2
Shift Levers
Shimano Dura Ace Disc Di2
Cassette
Cassette Shimano Dura Ace 11-30, 12s
Crank
Crankset Shimano Dura Ace 52/36, 170mm, Powermeter
Wheels
Rims
Mavic Ksyrium SL-22-PRO ONE AddixRace,28-622
Brakes
Brakes
Shimano Dura Ace Disc Di2
Cockpit
Stem
No Stem selected
Handlebar
Simplon ERG Carbon 38cm
Headset
Acros AiX-344
Seat
Saddle
SLR Boost Covered (L) super flow carboceramic rail
Seatpost
CARBON ROD SL II 27.2x400mm 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.483 mm | 1.501 mm | 1.524 mm | 1.564 mm | 1.571 mm | 1.591 mm |
| Bottom Bracket Height | 262 mm | 262 mm | 262 mm | 262 mm | 262 mm | 262 mm |
| Front Center | 590 mm | 593 mm | 589 mm | 602 mm | 618 mm | 633 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 69 mm | 66 mm | 47 mm | 47 mm | 48 mm | 49 mm |
| Stack | 522 mm | 542 mm | 564 mm | 588 mm | 608 mm | 630 mm |
| Reach | 352 mm | 361 mm | 370 mm | 376 mm | 387 mm | 396 mm |
| Top Tube Length | 500 mm | 527 mm | 542 mm | 556 mm | 573 mm | 588 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 500 mm | 520 mm | 550 mm |
| Head Tube Angle | 69 ° | 70 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 120 mm | 136 mm | 151 mm | 176 mm | 195 mm | 216 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm |
| Wheelbase | 981 mm | 985 mm | 980 mm | 994 mm | 1010 mm | 1025 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm |
| Standover Height | 699 mm | 728 mm | 748 mm | 769 mm | 788 mm | 816 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
